ExpressLRS Recovery Dongle
ExpressLRS Recovery Dongle is an FTDI USB to TTL module based on CP2102 bridge controller, used for firmware upgrade for ESP32&ESP8XX chip. It will be useful to unlock the ELRS receiver when updating or flashing the firmware using UART fails.

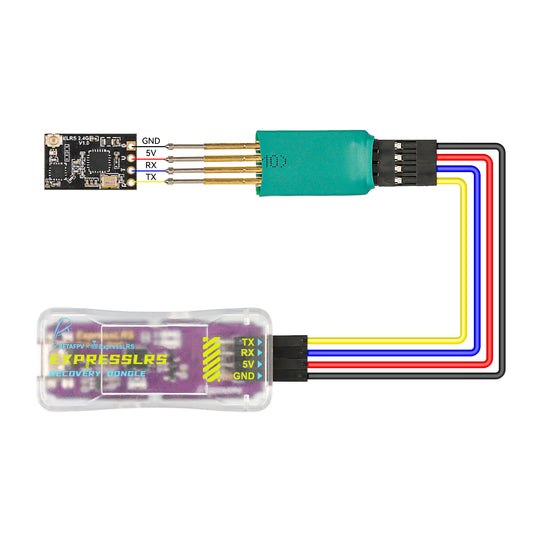

- Includes spring-loaded probe pins for more convenient use. The direct connection to the ELRS receiver does not need to be soldered.

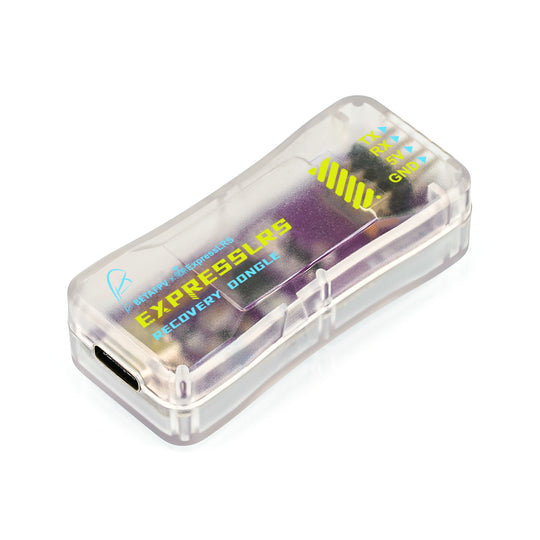

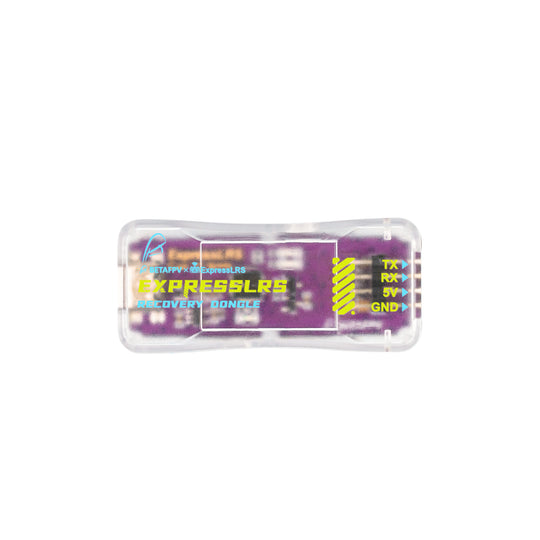

- The ExpressLRS Recovery Dongle FTDI USB to TTL module is cased and more durable and portable than the bare board version on the market.
- Windows, MAC and Linux support. This module uses a USB Type-C port to connect to a computer.
Specifications:
USB interface: USB Type C male connector
Operating voltage: 5V.
Logic voltage: 5V.
Output current of the 3.3V source: 400mA
Pin output method: 2x4P-2.54mm pin header
Serial baud rate: up to 921,600 bps.
Support USB 1.1, USB 2.0
USB to Serial Chip (CP2102) supports XP, win7 / win8 32bit, 64bit, win10 / 11 32bit, 64bit, Linux, MAC
Compatible receivers:
ELRS Lite receiver
ELRS nano receiver
ELRS micro receiver
Other ELRS receivers with ESP32&ESP8XX chip.
Package:
1 x ExpressLRS Recovery Dongle
1x 4-pin cable
1 x Probe Transducer Board
