Code: SKU:5753
ESC T-Motor F-60A-MINI-8S-4IN1
ESC T-Motor F-60A-MINI-8S-4IN1
Brand: T-Motor
Regular price
€89,90
Regular price
€89,90
Sale price
€89,90
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

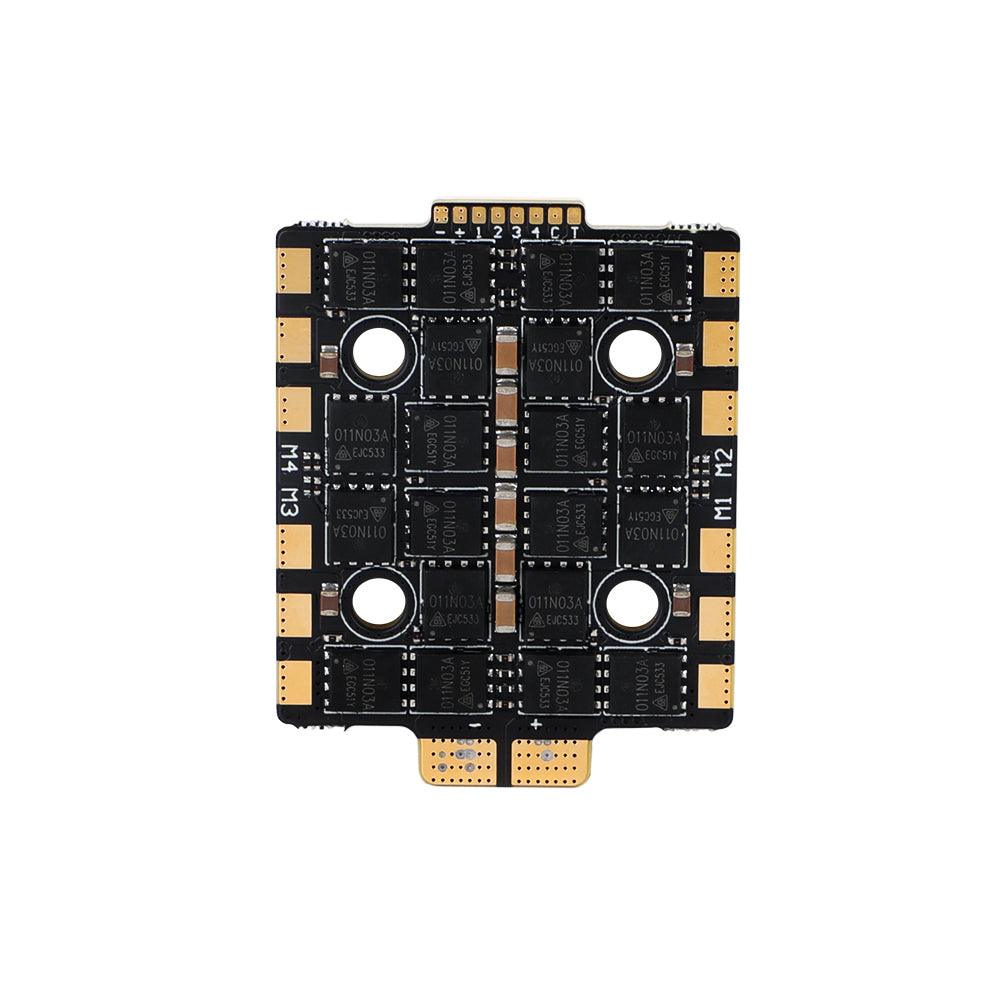

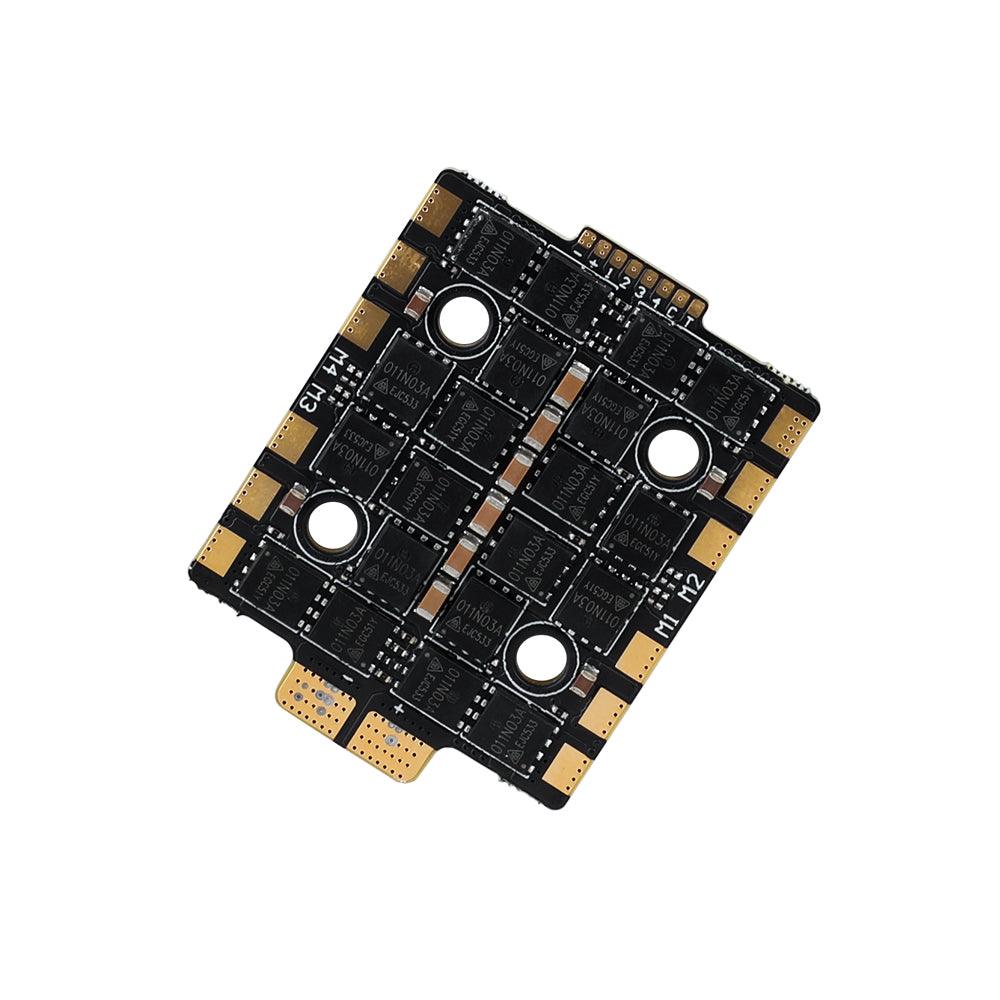

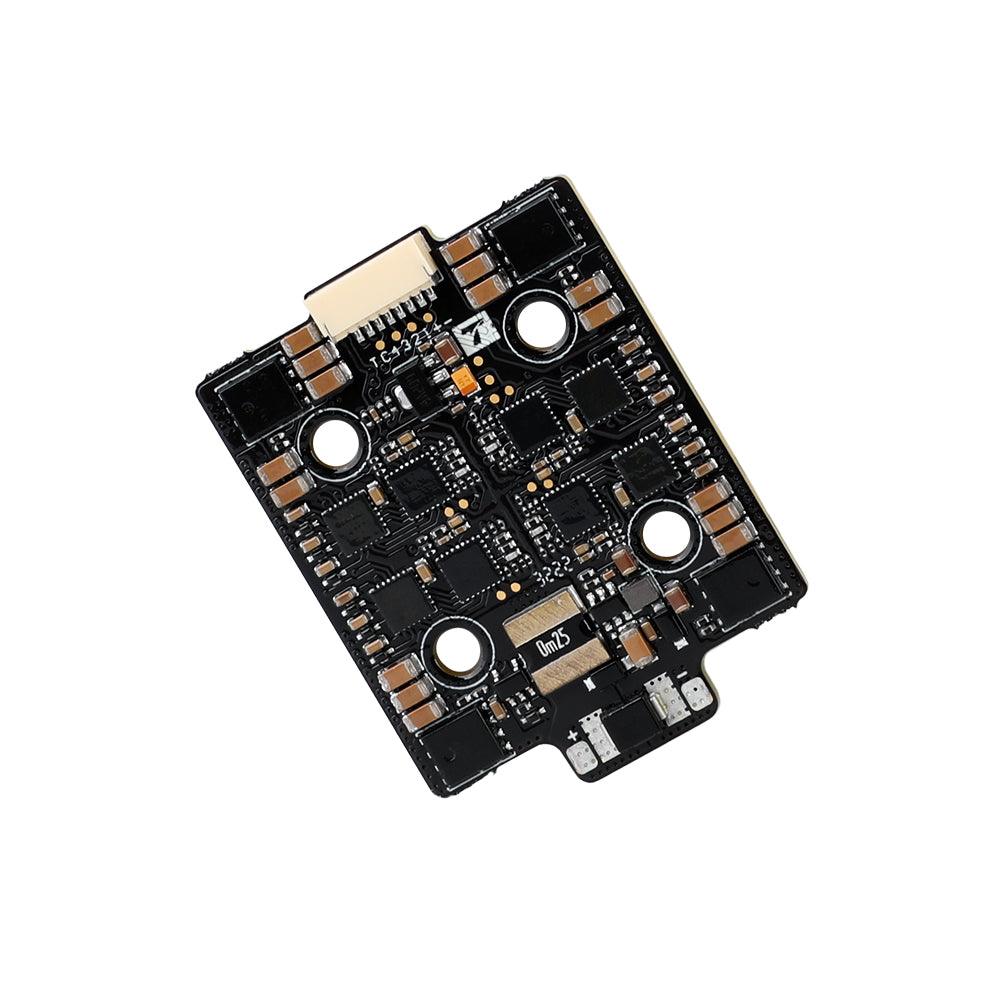

ESC T-Motor F-60A-MINI-8S-4IN1 ESC T-Motor F-60A-MINI-8S-4IN1 is a high-performance electronic speed controller designed for racing FPV and freestyle drones. With advanced features such as large MOSFETs, real-time telemetry and a compact design, it ensures efficient power management, durability and consistent performance for high-speed applications. Features: - Large MOS design: Increased heat dissipation area by more than 60%, increasing durability and reliability under heavy loads. - High current capacity: It can withstand up to 70 A of impulse and 60 A of continuous current with a low internal resistance of 0.75 mΩ. - Symmetrical MOS layout: Optimized for consistent signal transmission and reduced electrical noise. - Real-time monitoring: Supports telemetry and temperature monitoring for proactive fault detection. - Durable construction: Compact dimensions with robust mounting options, suitable for 4-8S LiPo assemblies. Specifications: - Input voltage: 4-8S LiPo - Constant current: 60A - Burst Current: 70A - PWM frequency: 16kHz-96kHz (default 24kHz) - Current scale: 200 - Mounting holes: 20 × 20 mm / Φ4 mm - Dimensions: 36 x 47mm The package contains: 1x ESC T-Motor F-60A-MINI-8S-4IN1 5x short shock-absorbing silicone pads 5x high shock-absorbing silicone pads 1x 32mm double-sided signal strap 1x 61mm single-sided signal strap 1x 35V 470μF capacitor 1x 100mm power cable XT60
