ESC SpeedyBee BLS 50A 30x30 4-in-1

Name: ESC SpeedyBee BLS 50A 30x30 4-in-1
Brand: Baltic Drones
SKU: SB-BLS-50A
Price: 46.57 EUR
Availability: OutOfStock

ESC SpeedyBee BLS 50A 30x30 4-in-1

Brand: SpeedyBee

€46,57

~~€46,57~~ €46,57

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

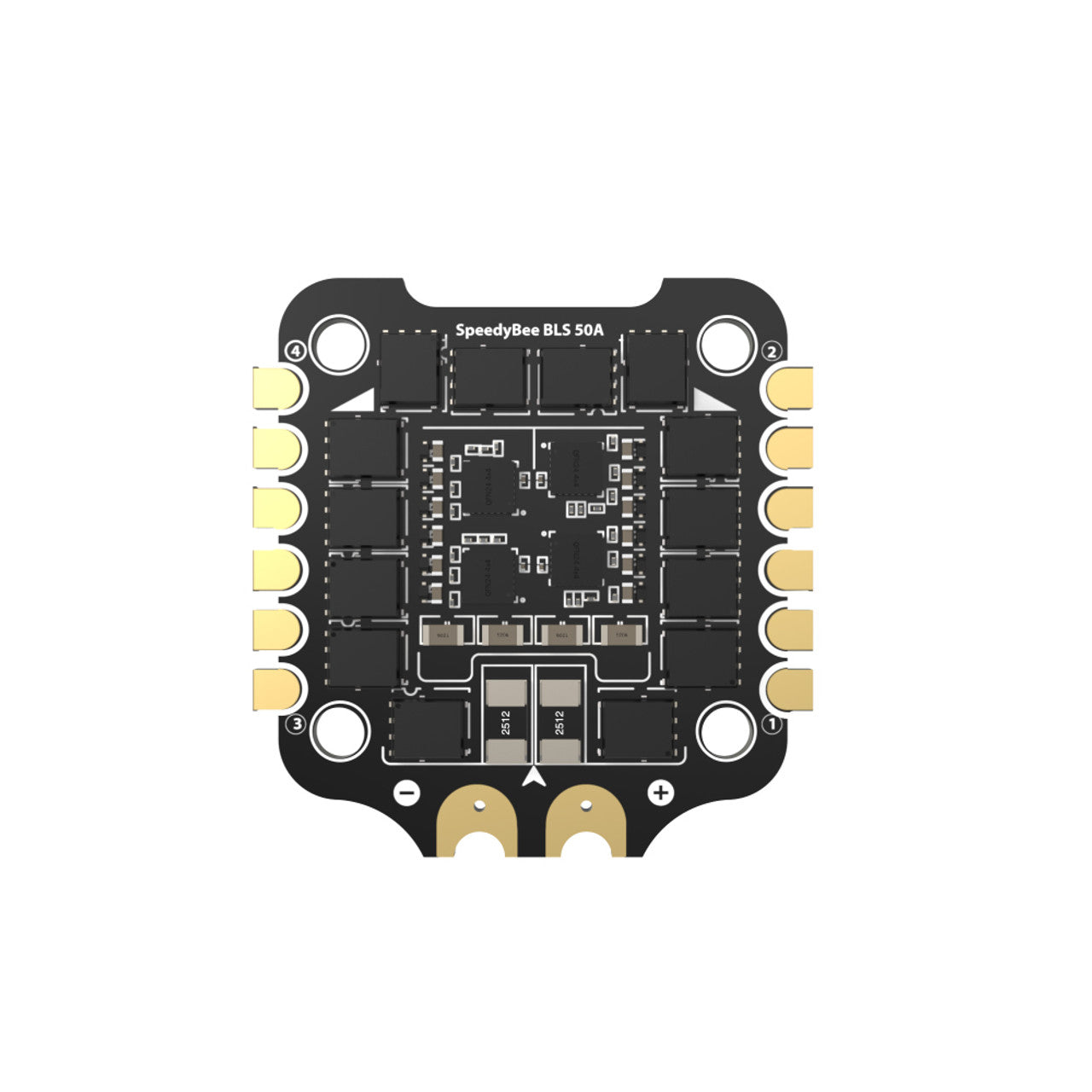

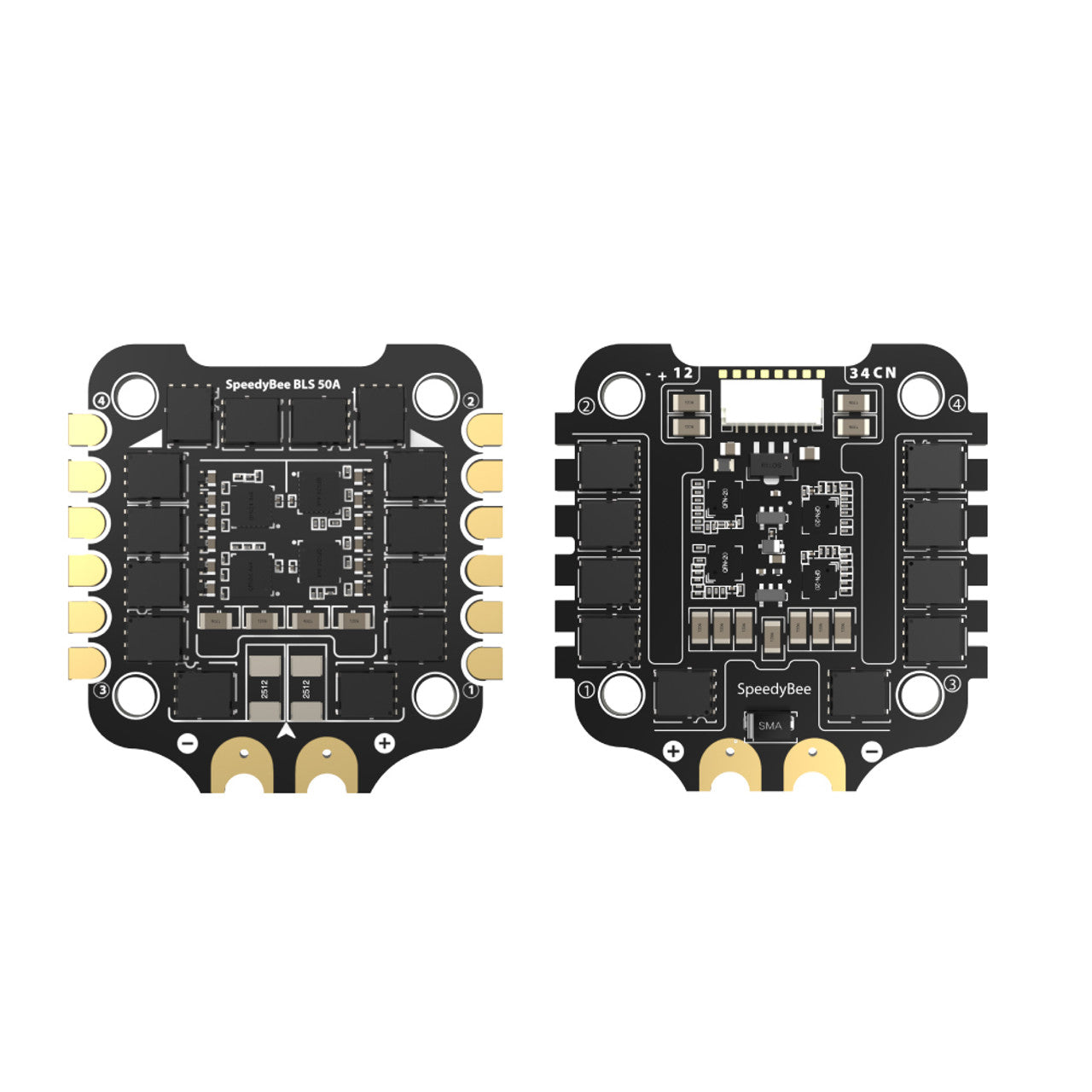

SpeedyBee BLS 50A 30x30 4in1 ESC

The SpeedyBee BLS 50A 30x30 4-in-1 ESC is equipped with a TVS diode that protects the board from voltage spikes. Made with robust MCU BB21 and large motor pads for easy soldering. Built with Japanese TDK filter SMT capacitors + integrated TVS protection diode, it brings a smooth flight experience.

Function:
-Large motor pads for easy soldering
- Smooth flight experience
-1500uF ESR capacitor
-30x30 mounting holes
- Robust BB21 MCU
-BLHeli_S JH50
-TVS diode

Specifications:
-Wireless configuration: Full configuration supported in SpeedyBee app
-External capacitor: 1500uF Low ESR capacitor (included)
- PC Configurator download link: https://esc-configurator.com/
- Mounting: 30.5 x 30.5 mm (hole diameter 4 mm)
-Current Sensor: Support (Scale=386 Offset=0)
-Dimension: 45.6 (L) x 44 (W) x 6.1 mm (H)
-ESC protocol: DSHOT300/600
-Continuous current: 50A x 4
-TVS Protection diode: Yes
- Firmware: BLHeli_S JH50
-Discharge current: 55A (5S)
-Power: 3-6S LiPo
- Output power: VBAT
- Weight: 13.8g

Includes:
1x SH 1.0mm 30mm long 8pin cable (for FC-ESC connection)
1x SpeedyBee 50A 3-6S BLHeli_S 4-in-1 ESC - 30x30
5x M3x8.1mm silicone grommets (for ESC)
1x 35V 1500uF Low ESR capacitor
1x XT60 power cable (70mm)
5x M3 silicone O ring





  SpeedyBee BLS 50A 30x30 4in1 ESC

The SpeedyBee BLS 50A 30x30 4-in-1 ESC is equipped with a TVS diode that protects the board from voltage spikes. Made with robust MCU BB21 and large motor pads for easy soldering. Built with Japanese TDK filter SMT capacitors + integrated TVS protection diode, it brings a smooth flight experience.

Function:
-Large motor pads for easy soldering
- Smooth flight experience
-1500uF ESR capacitor
-30x30 mounting holes
- Robust BB21 MCU
-BLHeli_S JH50
-TVS diode

Specifications:
-Wireless configuration: Full configuration supported in SpeedyBee app
-External capacitor: 1500uF Low ESR capacitor (included)
- PC Configurator download link: https://esc-configurator.com/
- Mounting: 30.5 x 30.5 mm (hole diameter 4 mm)
-Current Sensor: Support (Scale=386 Offset=0)
-Dimension: 45.6 (L) x 44 (W) x 6.1 mm (H)
-ESC protocol: DSHOT300/600
-Continuous current: 50A x 4
-TVS Protection diode: Yes
- Firmware: BLHeli_S JH50
-Discharge current: 55A (5S)
-Power: 3-6S LiPo
- Output power: VBAT
- Weight: 13.8g

Includes:
1x SH 1.0mm 30mm long 8pin cable (for FC-ESC connection)
1x SpeedyBee 50A 3-6S BLHeli_S 4-in-1 ESC - 30x30
5x M3x8.1mm silicone grommets (for ESC)
1x 35V 1500uF Low ESR capacitor
1x XT60 power cable (70mm)
5x M3 silicone O-ring
