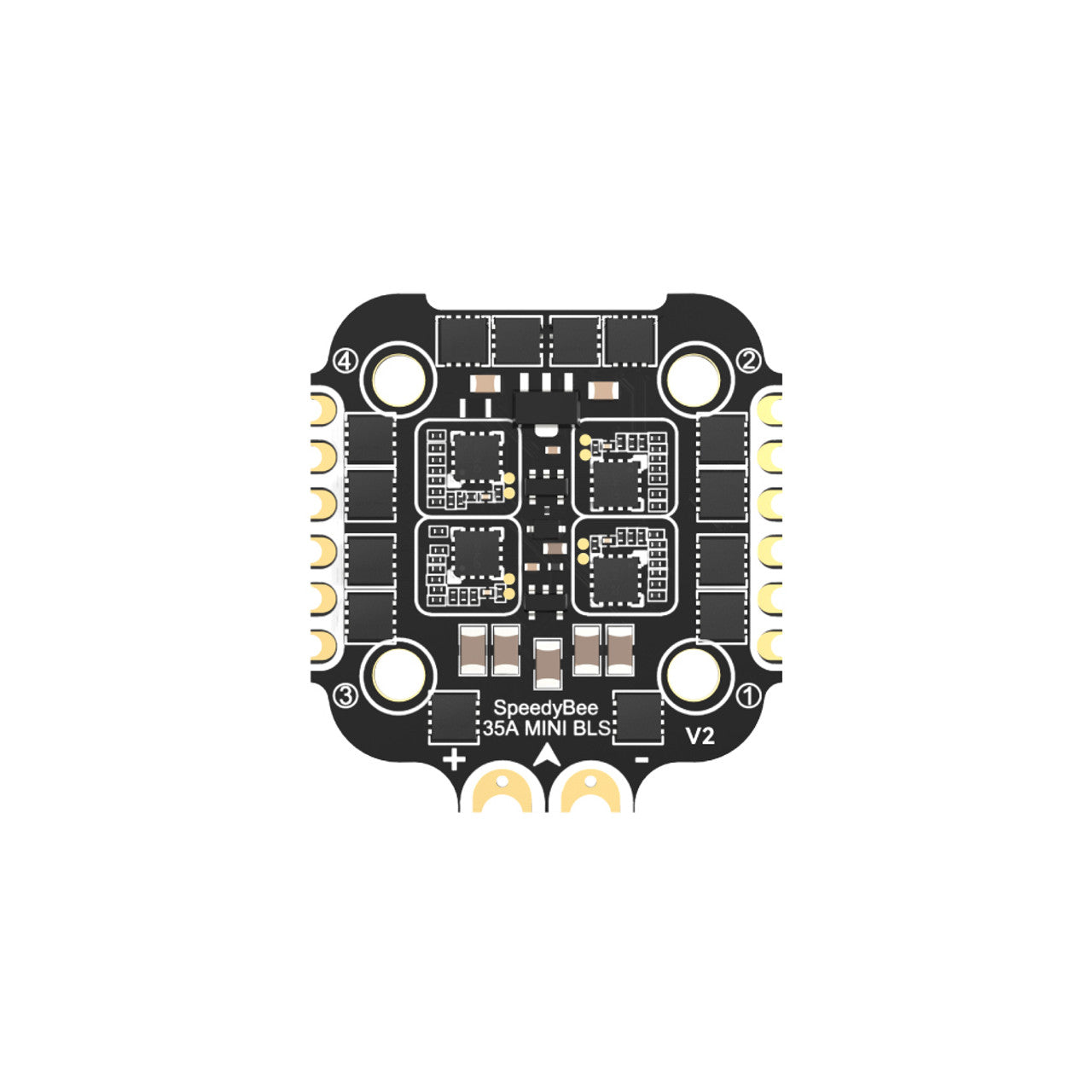

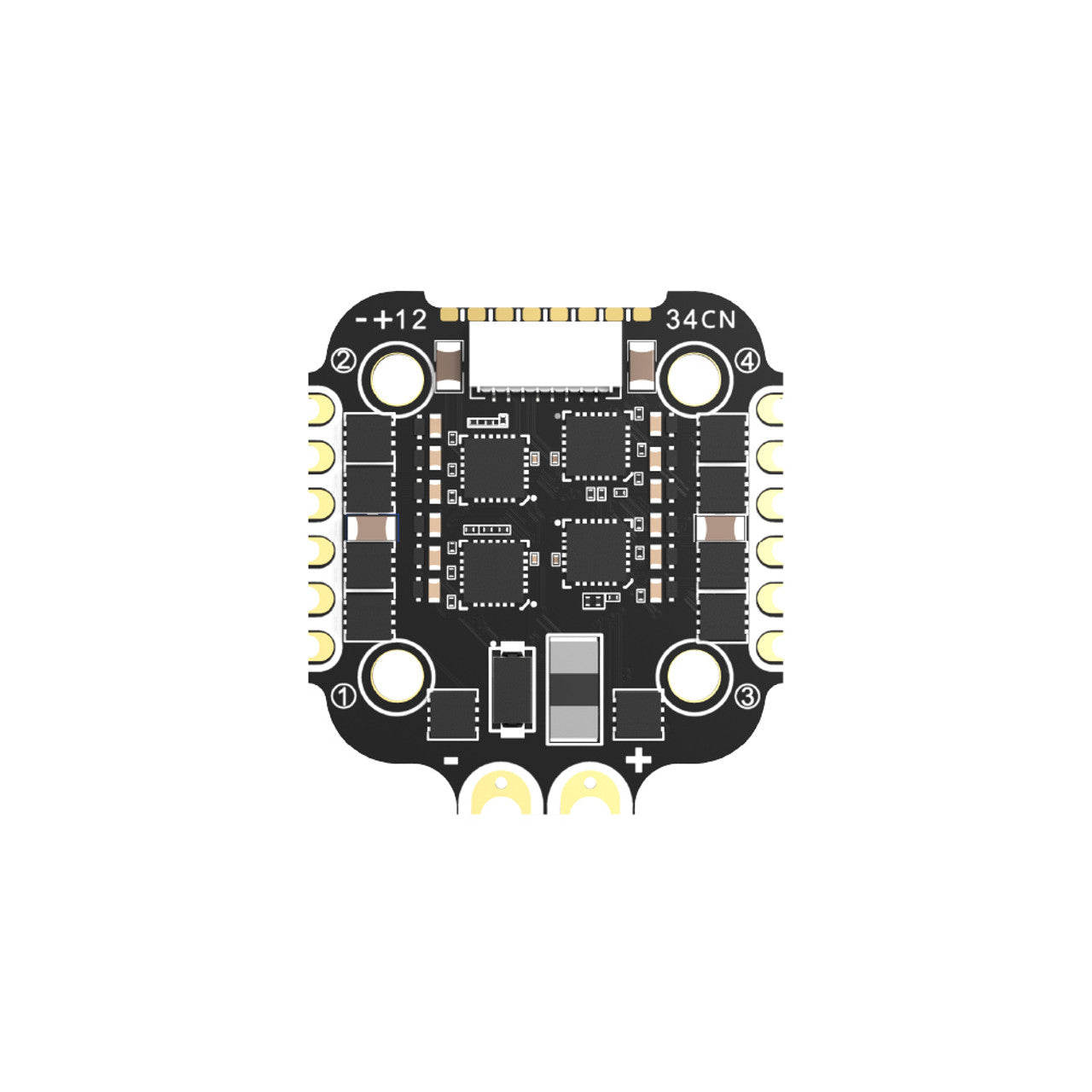

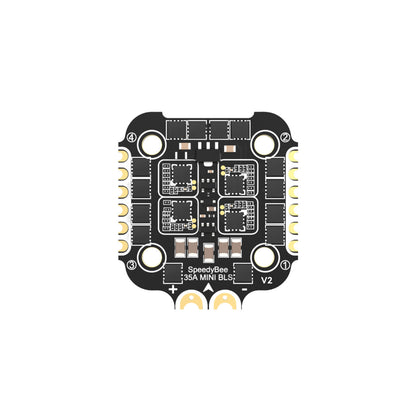

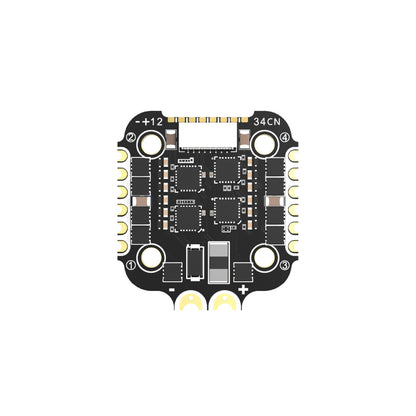

    SpeedyBee BLS 35A Mini V2 20x20 4in1 ESC

35A 4-in-1 BLHeli_S Mini ESC provides four synchronized outputs with 35A continuous current and provides strong power to drive all 2-4 inch and lightweight 5 inch quadcopters via 4-6S battery. It is equipped with an integrated diode to suppress TVS transients, better absorbs overvoltage and provides increased ESC protection.

Specifications:
Item: SpeedyBee BLS 35A Mini V2 20x20 4in1 ESC
Mounting: 20 x 20mm, 3.5mm hole size, compatible with M2 and M3 screws/silicone grommets
Power: VBAT (battery voltage, used to power the flight controller)
Current Sensor: Support (Scale=250 Offset=-500)
ESC telemetry: Not supported
Burst current: 45A (5 seconds)
Size: 35x35x5.5mm
ESC protocol: DSHOT300/600
Continuous current: 35A x 4
Firmware: BLHeli_S J-H-40
Power: 3-6S LiPo
Weight: 7.2g






    SpeedyBee BLS 35A Mini V2 20x20 4in1 ESC

35A 4-in-1 BLHeli_S Mini ESC provides four synchronized outputs with 35A continuous current and provides strong power to drive all 2-4 inch and lightweight 5 inch quadcopters via 4-6S battery. It is equipped with an integrated diode to suppress TVS transients, better absorbs overvoltage and provides increased ESC protection.

Specifications:
Item: SpeedyBee BLS 35A Mini V2 20x20 4in1 ESC
Mounting: 20 x 20mm, 3.5mm hole size, compatible with M2 and M3 screws/silicone grommets
Power: VBAT (battery voltage, used to power the flight controller)
Current Sensor: Support (Scale=250 Offset=-500)
ESC telemetry: Not supported
Burst current: 45A (5 seconds)
Size: 35x35x5.5mm
ESC protocol: DSHOT300/600
Continuous current: 35A x 4
Firmware: BLHeli_S J-H-40
Power: 3-6S LiPo
Weight: 7.2g
