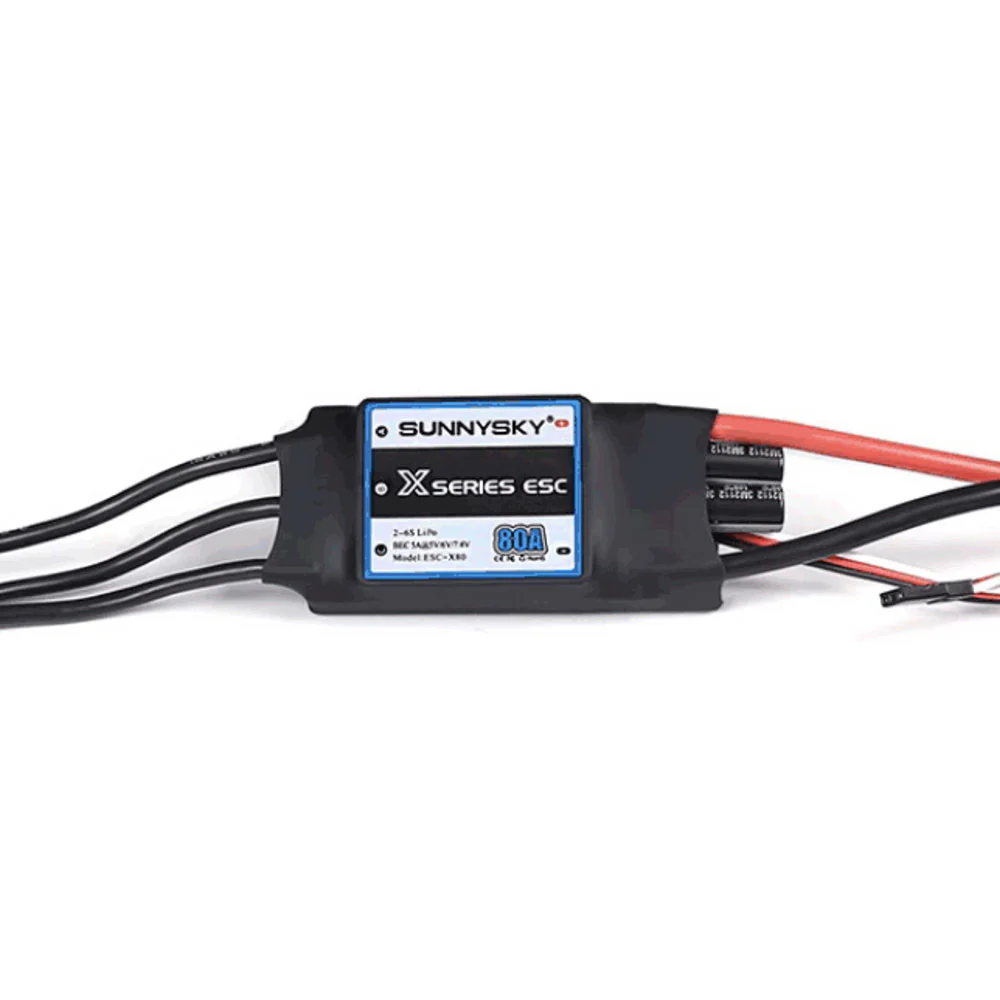

ESC Single SUNNYSKY X Series 80A 2-6S
Features:
- Uses powerful C8051F850 MCU with 8-bit C8051 core.
- Precise circuit design, high resistance to interference.
- The possibility to set the starting mode, fast response to the gas and very smooth linearity of the speed regulation.
- Possibility of setting the low voltage protection threshold.
- Various protection functions: start-up protection, overheat protection, throttle signal loss protection, low battery voltage protection, etc.
- Good start-up safety: the engine does not start immediately, regardless of the position of the throttle on the remote control.
- Sound signaling for checking the working status after switching on.
- Users can set the functions according to their needs. Cyclic menu for easy operation.
Specifications:
- Brand: SUNNYSKY
- Continuous current: 80A
- Peak current: 100A (≤10s)
- Input voltage: 2-6S LiPo
- BEC output: 5V/6V/7.4V @5A
- Motor connector: 4.0mm banana plug
- Battery connector: XT60
- Dimensions: 82×36×18mm (without cables)
- Weight: 114g
Notes:
- Make sure all solder joints are insulated with heat shrink tubing where needed.
- The default BEC voltage is 5V. Make sure the BEC voltage is correct before connecting.
The package contains:
- 1x SUNNYSKY X Series 80A ESC
- 1x User Manual
