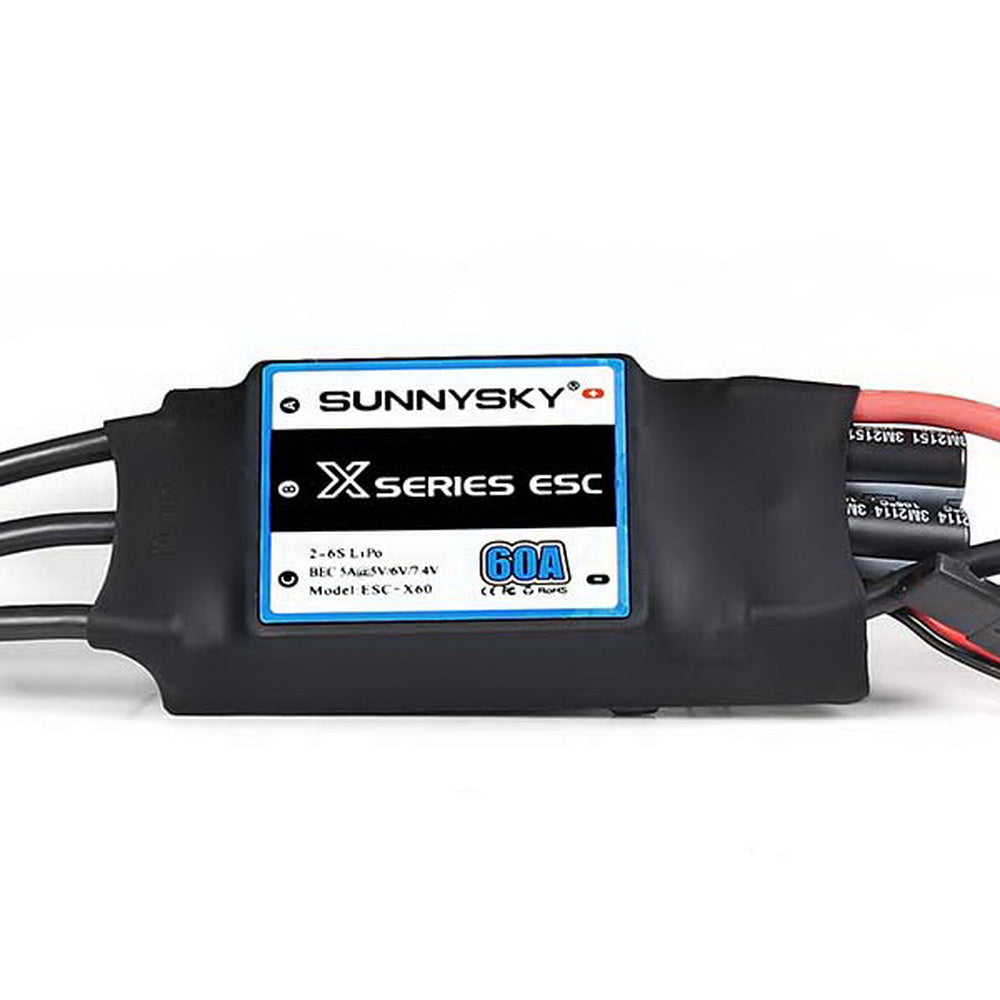

ESC Single SunnySky X Series 60A 2-6S

This 60A ESC is a reliable and versatile choice for powering powerful RC aircraft. With its robust continuous current capabilities, wide input voltage range and switchable output, the BEC offers the flexibility and durability required for demanding assemblies. Its compact and lightweight design ensures easy installation without compromising performance.

Features:

- Continuous current: Supports up to 60A of continuous current, which ensures stable operation during intensive flights.
- Burst Current: Can handle up to 80A for up to 10 seconds, providing extra power when needed.
- Wide voltage compatibility: Accepts input from 2-6S LiPo batteries, offering freedom in choosing power settings.
- Switchable BEC output: Provides 5V, 6V or 7.4V at 5A, providing reliable power for on-board electronics such as servos and receivers.
- Durable connection: It is equipped with a 3.5mm banana connector for connecting the motor and an XT60 connector for the battery, which ensures efficient power transfer.
- Compact and lightweight: Dimensions of only 82 × 36 × 18 mm (without wires) and weight of 94 g are ideal for various RC airplane models.

Specifications:

- Continuous current: 60 A
- Inrush current: 80 A (≤10 seconds)
- Input voltage: 2-6S LiPo
- BEC Output: Switchable 5V/6V/7.4V @ 5A
- Motor connector: 3.5mm banana connector
- Battery connector: 5 mm jack: XT60
- Dimensions: Dimensions: 82 x 36 x 18 mm
- Weight: 94 g

The package contains:

- 1x ESC Single SunnySky X Series 60A 2-6S
