    ESC Single SUNNYSKY 125A X125A PRO SBEC 3-8S

    ESC Single SUNNYSKY 125A X125A PRO SBEC 3-8S

    Brand: SunnySky

    €124,50
    €124,50 €124,50
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

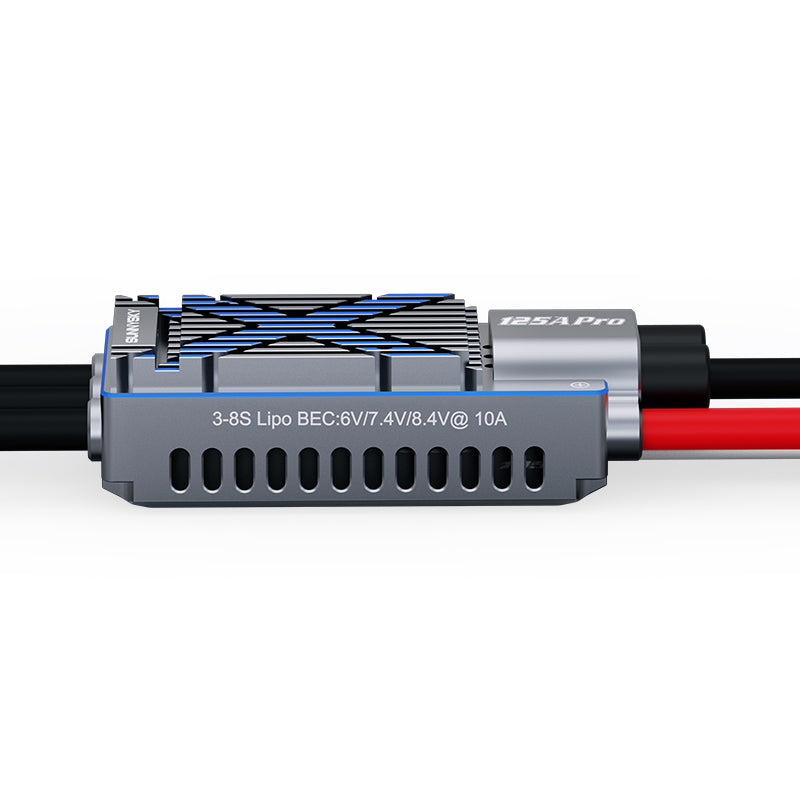

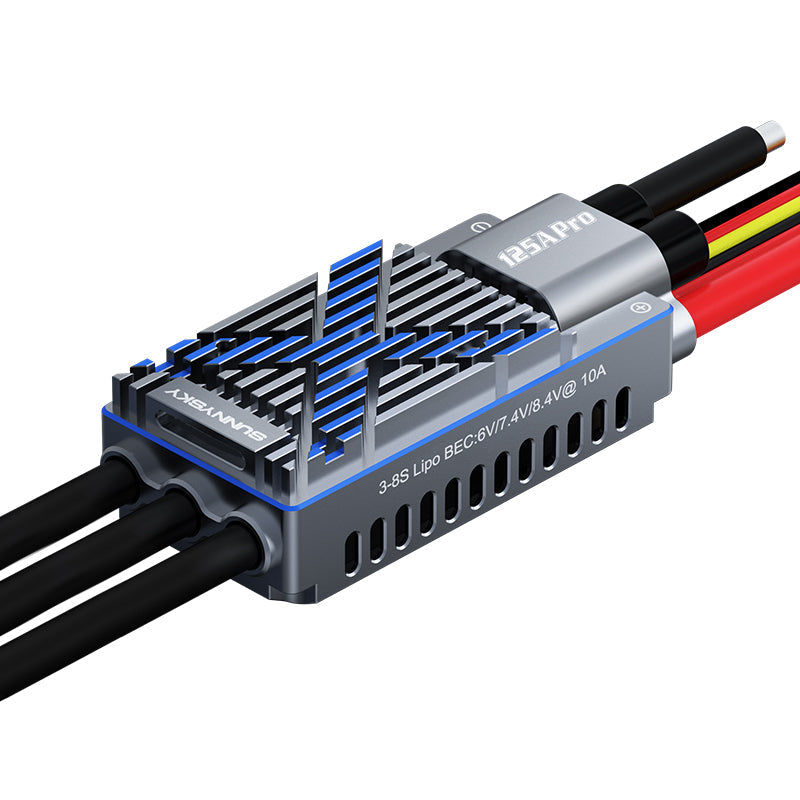

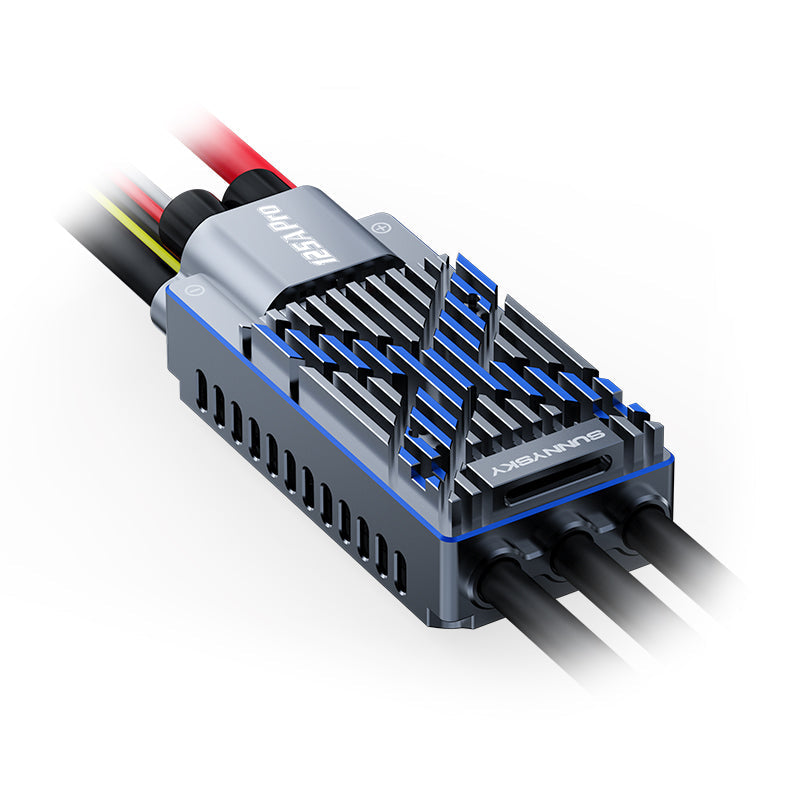

    ESC Single SUNNYSKY 125A X125A FOR SBEC 3-8S

SUNNYSKY X125A PRO is a high-performance ESC adapted for demanding fixed-wing model aircraft, 3D aerobatic models and helicopters. It is equipped with a powerful 32-bit processor operating at a frequency of 170 MHz, which ensures a quick response and advanced computing capabilities. Its next-generation MOSFET output design minimizes heat and maximizes reliability, while large heatsinks and solid fan cooling ensure exceptional thermal management. This ESC supports real-time programming and editing through a mobile app without the need to reboot the unit. Thanks to high compatibility - including Mikado Vbar and various telemetry protocols - users can fine-tune parameters directly from the transmitter.

Specifications:

Power wire: 10#150mm (red ×1 / black ×1).
Motor wire: 10#150mm (black ×3).
Continuous output current: 125 A
Peak output current (instantaneous): 150A
CPU frequency: 170MHz
Number of cells: 3-8S LiPo
Software update option: Supported
Telemetry function: Power function: Supported
Speed ​​control function: Supported
Anti-spark function: None
Weight: Including fan: 180g / Without fan: 170g
Dimensions: Including fan: 81 x 37 x 36.3 mm / without fan: 81 x 37 x 23.8 mm
BEC output: 6V, 7.4V, 8.4V adjustable / 10A peak current / 25A
Parameter programming: LCD G2 programming card / Android and Apple applications
Signal wire specification: 60C 490mm black, red, yellow 3-pin (two JR connectors) / 60C 490mm black, red, white 3-pin (common JR connector)
Data wire specification (telemetry): 30C 500mm yellow 1-pin (both ends JR connector) / 30C 500mm yellow 1-pin (one end 1.5-3-pin connector, one end JR connector)
Compatible aircraft models: 500-550 helicopter class (main blade: 470-550 mm) /
Class 70-90E 3D fixed wing aircraft

The package contains:

1 x ESC Single SUNNYSKY 125A X125A FOR SBEC 3-8S
