Code: SKU:5158

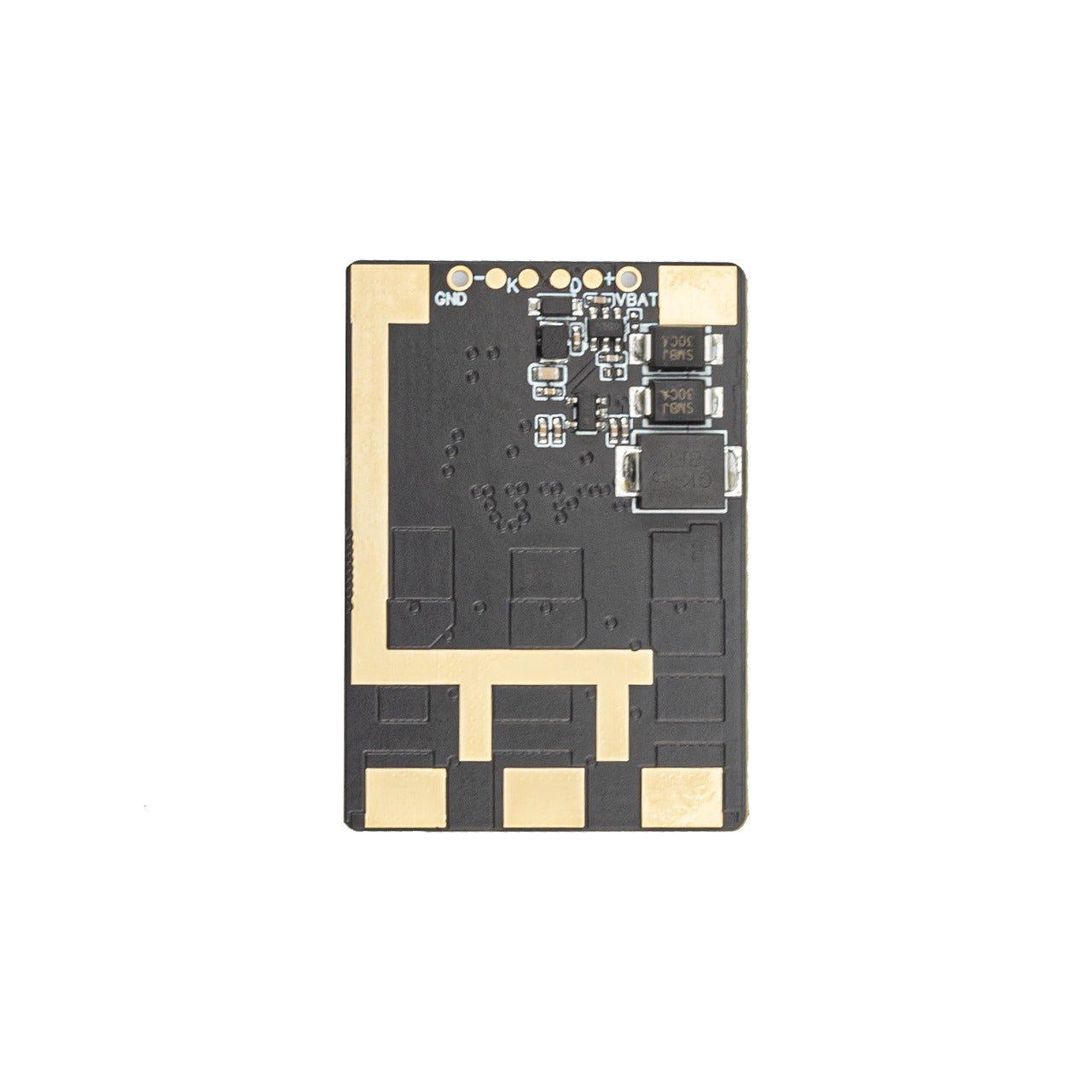

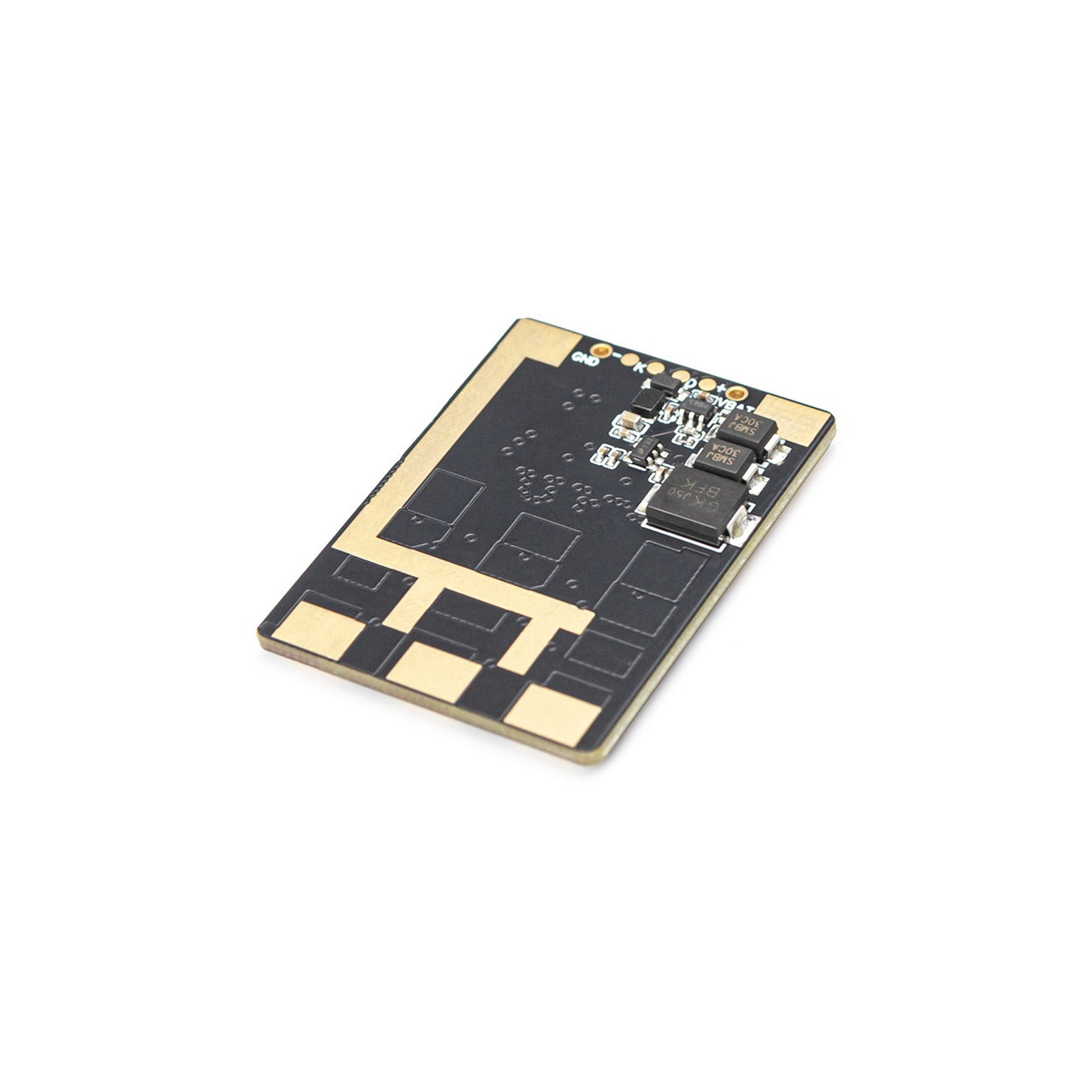

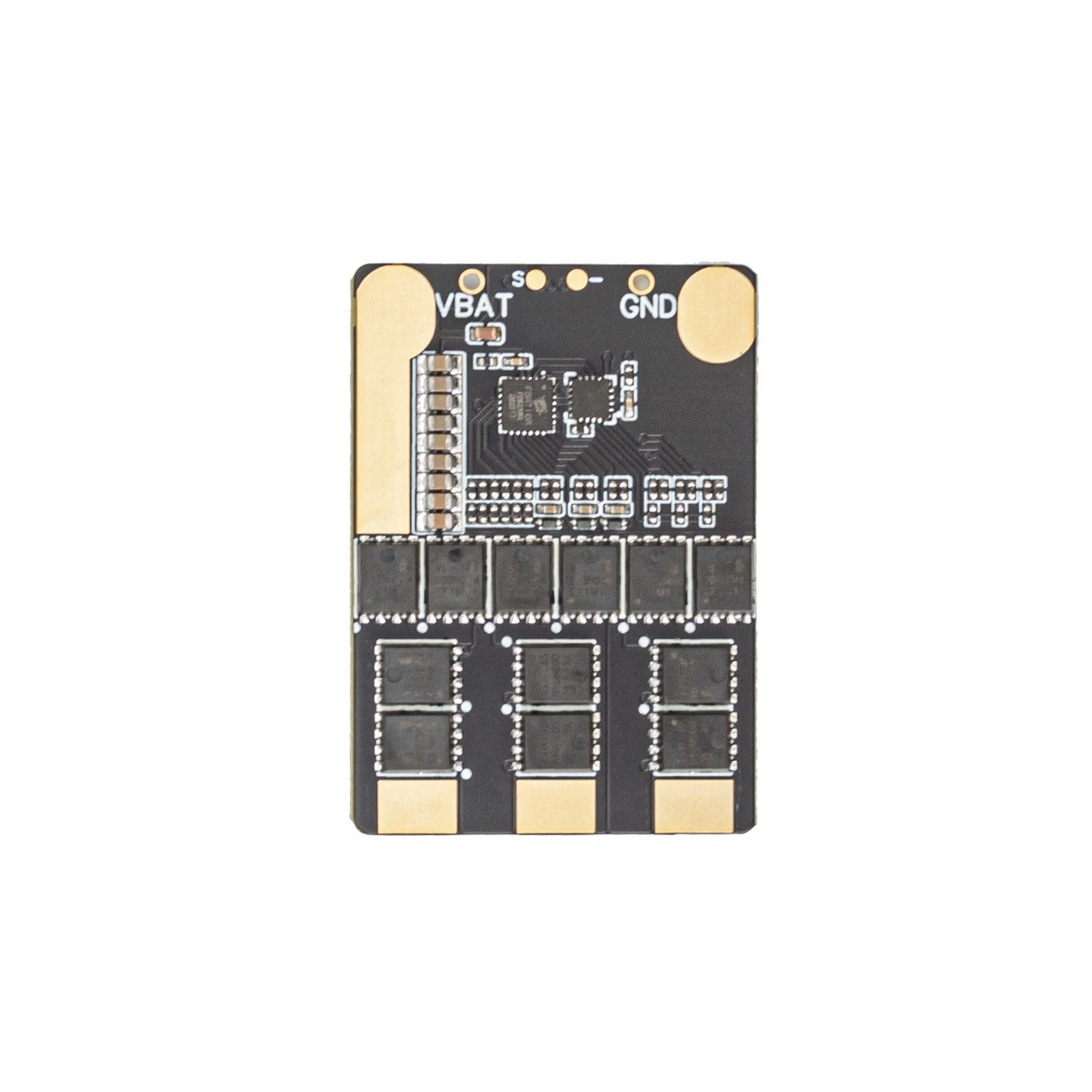

ESC Single Pilotix BLS 3-8S 100A burst 120A
ESC Single Pilotix BLS 3-8S 100A burst 120A
Brand: Pilotix
Regular price
€30,00
Regular price
€30,00
Sale price
€30,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
ESC Single Pilotix BLS 3-8S 100A burst 120A
Pilotix BLS 3-8S 100A Single ESC is a high-performance speed controller designed for demanding applications in drones and RC models. It can handle up to 100A continuous current and 120A peak current, making it suitable for heavy duty use with 3-8S LiPo batteries (11.1-33.6V). With an emphasis on reliability and accuracy, this ESC supports various ESC protocols such as DShot150/300/600, MultiShot and OneShot PWM.
Key Specifications:
- Input voltage: 3-8S (11.1-33.6V)
- Continuous current: 100A
- Peak current: 120A
- Permanent power: 2500W
- Peak power: 3000W
- ESC firmware: BLheli_S 16.7 / Bluejay 0.19.2
- Dimensions: 45x32mm
- PCB: 6 layers, 3 OZ copper thickness
- Working temperature: -40℃ to 90℃
- Engine compatibility: 4312/4214/4218/5330 or similar models
- BLS/Bluejay Configuration Tool: ESC Configurator
Important notes:
- Ensure sufficient cooling for high current operation.
- For models with 13-inch propellers and larger, use a 35V 1500µF or higher capacitor.
- For large motors, set the ESC power acceleration parameter to a lower value, for example 6-7x.
-

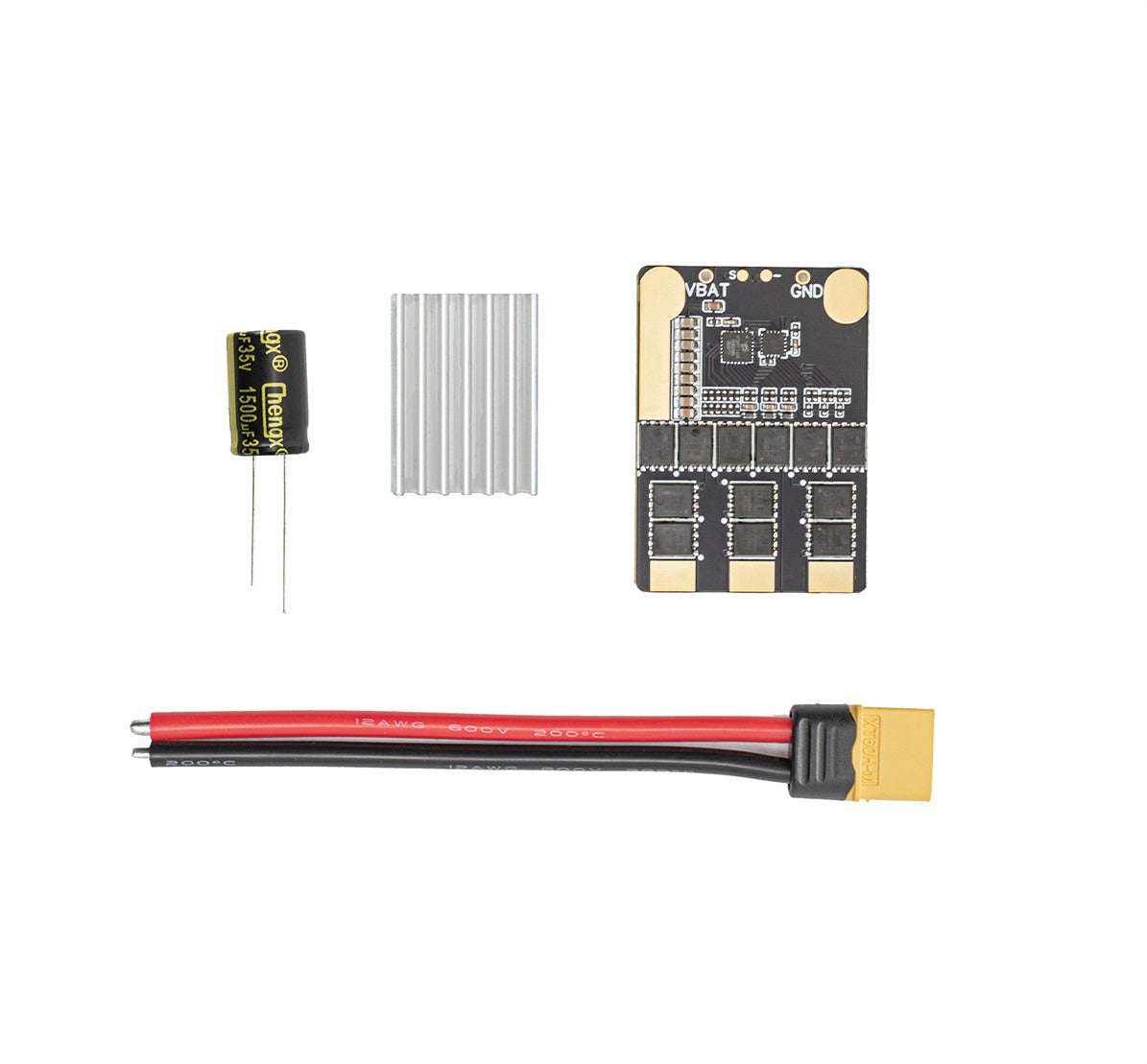

The package contains:
- 1x ESC Single Pilotix BLS 3-8S 100A (peak 120A)
