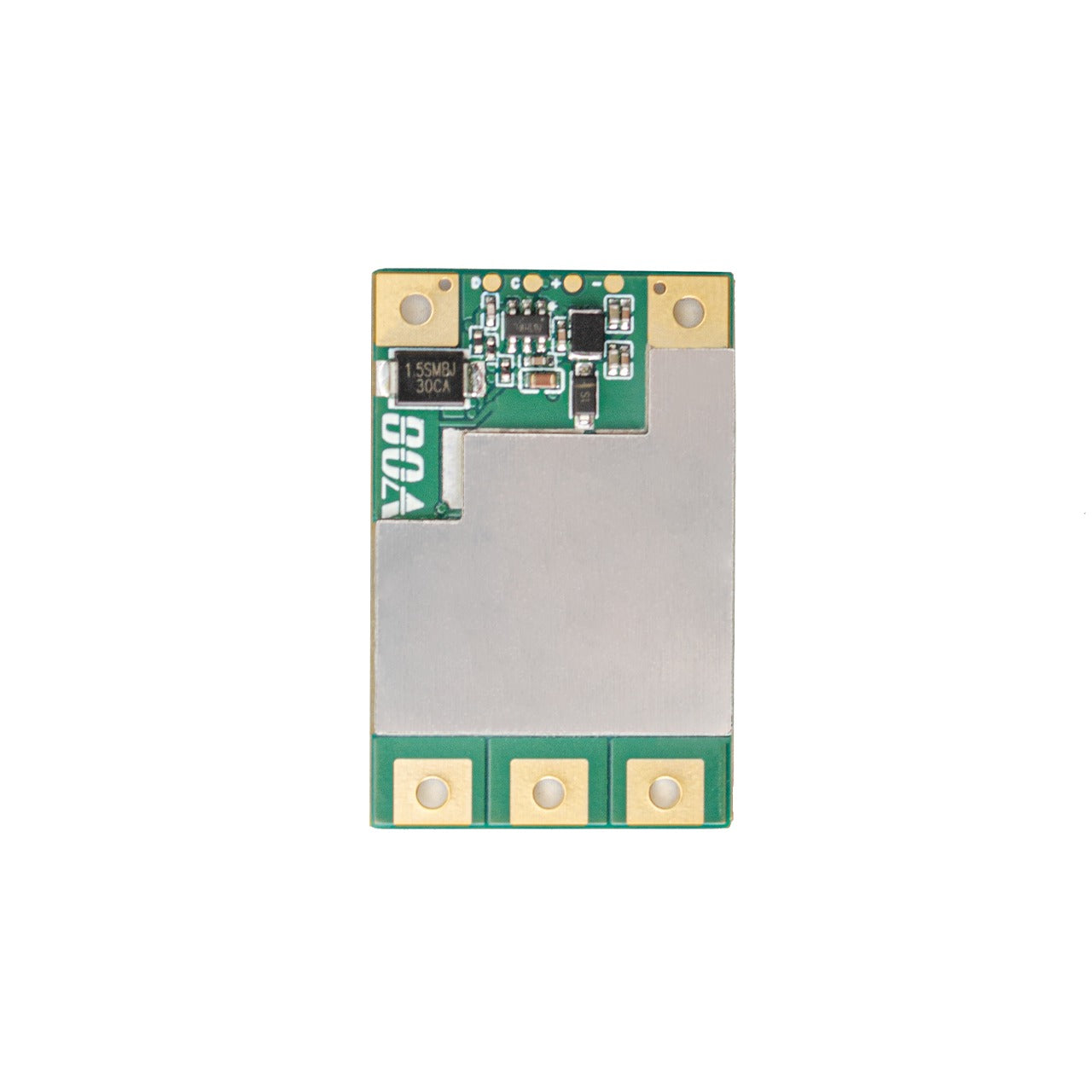

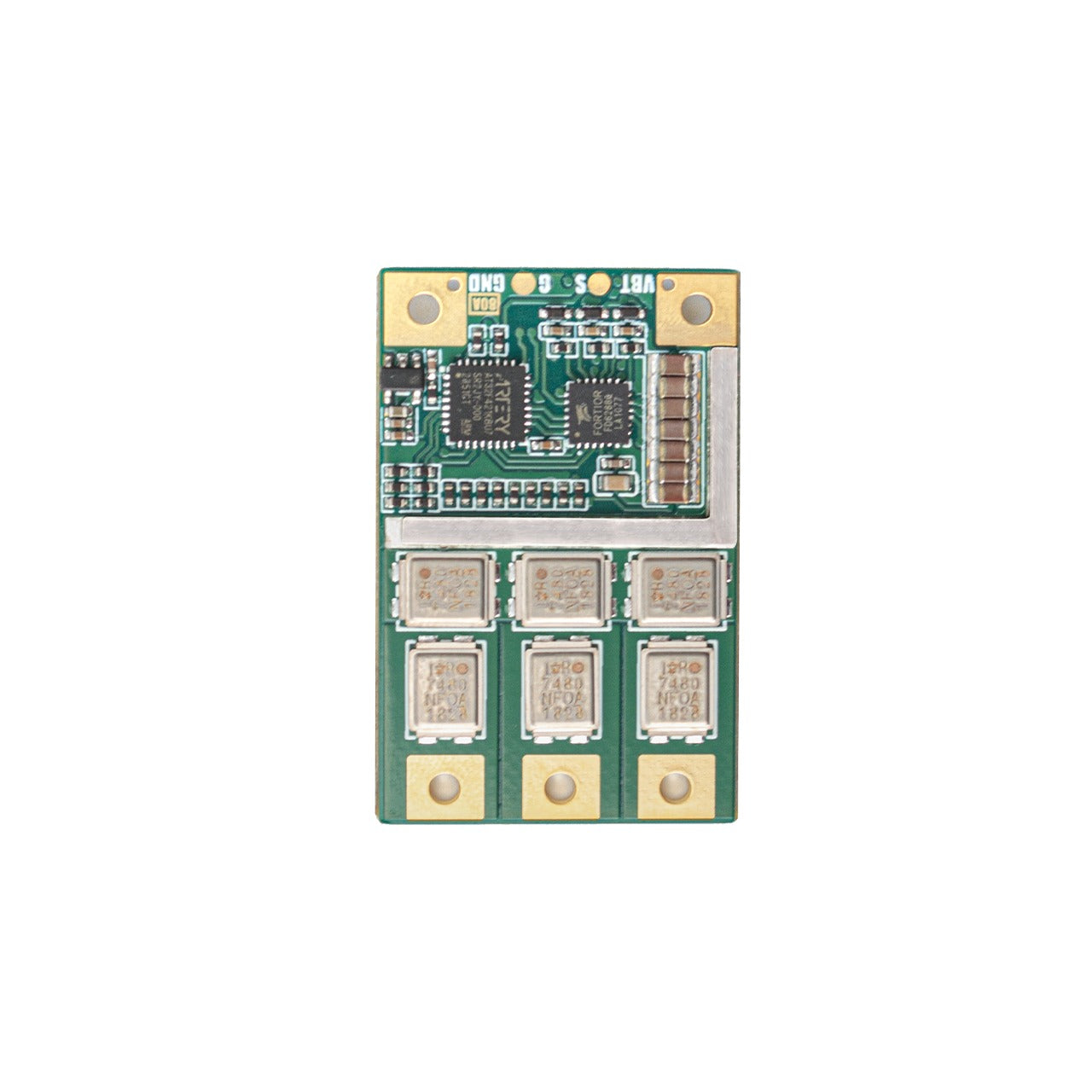

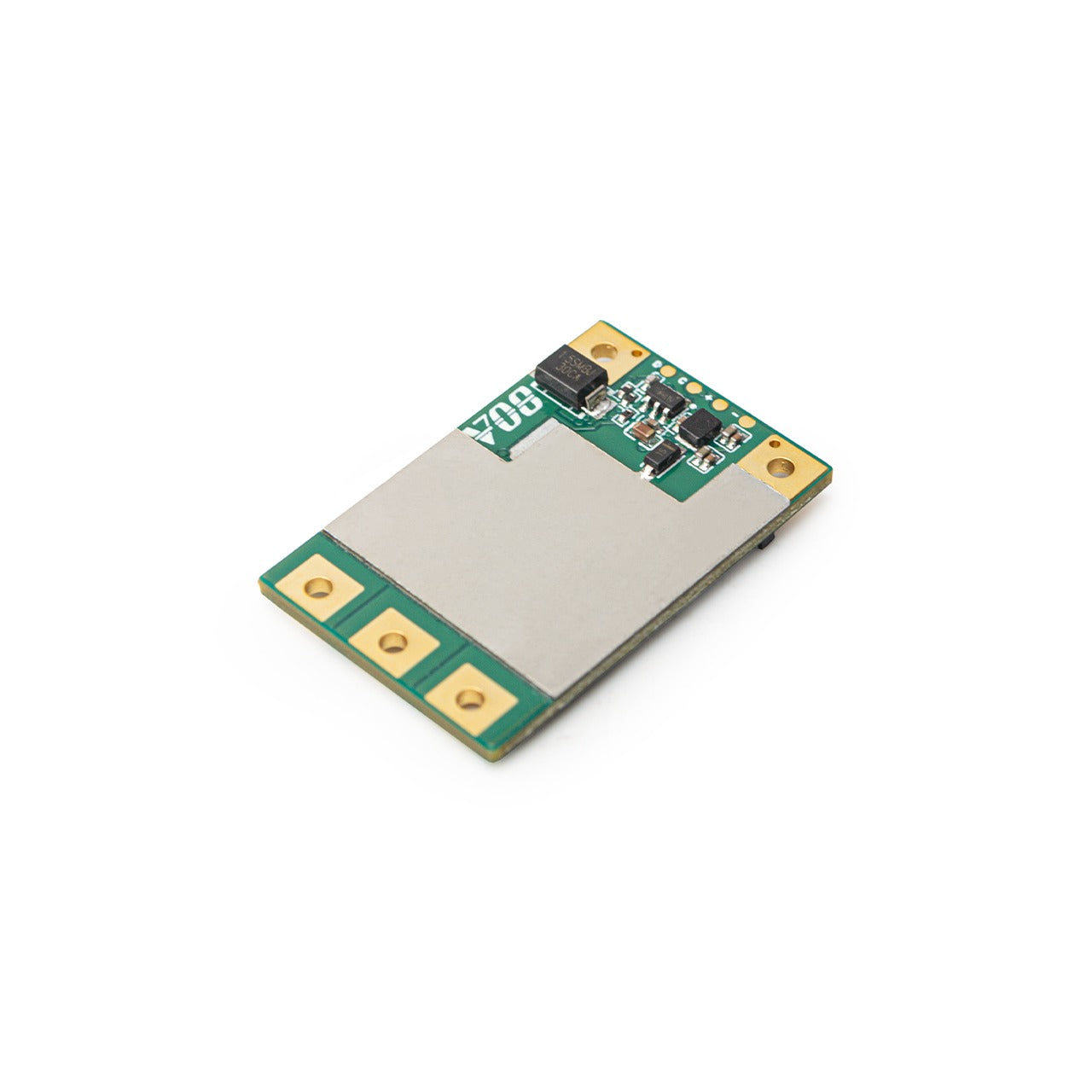

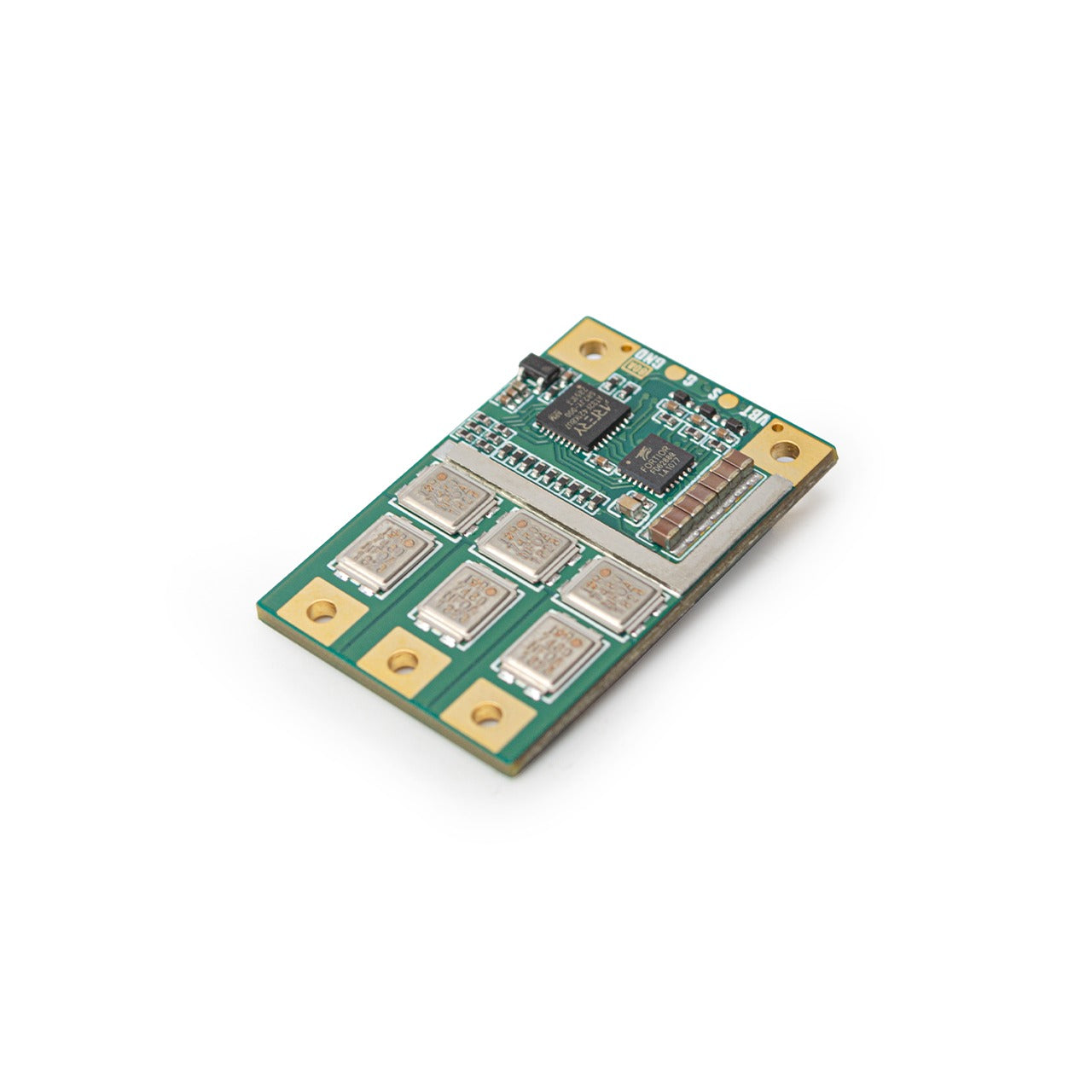

ESC Single Pilotix 32bit AM32 80A burst 90A
Pilotix 32bit АМ32 ESC is a high-performance electronic speed controller designed for demanding applications. It supports a continuous current of 80A with a burst capacity of up to 90A, which ensures stable power supply even in extreme conditions. Thanks to its 32-bit architecture, it increases response time and accuracy, making it ideal for advanced FPV drones.
Specifications:
Model Name: Pilotix АМ32 single ESC MCU: AT32F421 Core: ARM ® Cortex ® - M4 1900WPeak power: 2100W
Current sensor: No
Telemetry: No
Bidirectional Dshot: Support
ESC firmware: HF32
ESC protocol: DShot150/300/600/MultiShot/OneShot etc.(PWM is not supported)
Dimensions: 37x24mm
Flat board connections: 6 layers 3 OZ
Configuration tool: https://hf32.neutron-rc.com/
Important notice:
1. Sufficient heat dissipation is required for high current operation.
2. If you want to change from HF32 firmware back to AM32 firmware, you need to use ATlink parameter setter.
3. The AM32 firmware is more suitable for RC climbing vehicles, while the HF32 firmware is more suitable for fixed-wing and multi-axis aircraft.

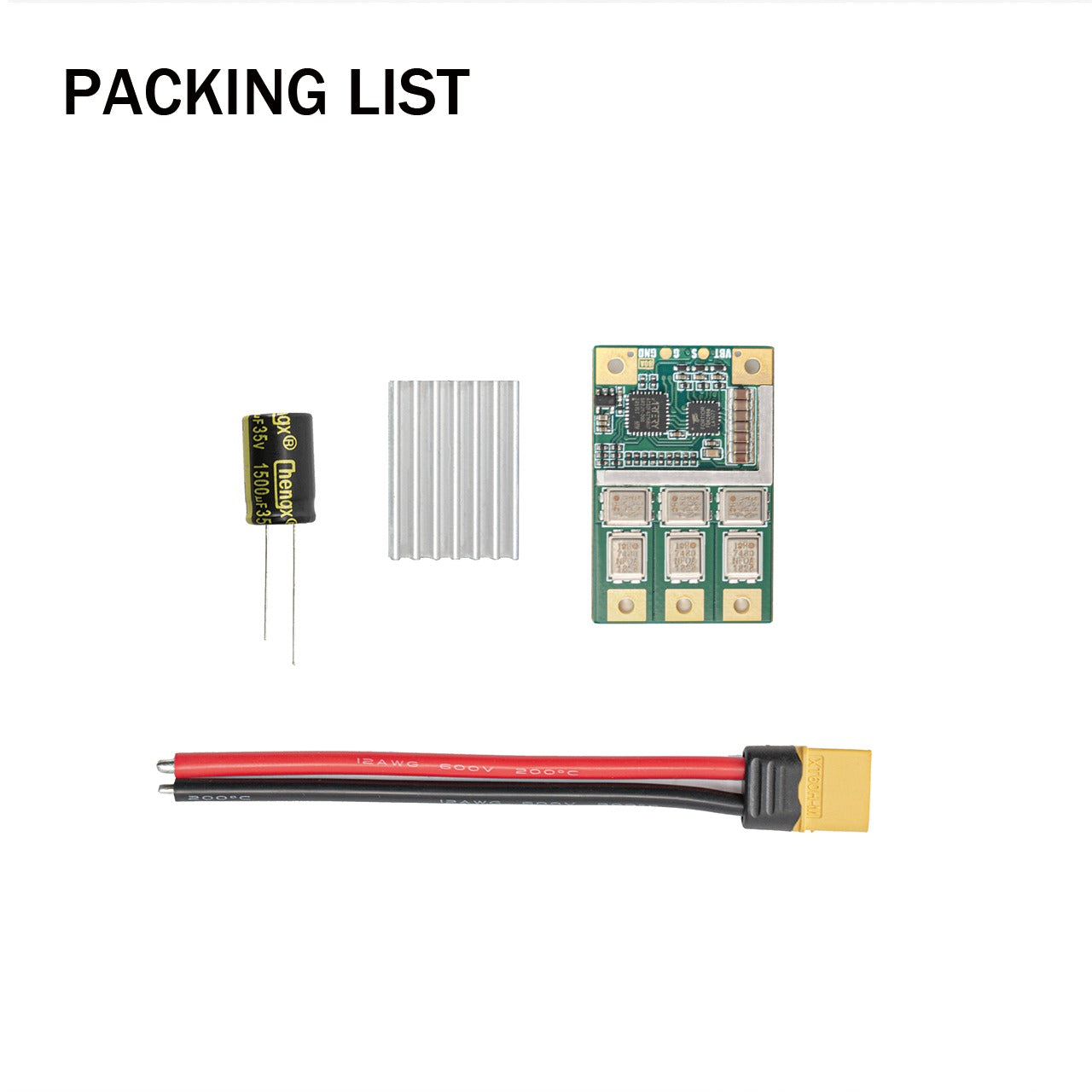

Package includes:
1x ESC Pilotix 32bit АМ32 80A burst 90A
