Code: SKU:W-FW040004-T1S3-H01
ESC Single Flycolor X Cross 2 40A 2-4S
ESC Single Flycolor X Cross 2 40A 2-4S
Brand: Flycolor
Couldn't load pickup availability
- Description
- Related Files
- Discussion

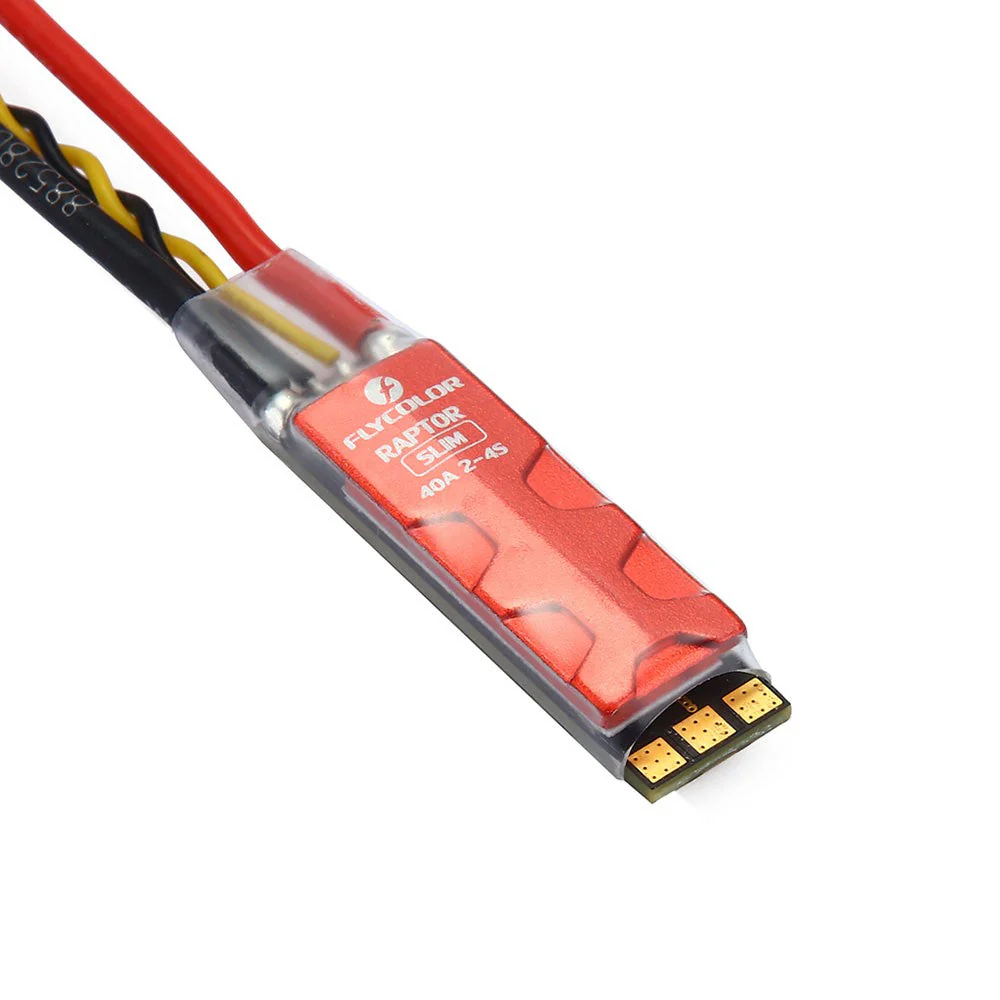

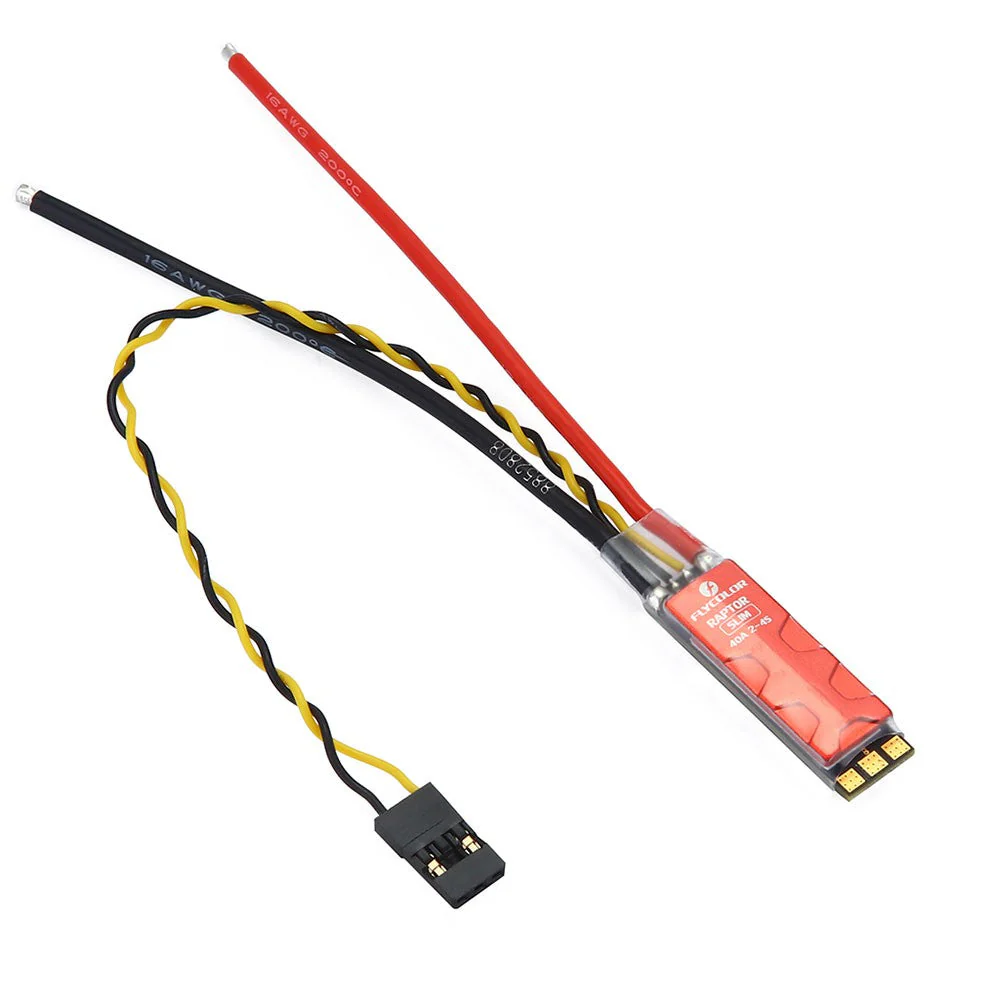

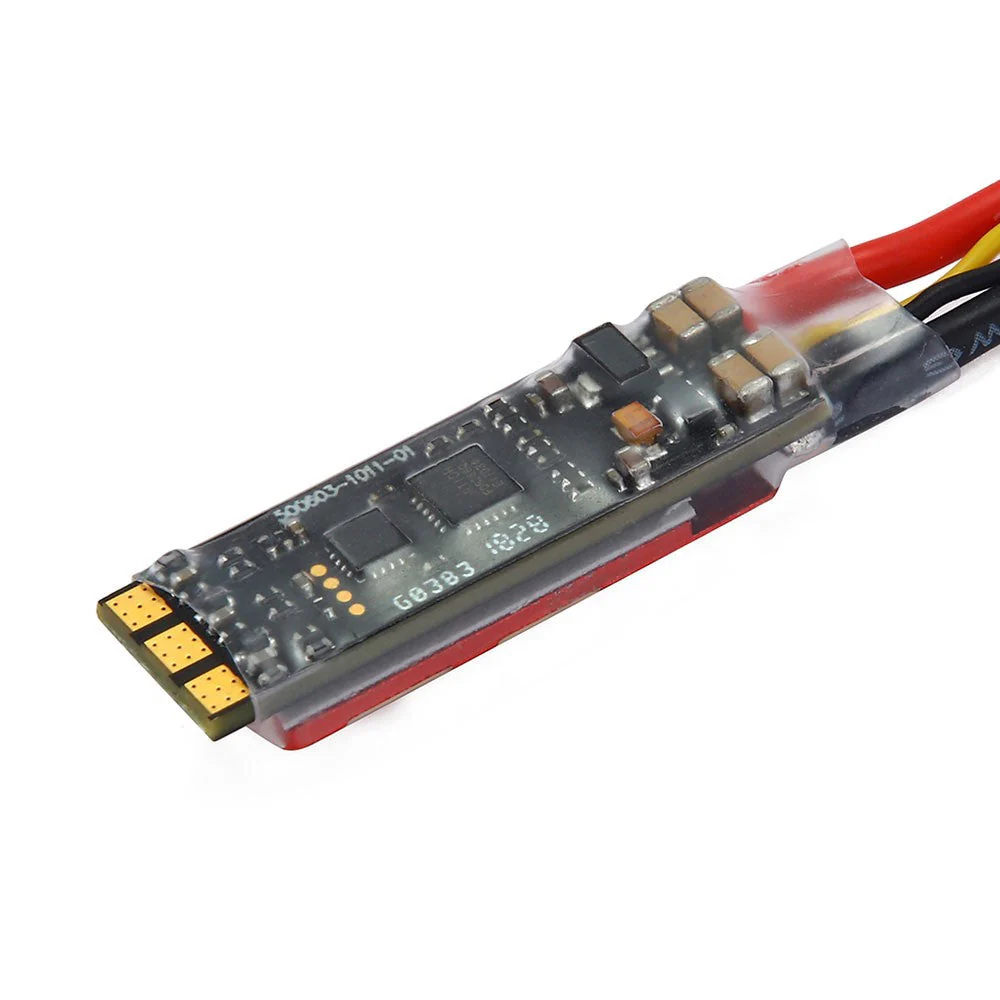

Raptor Slim 40A ESC
The Raptor Slim is an ultra-narrow controller designed for racing drones where saving weight and space is key. With a width of only 10 mm and a weight of 9 g, it is an ideal choice for drones with narrow arms. With BLHeli_S firmware and support for 2-4S power supply, this ESC is more than capable of powering your racing drone.
Features:
- EFM8BB21F16G MCU with 8-bit C8051 core and maximum operating frequency of 50 MHz.
- A special high-frequency driver ensures a smooth start. The maximum speed of the ESC is 500k eRPM.
- The BLHeli_S firmware is optimized for high performance multirotors and provides smooth throttle response and quiet operation thanks to hardware generated PWM.
- The Damped Light function enables regenerative braking for rapid engine deceleration and active idling.
- Support 1-2ms PWM, Oneshot and Multishot input signals, which the ESC automatically detects when powered on.
- Support Dshot150, Dshot300 and Dshot600 digital signals, which provide stronger immunity to interference and do not require gas calibration.
- Silicone twisted pair throttle signal cables increase lifespan and reduce crosstalk, contributing to more stable flight.
Specifications:
- Power supply: 2-4S Lipo
- Constant current: 40A
- Peak current: 50A
- BEC: Not
- MCU: EFM8BB21F16G
- Operating frequency: up to 50 MHz
- Firmware: BLHeli_S C-H-40
- Dimensions: 35 × 10 × 7 mm
- Weight: 9.1g
The package contains:
- 1× Raptor Slim 40A ESC
