Code: SKU:W-FW030004-S3S2-H01

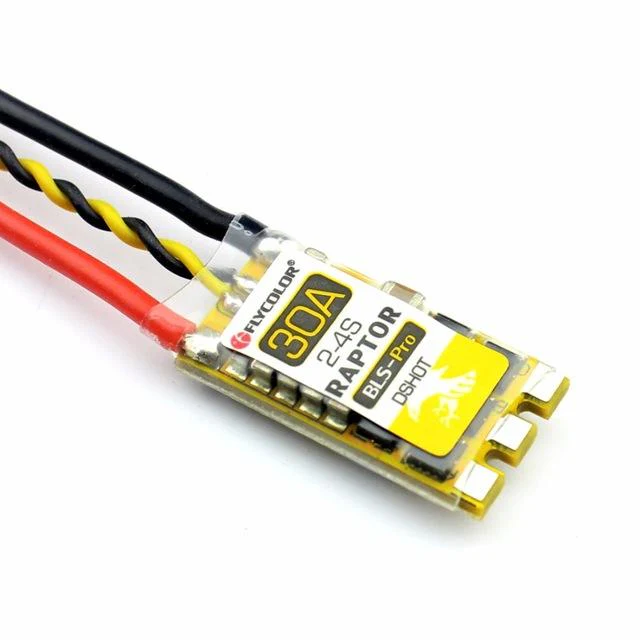

ESC Single Flycolor Raptor Pro 30A 2-4S
ESC Single Flycolor Raptor Pro 30A 2-4S
Brand: Flycolor
- Description
- Related Files
- Discussion
LHeli-S, designed for extreme performance and smooth throttle response. It is compatible with modern signals such as Oneshot, Multishot and Dshot, making it an ideal choice for multirotors with high speeds and demanding requirements.
Features:
- BLHeli-S firmware, fully configurable via flight controller.
- Compatibility with Oneshot, Multishot and Dshot signals.
- High KV motors support.
- MCU EFM8BB21F16G, 8-bit C8051 core with a maximum working frequency of 50 MHz.
- The high frequency driver ensures a smooth increase in performance.
- Ability to reach up to 500k eRPM.
- Damped Light with active engine braking, which ensures quick deceleration and better handling.
- Prevention of loss of synchronization with tunable parameters that ensure reliable performance even in demanding conditions.
- Automatic input signal detection (analog 1-2ms, Oneshot125, Oneshot42, Multishot) at power on.
- Support Dshot150, Dshot300 and Dshot600, digital signals with immunity to interference and no gas calibration required.
- Silicone twisted pair throttle signal cables increase flight stability and reduce crosstalk.
Technical specifications:
- Model: Raptor BLS Pro-30A
- Constant current: 30A
- Peak current: 40A (for 10 seconds)
- Number of cells: 2-4S LiPo
- Weight: 6.2 g
- Dimensions: 26.5 x 13 x 5 mm
