Code: SKU:BE17435

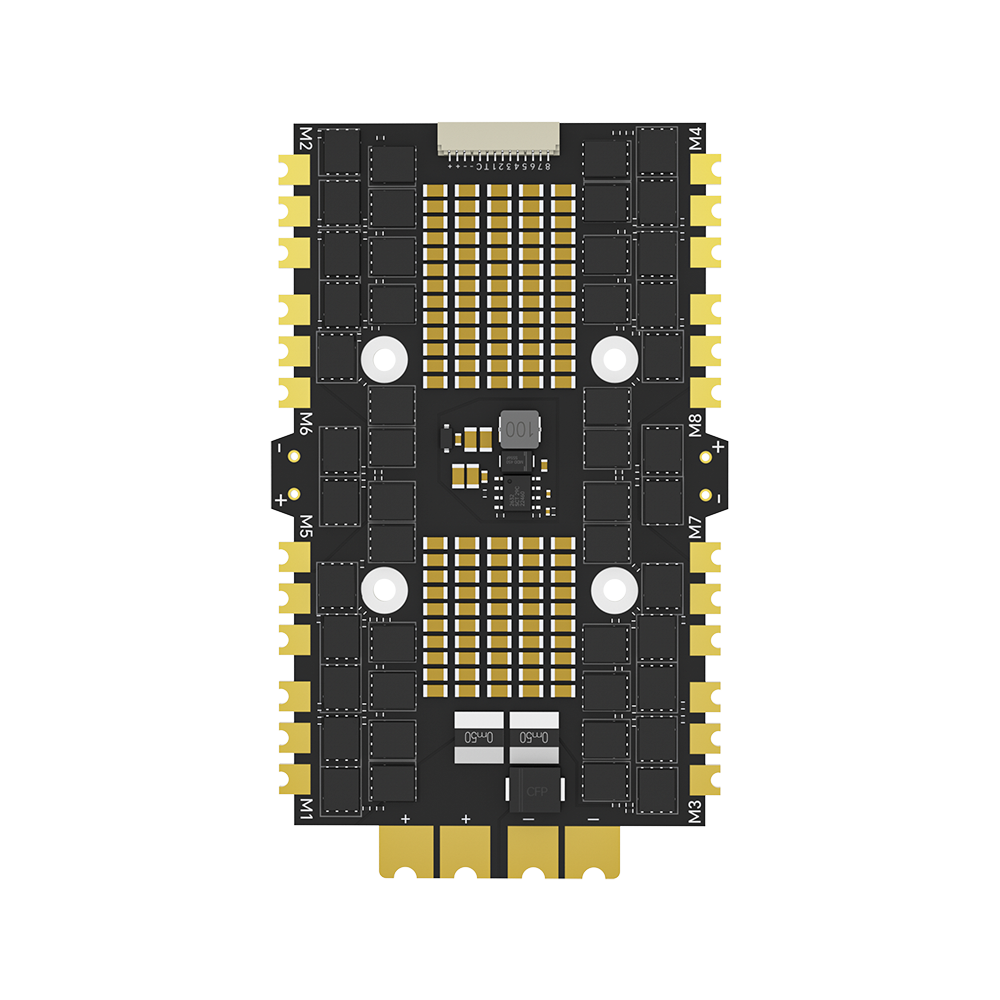

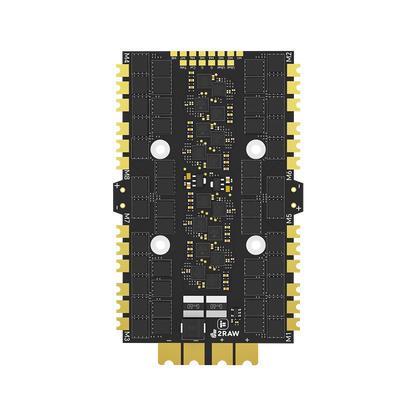

ESC iFlight Thunder 80A 8-IN-1
ESC iFlight Thunder 80A 8-IN-1
Brand: iFlight
Regular price
€390,37
Regular price
€390,37
Sale price
€390,37
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

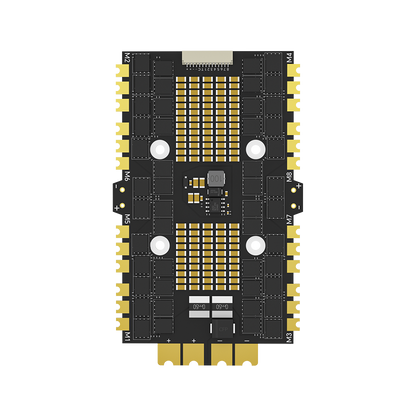

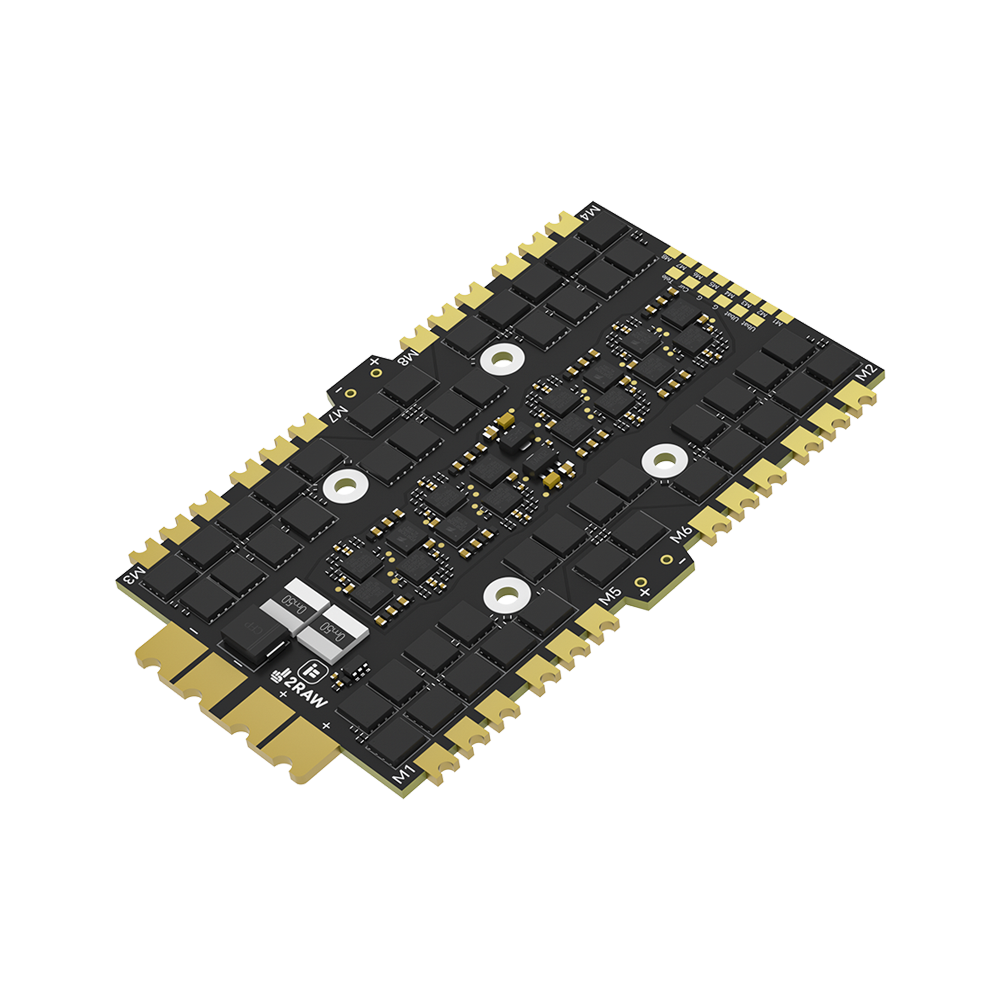

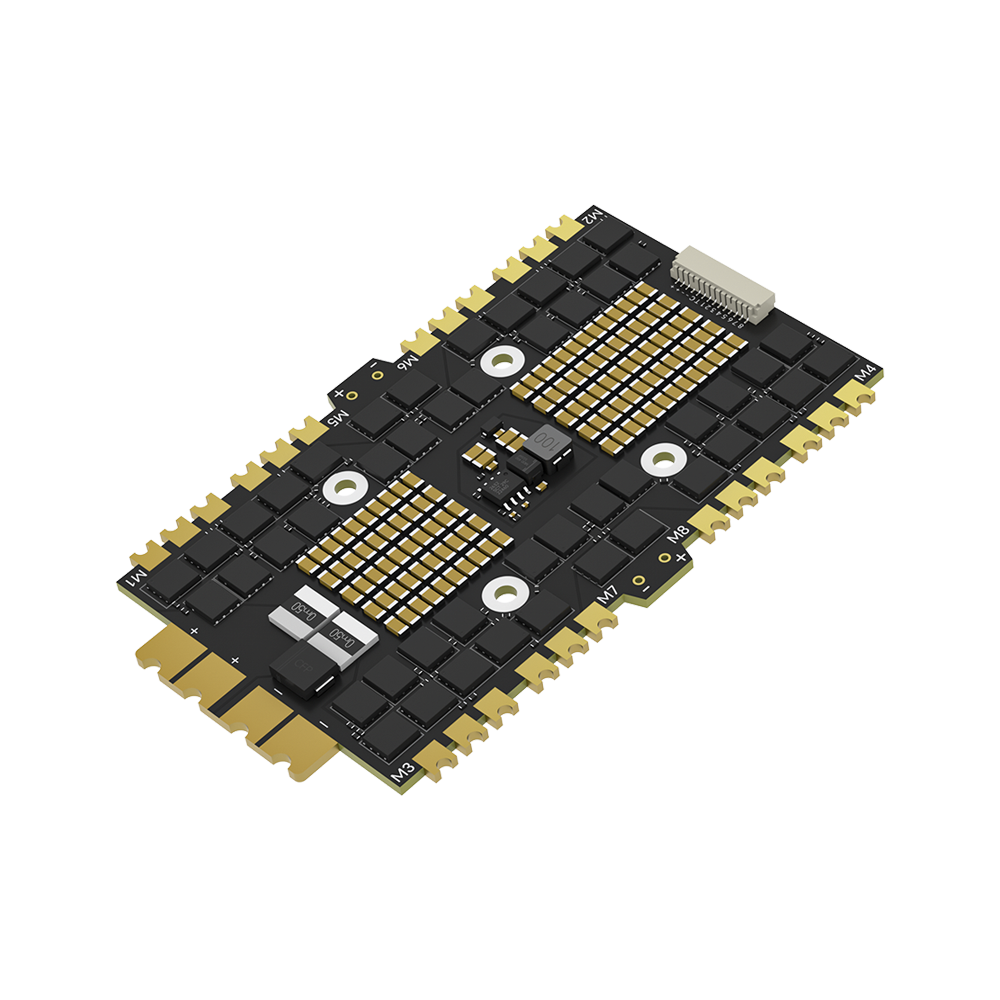

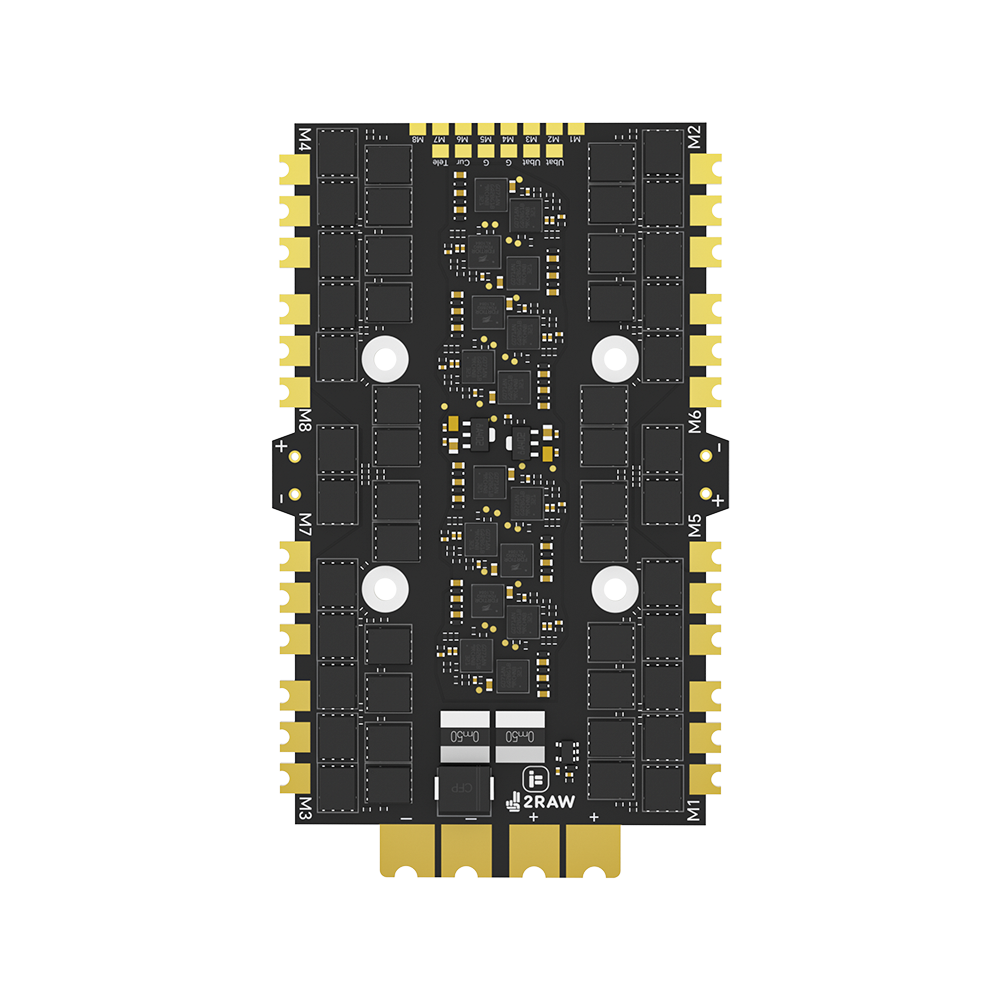

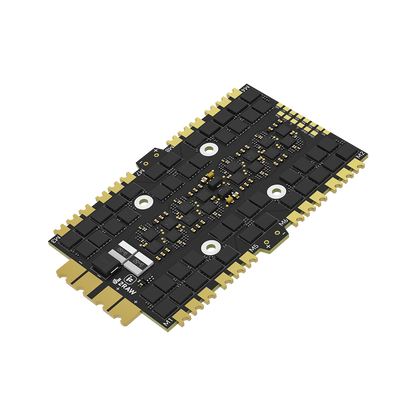

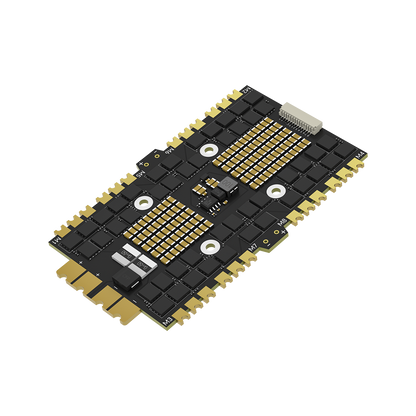

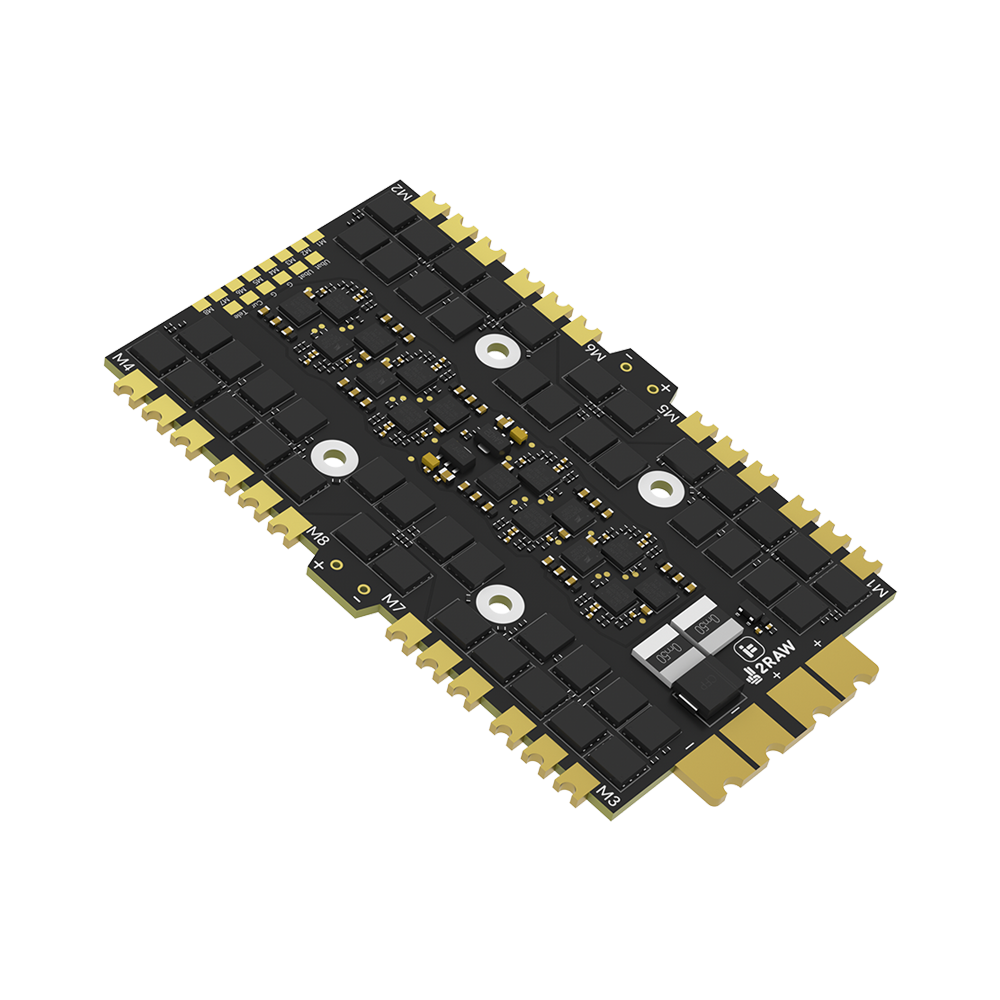

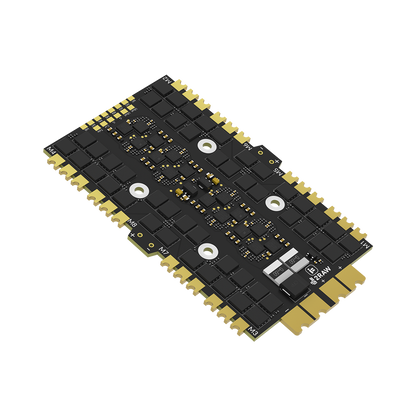

ESC iFlight Thunder 80A 8-in-1 The 8v1 8s ESC is carefully designed for drones with 8-motor (x8) configuration, emphasizing high-end electrical performance. This ESC offers an impressive amount of ceramic capacitors on the board, complete with two dedicated slots for external 50V capacitors. It has enlarged soldering surfaces for easy connection and at the same time ensures excellent contact. The PCB is reinforced and designed with larger-than-standard traces for better conductivity, which promotes smooth performance. Additionally, the 8v1 connector supports a direct plug-and-play connection to the 2RAW H7 FC, although options for solder pads are also available. With 2-8s power supply support, this ESC is an excellent choice for almost any high-performance x8 cinelifter setup, featuring exceptional components. Specifications: Input voltage: 2-8S Max. continuous current: 80A Max. burst current: 100A MCU: G071 BEC: No Firmware: Blheli_32 32.9 Current sensor: Yes Current measurement: 250 Telemetry: Supported Target: IFLIGHT_BLITZ_G2 Mounting dimensions: 30.5 × 30.5 mm, φ4 Dimensions: 100 × 60.5 mm ±1 Weight: 61g ±1 Protocol: Support DShot 150/300/600, MultiShot, OneShot, etc. The package contains: 1 × 2RAW Thunder 8-in-1 8S ESC (G2) 1 × Wiring Kit
