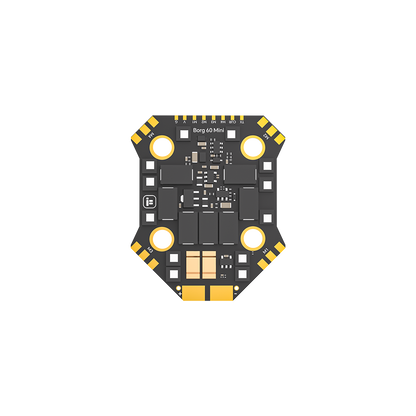

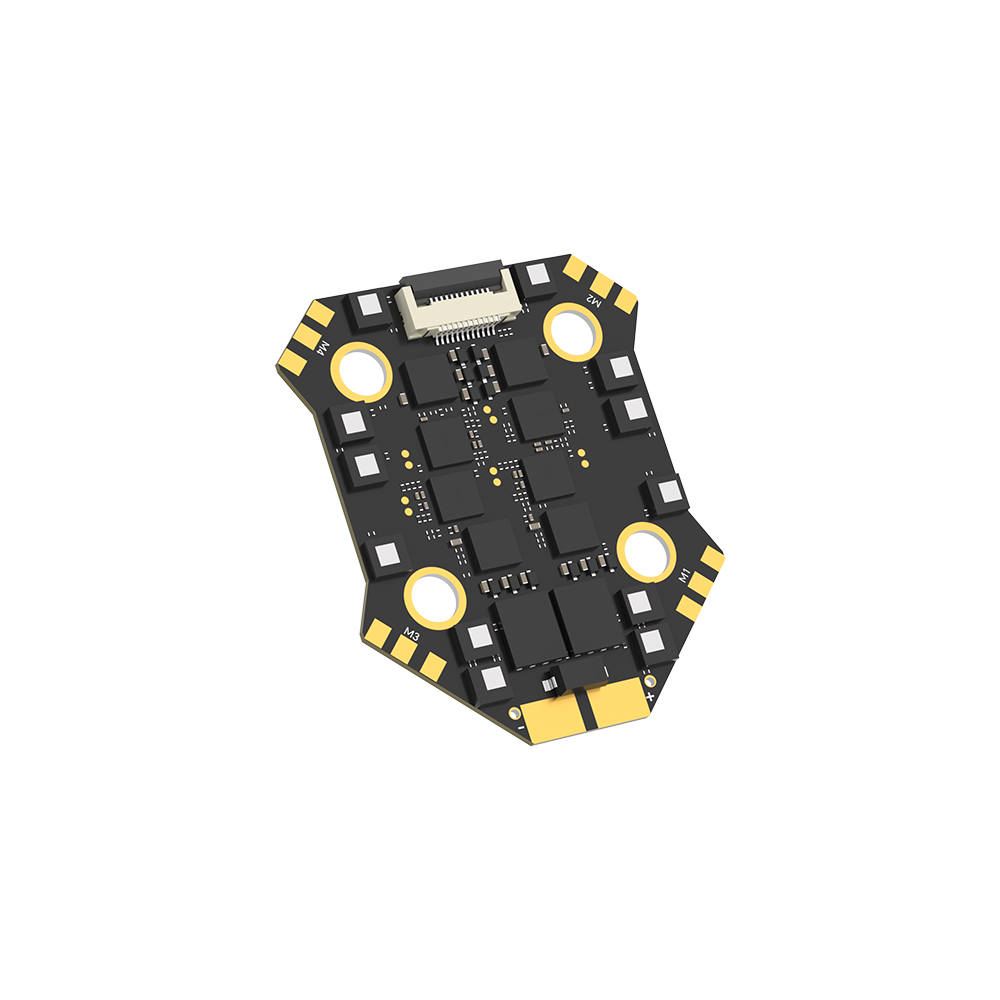

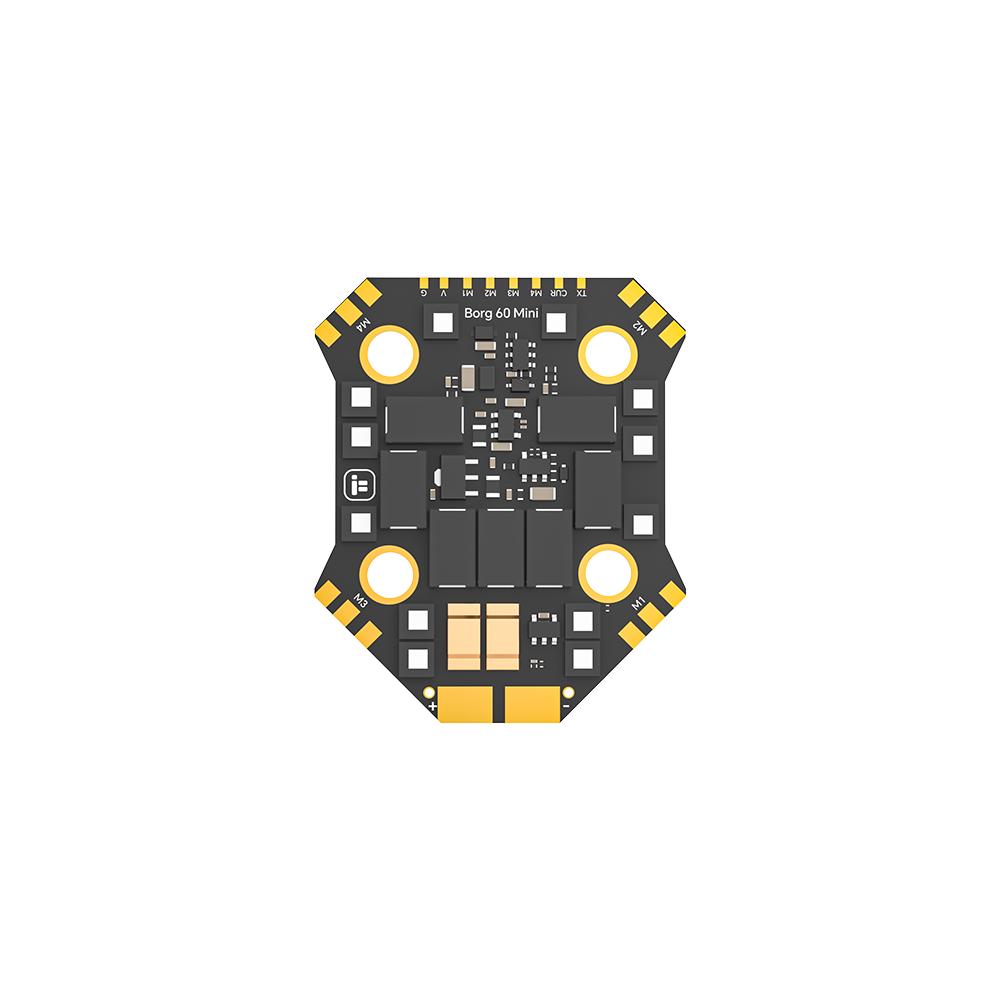

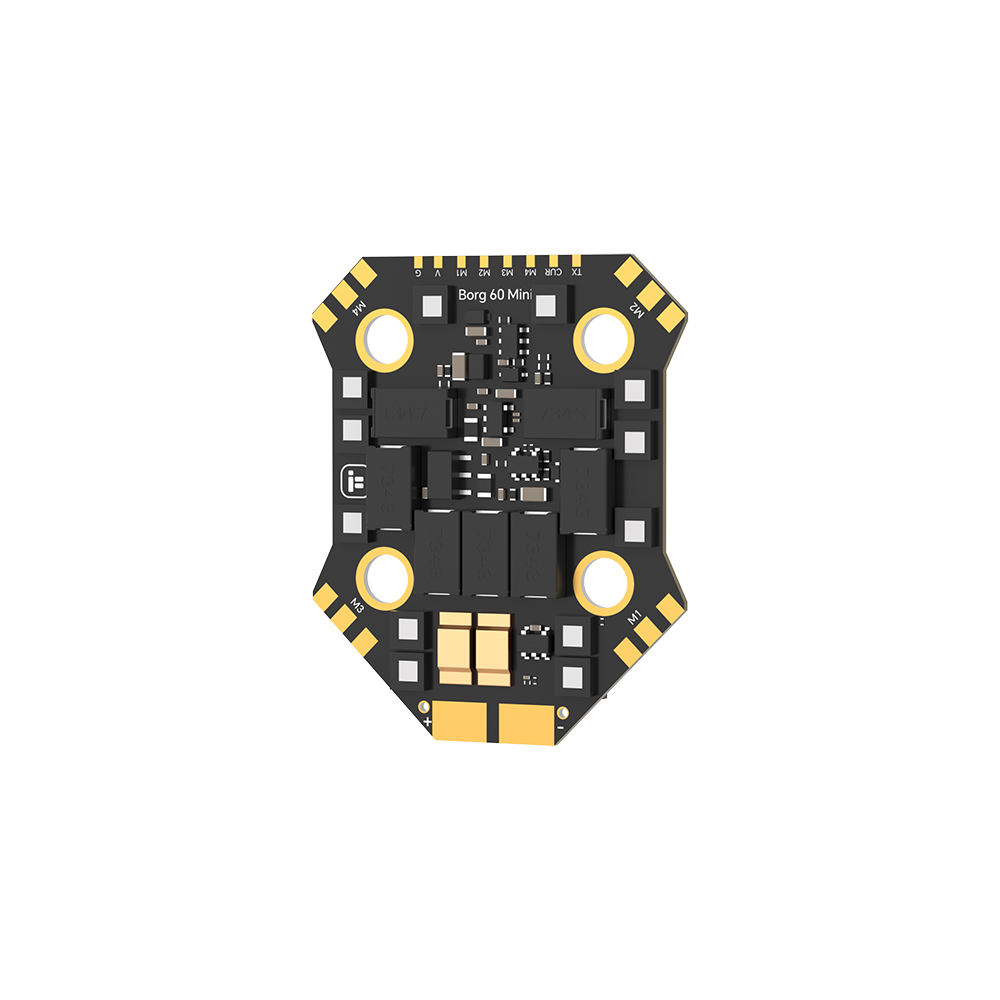

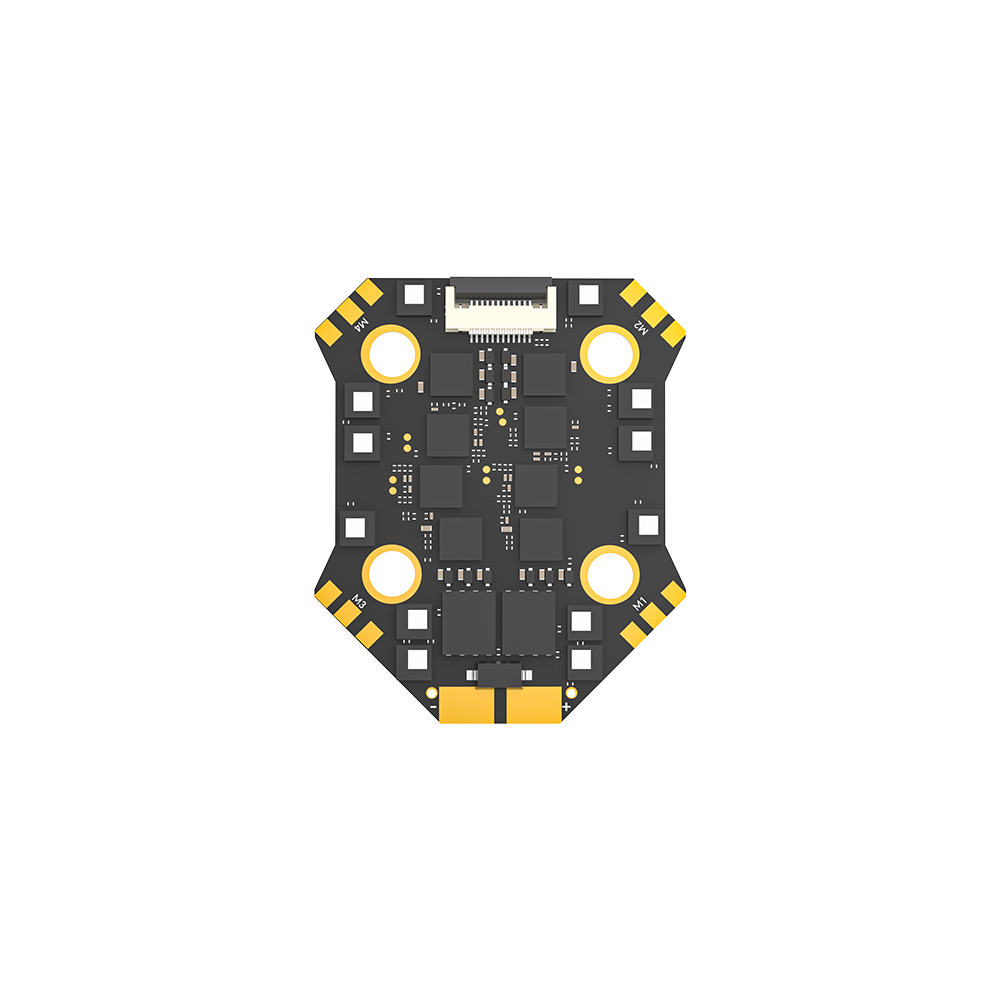

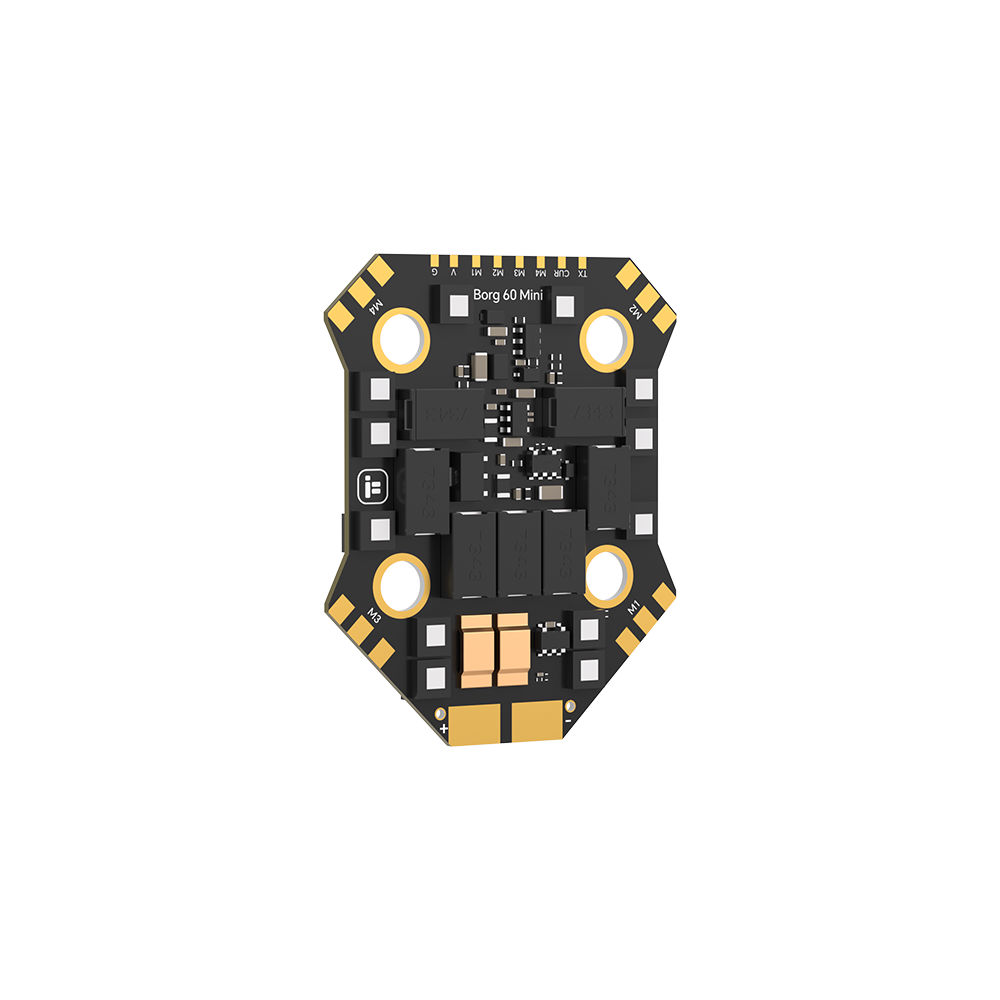

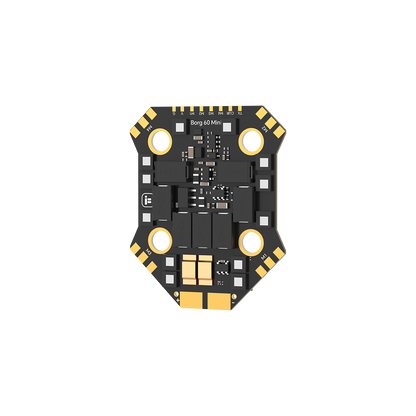

ESC iFlight Borg 60R Mini

Designed for high-performance FPV racing, the iFlight Borg 60R Mini ESC features an integrated anti-spark circuit that protects components from damaging voltage spikes. Thanks to built-in high-polymer capacitors, this 60A ESC eliminates the need for external capacitors on 5-inch builds, simplifying installation and saving weight. It supports a wide input voltage range of 2-6S LiHV batteries, offers telemetry, and is compatible with bidirectional DSHOT for precise digital control. The Borg 60R Mini runs on BLHeli_32 firmware and uses a powerful STM32G071N MCU and FD6288 drivers for the smooth, responsive performance that competition pilots demand.

Technical Specifications:

Product Name: Borg Mini 60 ESC
Input Voltage: 2-6S LiPo / LiHV
Max. Continuous Current: 60A
Max. Peak Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32-bit)
Target: IFLIGHT_BLITZ_G3 32.9
BEC: None
Telemetry: Supported
Current Sensor: Yes
Bidirectional DSHOT: Supported
Supported Protocols: DShot150/300/600, MultiShot, OneShot

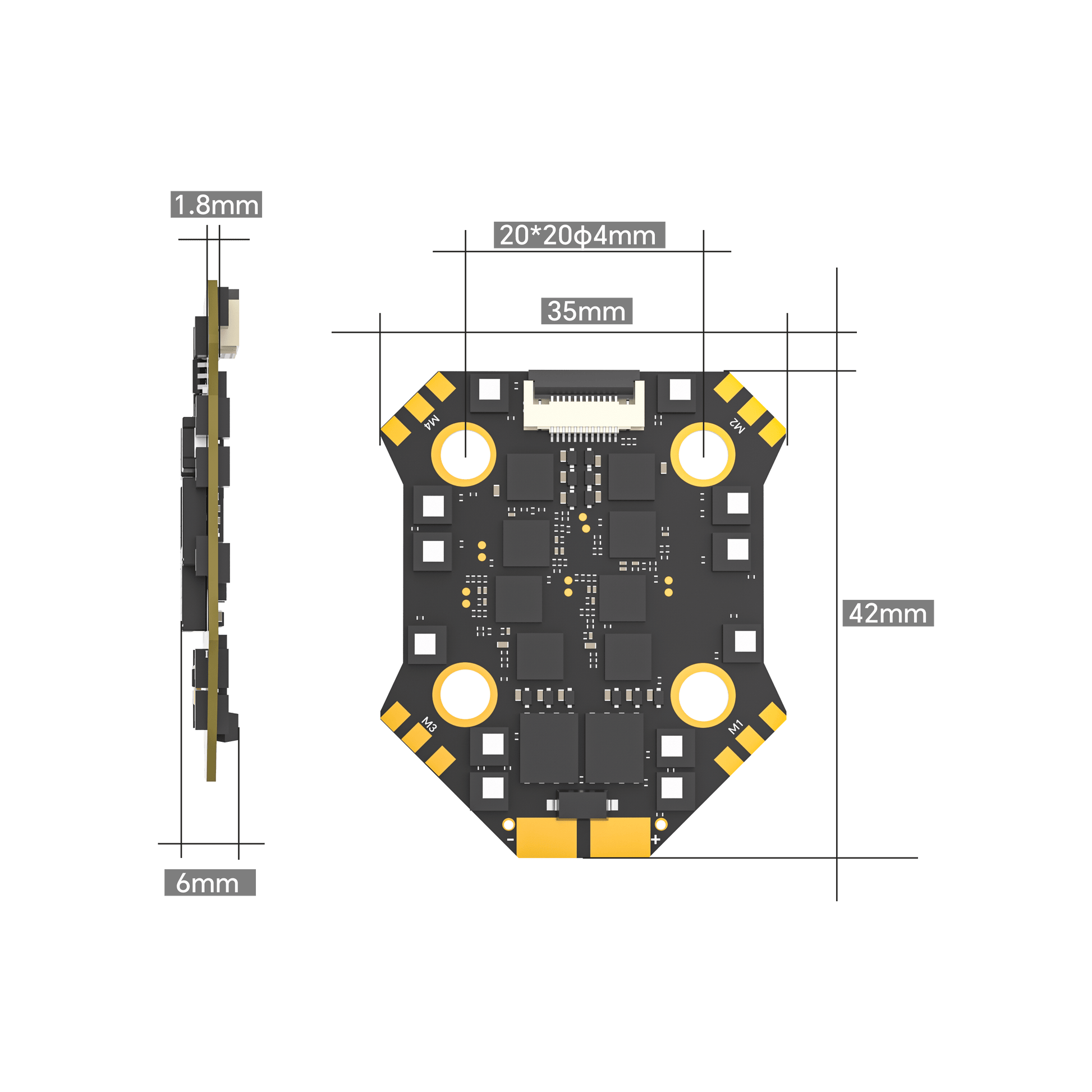

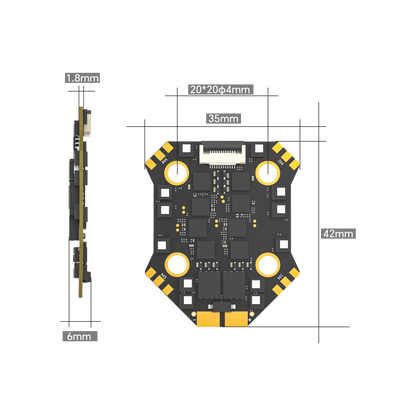

Dimensions: 42×35 mm ±1
Mounting Holes: 20×20 mm / Φ4 mm
Weight: 9.8 g ±1

Package Contents:

1 × Borg 60 Mini ESC
1 × Cable Set
4 × Silicone Grommets
