  BLITZ Mini E55 4-IN-1ESC

The next generation of ESC from iFlight has arrived. They are currently used in their BNF quads such as the Nazgul F5/F6 BNF series. These new 55 Amp BLHeli 32 BLITZ Mini 4-in-1 ESCs can handle even the most demanding motors.

List of changes:
BLITZ Mini E55 4-IN-1 ESC V1.3 - Metal Mosfets (Jan 28, 2023)

Specifications:
Product name: BLITZ Mini E55 4-IN-1 ESC
Input voltage: 2-6S
Max. Continuous current: 55A
Max. Explosive current: 60A
MCU: G071
BEC: No
Firmware: BLHeli32
Current sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G071_01 32.9
Mounting dimensions: 20x20 mm/Φ4mm
Dimensions: 35 x 42 mm
Weight: 11.3g
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

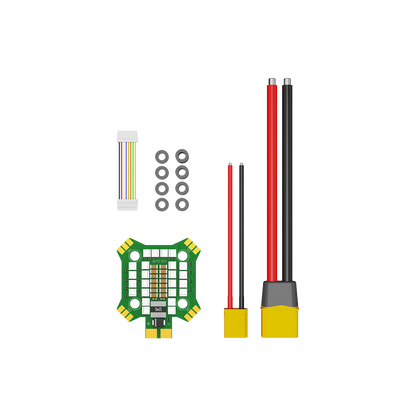

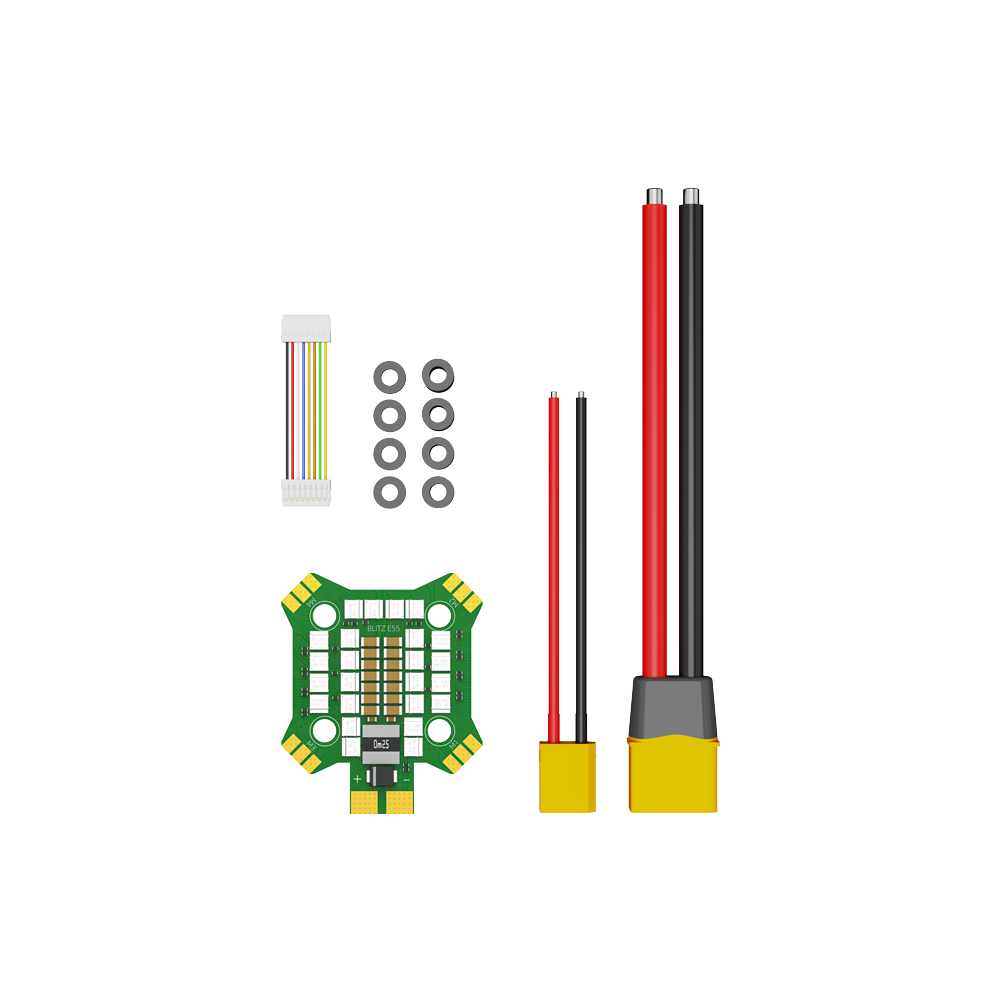

The package includes:
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1 x ESC power cables and signal wires

Note:
If you need to use the ESC in the iH3 O3 Frame kit, please remove the capacitor after receiving the ESC and then install the ESC.
