ESC iFlight BLITZ E55R 4-IN-1

Name: ESC iFlight BLITZ E55R 4-IN-1
Brand: Baltic Drones
SKU: BE14613
Price: 90.36 EUR
Availability: OutOfStock

ESC iFlight BLITZ E55R 4-IN-1

Brand: iFlight

€90,36

~~€90,36~~ €90,36

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

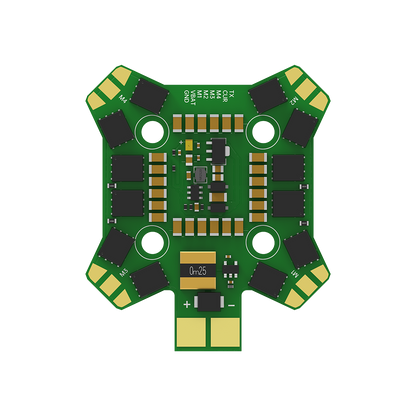

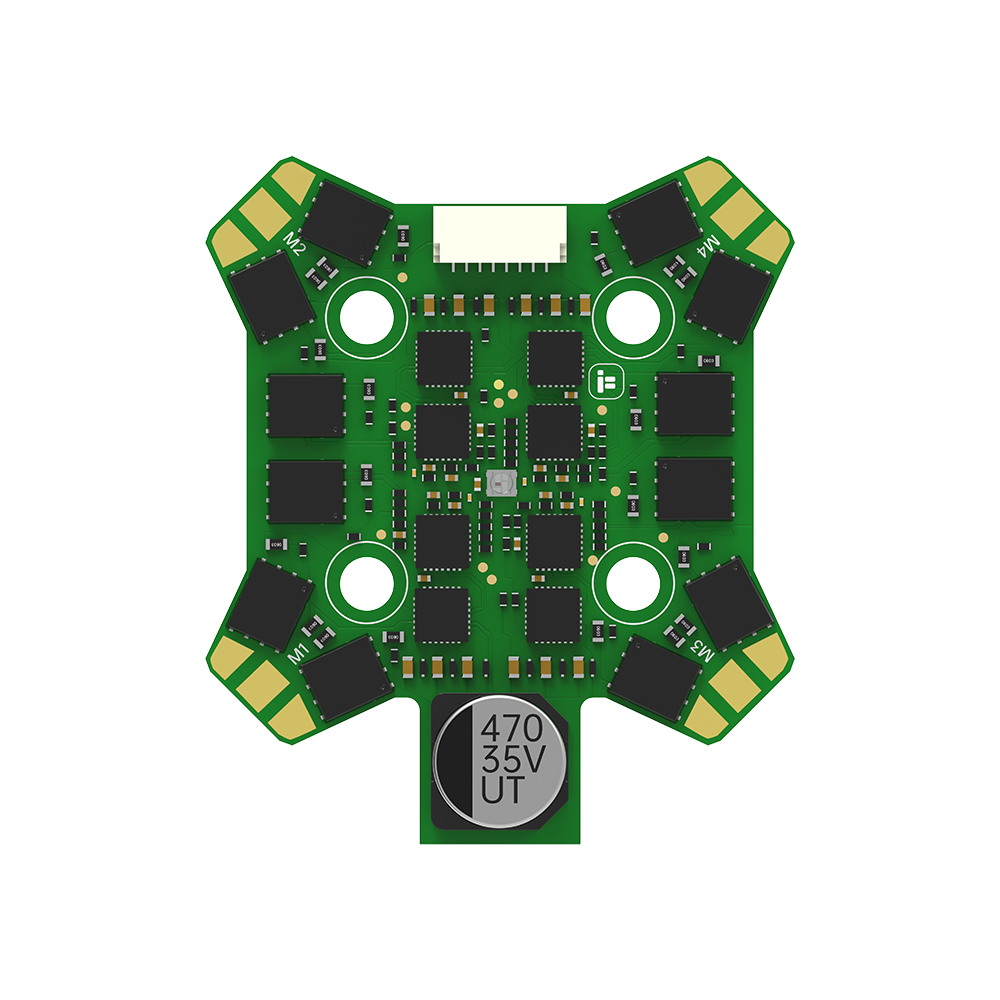

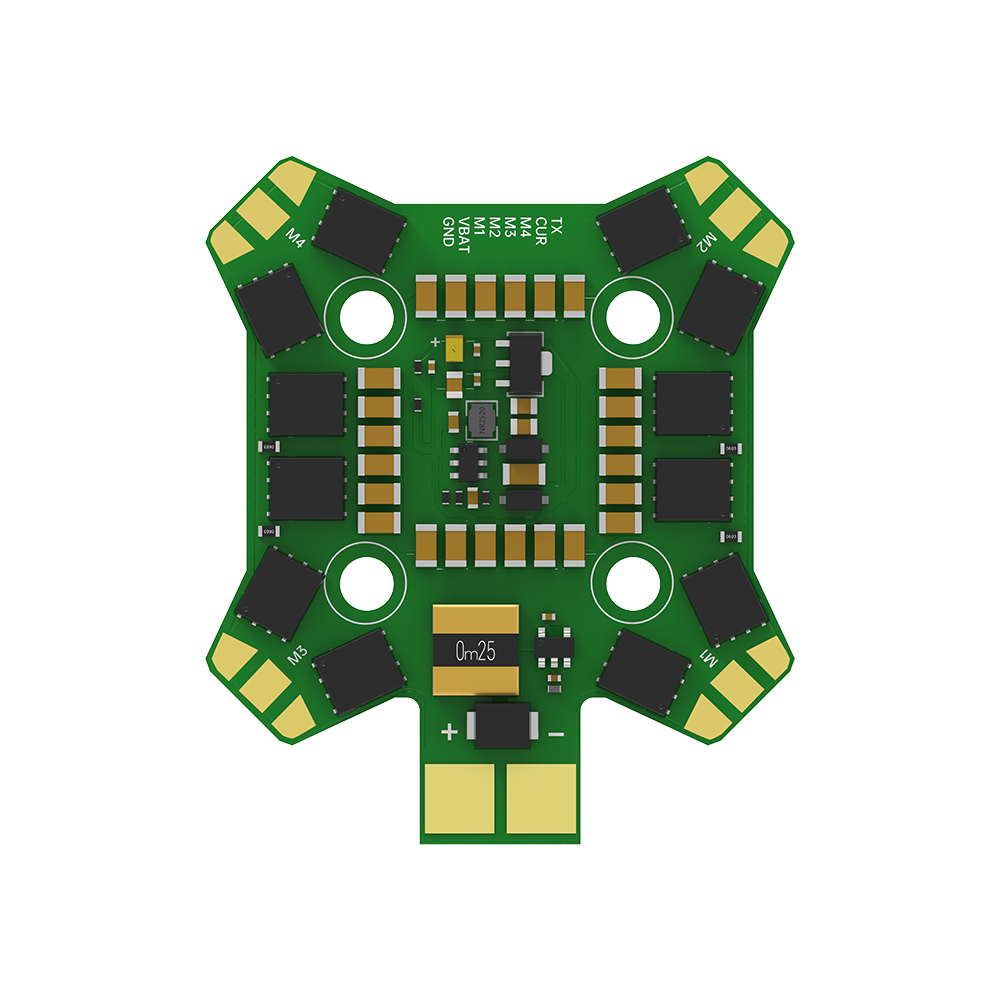

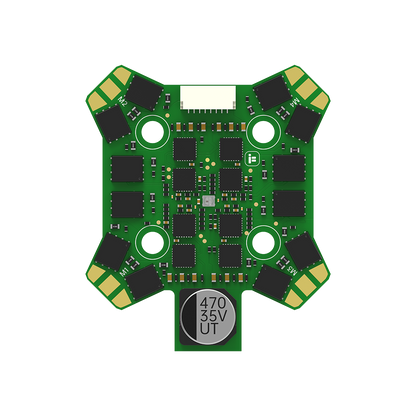

BLITZ E55R 4-V-1 ESC

The next generation of ESC from iFlight has arrived. These new 55Amp BLHeli32 BLITZ 4in1 ESCs can handle even the most demanding motors. Large Mosfets and larger PCB for maximum heat dissipation. Powerful 55A for 2-6S batteries and 20x20 mounting pattern. Fits perfectly with the BLITZ Flight Controller range.

Function:
- Larger MOSFET for greater durability
- Better heat dissipation
- More secure with high redundancy
- Excellent performance

Specifications:
Product name: BLITZ E55R 4-IN-1 ESC (G2)
Input voltage: 2-6S
Max. Continuous current: 55A
Max. Explosive current: 65A
MCU: G071
BEC: No
Firmware: BLHeli32
Current sensor: Yes
Current rate: 200
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Mounting holes: 20x20mm/Φ4mm
Weight: 15.3g
Protocol: Support DShot150/300/600/MultiShot/ OneShot etc.

The package includes:
1 x BLITZ E55R 4-IN-1 2-6S ESC
1 x ESC power cables and signal wires

Compatibility:
Mach R5 V1/Sport Frame Kit
AOS 5R frame kit

Not suitable:
Nazgul Evoque F5
Nazgul Evoque F6
