    Code: BE13019

    ESC iFlight BLITZ E55 Single

    ESC iFlight BLITZ E55 Single

    Brand: iFlight

    €29,09
    €29,09 €29,09
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

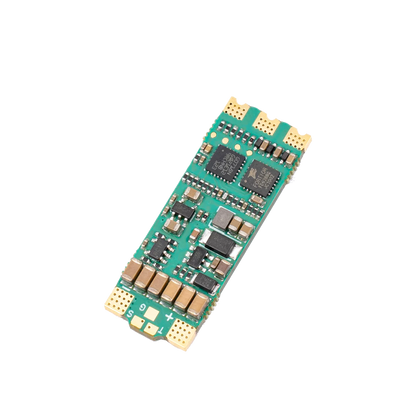

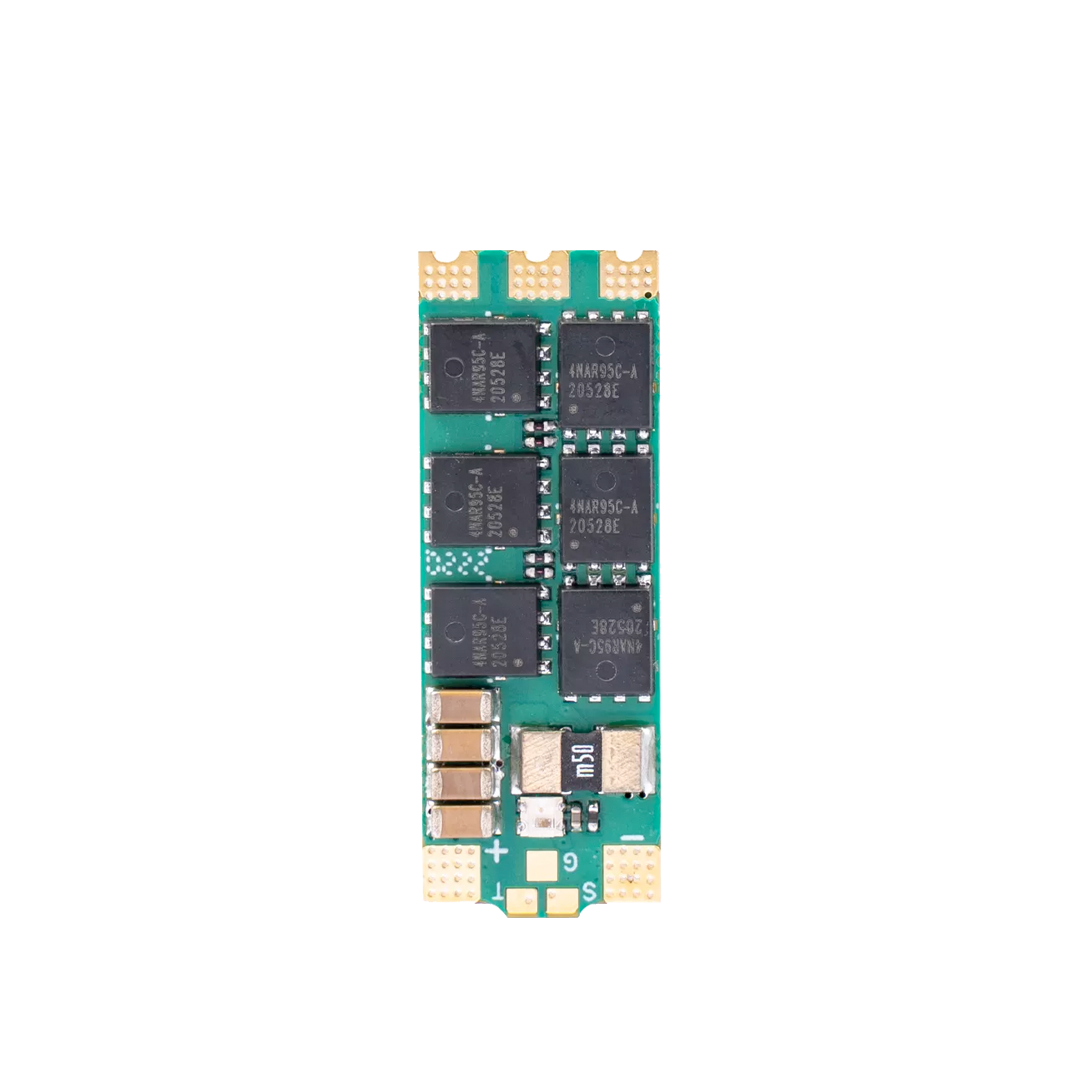

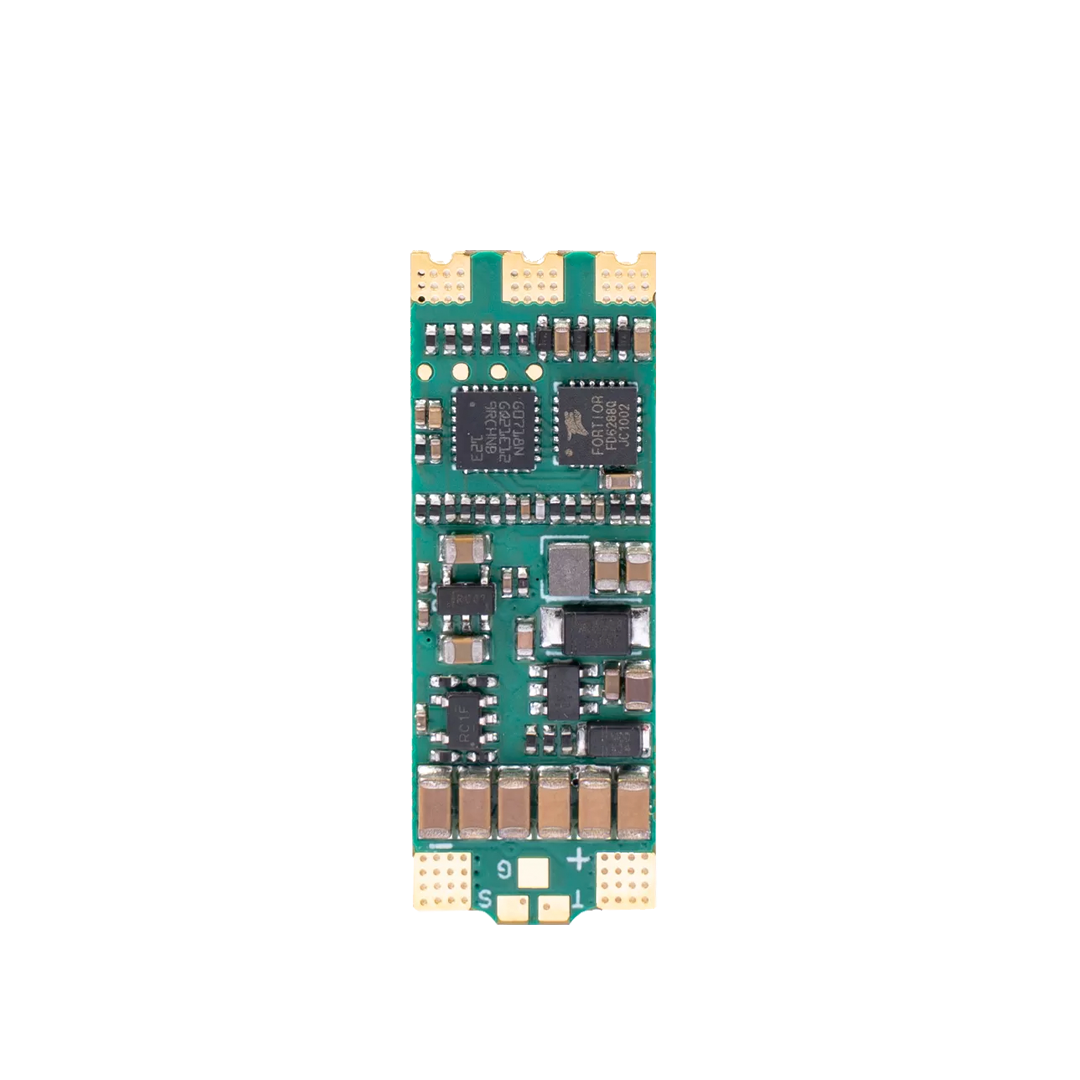

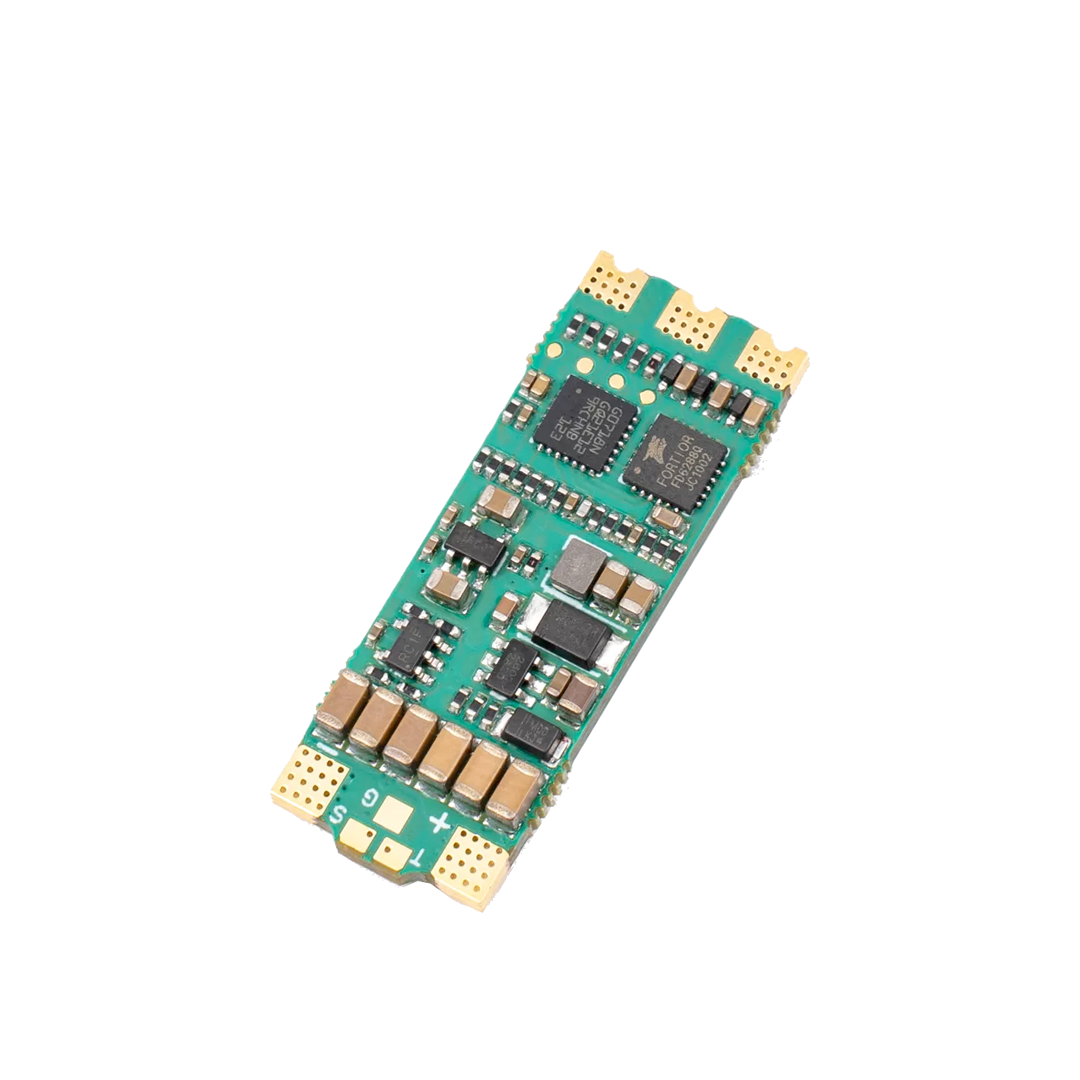

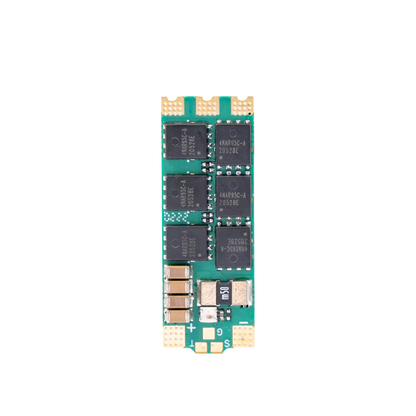

    BLITZ E55 Single ESC

Function:
- 8-layer double-sided PCB
- 3oz 1.4mm thick power plate
- 32bit F051 MCU, maximum clock rate 48kHz
- Ceramic capacitors TDK MLCC Low ESR

Specifications:

Supports up to Dshot600, Proshot, Oneshot, Multishot
Constant: 55A / Burst: 60A (10S)
PWM frequency up to 48 kHz
Target: IFLIGHT_BLITZ_G3
BlHeli32 telemetry: Yes
Firmware version: 32.9
Dimensions: 35*13mm
Current sensor: Yes
Input: 2-6S LIPO
RGB LED: Yes
Weight: 4.7g
MCU: G071
BEC: No

Note:
No additional capacitor required up to 5S!
But to meet the back EMF and ensure the long life of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main feed!

The package includes:
1 x BLITZ E55 55A Single ESC
