Code: SKU:6103
ESC Hobbywing SKYWALKER 20A-V2
ESC Hobbywing SKYWALKER 20A-V2
Brand: Hobbywing
Couldn't load pickup availability
- Description
- Related Files
- Discussion
ESC Hobbywing SKYWALKER 20A-V2

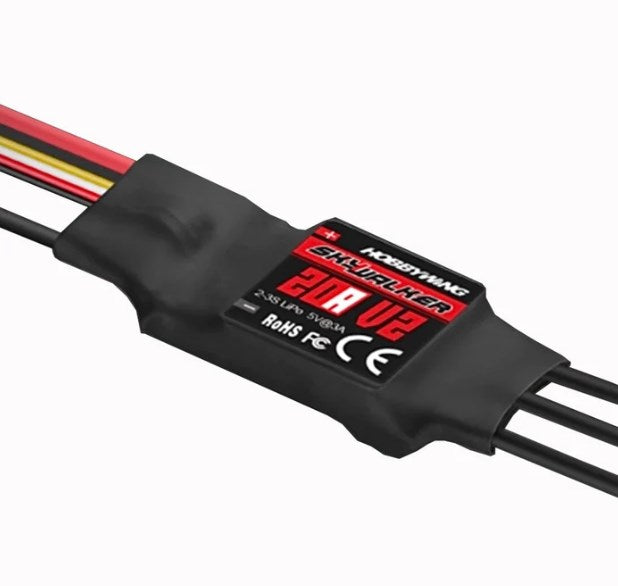

The Hobbywing Skywalker 20A V2 is a high-performance electronic speed controller (ESC) designed for fixed-wing aircraft, drones and other AC motor applications. With a 32-bit microprocessor, advanced DEO technology and comprehensive protection functions, this ESC ensures smooth, efficient and reliable performance control.
Features:
- DEO (Driving Efficiency Optimization) Technology - Improves throttle response, increases efficiency and lowers ESC temperature.
- Separate programming cable - Connects to Hobbywing LED programming box for easy customization and real-time settings.
- Normal brake modes & reverse brakes - Reverse brake mode helps shorten the landing distance for better control.
- Search mode with warning beeps - Helps locate the aircraft after a crash or emergency landing.
- Comprehensive protection functions - Includes start-up protection, ESC thermal protection, capacitor thermal protection, overcurrent, overload, abnormal input voltage and throttle signal loss protection to extend ESC life.
Specifications:
- Continuous current: 20A
- Peak current: 40A
- Input voltage: 2-3S LiPo
- BEC output: 5V @ 3A (linear mode)
- Weight: 19g
- Dimensions: 5V @ 3A (linear mode): 45 x 23 x 8mm
The package contains:
- 1x ESC Hobbywing SKYWALKER 20A-V2
