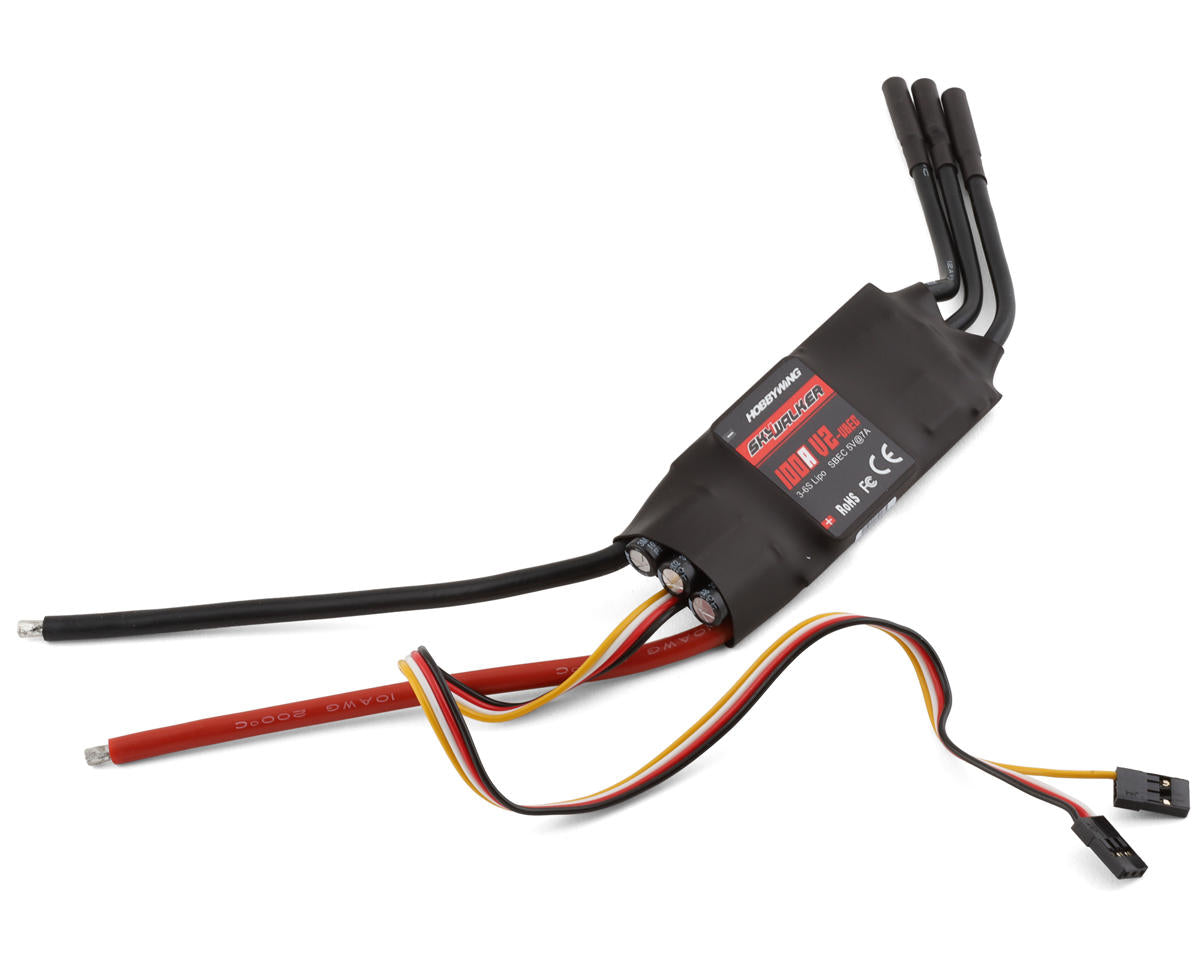

ESC Hobbywing SKYWALKER 100A V2

An electronic speed controller that has been specially designed for aviation applications to maximize their potential performance. It is equipped with a high-performance bit microprocessor with a working frequency of up to 96 MHz, DEO (Driving Efficiency Optimization) technology, which significantly improves throttle response and steering efficiency, and reduces ESC temperature.

Features:

- High-performance bit microprocessor (with a working frequency of up to 96 MHz)
- DEO (Driving Efficiency Optimization) technology that significantly improves throttle response and driving efficiency and reduces ESC temperature.
- Separate programming cable to connect ESC to LED (programming box sold separately), allowing users to program ESC anytime, anywhere.
- Normal and reverse braking modes, which can effectively shorten the landing distance of the aircraft.
- The search mode can help users to find the aircraft according to the sound signal after the aircraft falls in a difficult environment.
- Several protection functions, such as start-up, ESC thermal protection, capacitor thermal protection, overcurrent, overload, abnormal input voltage and gas loss signal, will effectively extend the life of the ESC.

Specifications:

- Model: 100A V2
- Input voltage: 3-6S
- BEC output: 5V @ 7A (switching mode)
- Continuous current: 100A
- Peak current: 120A
- Dimensions: 85x36x9mm (LxWxH)
- Weight: 92 g
- Supply wire:: 10AWGmm
- Output wire: 12AWGmm
- Output connectors: 4.0mm (female)

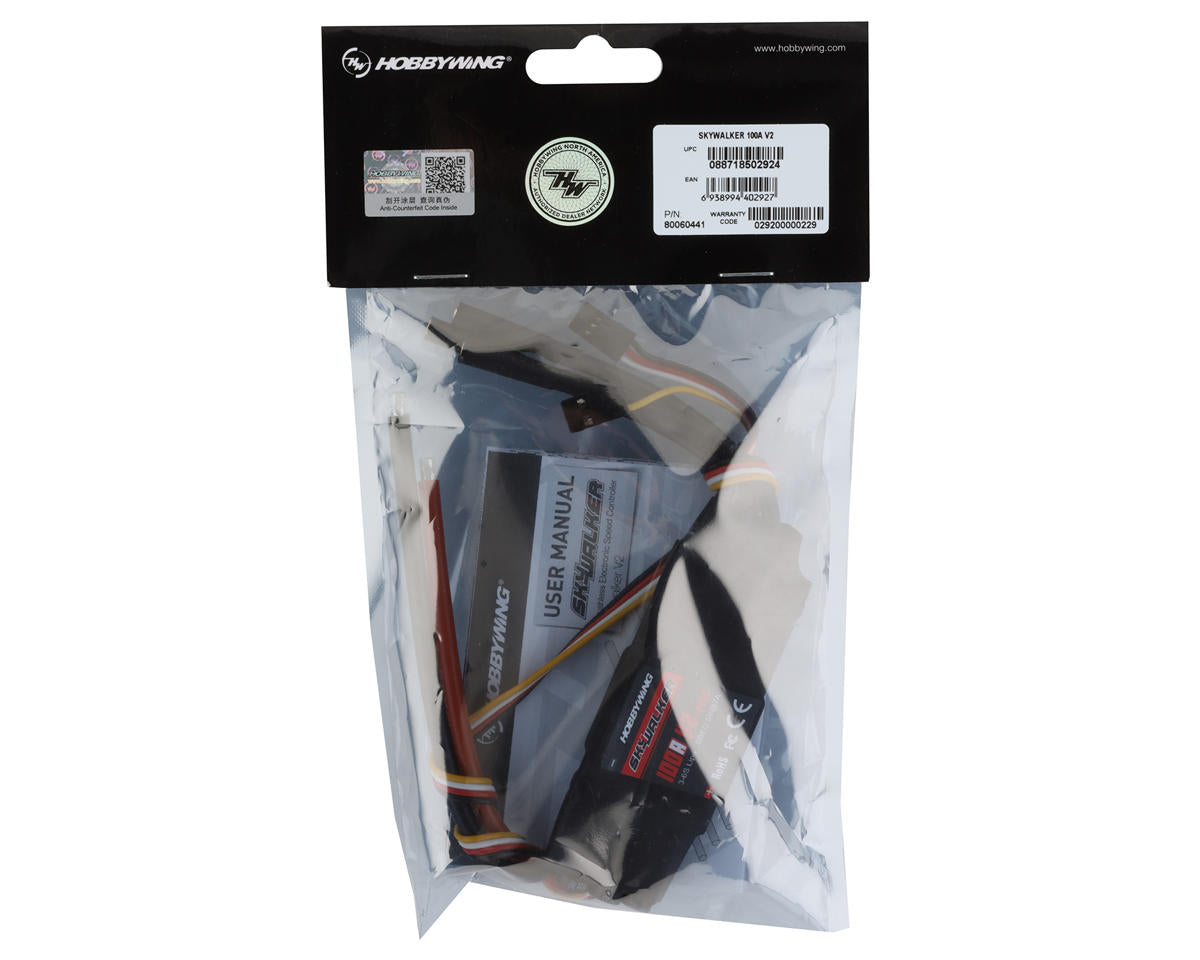

The package contains:
- 1× ESC Hobbywing SKYWALKER 100A V2
