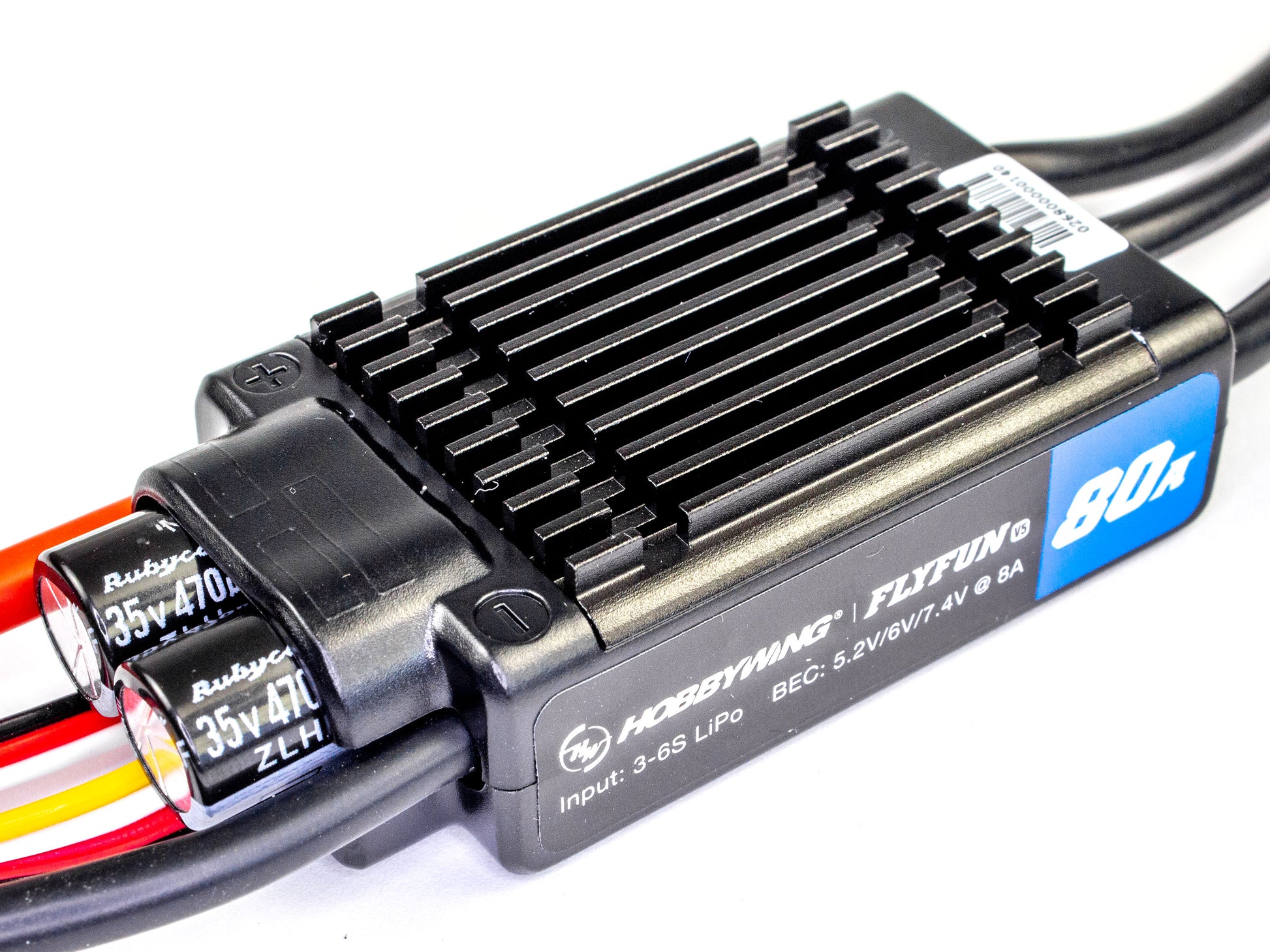

ESC Hobbywing FLYFUN 80A 8S V5

The Hobbywing FLYFUN 80A 8S V5 is a highly efficient electronic speed controller (ESC) designed for fixed wing aircraft and EDF jet engines. Featuring a 32-bit ARM M4 microprocessor, adjustable high-performance BEC and DEO technology, this ESC provides precise throttle control, stable power output and increased efficiency for demanding flight applications.

Features:

- 32-bit ARM M4 microprocessor - operates at a frequency of 72 MHz, which ensures precise throttle control and compatibility with engines.
- Advanced anti-interference design - The microprocessor is powered by a separate DC regulator, reducing the risk of signal loss.
- DEO Technology - Improves throttle response, increases efficiency and lowers ESC temperature.
- Adjustable high performance BEC - Provides a stable output voltage of 5.2V, 6.0V or 7.4V with 8A continuous current and 20A peak current.
- Multiple launch modes - Supports normal, soft and very soft launch, suitable for propeller and jet aircraft with EDF.
- Programmable via the LED programming field - Enables easy adjustment of settings at any location.
- Advanced Braking Modes - Includes normal, proportional and reverse braking modes for better landing control.
- Comprehensive Protection Features - Includes start-up protection, thermal protection, over-current protection, overload protection, voltage protection and throttle signal loss.

Specifications:

- Continuous current: 80 A
- Peak current: 100 A
- Input voltage: 3-8S LiPo
- BEC output: 8A continuous / 20A peak (switching mode).
- Weight: 92g
- Dimensions: 70 x 35 x 19mm

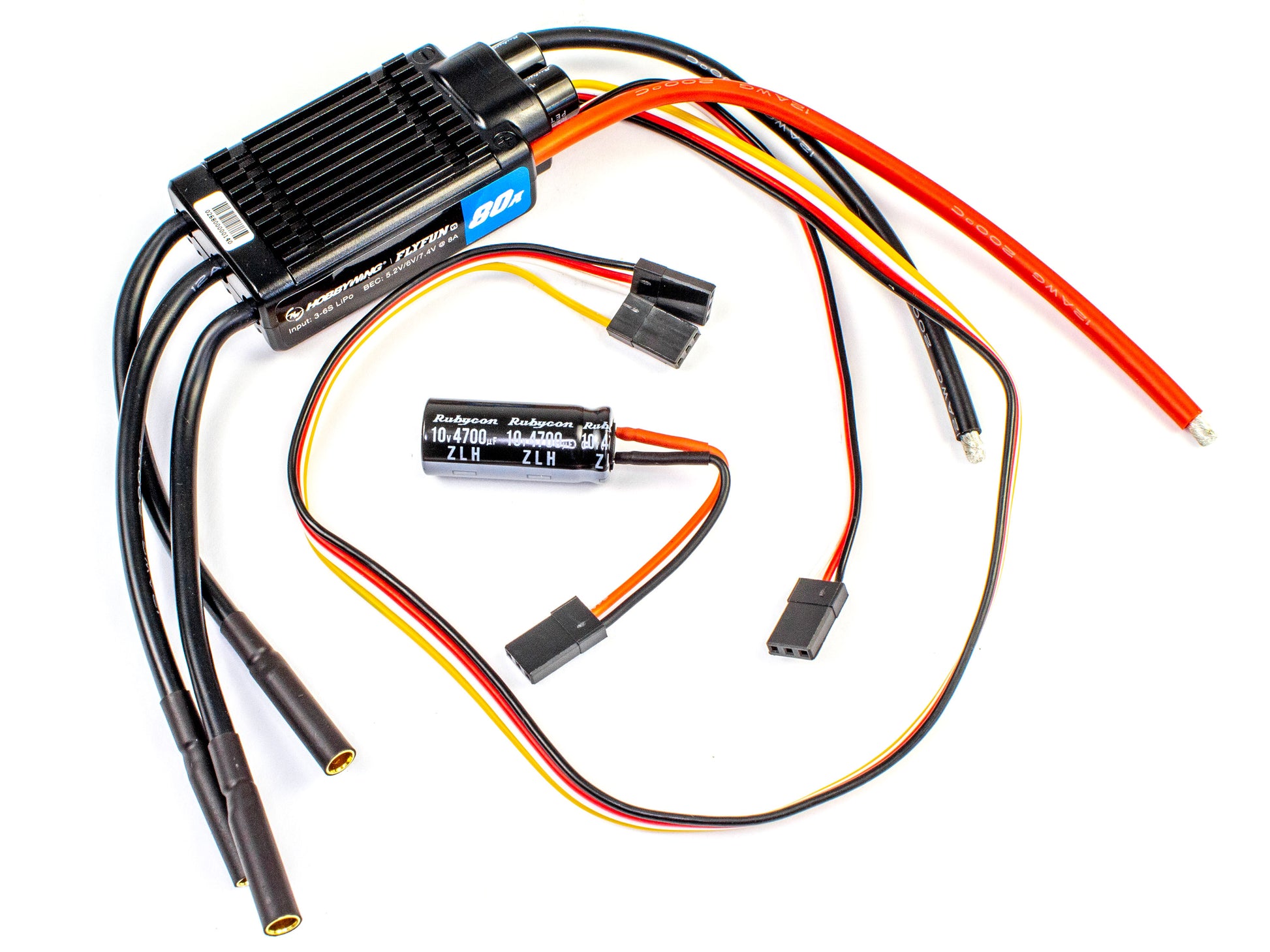

The package contains:
1x ESC Hobbywing FLYFUN 80A 8S V5
