ESC Foxeer Reaper F4 128Multi 82A 4in1
ESC Foxeer Reaper F4 128Multi 82A 4in1
Brand: Foxeer
Regular price
€229,30
Regular price
€229,30
Sale price
€229,30
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
FOXEER Reaper F4 80A ESC is a high performance speed controller designed for demanding drone pilots and RC enthusiasts. This ESC handles extreme conditions and offers robust power management, wide signal compatibility and precise control.
Key features:
- Firmware: FOXEER Reaper F4 80A with BLHeli32 for advanced programming capabilities.
Performance:
- Continuous current: 82 A
- Transient current: 145 A
- Peak power: 4 kW
Timing:
- Time under continuous load: 65 seconds
- Transient load time: 6 seconds
Wide compatibility:
- Input voltage: 4-8S LiPo, suitable for various assemblies.
- Signal support: Compatible with DShot (150/300/600/1200), MultiShot and OneShot protocols.
Durable design:
-
Working conditions:
- Temperature range: -20 °C to +65 °C
- Humidity: 20-95%
- Storage: Safe to store at temperatures from -20 °C to +70 °C.
Other specifications:
- Telemetry: Supports real-time data monitoring.
- Current calibration: 50 for accurate readings.

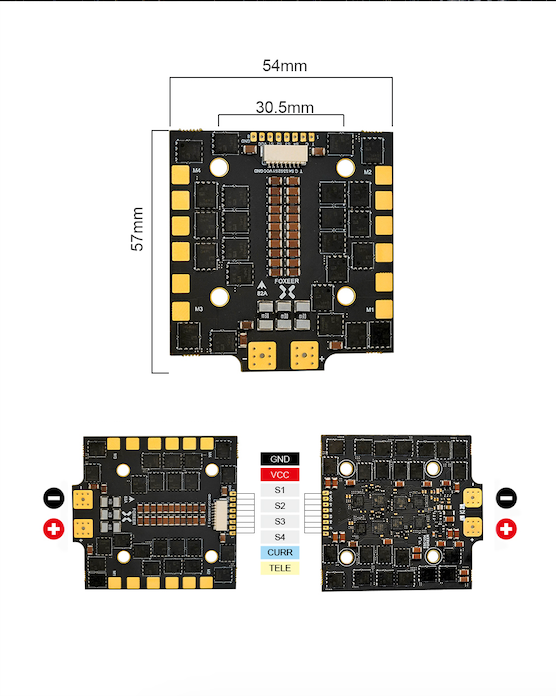

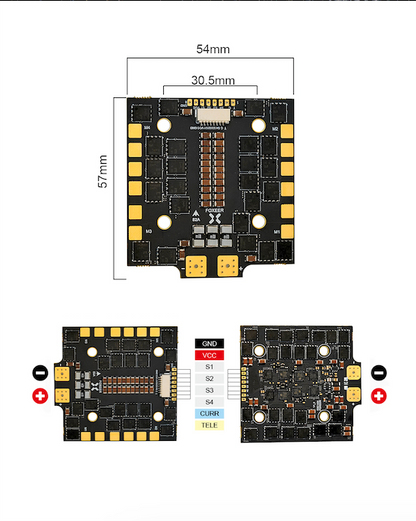

- Mounting dimensions: 30.5 × 30.5 mm with M3 holes.
- Compact and light: Dimensions 54 x 57 mm and weight only 28 g.
