ESC Flycolor X-Cross HV3 80A 5-12S

Name: ESC Flycolor X-Cross HV3 80A 5-12S
Brand: Baltic Drones
SKU: X-FW080012-D1D1-K01
Price: 101.16 EUR
Availability: InStock

ESC Flycolor X-Cross HV3 80A 5-12S

Brand: Flycolor

€101,16

~~€101,16~~ €101,16

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

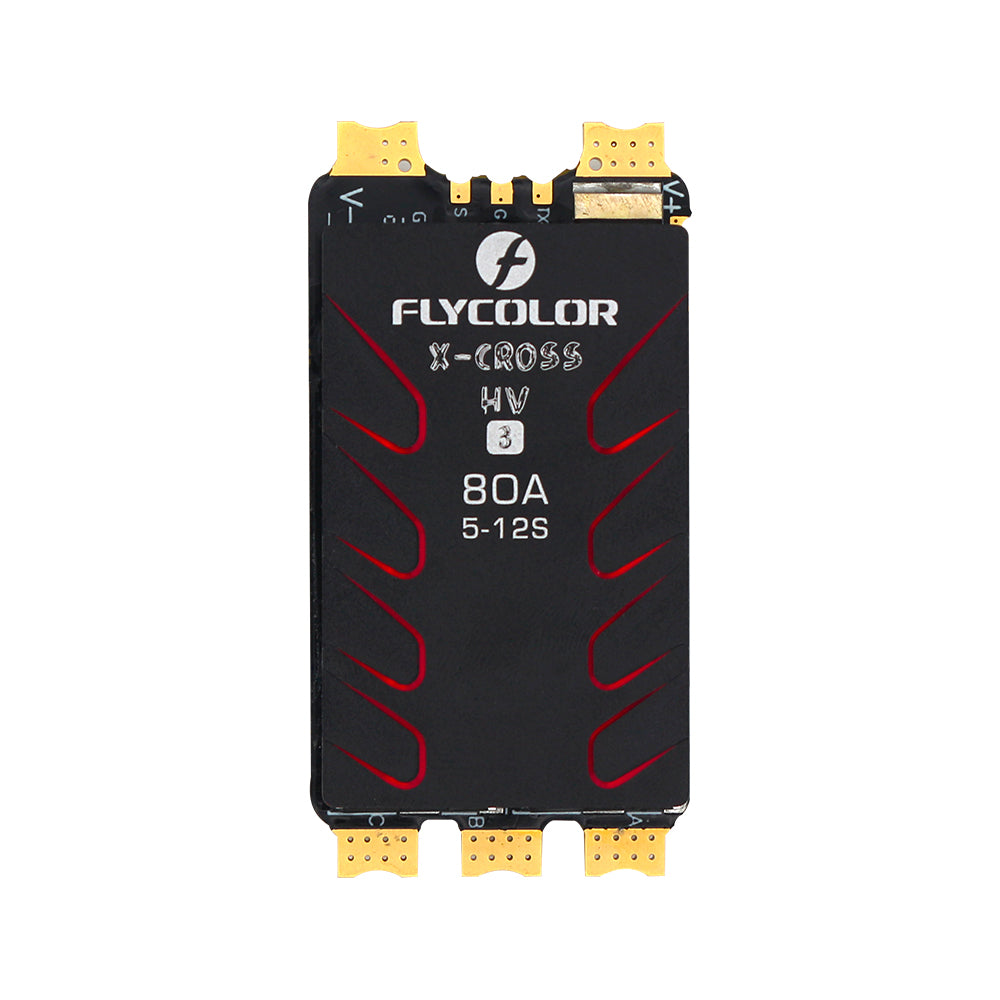

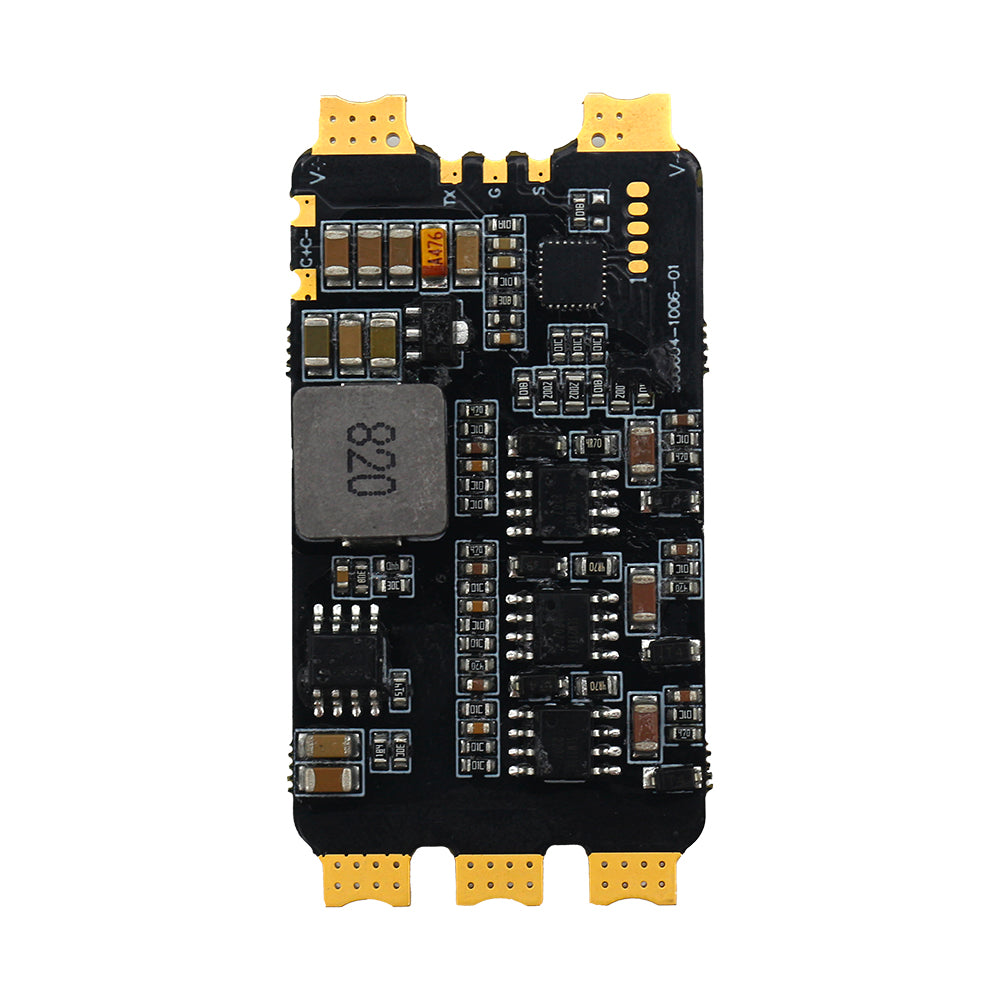

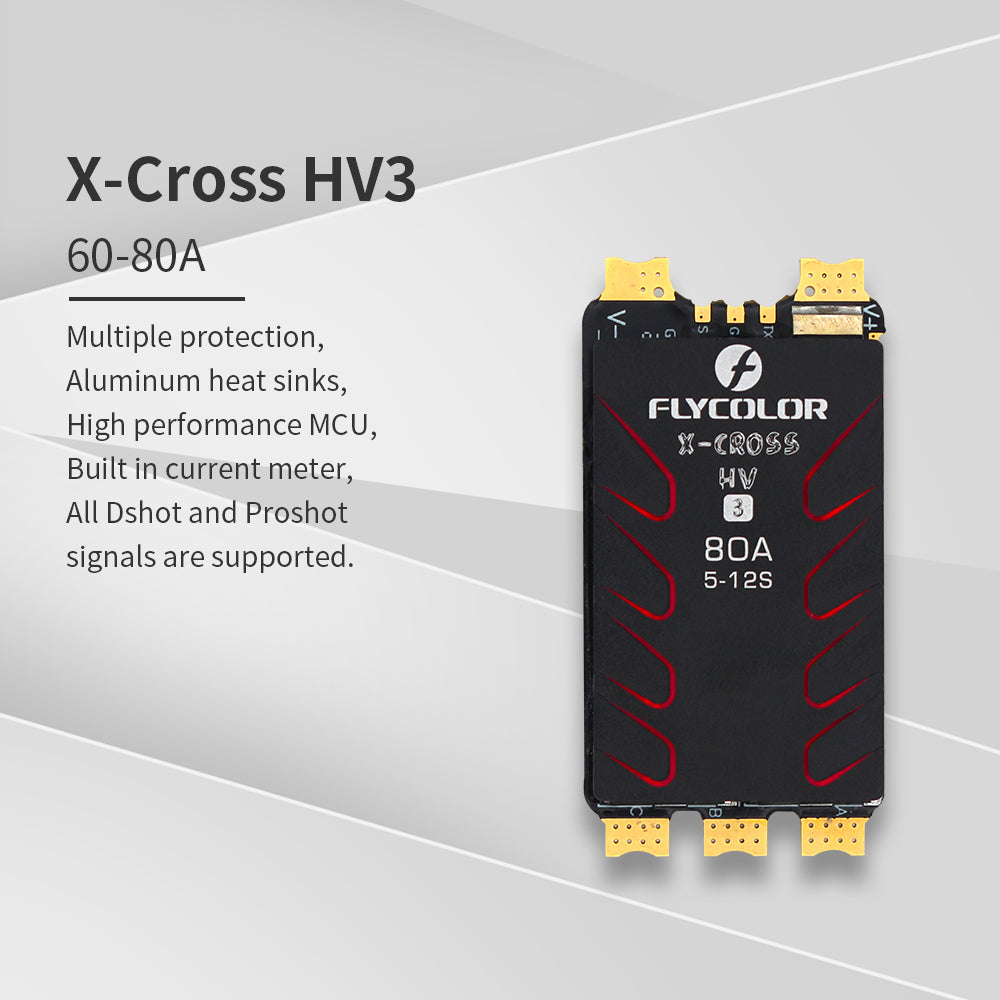

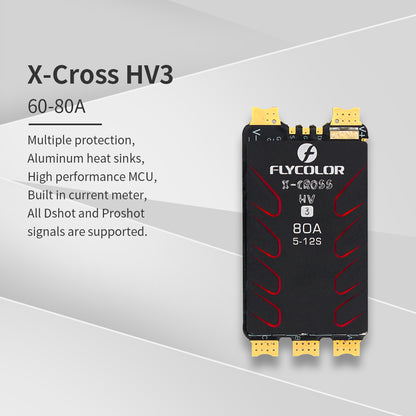

ESC Flycolor X-Cross HV3 80A 5-12S

The X-Cross HV3 80A 5-12S ESC by Flycolor features quality MOSFETs, BLHeli_32 firmware, an ARM 32-bit Cortex MCU, Telemetry, and more!

Features:

- ARM 32-bit Cortex MCU, frequency up to 48MHz
- International famous brand MOSFET with high performance and low ESR, not afraid of large current
- BL Heli_32 firmware, u0 to 12S Lipo, suitable for X Class frame drone
- Supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42 and Multishot.
- The input signal is automatically detected by the ESC upon power up
- Small size, light weight, suitable for the drone with narrow arms
- Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
- The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signal transmission, and makes flight more stable
- Aluminum heatsink effectively slow down the temperature rise

Specifications:
Model: HV3-80A
Current: 80A
Burst: 100A
Voltage: 5-12S
BEC: No
Weight: 25,5g
Size: 55x28x10mm

Package Includes:
1x ESC Flycolor X-Cross HV3 80A 5-12S
