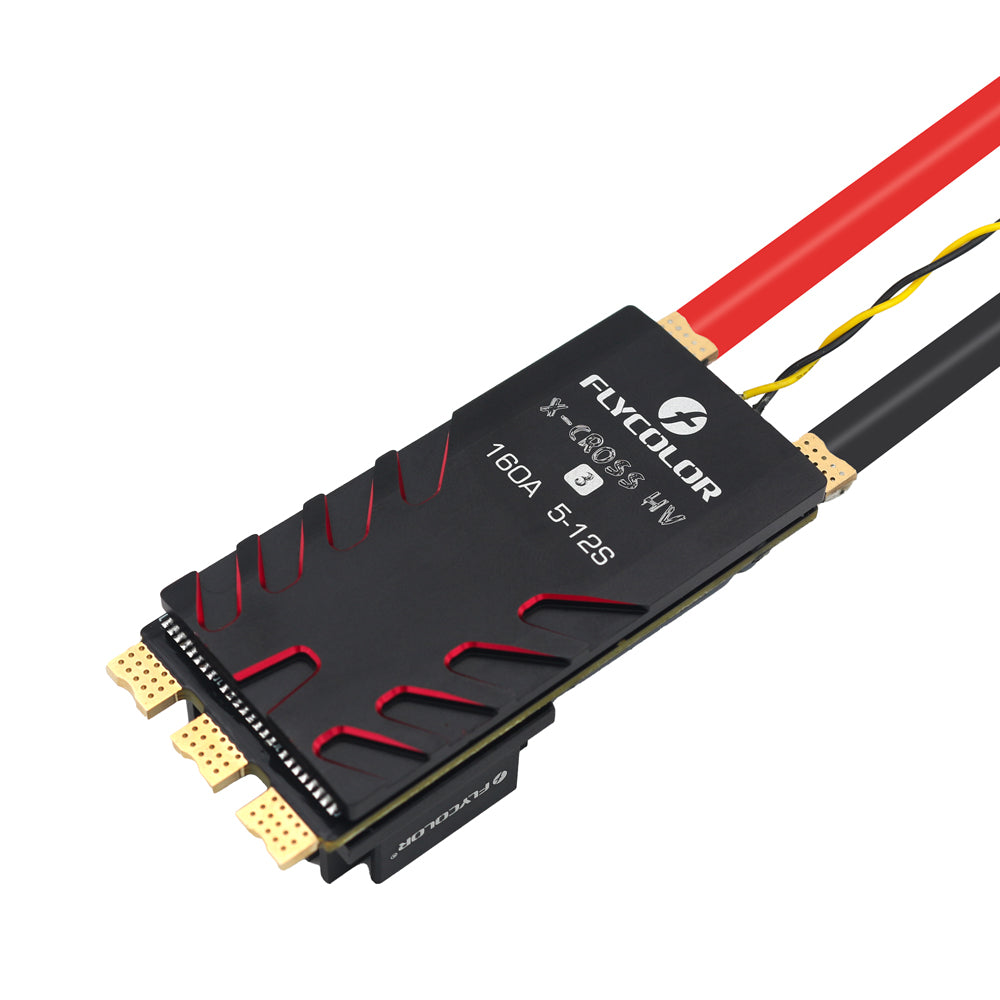

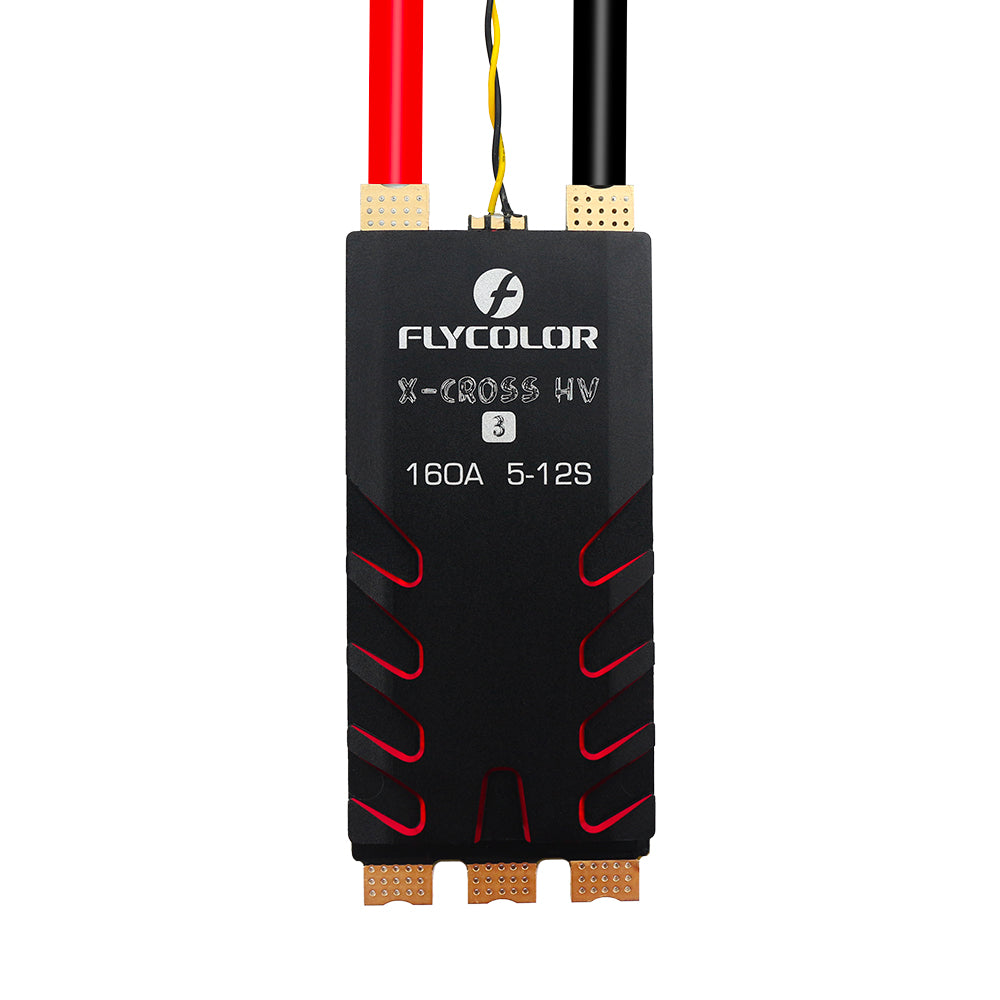

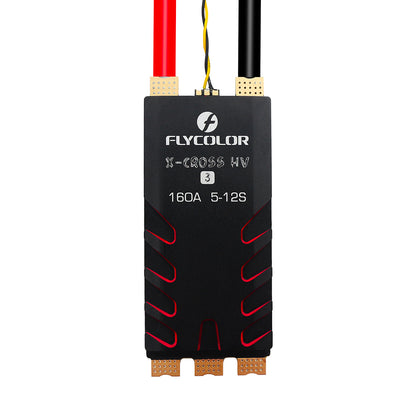

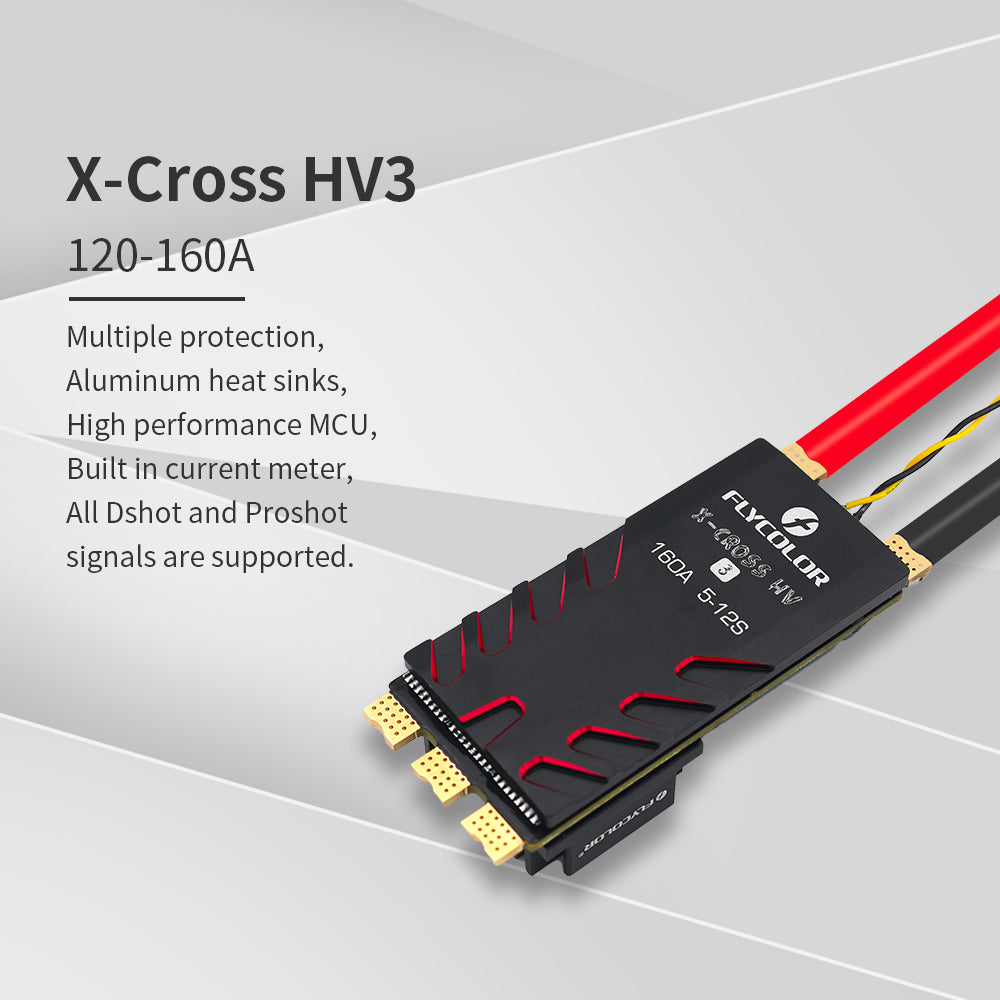

ESC Flycolor X-Cross HV3 160A 5-12S

Flycolor's X-Cross HV3 160A 5-12S ESC features quality MOSFETs, BLHeli_32 firmware, ARM 32-bit Cortex MCU, telemetry and more!

Function:

- ARM 32-bit Cortex MCU, frequency up to 48MHz.
- MOSFET with high power and low ESR, not afraid of large current.
- BL Heli_32 firmware, u0 to 12S Lipo, suitable for X-class frame drone.
- Supports common 1-2ms pulse width input as well as Oneshot125, Oneshot42 and Multishot.
- The input signal is automatically detected by the ESC after power-up.
- Small size, light weight, suitable for drone with narrow arms.
- Dimmed light performs regenerative braking, which causes very rapid engine deceleration and naturally also active idling.
- The silicone twisted pair of the throttle signal cable effectively reduces the crosstalk caused by the signal transmission and makes the flight more stable.
- The aluminum heatsink effectively slows down the temperature rise.

Specifications:
Model: HV3-160A
Current: 160A
Discharge: 180A
Voltage: 5-12S
BEC: No
Weight: 132g
Dimensions: 82 x 34 x 21.1 mm

The package includes:
1x ESC Flycolor X-Cross HV3 160A 5-12S
