Code: SKU:X-FW050006-F1F1-01

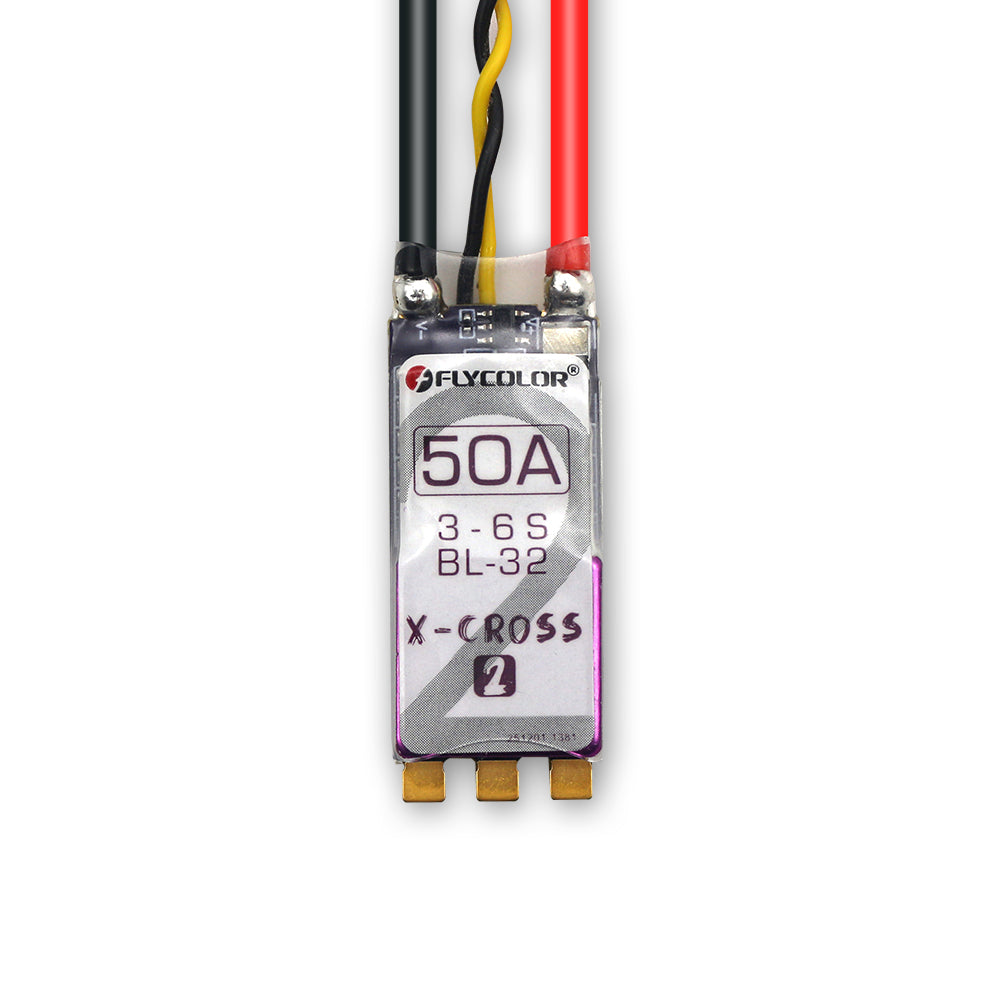

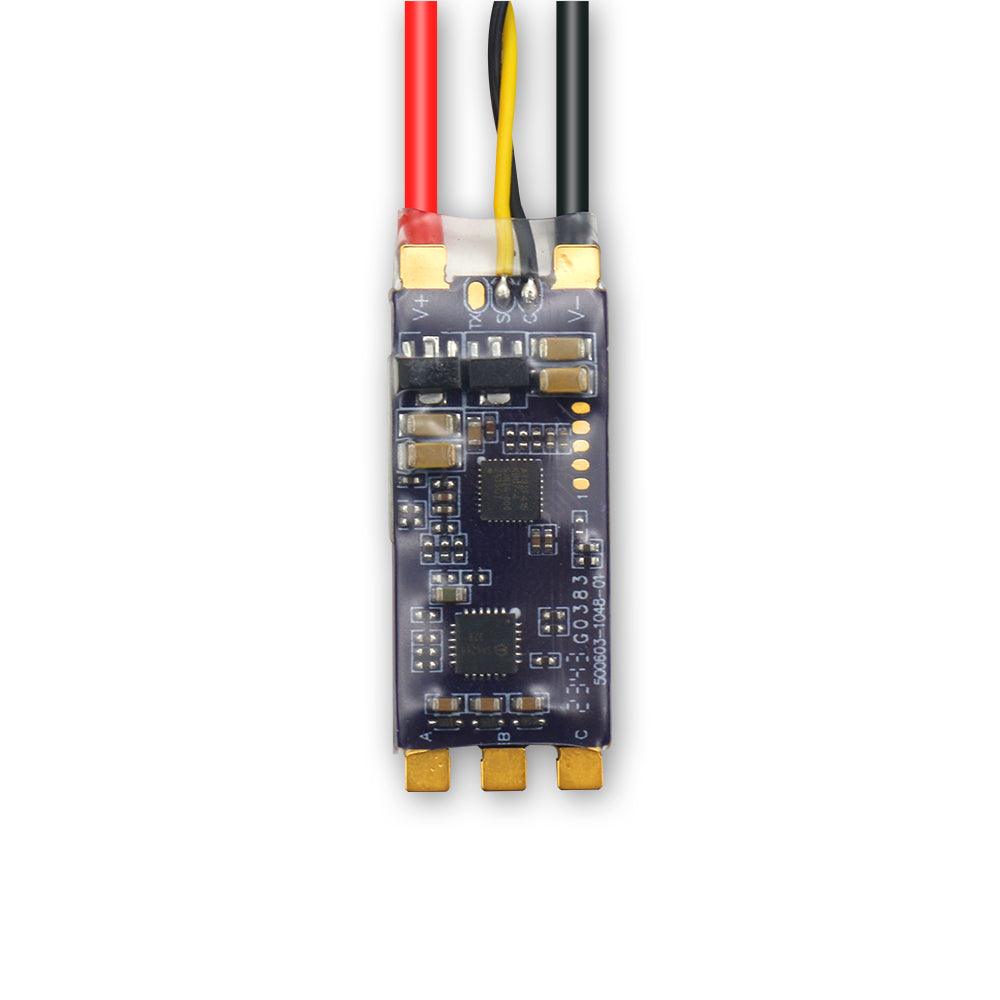

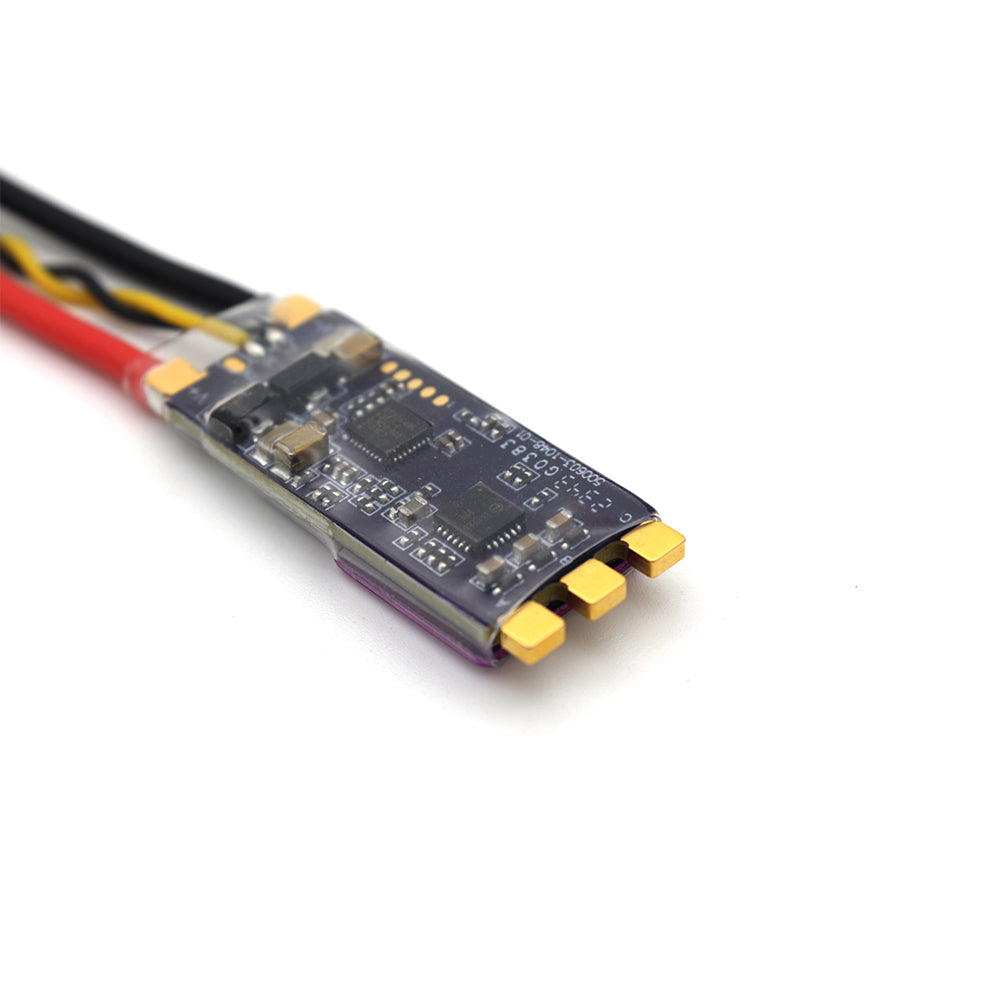

ESC Flycolor X-Cross 2 50A 3-6S
ESC Flycolor X-Cross 2 50A 3-6S
Brand: Flycolor
Regular price
€23,66
Regular price
€23,66
Sale price
€23,66
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
ESC Flycolor X-Cross 2 50A 3-6S High performance ESC supporting 50A continuous current and 3-6S LiPo battery. Includes advanced BLHeli_32 firmware and compatibility with Dshot and Proshot signals. Designed with a compact form factor for efficient power management in demanding drone setups. Function: - ARM 32-bit Cortex-M4 MCU, frequency up to 150 MHz, 57% higher than previous generation MCU. - PWM frequency up to 128k, high frequency for higher throttle allows smoother running. - ESC firmware is optimized, allowing for smoother throttle linearity and faster response. - Built-in current sensor, has better routing and component layout. - Multiple protections, support user-defined settings and meet the needs of multiple scenarios. - Supports common 1-2ms pulse width input as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5-25us). The input signal is automatically detected by the ESC after power-up. - All Dshot and Proshot signals are supported. - Supports higher power load, more suitable for violent flight of racing drone. - Supports telemetry and provides digital data such as temperature, voltage, current, speed, etc. (It is necessary for additional connection of the TX port on the PCB). - They do not support Smart Port data loading. Specifications: Model: X-Cross 2 - 50A Current: 50A Discharge: 60A Voltage: 3-6S BEC: No Weight: 10.2g Dimensions: 37 x 14.5 x 6 mm LED: No The package includes: 1x ESC Flycolor X-Cross 2 50A 3-6S
