Code: SKU:W4-FW060006-G1G1-TX1

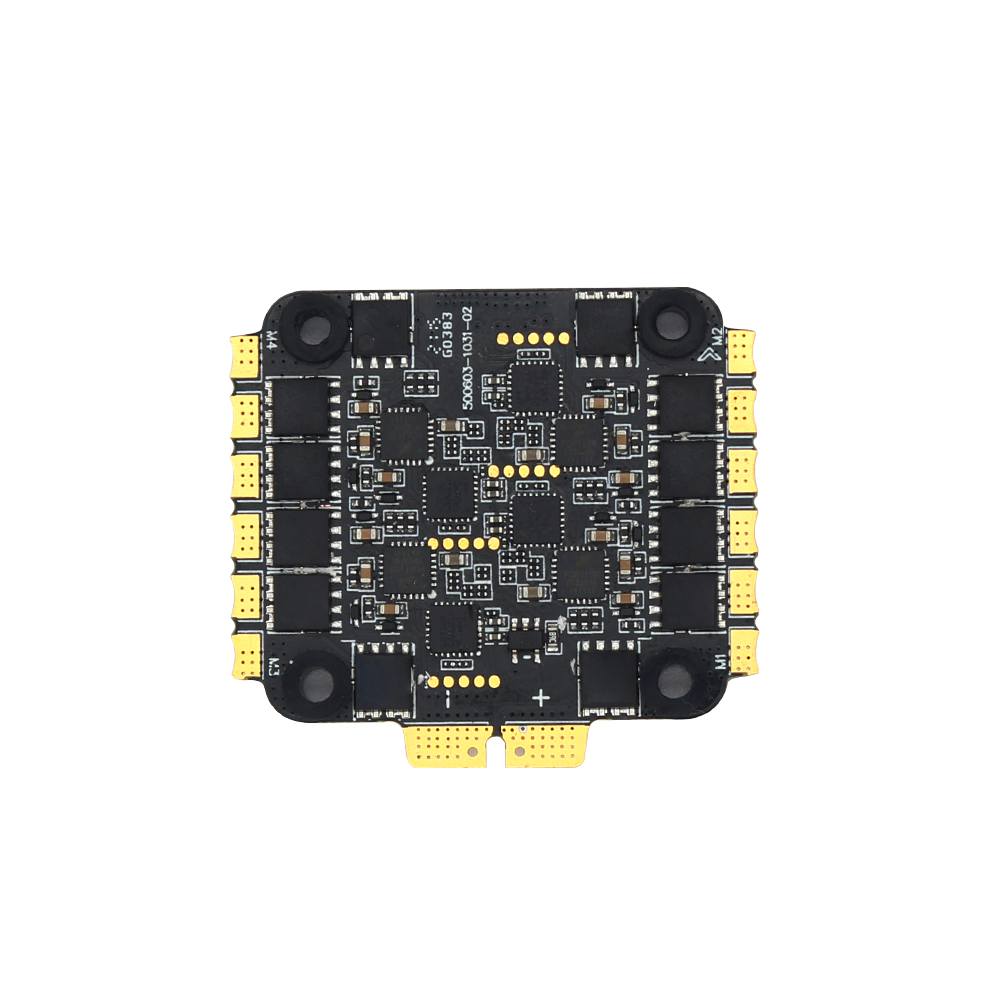

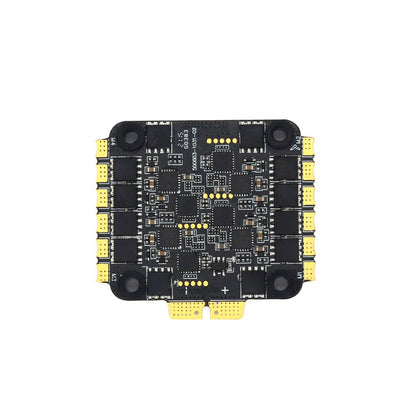

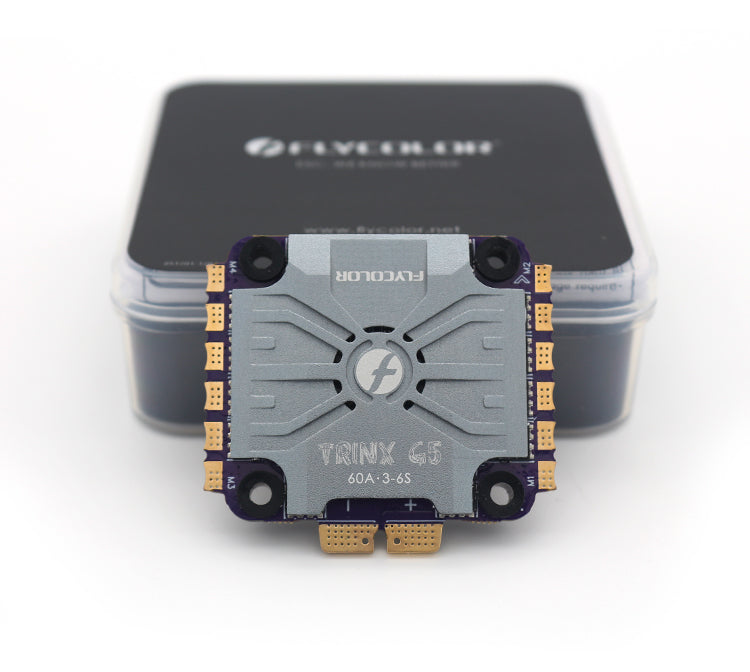

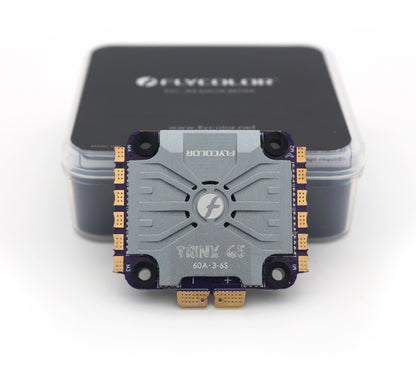

ESC Flycolor Trinx G5 60A 4-in-1
ESC Flycolor Trinx G5 60A 4-in-1
Brand: Flycolor
Regular price
€86,68
Regular price
€86,68
Sale price
€86,68
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
ESC Flycolor Trinx G5 60A 4-in-1 The Flycolor Trinx G5 60A 4-in-1 ESC is a high-performance electronic speed controller designed for demanding quadcopter setups. It supports 60A continuous current and 70A surge current, making it ideal for power-hungry drones. The ESC runs on 3-6S LiPo batteries and is equipped with BLHeli32 firmware, which ensures fast response and minimal latency. With a compact design weighing only 19.6g, it is suitable for various drone configurations Function: - PWM frequency up to 128K. - More protocols. - Built-in 4in1 ESC current sensor and VBAT output. - Longer and better performance thanks to the large surface area of the aluminum radiator. - Damping design to reduce the effect of vibration on the flight controller. - Supports higher power loads. - Large soldering tabs. Specifications: Model: Trinx G5 4in1 Con. Current: 60A Explosive current (10S): 70A BEC: NO LiPo cells: 3-6S Weight: 19.6 g (with cooler) Dimensions: 45 x 41 x 8.3 mm Mounting: 30.5x30.5 (M3) Configurator: BLHeliSuite32 Firmware: Flycolor_Raptor_5 All D-shot, Pro-shot MCU: STM32G07 The package includes: 1x Trinx G5 4in1- 60A ESC
