• ESC Emax Lightning 30A
    • 12540 esc emax lightning 30a
    • 12540 1 esc emax lightning 30a
    • 12540 2 esc emax lightning 30a
    • 12540 3 esc emax lightning 30a
    1 4

    Code: 0111003003

    ESC Emax Lightning 30A

    ESC Emax Lightning 30A

    Brand: Emax

    €21,96
    €21,96 €21,96
    -0% View Product
    Taxes included.
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

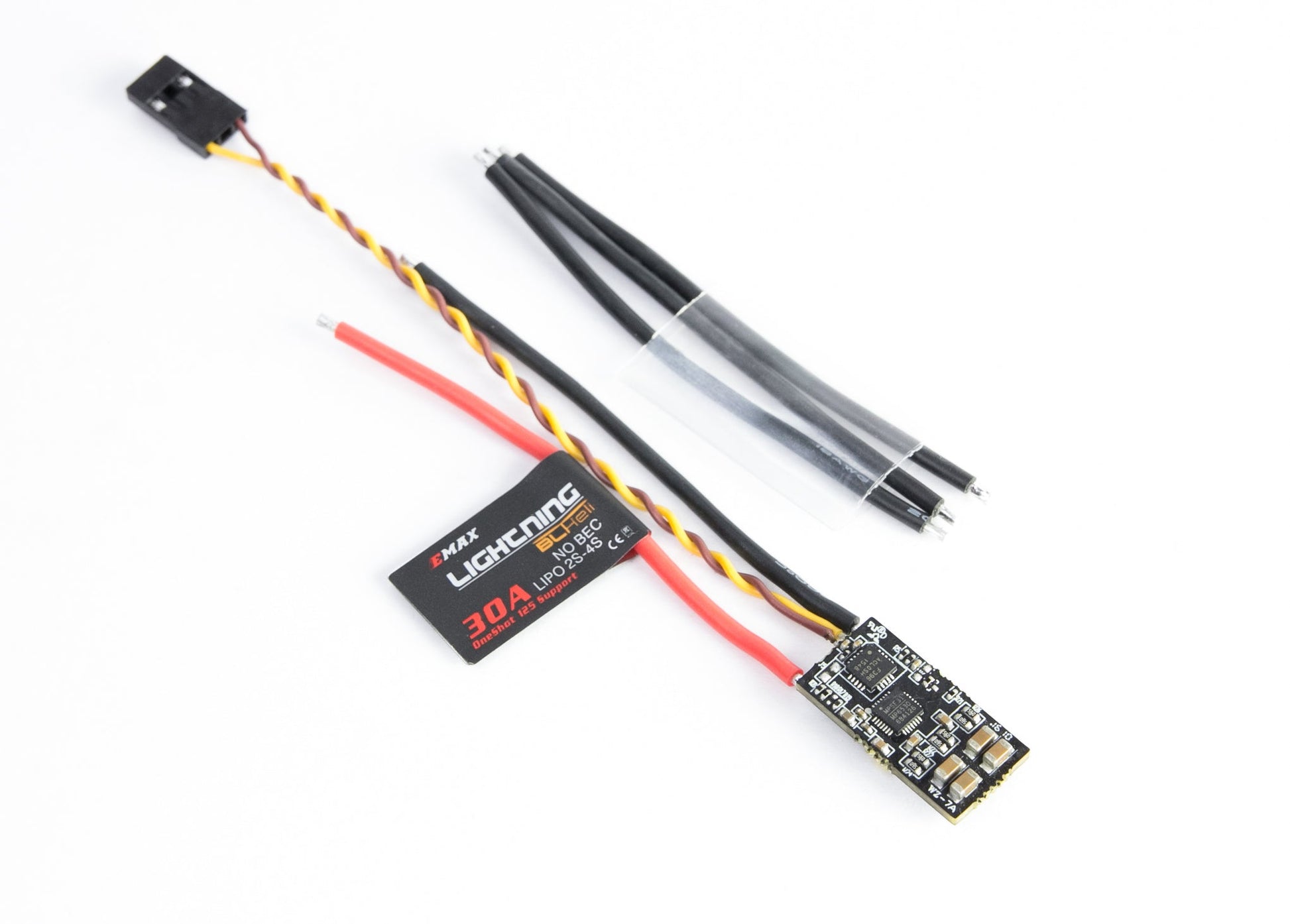

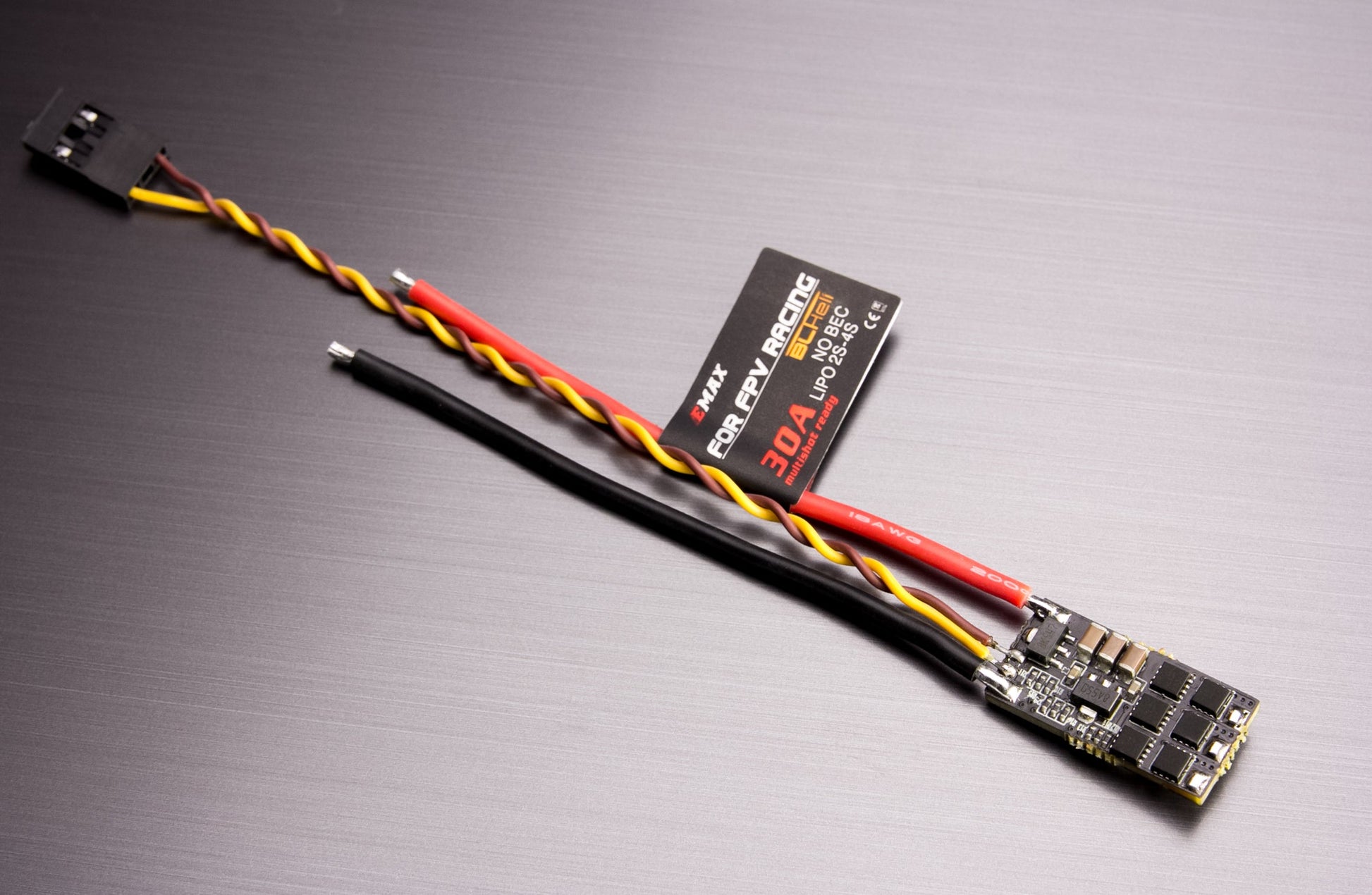

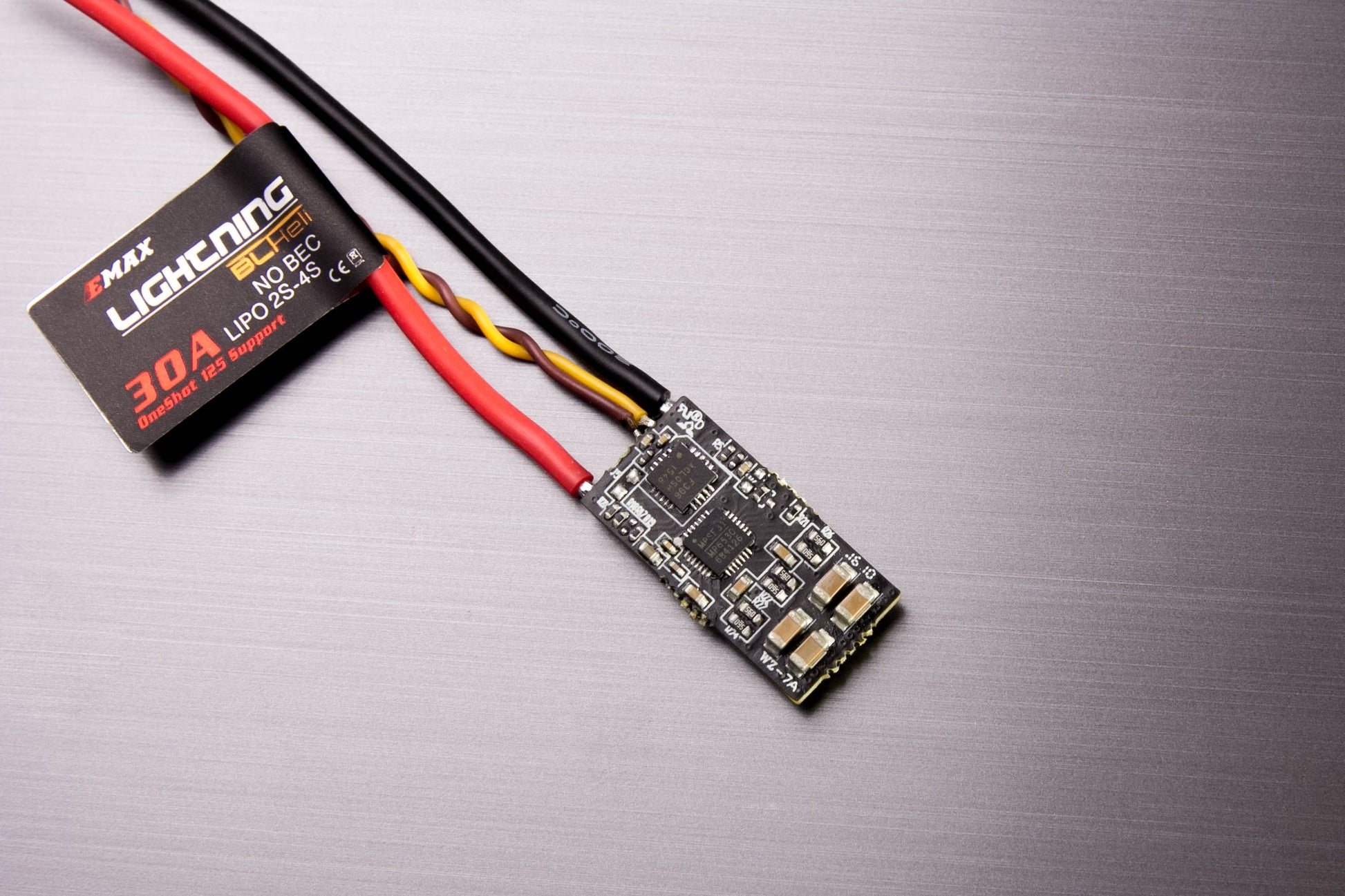

    Emax Lightning 30A ESC

Emax Lightning Series 30A Electronic Speed ​​Controller with MCU F396 for FPV Racing Drones (QAV210, QAV250, Multicopters).

Function:
1. The first BLHeli ESC with Synchronous Rectification hardware design in the market.
2. Uses high performance MCU F396.
3. Light and compact.
4. Supports active braking.
5. FW can be upgraded with signal wire.
6. Code of authenticity against counterfeits.
7. Supports up to 4S of high voltage (4.35V max per cell).
8. Smallest 30A ESC powered by F396 in its class.
9. Oneshot activated / Multishot ready.
10. Degree of high current rupture.

Specifications:
Item: Lightning Series 30A
Continuous current: 30A
Breaking current: 40A
MCU: F396
Lipo: 2-4S
Programmable: Yes
BEC: No
Weight with wire: 4.78 g
Dimension: 24.5 x 12.5 x 5 mm
