Code: SKU:S0801
Data Telemetry Module CUAV Air Link 4G
Data Telemetry Module CUAV Air Link 4G
Brand: CUAV
Regular price
€199,00
Regular price
€199,00
Sale price
€199,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

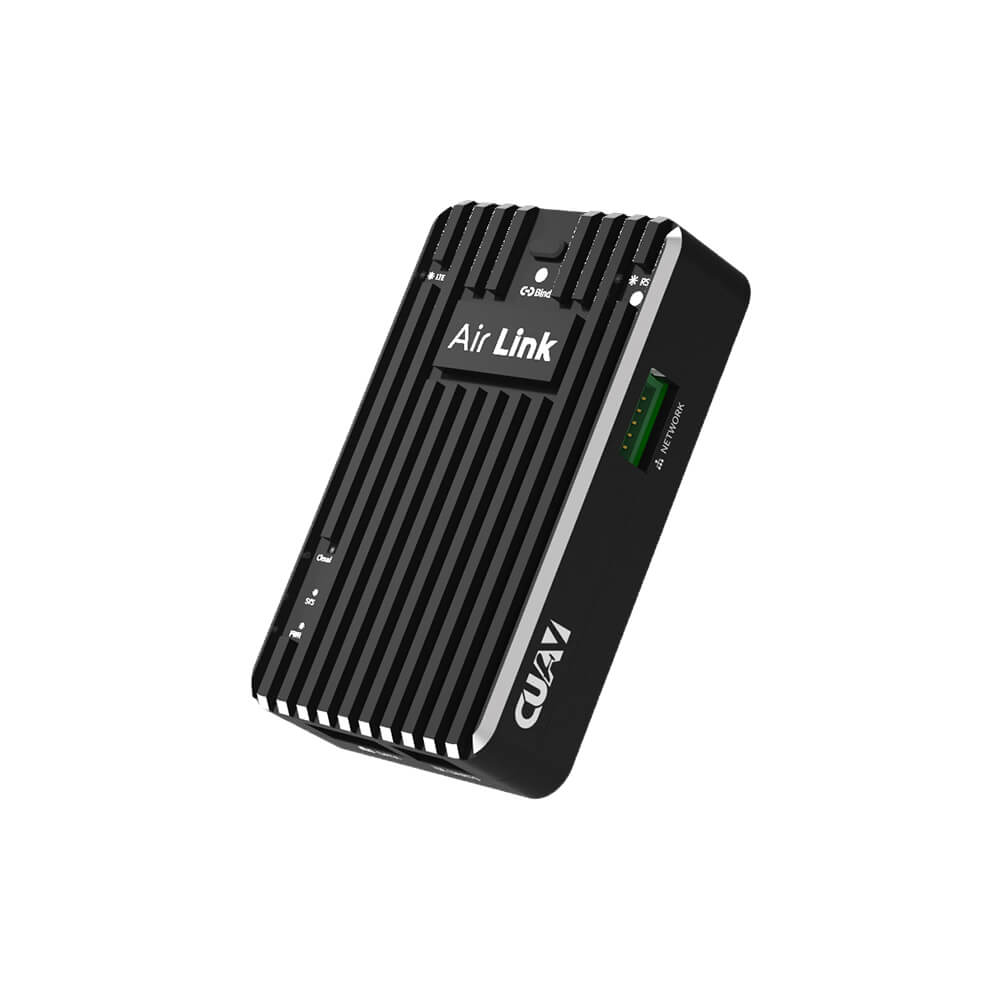

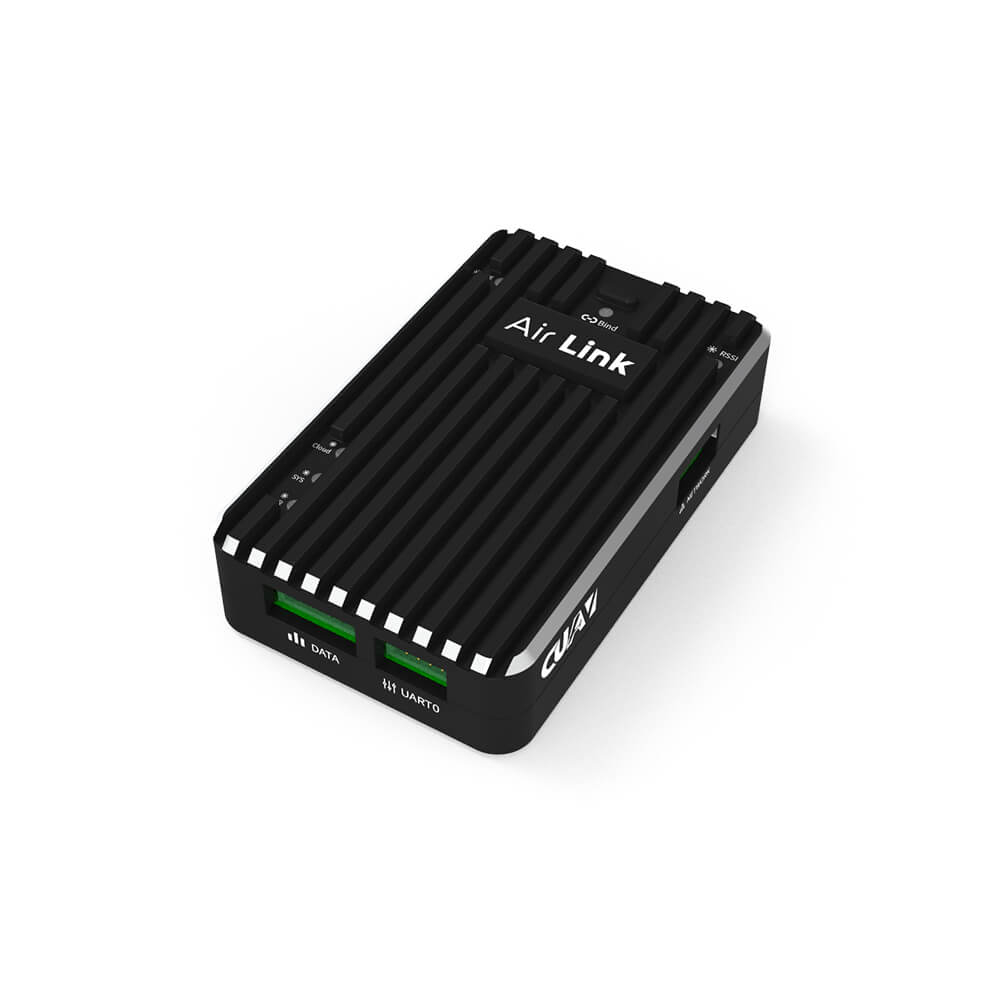

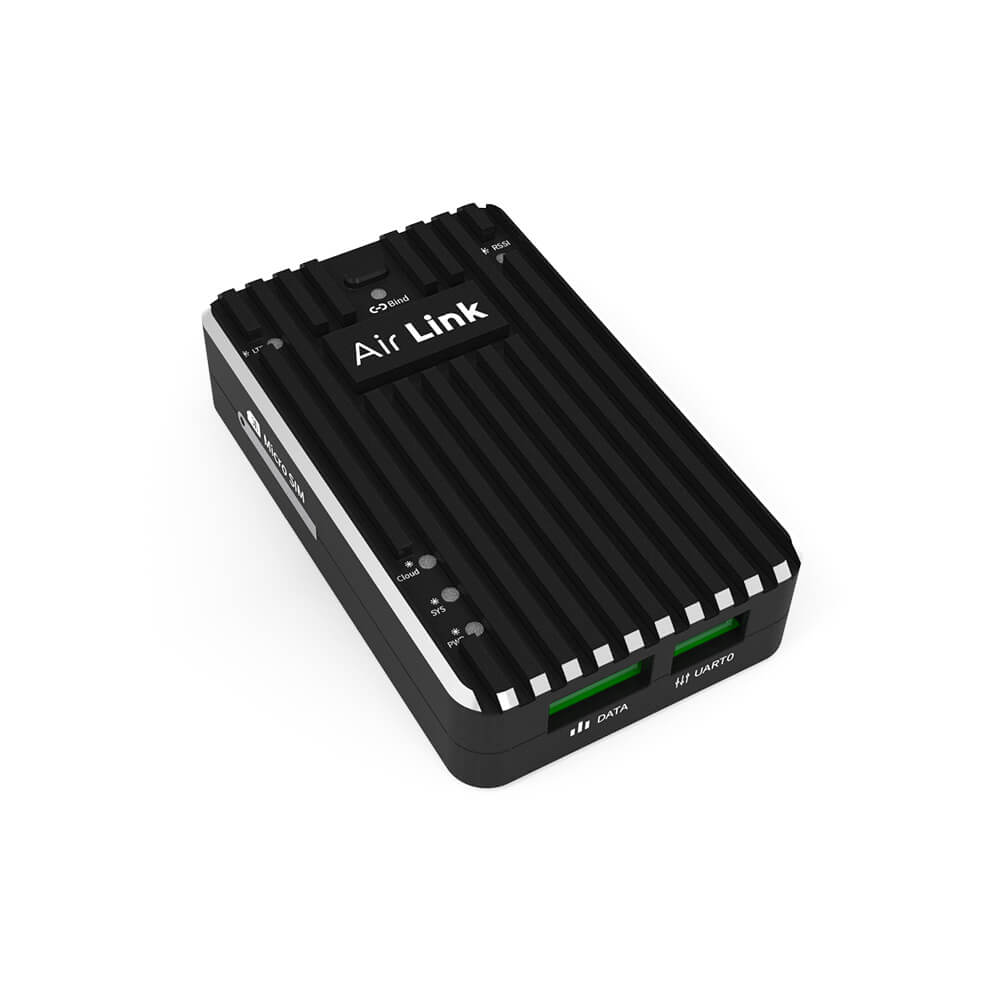

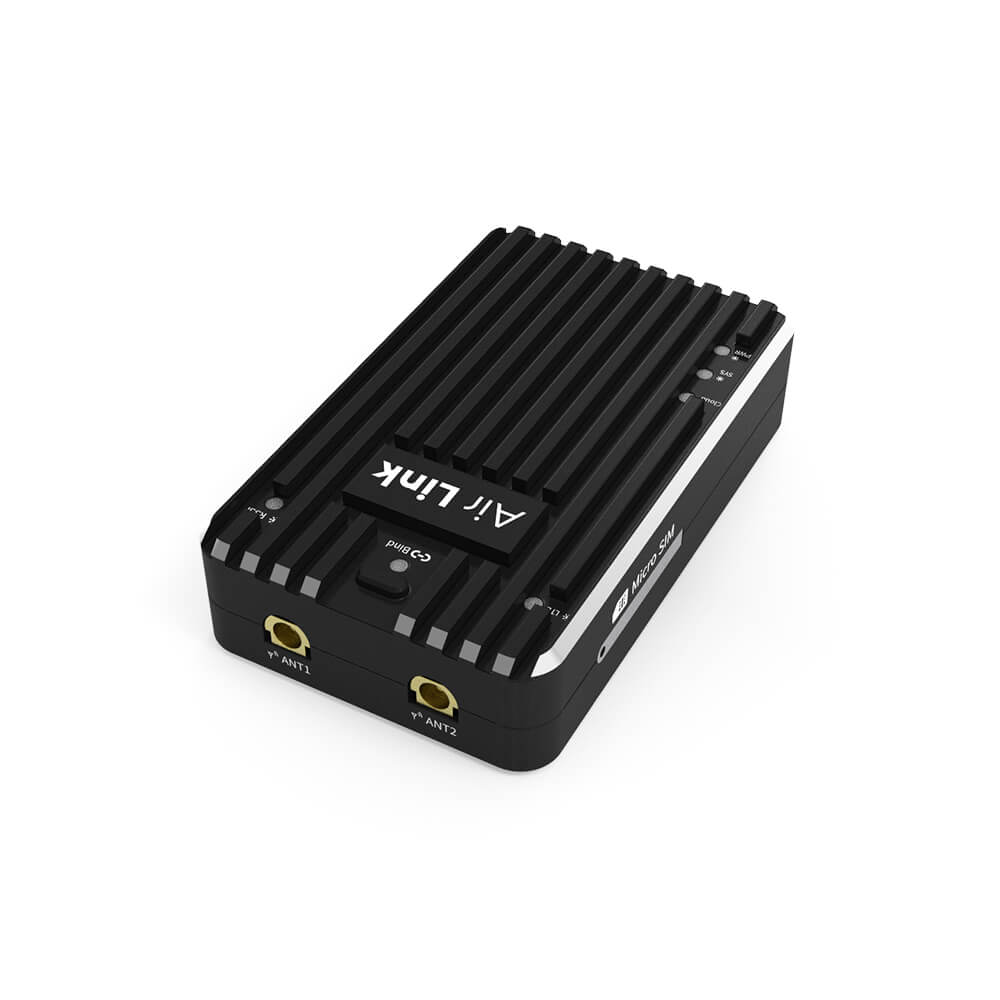

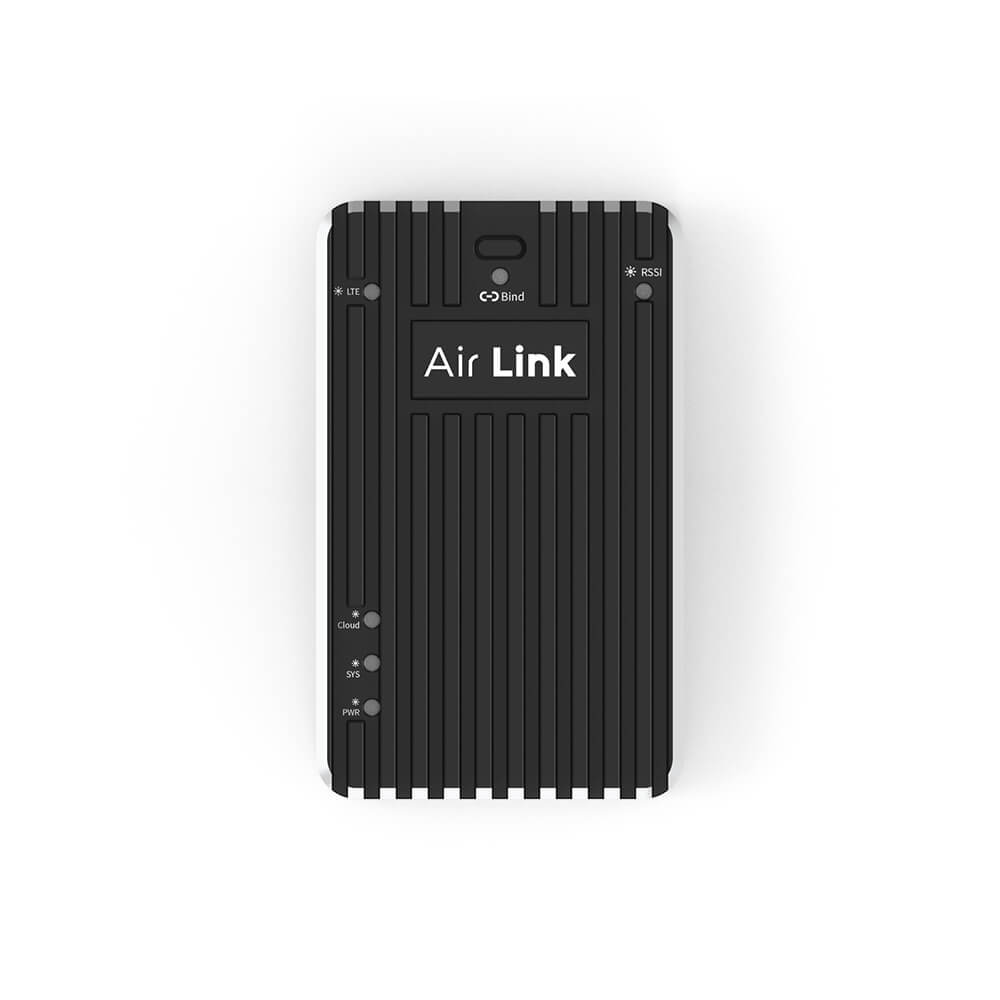

Data Telemetry CUAV Air Link 4G The CUAV Air Link 4G is a high-performance telemetry module that leverages global 4G networks to deliver real-time UAV data with ultra-low 40 ms latency and virtually unlimited range. With AES-encrypted data transmission, it ensures secure MAVLink communication for ArduPilot and PX4 systems. Dual-MMCX antenna ports provide robust signal reception, while an onboard micro-SIM slot allows seamless roaming across LTE, HSPA+, and GSM bands. Compatible with CUAV and Pixhawk flight controllers, it also supports remote debugging and GCS operations via Windows or Android applications. Designed for professional drone operations, it combines convenience, security, and reliability in a compact 54.5 × 33.5 × 13.5 mm package. Network Bands: LTE FDD: B1, B3, B8 LTE TDD: B38, B39, B40, B41 DC-HSPA+/HSPA+/HSPA/UMTS: B1, B5, B8, B9 TD-SCDMA: B34, B39 GSM/EDGE/GPRS: 900/1800 MHz Network Speeds: LTE FDD: 150 Mbps down / 50 Mbps up LTE TDD: 112 Mbps down / 10 Mbps up DC-HSPA+: 42 Mbps down / 5.76 Mbps up Interfaces: UART × 1 Micro-SIM slot × 1 MMCX antenna ports × 2 Power & Env: Operating Voltage: 5 V Temperature Range: –10 °C to +60 °C Other specifications: Data Protocol: MAVLink 1/2 (ArduPilot, PX4) Latency: 40 ms (end-to-end) Security: AES-encrypted link Dimensions: 54.5 × 33.5 × 13.5 mm Weight: 52 g Package Includes: 1 × CUAV Air Link 4G Telemetry Module 2 × MMCX Antennas 1 × UART Cable 1 × Quick-start Guide
