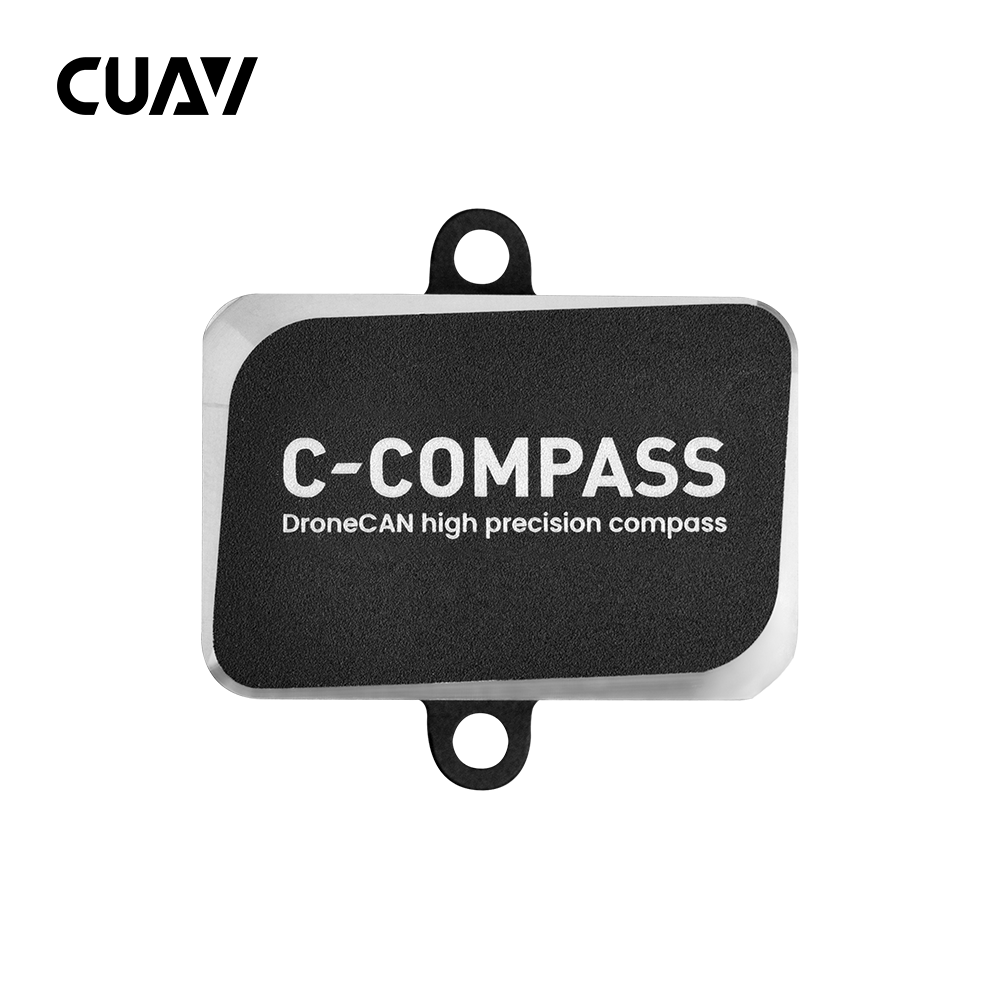

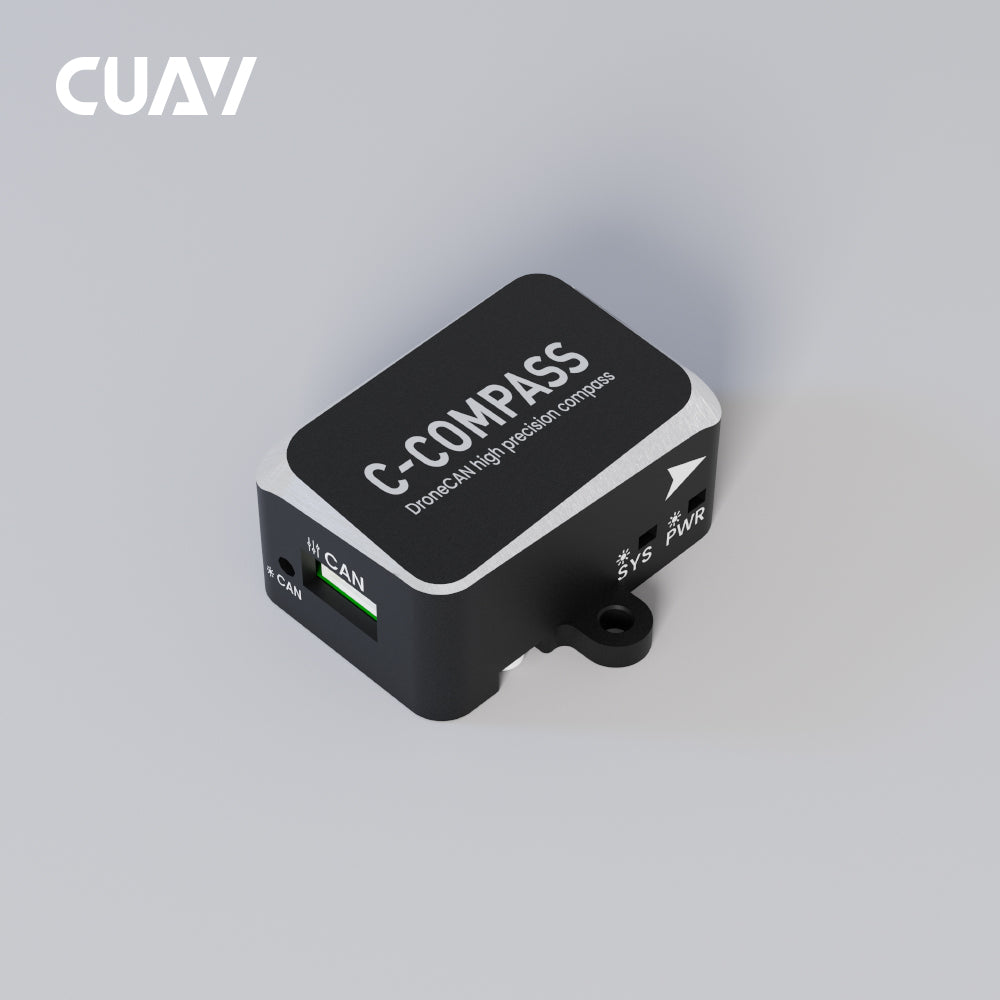

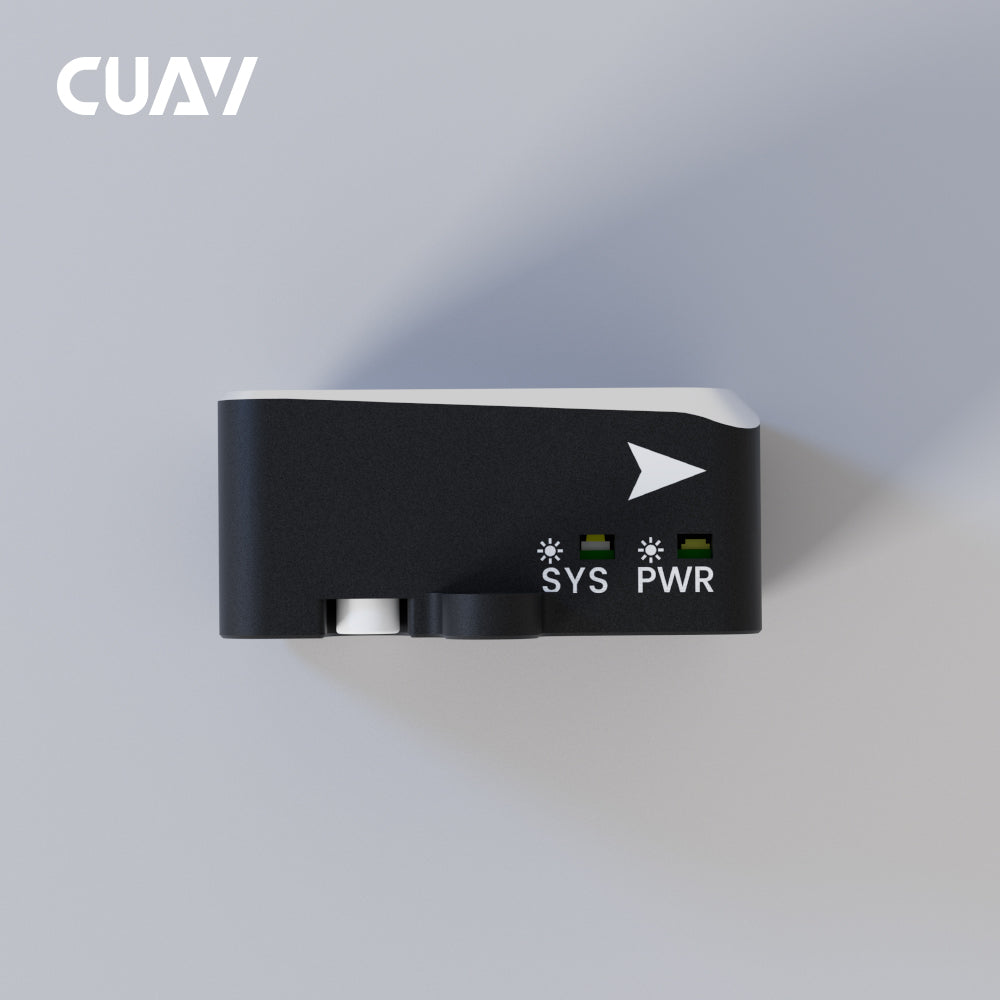

    CUAV Magnetometer C-compass

    CUAV C-Compass is a high precision compass and magnetometer designed for professional use. It features the industrial-grade RM3100 magnetometer, a revolutionary sensor that has revolutionized magnetic field measurement with its exceptional resolution and minimal noise.

    CUAV C-Compass Specifications:

    • Processor: STM32F4 100MHz
    • Magnetometer: RM3100
    • Communication protocol: DroneCAN/UAVCAN
    • Communication speed: 2Mb
    • Refresh rate: 80Hz
    • Noise: 15nT
    • Accuracy: 0.25° (effective value)
    • Inclination angle accuracy: 0.05°
    • Resolution: 0.01°
    • Sensitivity: 13nT
    • Measuring range: -800μT to +800μT
    • Compatible control types: PX4/ArduPilot (CUAV/Pixhawk etc.)

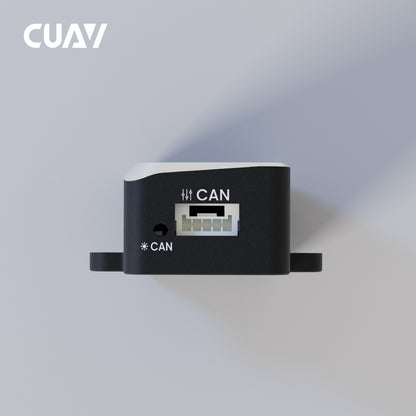

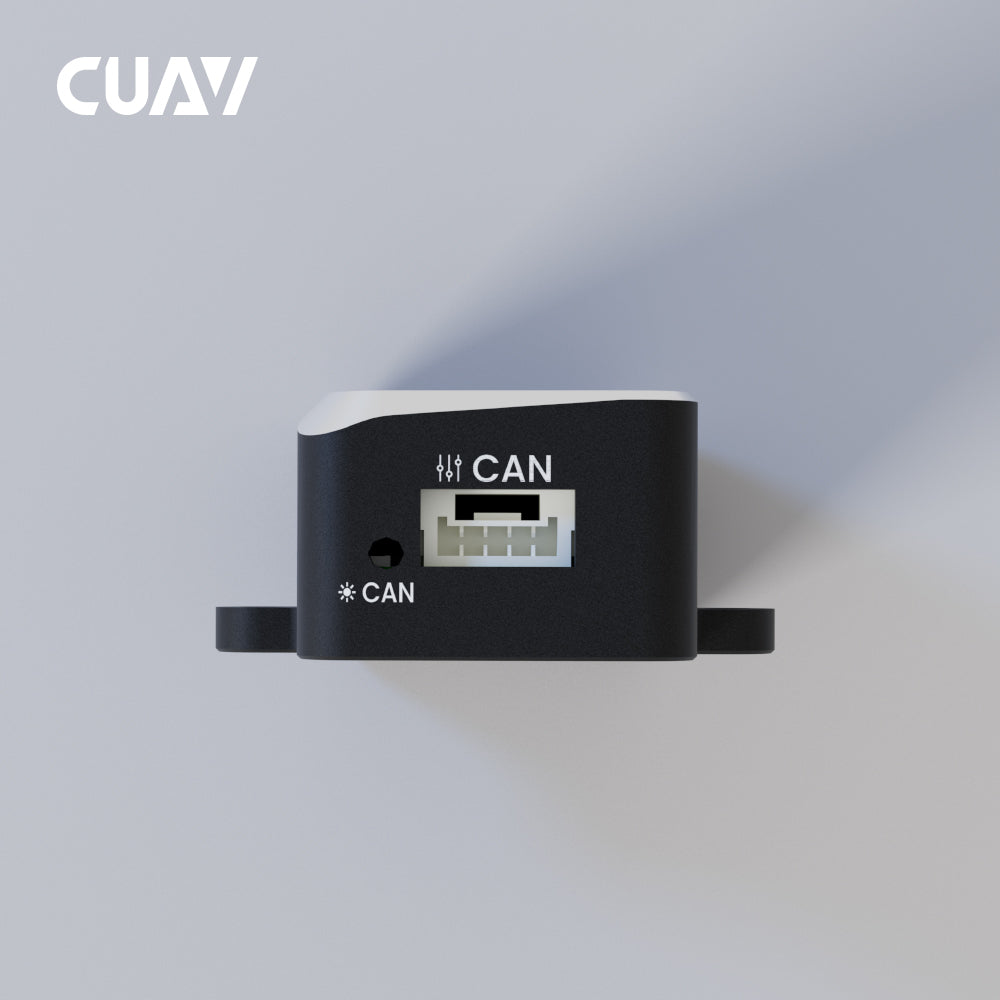

    • Type of connector: GHR-04V-S
    • Operating voltage: 4.75-5.3V
    • Operating temperature: -20°C to 85°C
    • Operating humidity: 5%-95% (non-condensing)
    • Case Material: Alloy
    • Weight: 13g
