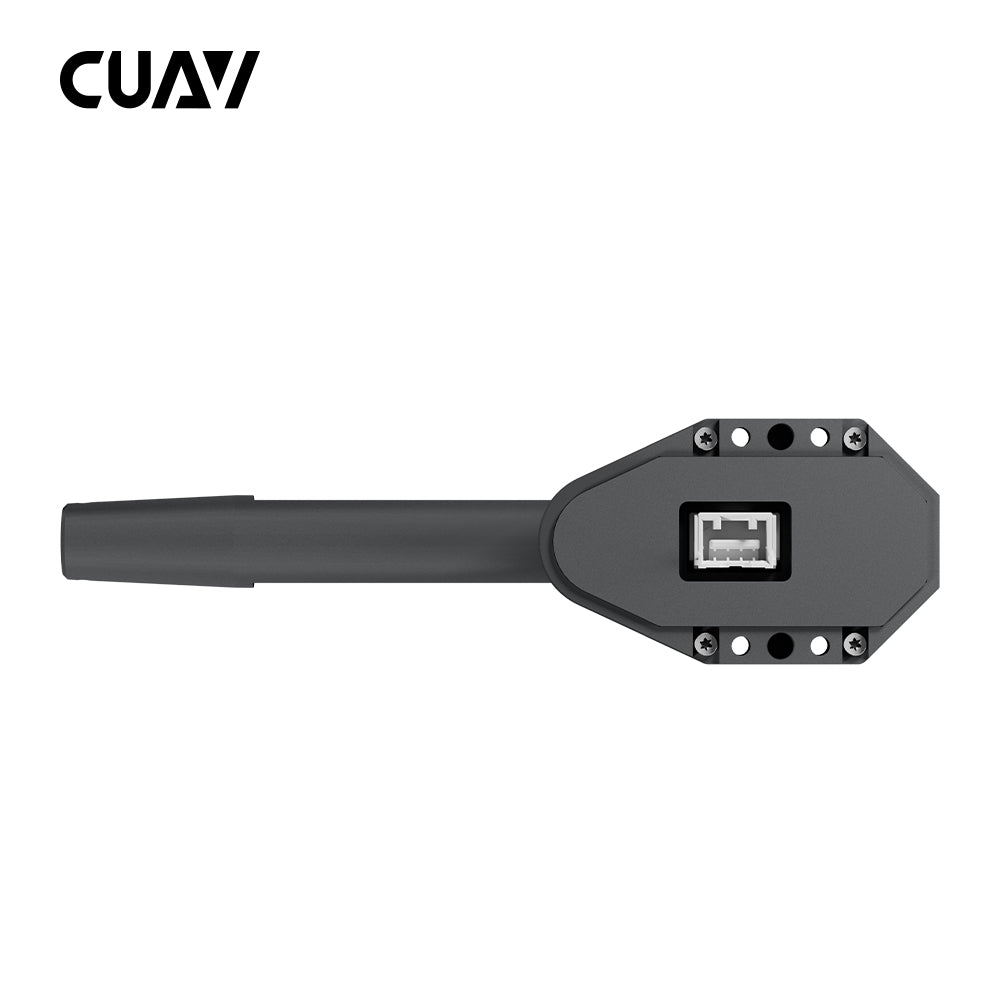

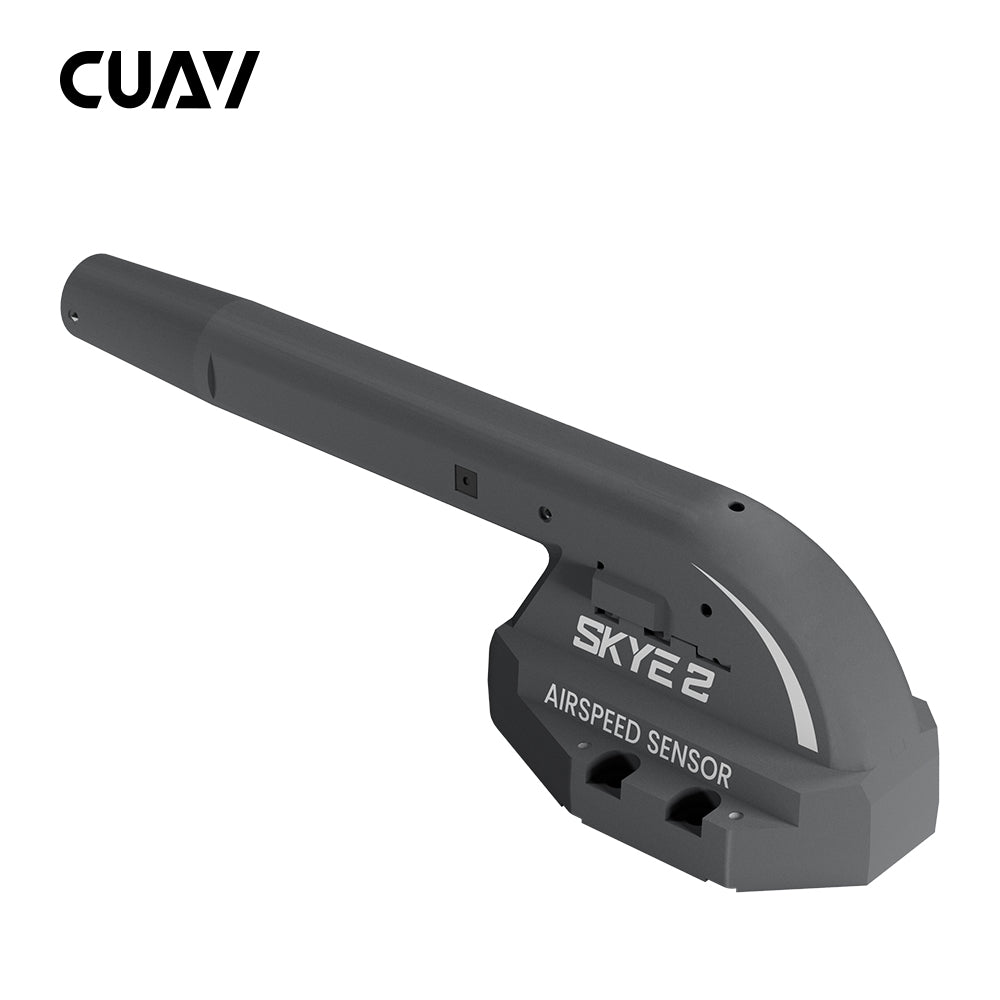

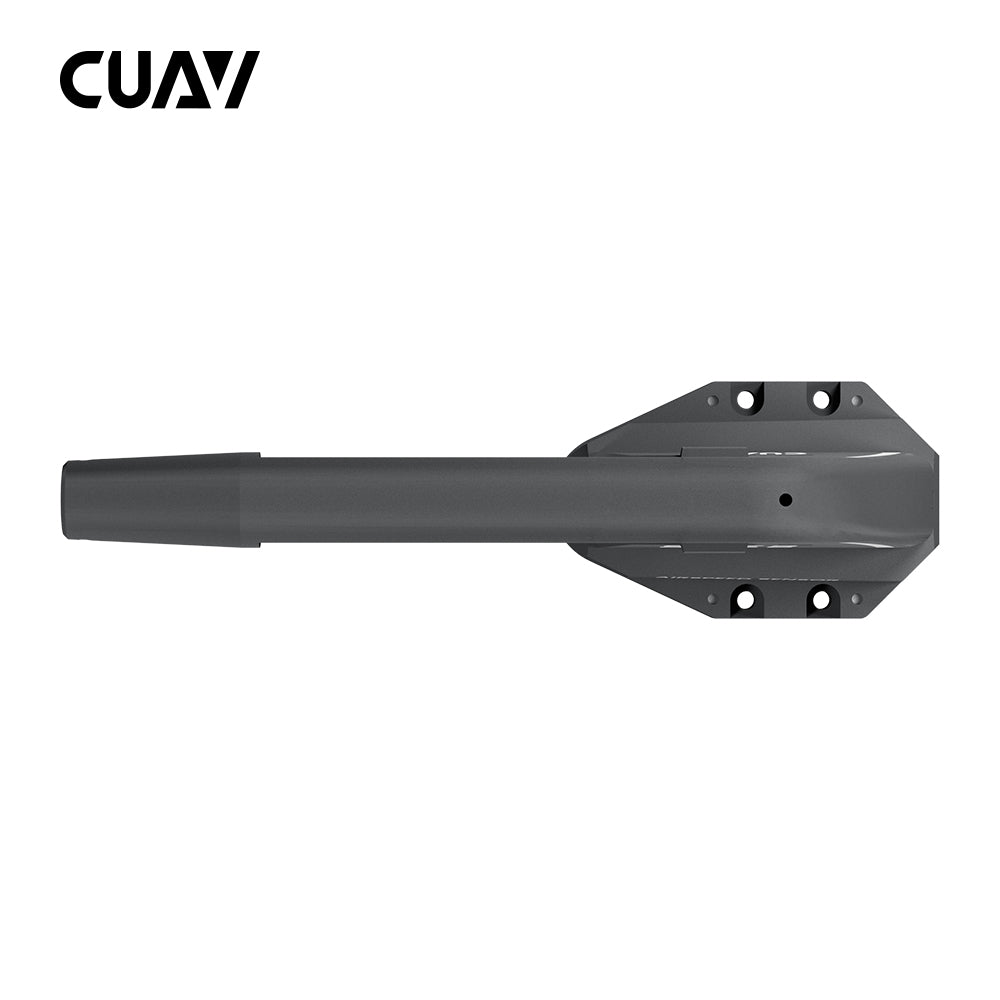

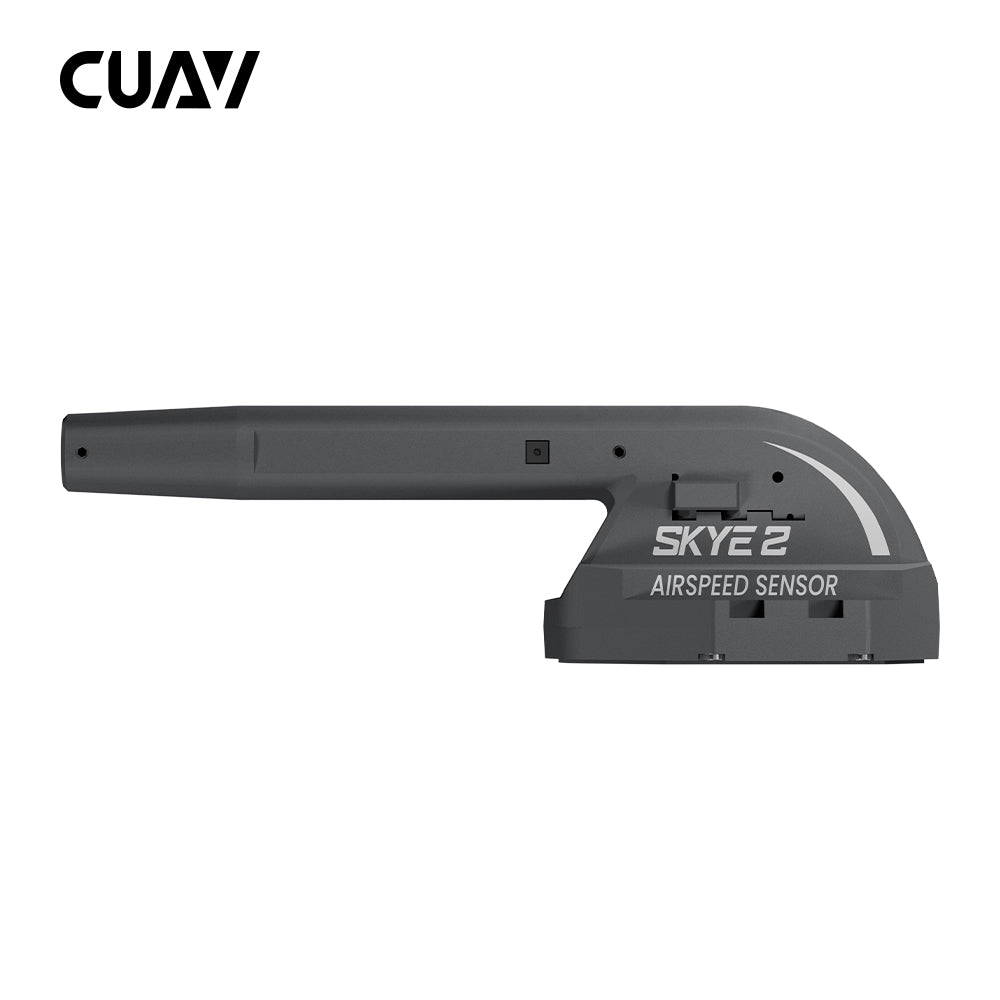

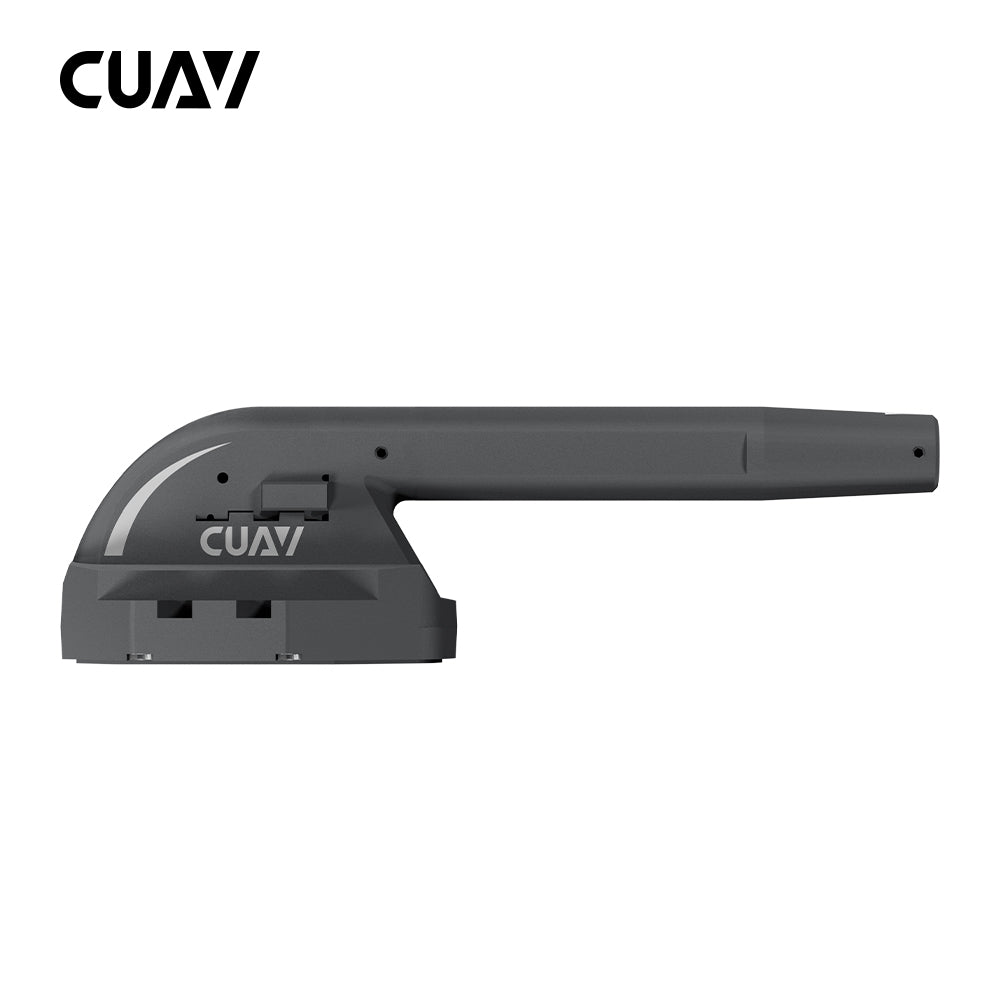

CUAV Airspeed Sensor SKYE 2
CUAV SKYE 2 Airspeed Sensor - heated air speed sensor CUAV SKYE 2 is an improved version of the CUAV SKYE air speed sensor, which offers higher efficiency and reliability compared to its predecessor. It gives pilots the ability to adjust movements, making the flight more controllable, as it takes wind speed into account. CUAV SKYE 2 is made of high-quality materials and has an IP54 degree of protection, making it a dustproof and waterproof sensor. Thanks to its light weight, the sensor can be easily integrated into most drones. Like its predecessor, the CUAV SKYE 2 combines a pitot tube, an air velocity sensor, a temperature and humidity sensor, an ARM M4 processor and a dual temperature control system in one device. The temperature control system prevents freezing and increases the reliability of the drone.
CUAV SKYE 2 Specifications:
- MCU: STM32F4
- Protocol: DroneCAN
- Measuring speed: 0-381.6 km/h
- Accuracy: ±1% FS
- Temperature measurement range: -20°C to 125°C
- Heating element: Two resistance heaters
- Humidity measurement range: 0-100%
- Operating voltage: 16-68V
- Dimensions: 102 mm / 29.4 mm / 28.2 mm
- Weight: 25 g
- Degree of protection: IP54
- Flight control: ArduPilot/PX4
