Code: SKU:5976
Controller Skydroid T12
Controller Skydroid T12
Brand: SkyDroid
Regular price
€213,00
Regular price
€213,00
Sale price
€213,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

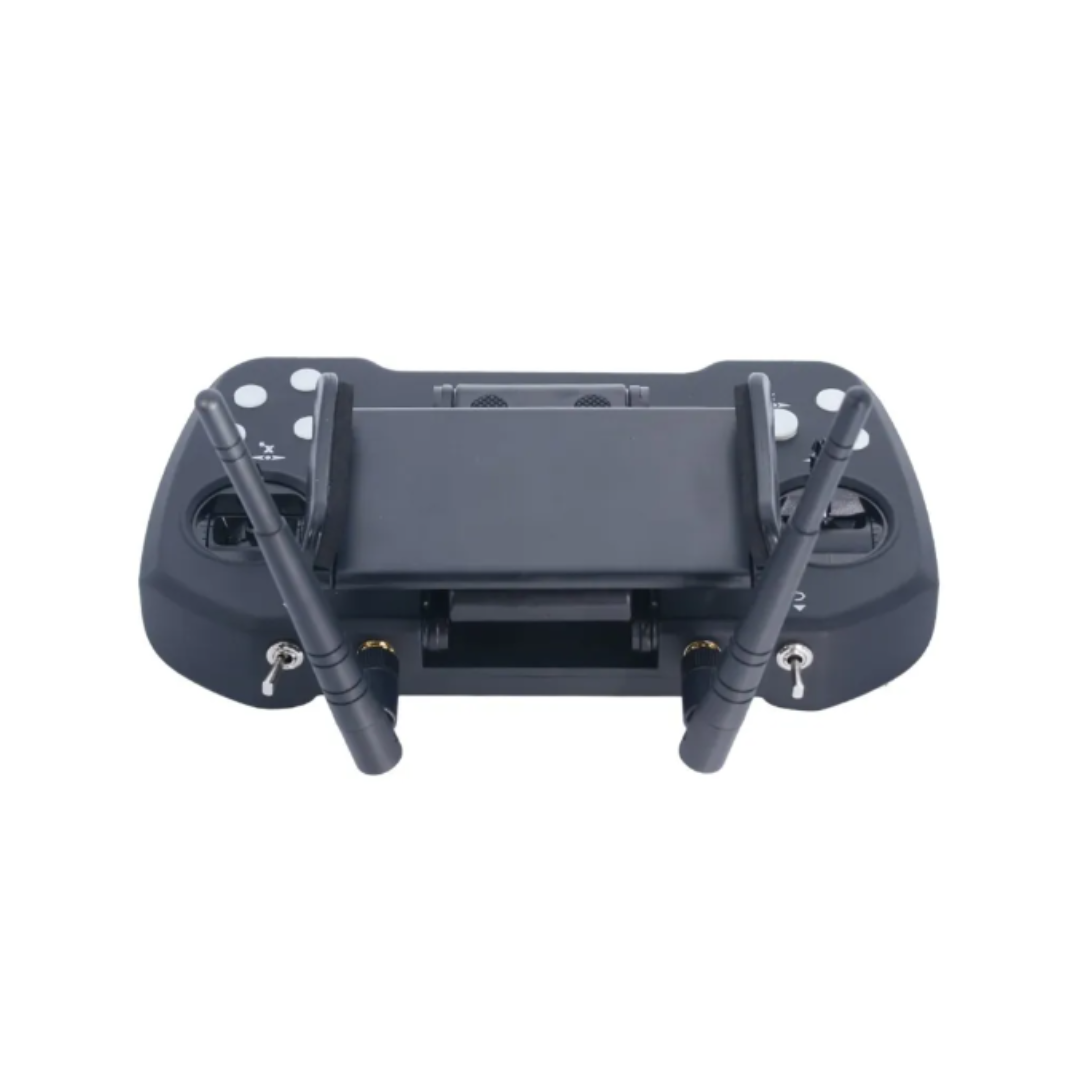

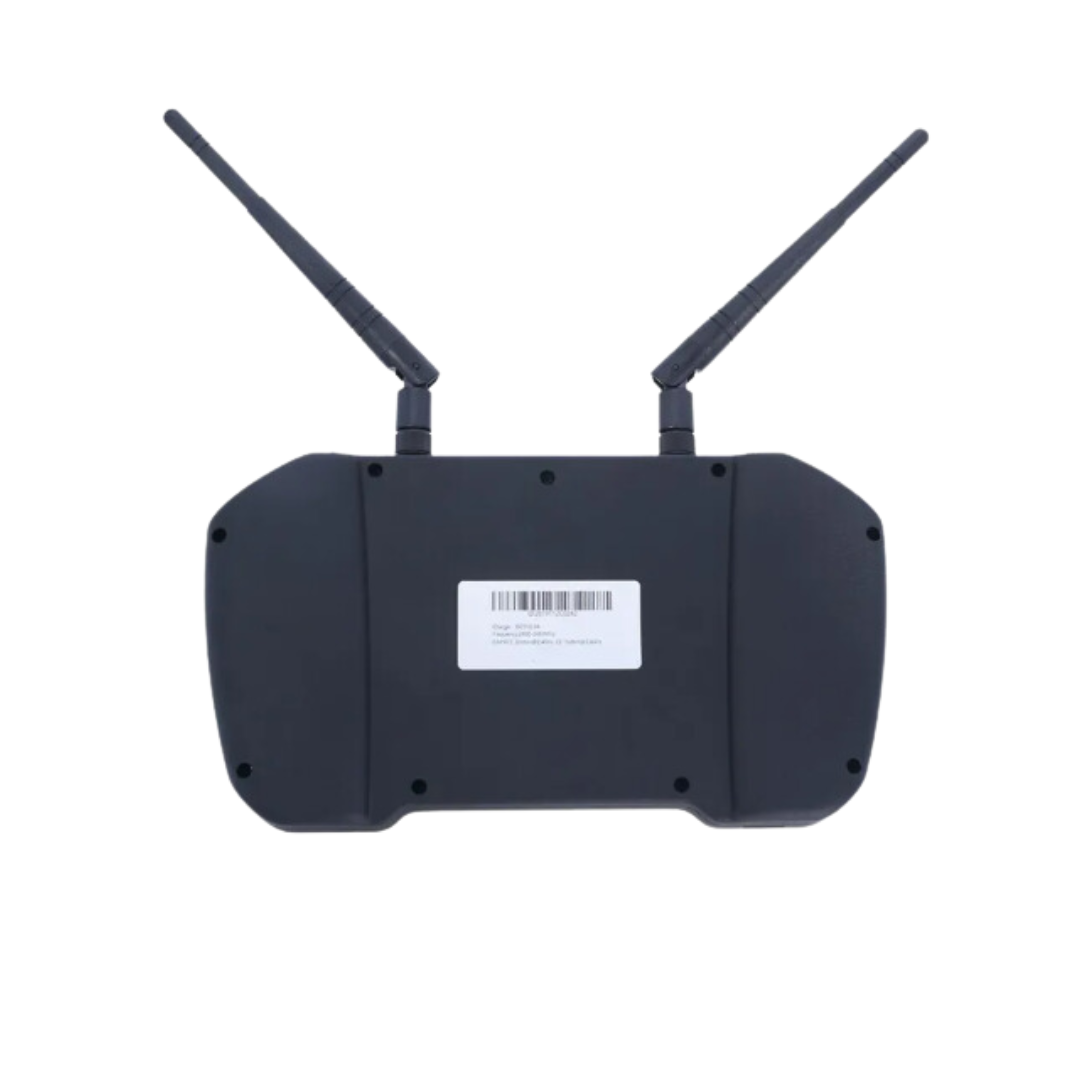

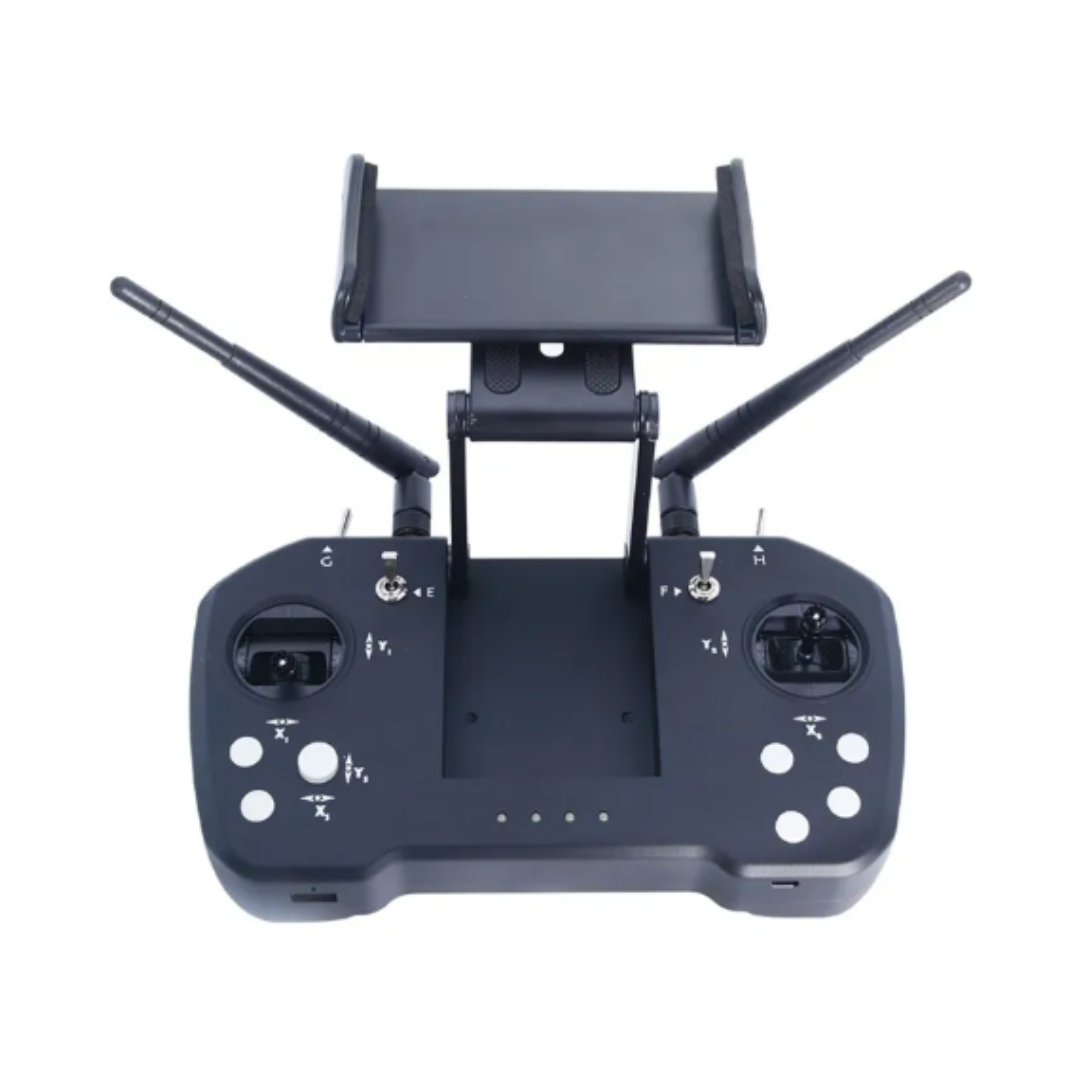

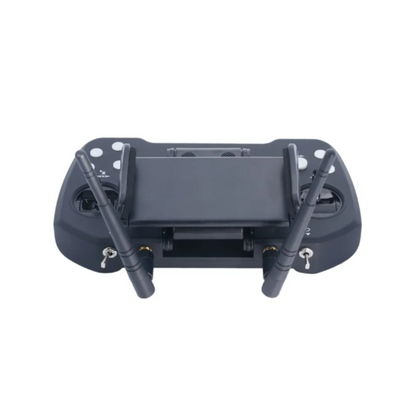

Skydroid T12 2.4GHz 12CH long range remote control The Skydroid T12 remote control combines data transmission, video transmission and remote control functions, making it ideal for fixed-wing aircraft, drones and intelligent robots. The working frequency of Skydroid T12 remote control is 2.4GHz and the transmission power is 100. Using FHSS technology and high-gain omnidirectional antenna, the video and data transmission distance is about 10 kilometers. The remote control has a built-in battery with a capacity of 4000 mAh and the operating time is approximately 25 hours. The Skydroid T12 remote controller is waterproof and dustproof, has strong expandability and supports various interfaces, such as S.BUS, PPM, PWM, I2C and serial ports. The default signal interface of the T12 receiver is S.BUS, which can be switched to PPM in the APP. The remote control can be connected via Bluetooth and a USB data cable. So the data can be sent to the phone via Bluetooth, and you can see all parameters or settings on the phone, such as Mode, Nor/Rev, Failsafe, S.BUS, ppm output baud rate, etc. The remote control can also be connected to a phone or laptop using a USB cable. Function: - Built-in high efficiency antenna to prevent digital transmission delay. For safe flying - Built-in intelligent communication. Increasing the stability of transmission over long distances. Dual antenna module - Powered by FHSS technology. Longer distance up to 20 km - Cardans with Hall sensor and permanent magnetic sensors extend the service life up to 30 years. Military grade dustproof gimbal cover. - Remote controlled dimming LED camera captures video clearly at night - Bluetooth plus USB cable provides a reliable connection - 24 hours of continuous operation on a single charge - The legal output power of 100 mw is in accordance with the relevant export certificates - The battery is MSDS certified and can be transported on an airplane Specifications: Controller Model: T12 Working voltage: 3.7V (1S Li-ion) Frequency: 2.400-2.4833 GHz Firmware: APP online Dimensions: 22512335mm Duration: 25 (hours) Channels: 12 Working current: 130mA Modulation: New FHSS Weight: 560 g Battery capacitor: 4000mA Charging port: 10mAh: MICRO-USB Application: Helicopter, Fixed Wing, Quadcopter, Car, Boat Receiver model: R12 Working voltage: 4.5-5.5V Dimensions: 514113 (mm) Channels: 12 Operating current: 140mA @ 5V Weight: 14 g The package contains: 1x Skydroid T12 controller
