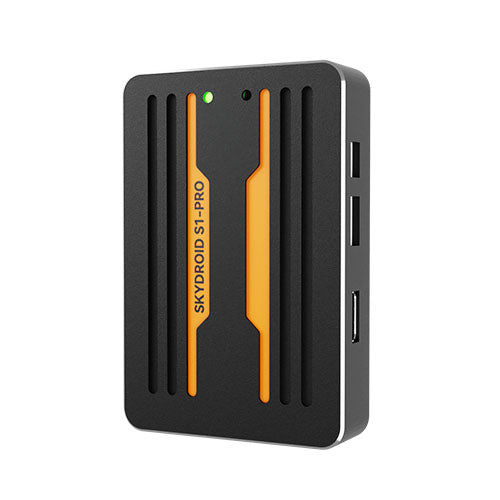

Skydroid S1 Pro UAV Drone Electronic Control System
Skydroid S1 Pro UAV Drone Electronic Control System is an excellent UAV electronic control system that combines automotive-grade sensor technology and 1080P video transmission to provide users with an excellent flight experience.
With rich interfaces such as PWM/CAN/SBUS/UART/network port for camera, the system has powerful expandability and is suitable for different scenarios and devices with different functions and requirements. Whether for professional field or personal entertainment, Skydroid S1 Pro can meet different needs.
Its key features include automotive-grade sensors, meaning the system uses high-quality sensor technology that provides more accurate and reliable data. The 1080P video transmission function allows users to get a high-definition image in real time, which enhances the quality of in-flight viewing.
Skydroid S1 Pro is also equipped with convenient network ports and a multitude of interfaces, giving users more connectivity and expansion options. Not only that, the system supports a wide range of models and is compatible with multi-axis gimbal cameras, allowing users to choose the right configuration according to their needs.
It is worth noting that the Skydroid S1 Pro electronic control system uses an open source design, which provides users with the option of secondary development. This means that users can customize the system according to their needs, expand its functions and achieve more flexible and innovative flight control.
- Automotive Grade Sensor
Skydroid S1 Pro is equipped with the BMI088 automotive grade sensor. BMI088 is a high-performance inertial measurement unit that can ensure low noise and low drift characteristics in a temperature fluctuating environment and has good robustness and stability
- UAV control system with rich interface
Skydroid S1 Pro has 12 channels of PWM, CAN, SBUS, UART and Internet port for camera and other interfaces. With rich interfaces, it has powerful extensibility and can be used on devices with different scenarios, functions and requirements.
- Easy to set up the electronic control system
In the Skydroid Fly APP, you can make adjustments to the parameters of the S1-equipped device. The various parameter settings are clear at a glance, so the original complex parameter settings are simple and easy.
- Direction Module
Our Skydroid 982 high-precision positioning and orientation module can achieve RTK positioning and orientation calculation using two antennas with strong anti-interference and accurate positioning, it can be used in various fields of high-precision navigation and positioning.
Specifications:
Processor: 1: STM32F407
Gyro: BMI088
Eletronic compass:IST8310
Barometer: LPS22HB
Interface: GH1.25

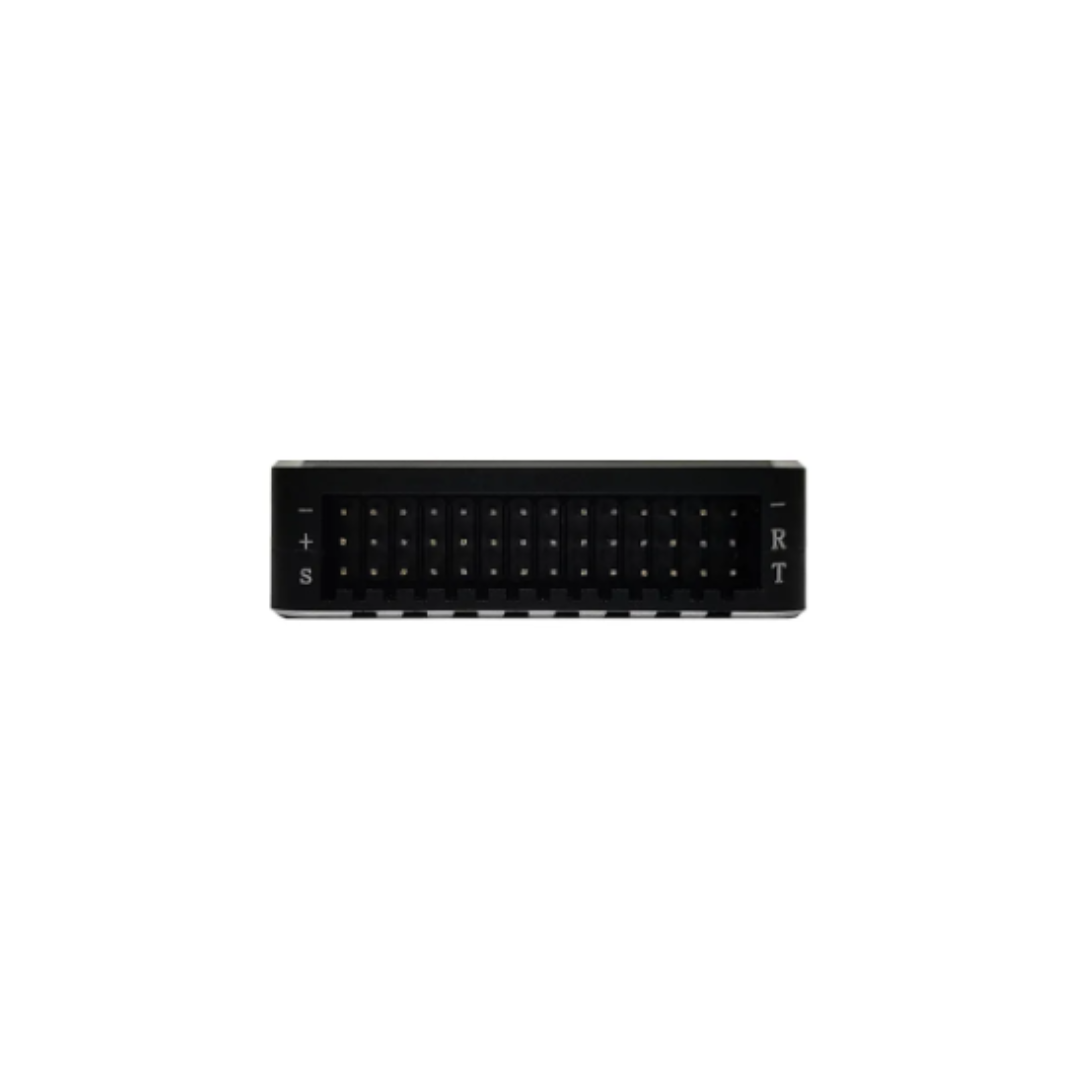

PWM output: 12 oneshots/PWM output
Receiver: 1: Receiver: built-in R12 PRO

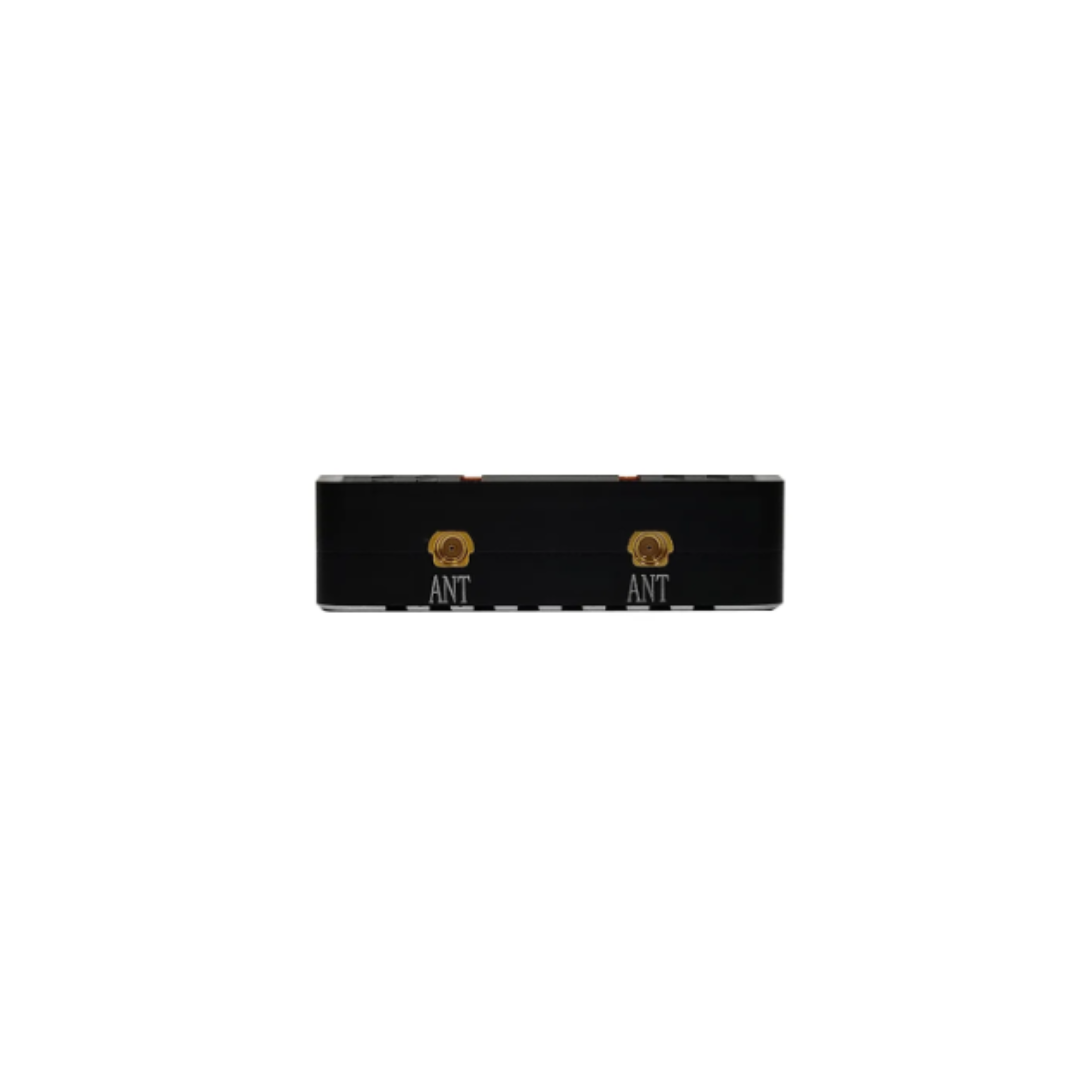

Receiver antenna gain: 4dBm
Receiver transmission power: 17. 5dBm
GPS: M10
RC OUT SBUS:1
GPS UART Serial Port:1

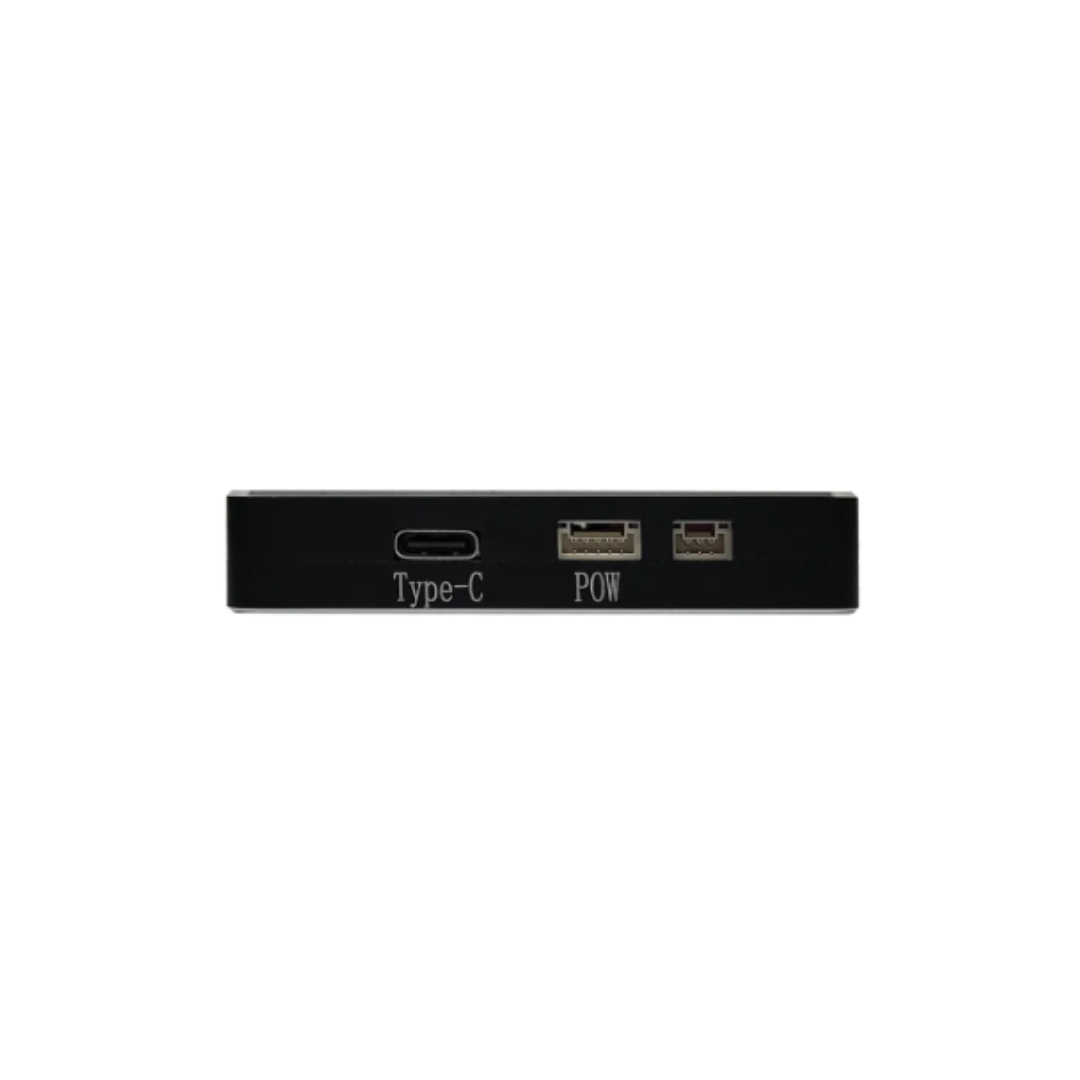

Power Port:1

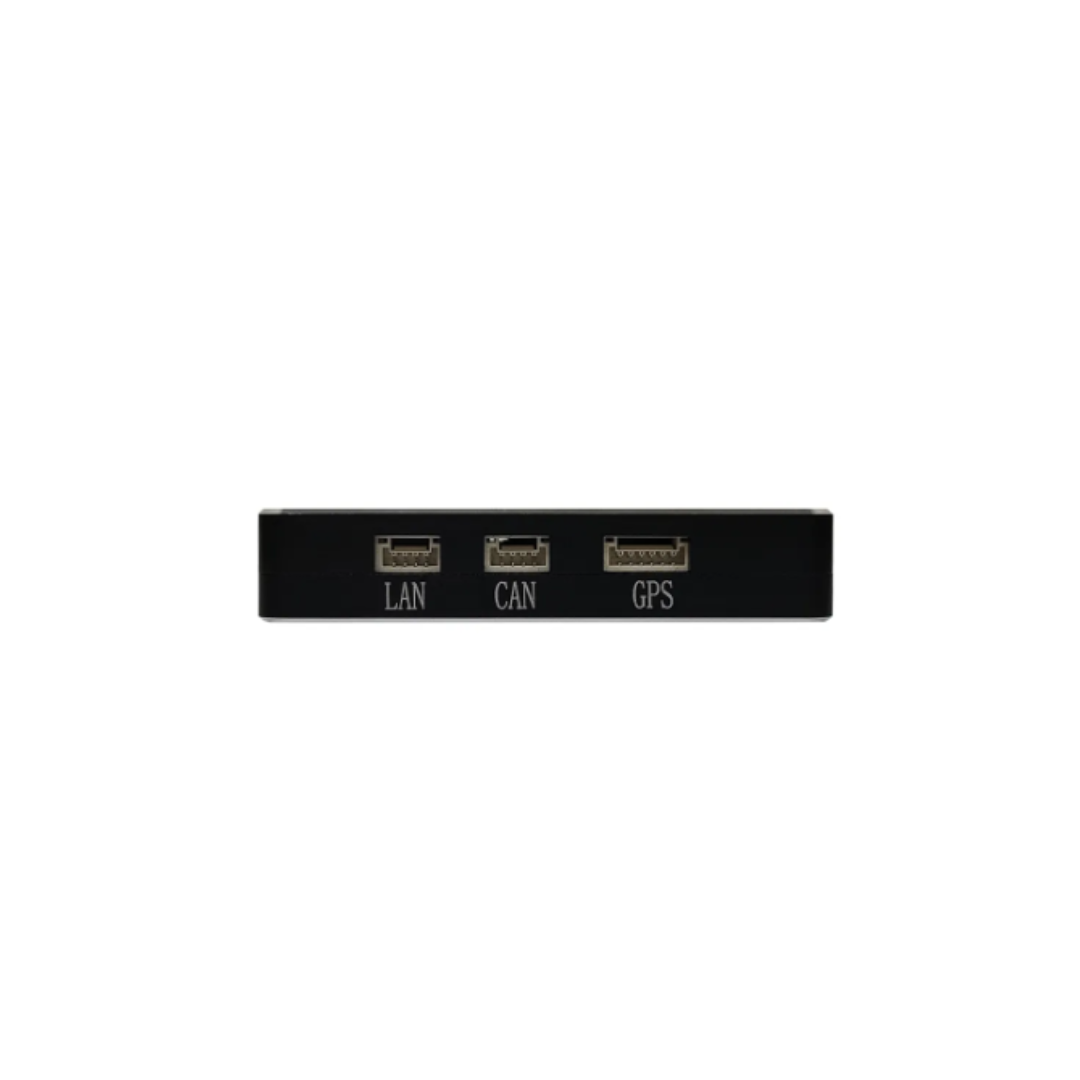

LAN Port:1
CAN Port:1
Power Input Voltage:2-18s
USB Voltage:5V±0.3V
Dimensions:68x47x13MM
Weight:62g

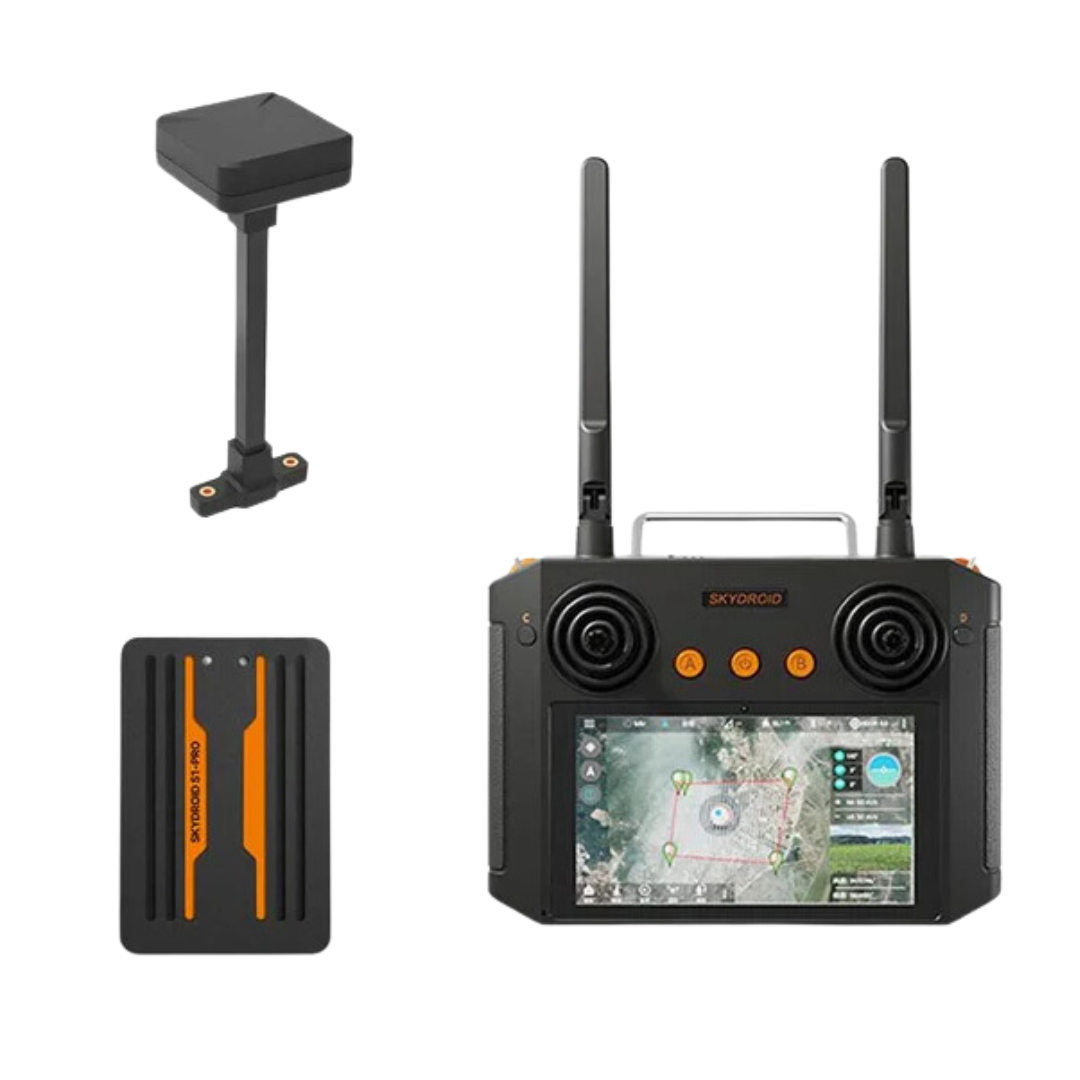

Package includes:
1x S1pro
1x GPS

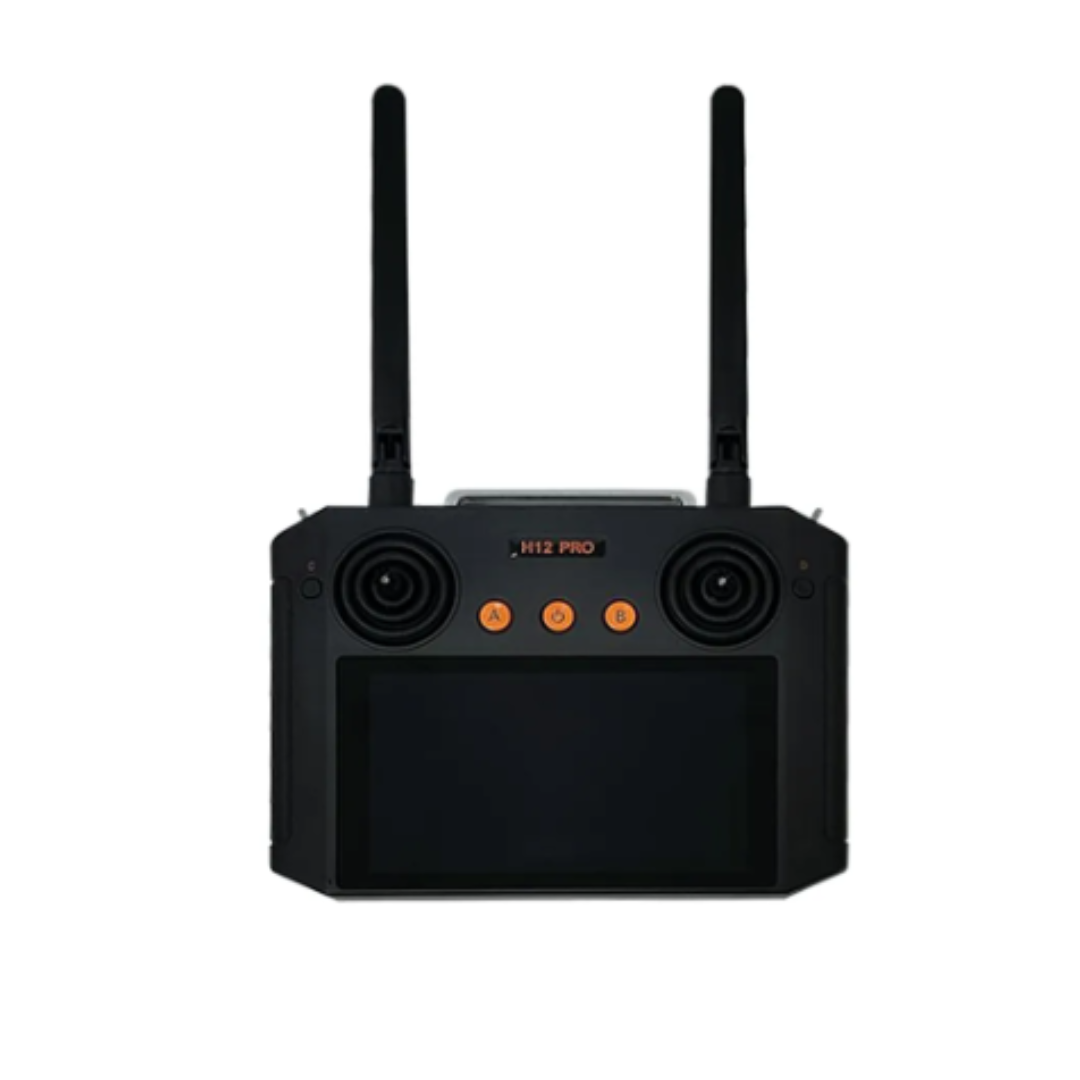

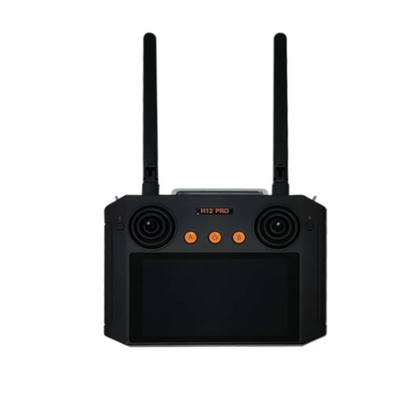

1x H12Pro control unit
