Code: SKU:HP0157.0016-LBT

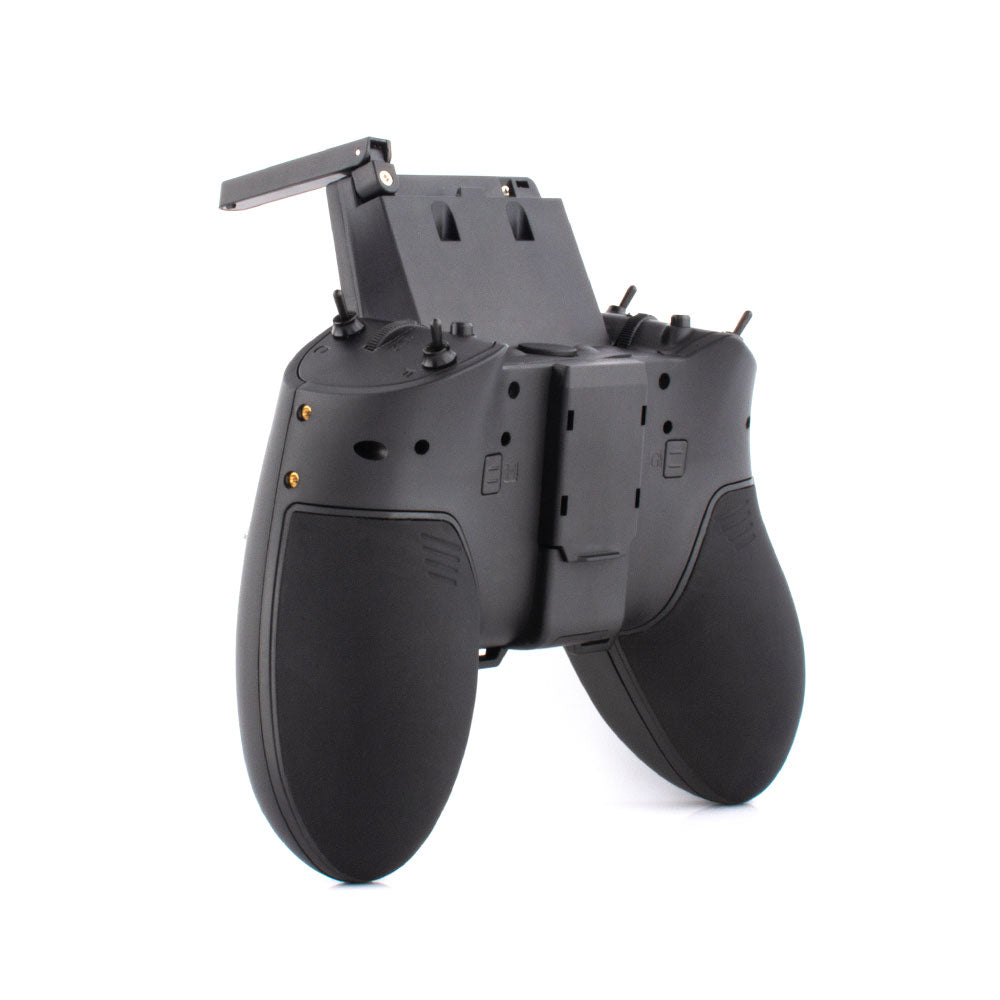

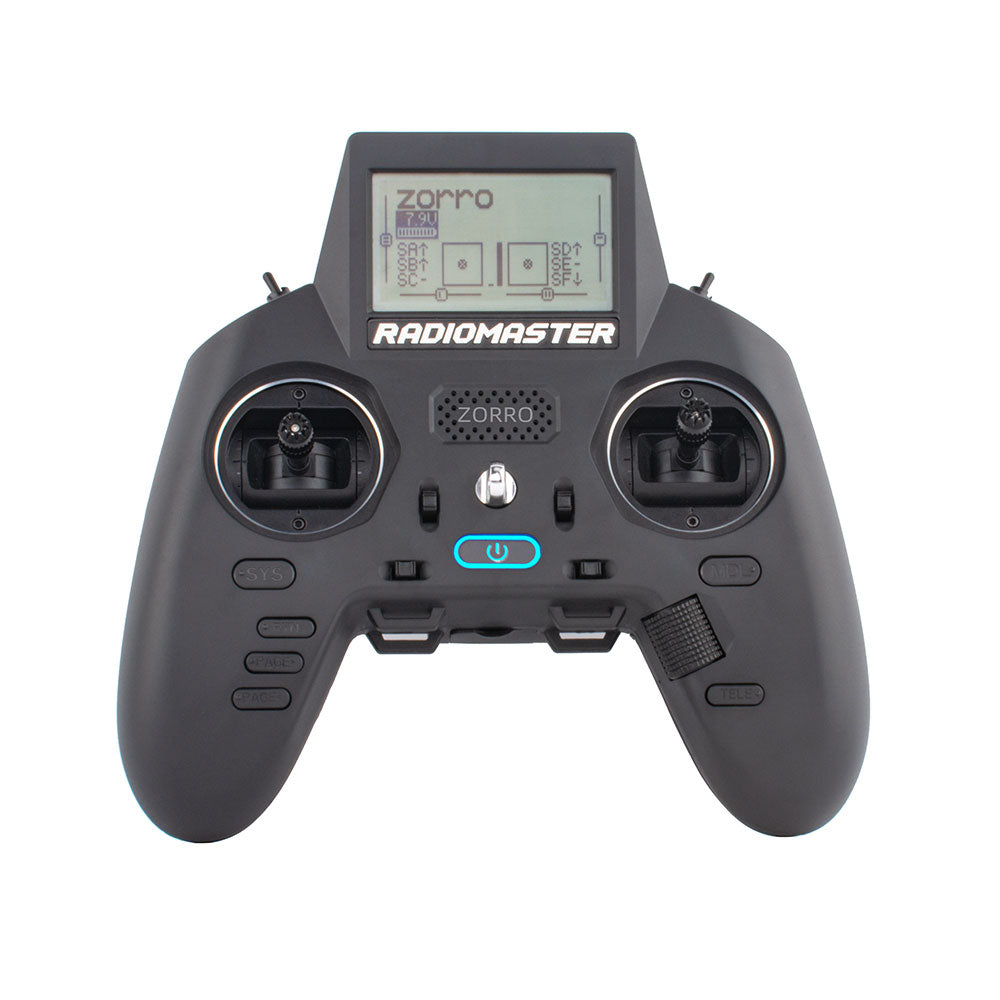

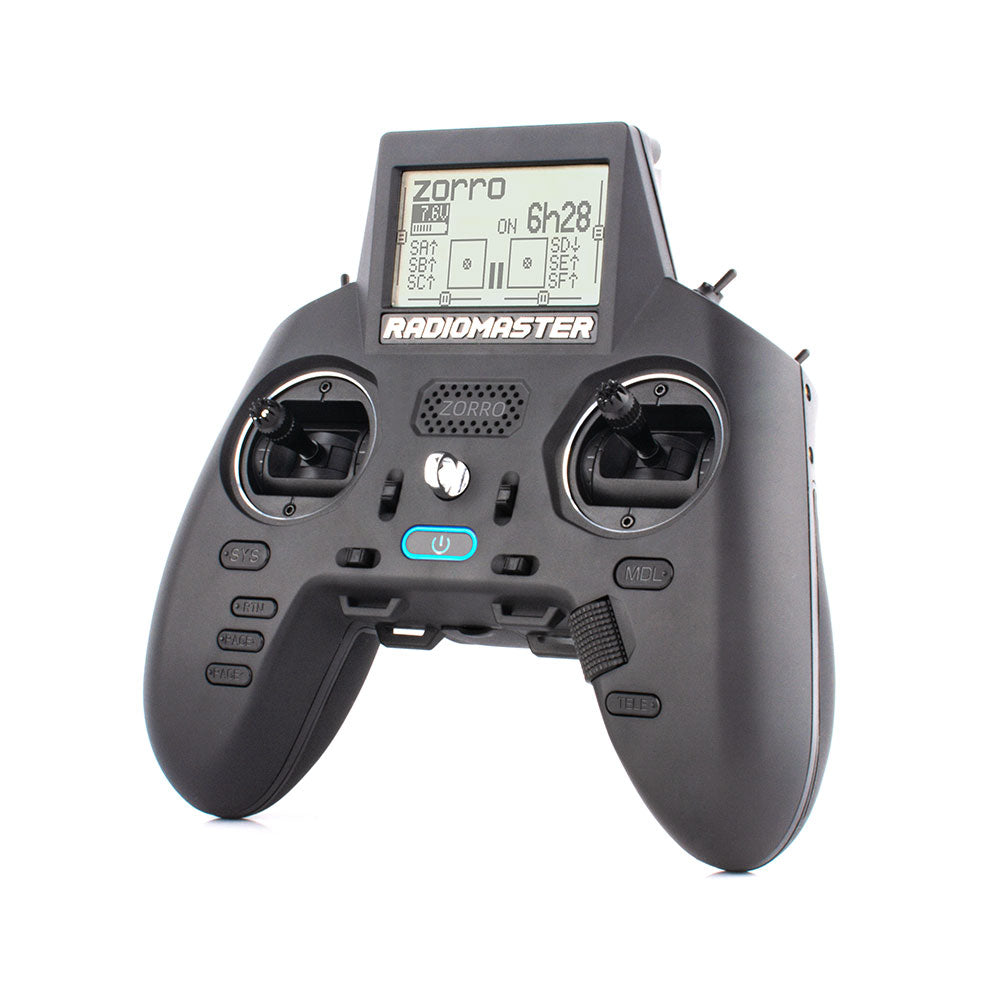

Controller RadioMaster Zorro ELRS
Controller RadioMaster Zorro ELRS
Brand: RadioMaster
Regular price
€111,10
Regular price
€111,10
Sale price
€111,10
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Zorro ELRS The RadioMaster Zorro radio controller has an ergonomic design and a large bright LCD display in the perfect viewing position. Travel adjustable HALL sensor hinge, nano-size external RF module and built-in USB-C charging. USB-C data port for updating and playing simulators, rear and top assignable buttons, scroll wheels, RadioMasters 7-button navigation system, headphone audio output, external power supply input and a range of RF options. Item: Zorro Max Radio Controller Version: ELRS Area: LBT Note: ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100mw output power) Specifications: Physical dimensions: 170*159*108mm Weight: 350 grams Operating frequency: 2.400GHz-2.480GHz Internal RF options: CC2500 multiprotocol / 4 in 1 multiprotocol / ELRS 2.4GHz Supported protocols: Depends on the module Transmit power of CC2500 and 4IN1: Max 20dBm ExpressLRS Transmit Power: Max 24dBm (International) / Max 20dBm (EU LBT) Operating current: 160mA@8.4V Operating voltage: 6.6-8.4V DC Control distance: > 2 km @ 20 dbm Operating system: OpenTX / EdgeTX compatible Control channels: maximum 16 (Rx dependent) Display: 128*64 monochrome LCD Battery: 2 x 18350 (not included) Charging: Built-in USB-C charging Gimbal: Hall effect Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) Firmware update method: Via USB or SD card (SD not included)
