Controller RadioMaster Zorro CC2500
Controller RadioMaster Zorro CC2500
Brand: RadioMaster
Regular price
€92,58
Regular price
€92,58
Sale price
€92,58
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

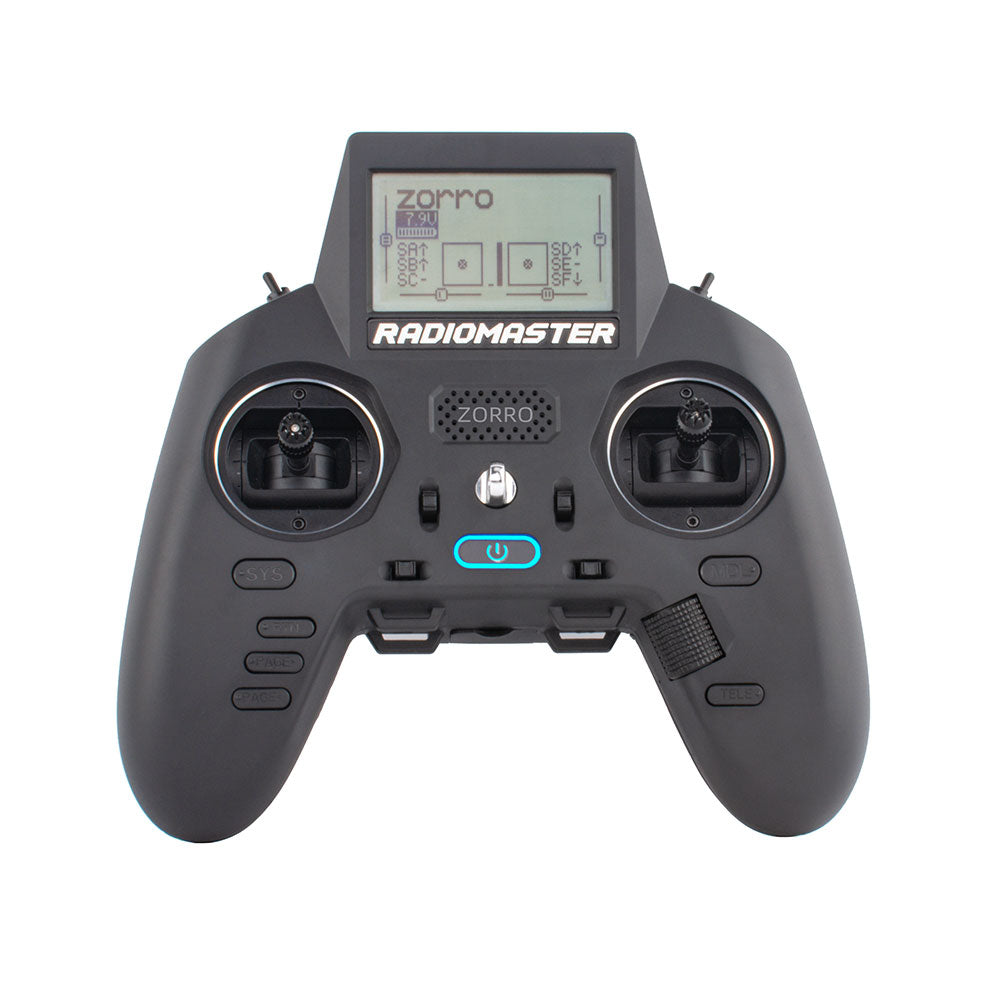

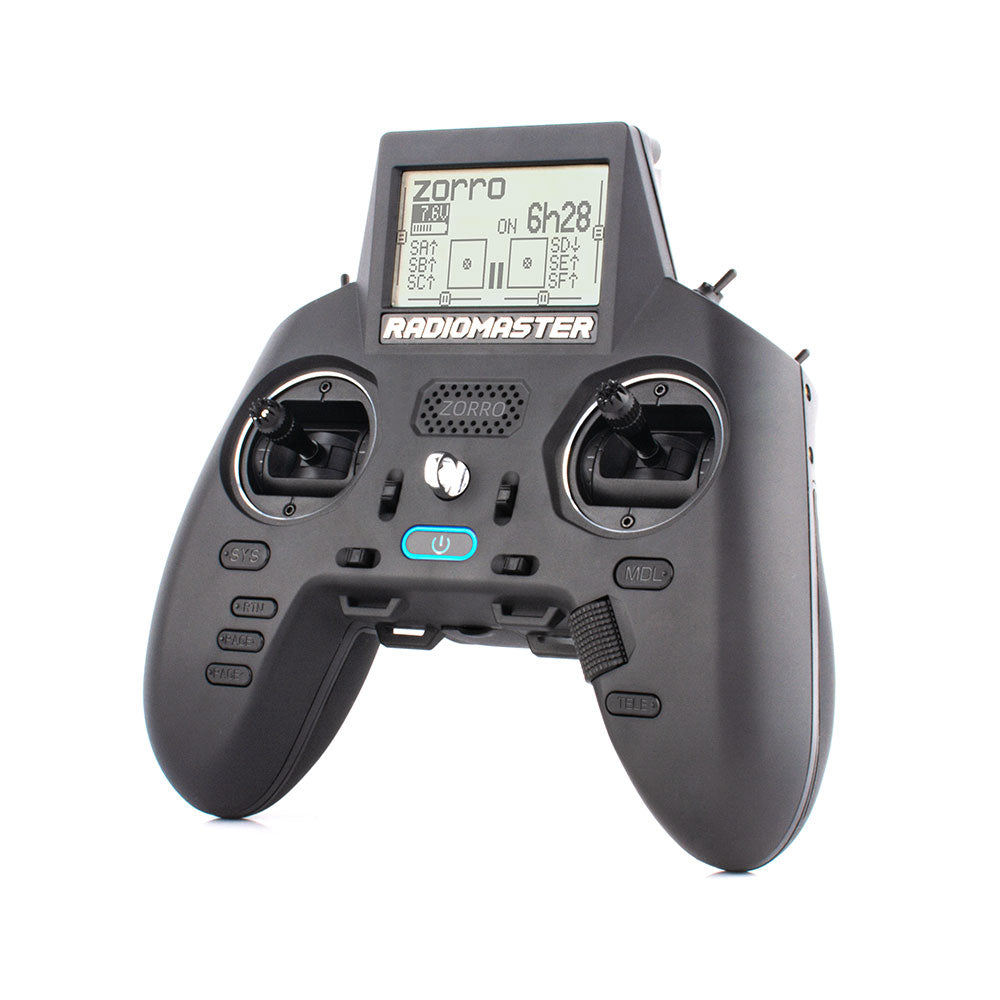

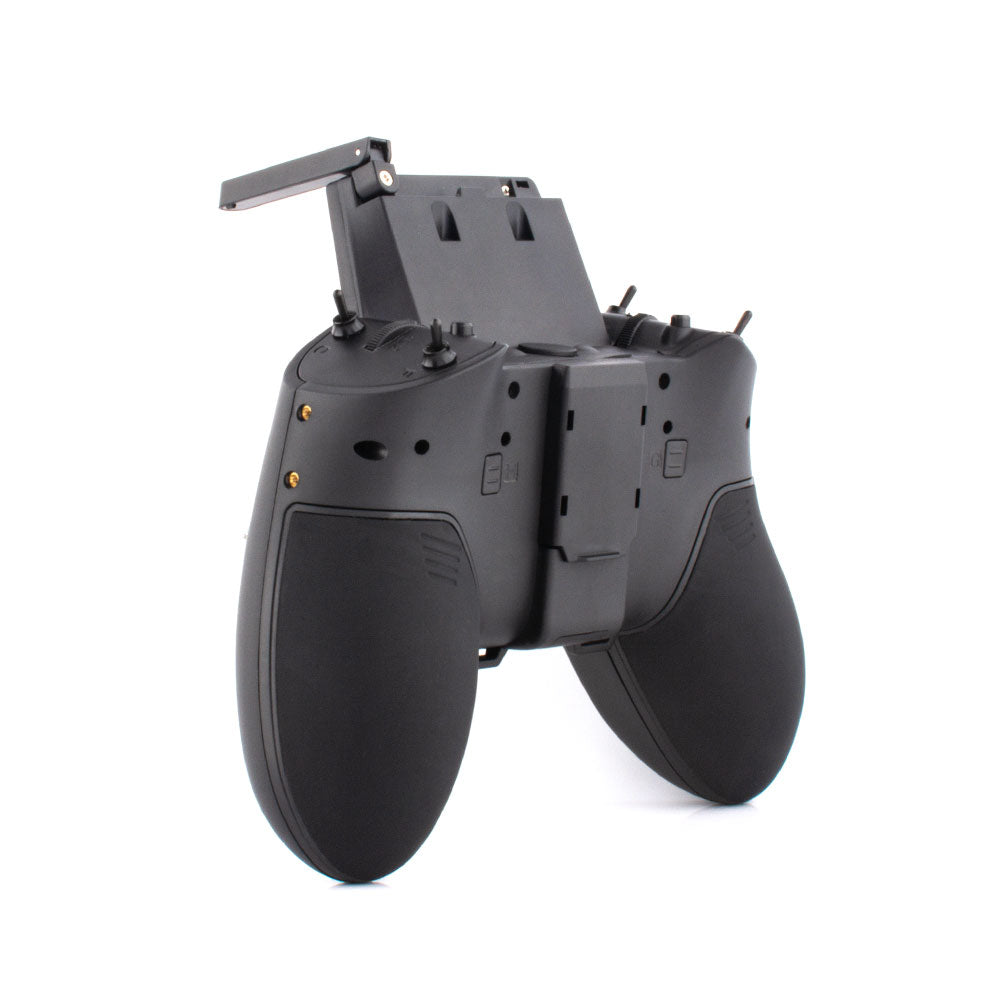

Zorro CC2500 The RadioMaster Zorro radio controller has an ergonomic design and a large bright LCD display in the perfect viewing position. Travel adjustable HALL sensor hinge, nano-size external RF module and built-in USB-C charging. USB-C data port for updating and playing simulators, rear and top assignable buttons, scroll wheels, RadioMasters 7-button navigation system, headphone audio output, external power supply input and a range of RF options. Item: Zorro Max Radio Controller Version: CC2500 Area: LBT Note: CC2500 LBT (Europe) version is limited to LBT compatible protocols FrSKY X/X2 LBT & HoTT LBT Specifications: Physical dimensions: 170*159*108mm Weight: 350 grams Operating frequency: 2.400GHz-2.480GHz Internal RF options: CC2500 multiprotocol / 4 in 1 multiprotocol / ELRS 2.4GHz Supported protocols: Depends on the module Transmit power of CC2500 and 4IN1: Max 20dBm ExpressLRS Transmit Power: Max 24dBm (International) / Max 20dBm (EU LBT) Operating current: 160mA@8.4V Operating voltage: 6.6-8.4V DC Control distance: > 2 km @ 20 dbm Operating system: OpenTX / EdgeTX compatible Control channels: maximum 16 (Rx dependent) Display: 128*64 monochrome LCD Battery: 2 x 18350 (not included) Charging: Built-in USB-C charging Gimbal: Hall effect Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) Firmware update method: Via USB or SD card (SD not included)
