Controller RadioMaster Zorro 4-in-1

Name: Controller RadioMaster Zorro 4-in-1
Brand: Baltic Drones
SKU: HP0157.0015-LBT
Price: 158.39 EUR
Availability: OutOfStock

Controller RadioMaster Zorro 4-in-1

Brand: RadioMaster

€158,39

~~€147,87~~ €158,39

--7% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

Zorro 4 in 1

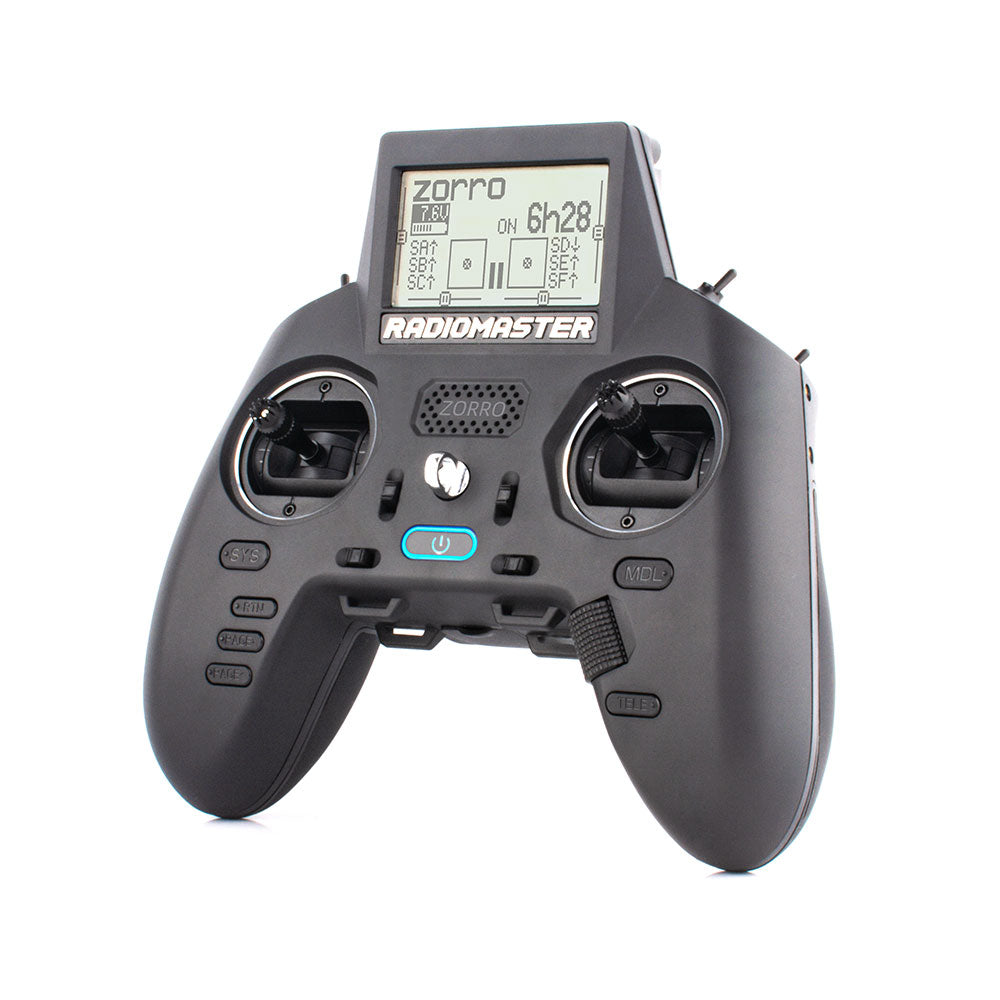

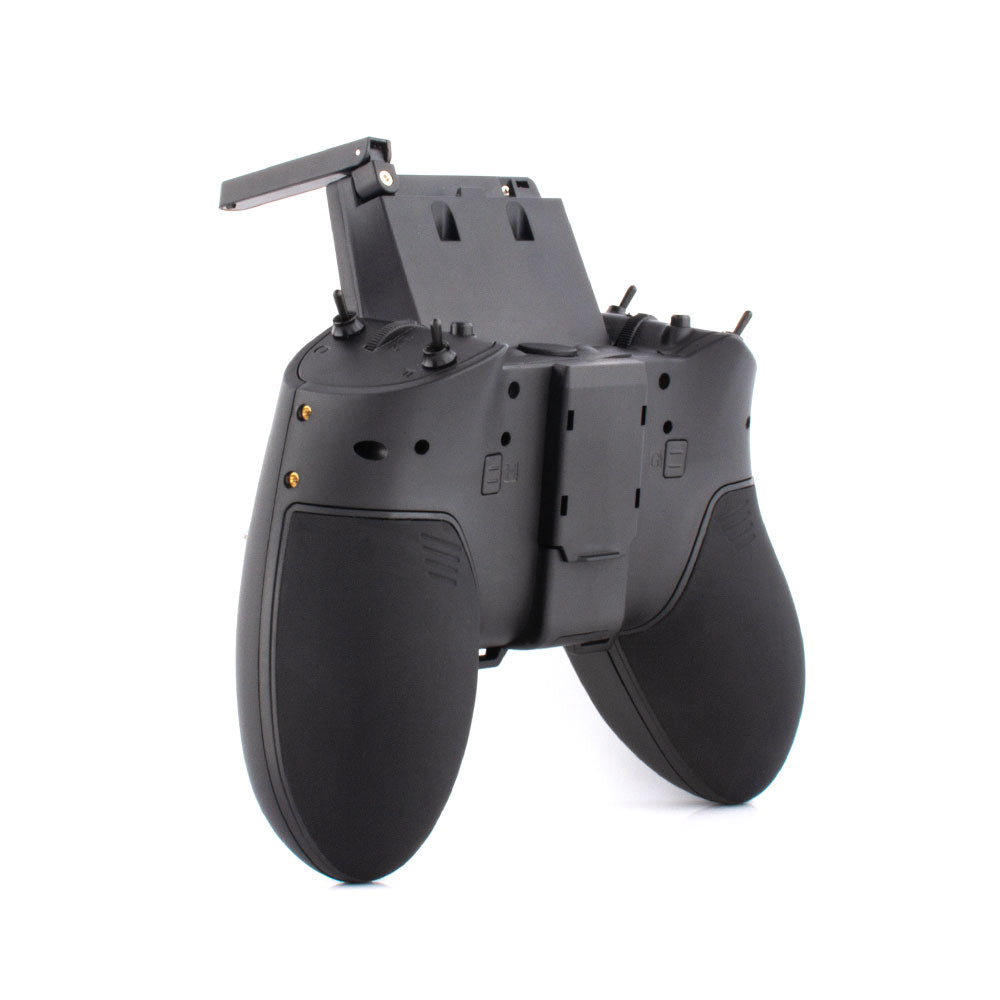

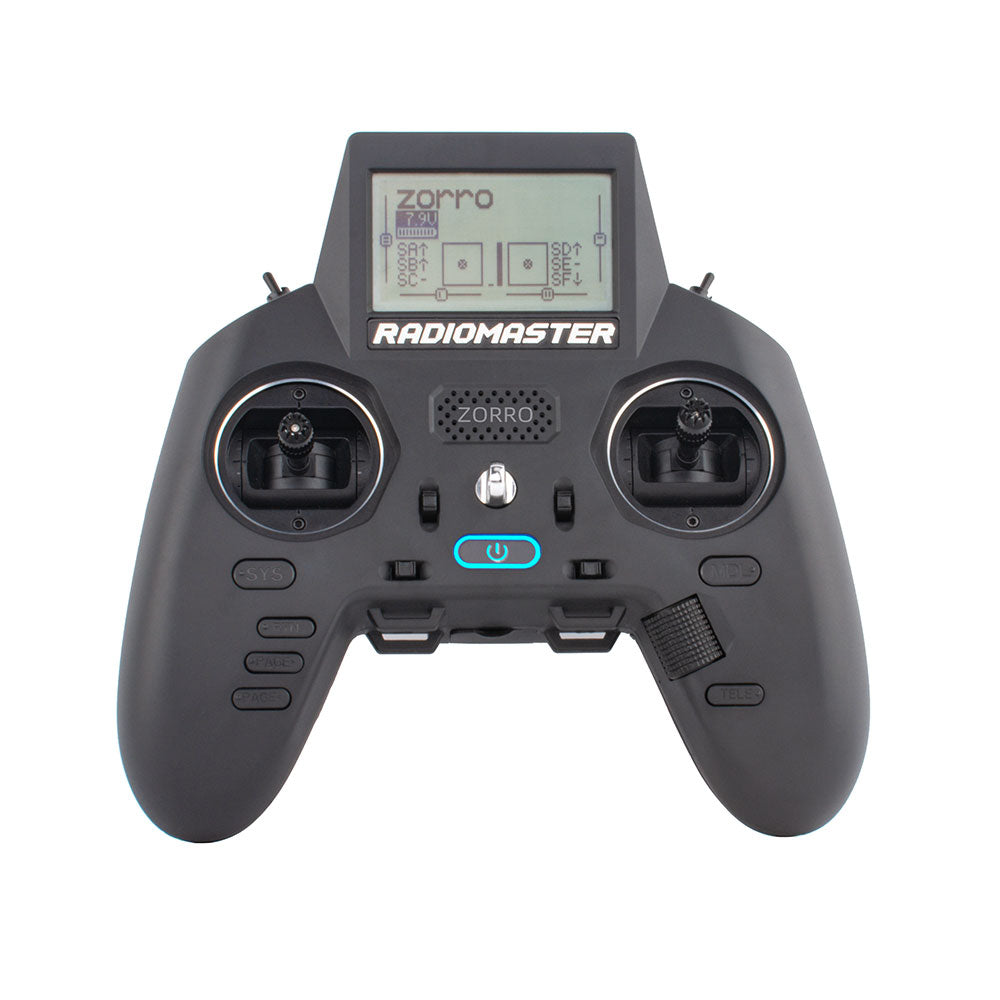

The RadioMaster Zorro radio controller has an ergonomic design and a large bright LCD display in the perfect viewing position. Travel adjustable HALL sensor hinge, nano-size external RF module and built-in USB-C charging. USB-C data port for updating and playing simulators, rear and top assignable buttons, scroll wheels, RadioMasters 7-button navigation system, headphone audio output, external power supply input and a range of RF options.

Item: Zorro Max Radio Controller
Version: 4 in 1
Area: LBT

Note: 4v1 LBT (Europe) version is limited to LBT compatible protocols FrSKY X/X2 LBT, HoTT LBT and DSMX

Specifications:
Physical dimensions: 170*159*108mm
Weight: 350 grams
Operating frequency: 2.400GHz-2.480GHz
Internal RF options: CC2500 multiprotocol / 4 in 1 multiprotocol / ELRS 2.4GHz
Supported protocols: Depends on the module
Transmit power of CC2500 and 4IN1: Max 20dBm
ExpressLRS Transmit Power: Max 24dBm (International) / Max 20dBm (EU LBT)
Operating current: 160mA@8.4V
Operating voltage: 6.6-8.4V DC
Control distance: > 2 km @ 20 dbm
Operating system: OpenTX / EdgeTX compatible
Control channels: maximum 16 (Rx dependent)
Display: 128*64 monochrome LCD
Battery: 2 x 18350 (not included)
Charging: Built-in USB-C charging
Gimbal: Hall effect
Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware update method: Via USB or SD card (SD not included)
