Code: SKU:HP0157.0027-LBT

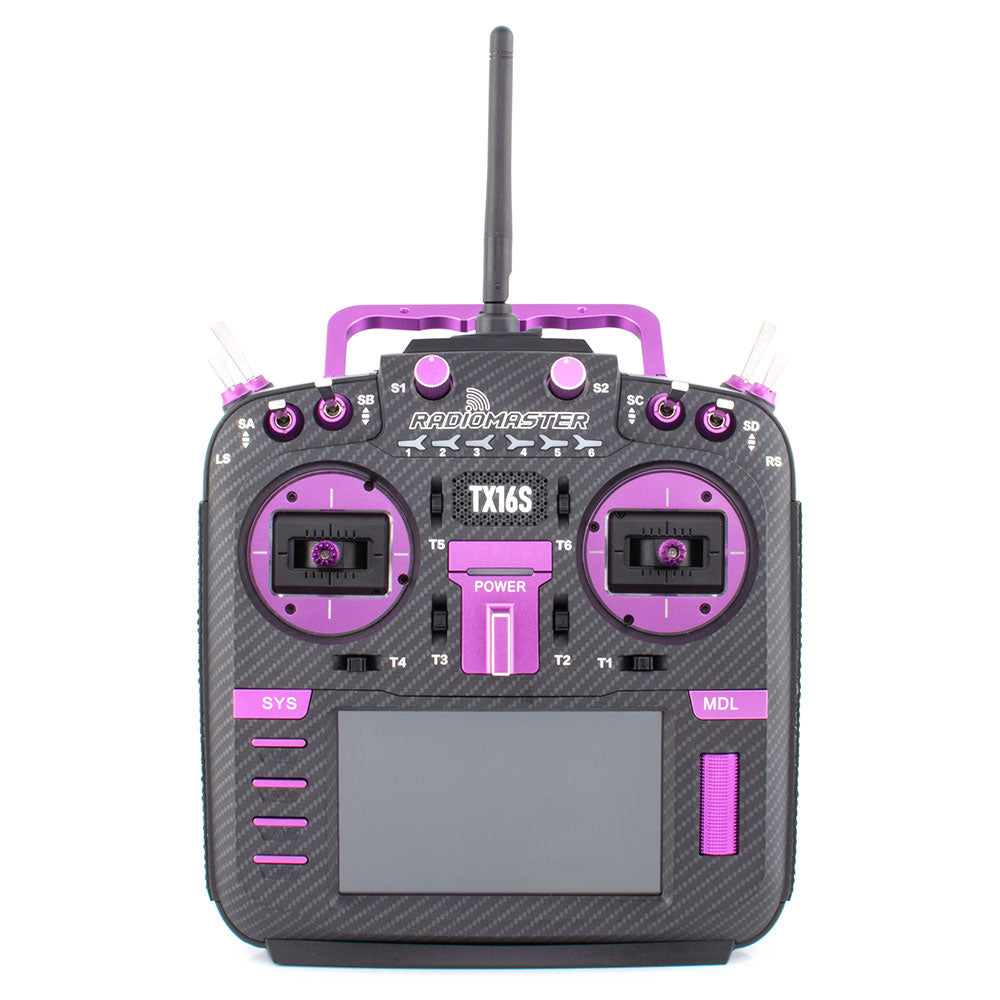

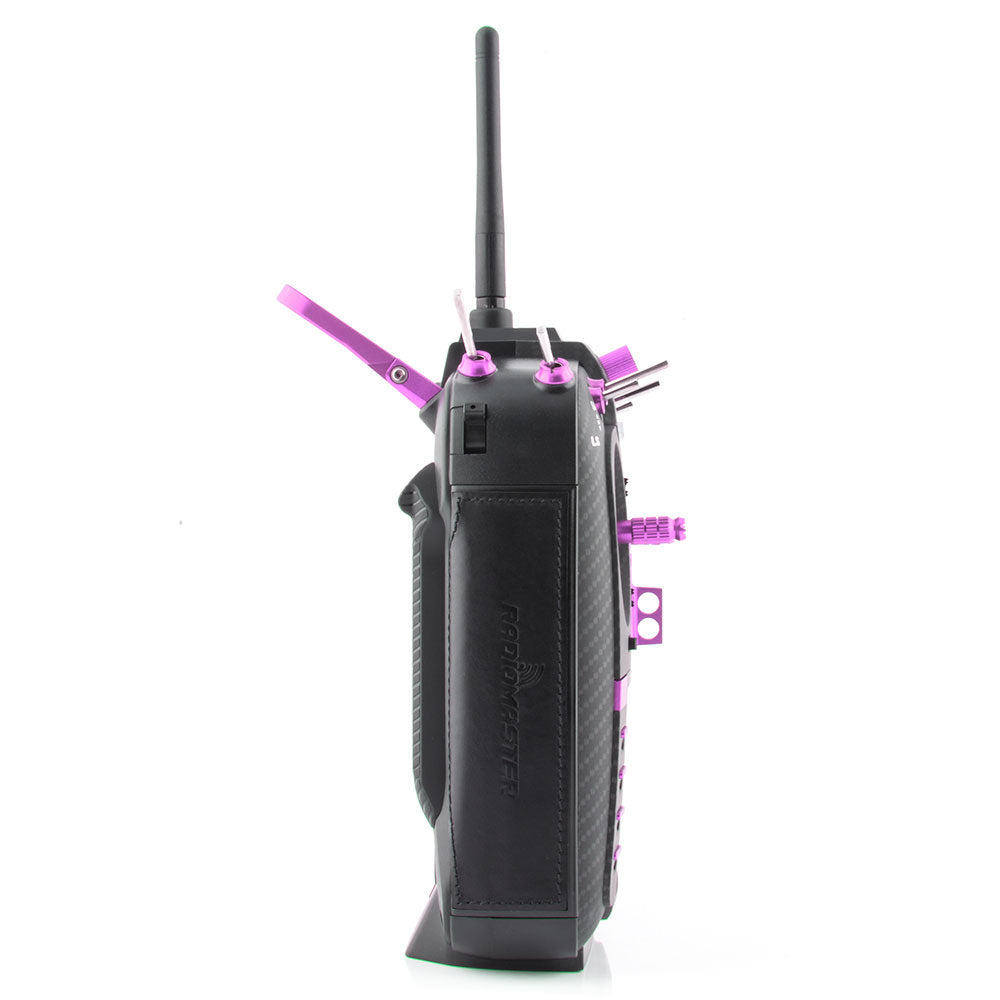

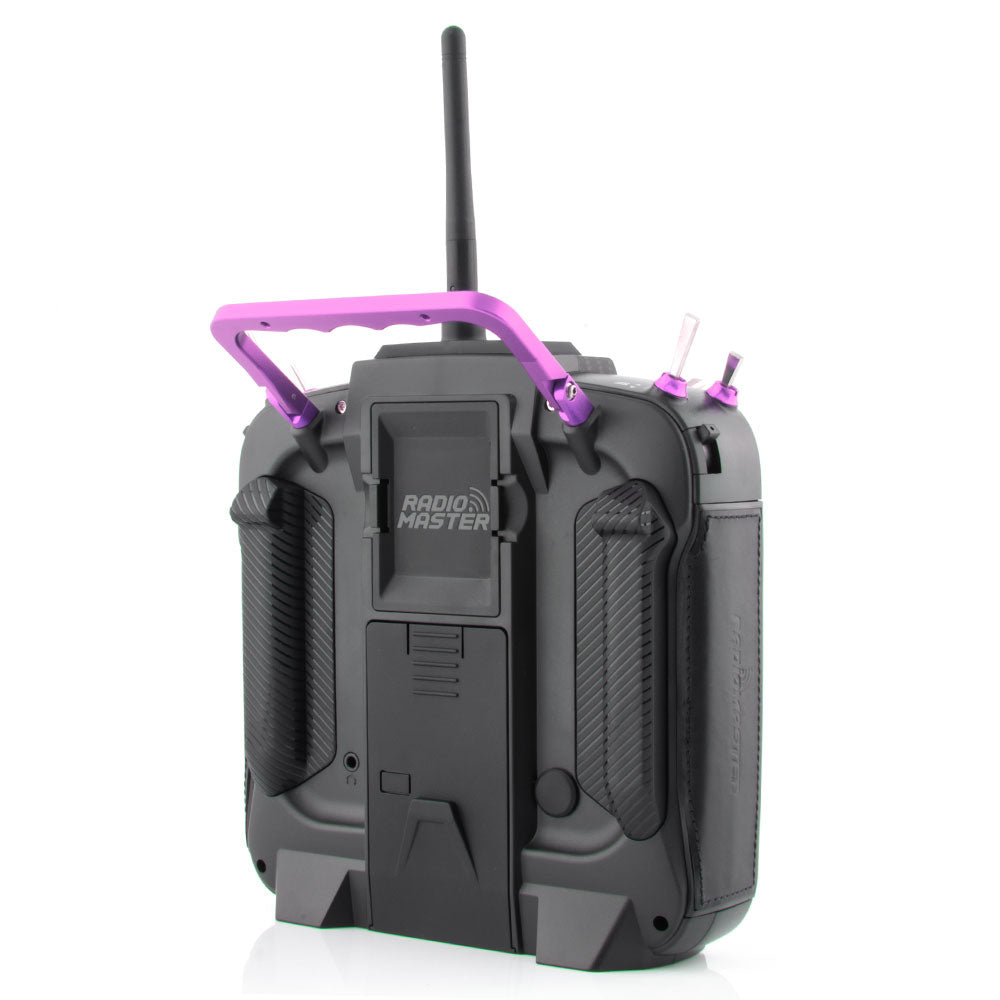

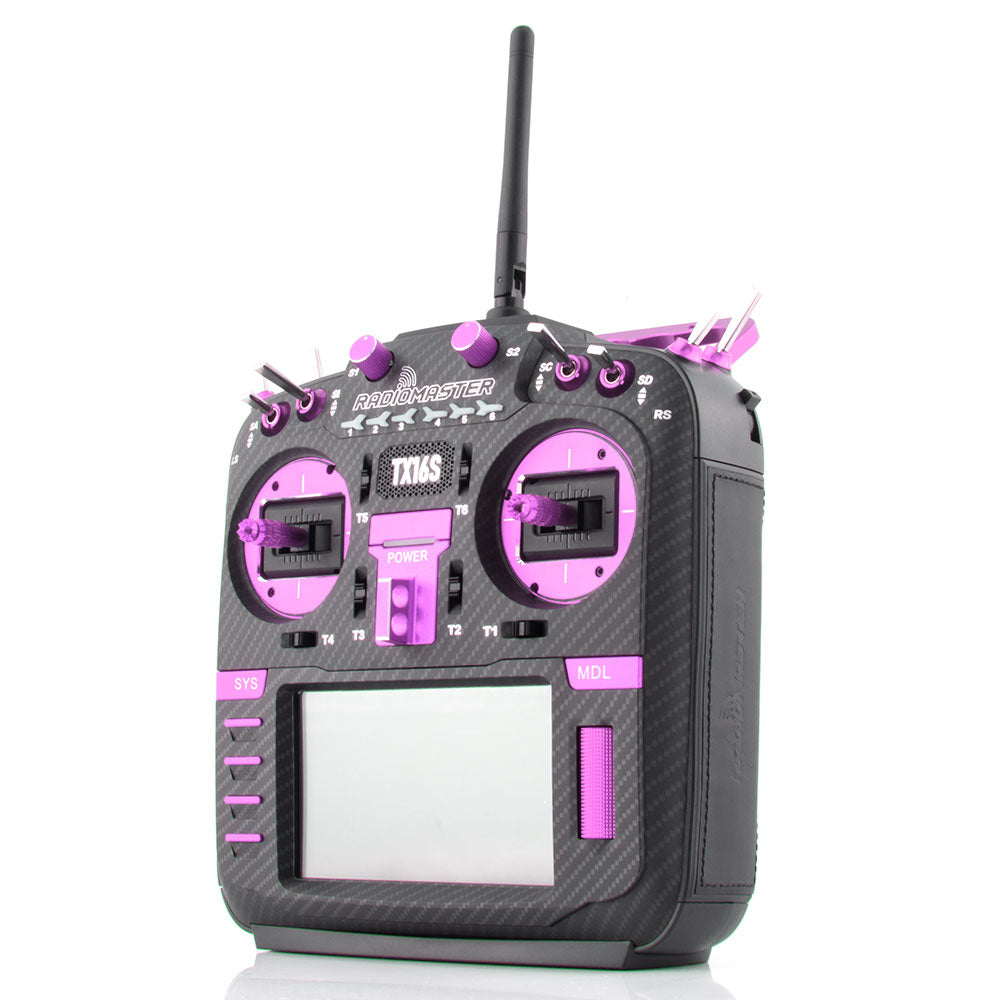

Controller RadioMaster TX16S MKII MAX Joshua Bardwell Edition LBT
Controller RadioMaster TX16S MKII MAX Joshua Bardwell Edition LBT
Brand: RadioMaster
Regular price
€231,50
Regular price
€231,50
Sale price
€231,50
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
TX16S MKII MAX Joshua Bardwell Edition Special edition JB in Carbon and Purple JB color scheme with pre-installed JB sound pack and V4.0 Hall gimbals. It comes with an internal ExpressLRS module. -Improved internal circuits and optimized power supply. -New charging circuits with integrated reverse polarity protection. -Optimized charging circuit now allows up to 2.2A of internal USB-C charging current. -Rear audio jack provides headphone output. -V4.0 Gimbal improved centering and temperature stability (same circuits as AG01). -Including optional high/low rear handle for better ergonomics. -Improved S1/S2 buttons with clear center stops. -Improved LS/RS gliders with smoother feel and better center stops. - Redesigned battery cover for better access to the battery. - Redesigned body shell with improved fit and finish. -Coach socket changed to standard 3.5mm TRS socket. -Added rear DIY drawer for customized mods. -Improved internal plastics for longer life. Item: TX16S Mark II Max Radio Controller (Joshua Bardwell Edition) Version: ELRS (LBT) Gimbal: V4.0 Hall Gimbal Mode: Mode 2 Note: ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100mw output power) Specifications: Dimensions: 287 x 129 x 184 mm Weight: 750 g (without battery) Transmission frequency: 2.400GHz-2.480GHz Transmitter module: Internal ELRS (SX1280) Transmit power: Internal ELRS: Max 250 mw (transmit power is adjustable) SD card: standard 256 MB, maximum 8 GB Antenna gain: 2db (transmission power adjustable) Working current: 400mA Working voltage: 6.6-8.4v DC Remote control distance: > 2 km @ 22 dbm Radio Firmware: EdgeTX Module Firmware: ExpressLRS (ELRS) Channels: Up to 16 channels (depending on the receiver) Display: 4.3 inch TFT full color touch screen with 480*272 resolution Suspension: Hall sensor V4.0 with aluminum cover Module Bay: JR compatible module bay Upgrade method: Supports USB-C online / offline upgrade to SD card
