    Code: HP0157.0026-BLK-LBT

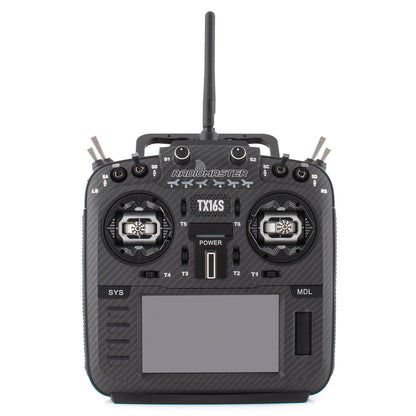

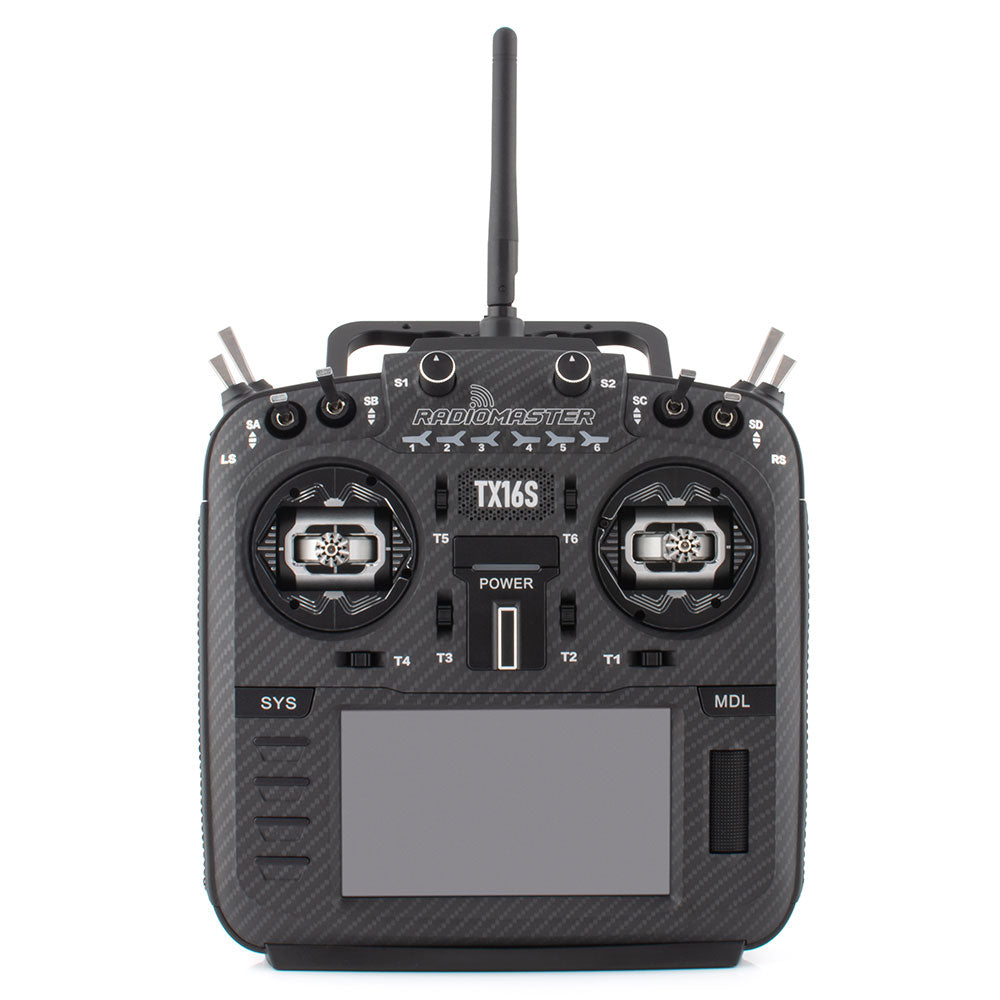

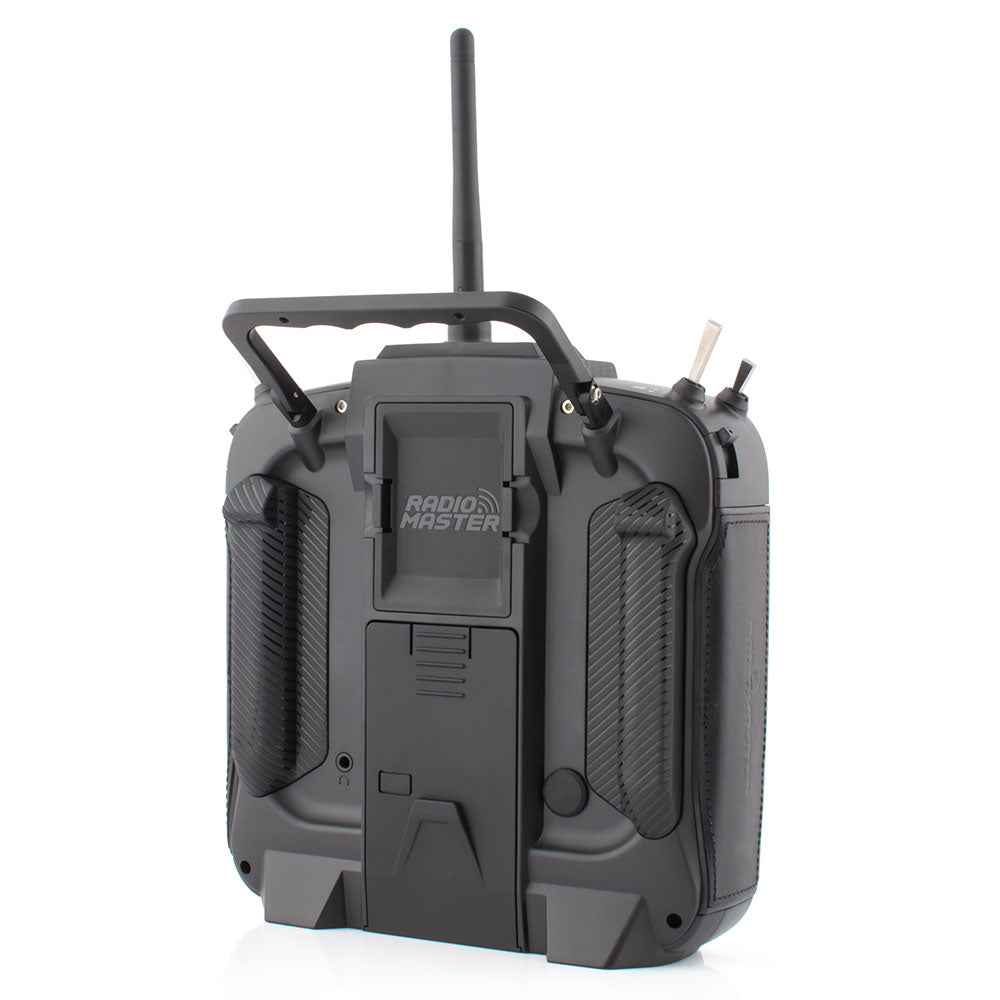

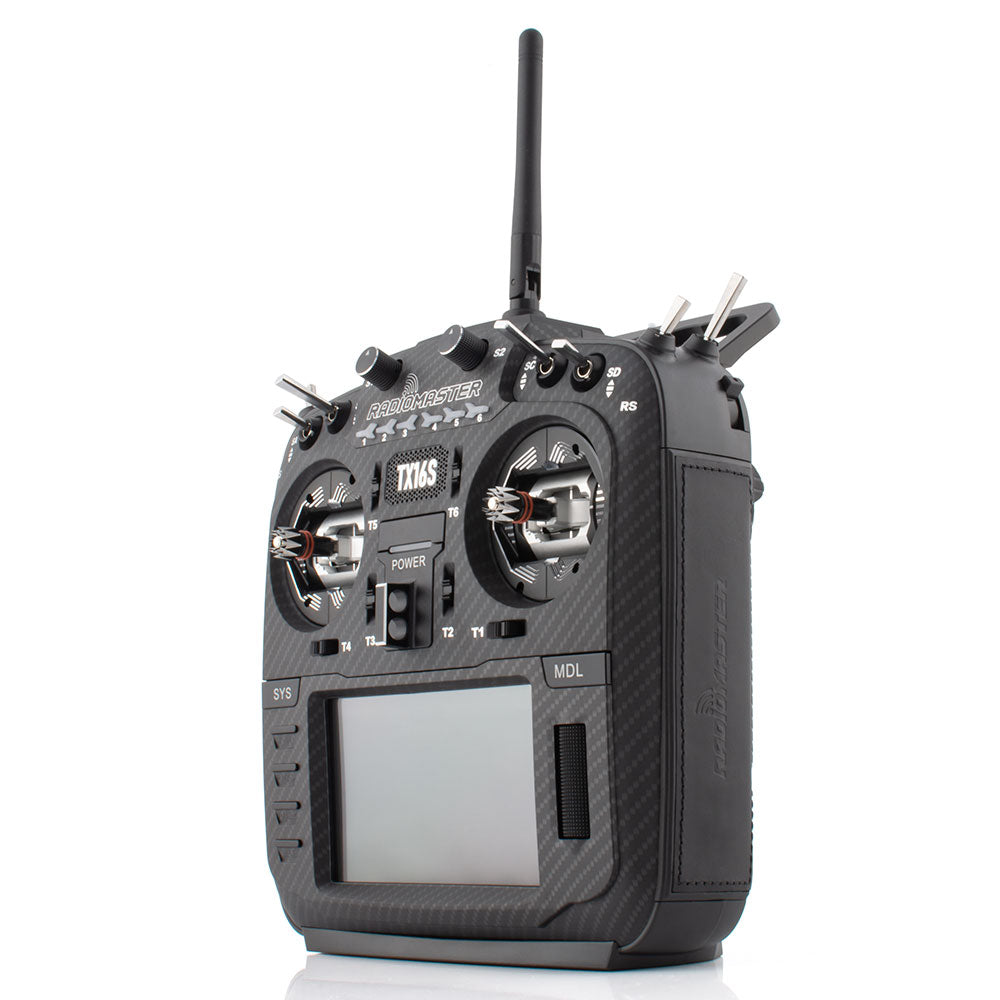

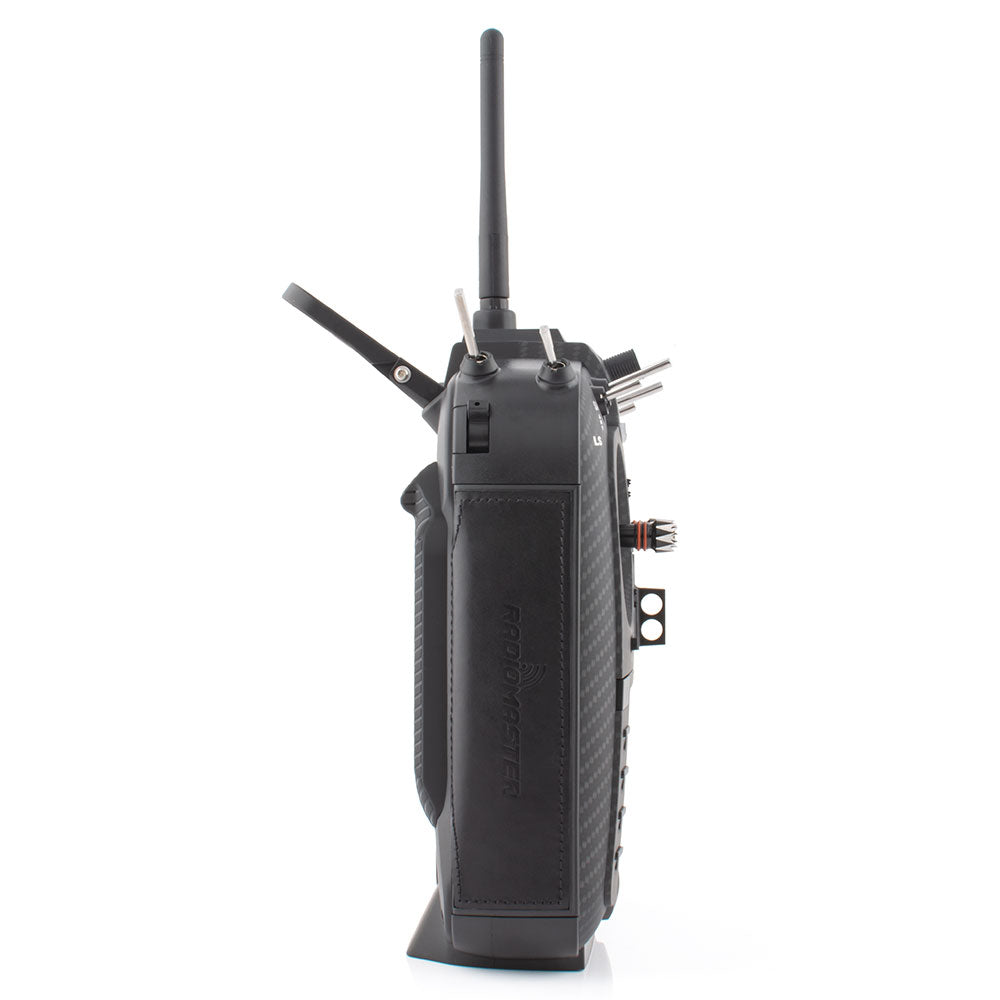

    Controller RadioMaster TX16S MKII MAX AG01 Gimbal ELRS Black LBT

    Controller RadioMaster TX16S MKII MAX AG01 Gimbal ELRS Black LBT

    Brand: RadioMaster

    €351,85
    €351,85 €351,85
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    TX16S MKII MAX AG01 Gimbal ELRS

The best just got better! Introducing the TX16S Mark II Max radio - the ultimate open source radio.

- Improved internal circuits and optimized power supply.
- New charging circuits with integrated reverse polarity protection.
- Optimized charging circuit now allows up to 2.2A of internal USB-C charging current.
- Rear audio jack provides headphone output.
- V4.0 Gimbal improved centering and thermal stability (same circuits as AG01).
- Optional high/low back handles available for improved ergonomics.
- Improved S1/S2 buttons with clear center stops.
- Improved LS/RS gliders with smoother feel and better center stops.
- Redesigned battery cover for better access to the battery.
- Redesigned body shell with improved fit and finish.
- Trainer replaced with a standard TRS 3.5mm socket.
- Added rear DIY drawer for customized mods.
- Improved internal plastics for longer life.
- ELRS and 4in1 versions available.
- MAX units have carbon look faceplates and CNC finishing components and buttons.

Item: TX16S Mark II Max Radio Controller
Version: ELRS (LBT)
Gimbal: AG01 Hall Gimbal
Color: black carbon fiber
Note: ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100mw output power)

Specifications:
Dimensions: 287 x 129 x 184 mm
Weight: 750 g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter Module: Option 1: Internal 4 in 1 Multi-Protocol Module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
Transmit power: Internal 4-in-1 multi-protocol module: Max 100 mw (protocol dependent); Internal ELRS: Max 250mw (transmit power is adjustable)
SD card: standard 256 MB, maximum 8 GB
Antenna gain: 2db (transmission power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance: > 2 km @ 22 dbm
Radio Firmware: EdgeTX
Module firmware: Multiprotocol module (4IN1) -OR ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3 inch TFT full color touch screen with 480*272 resolution
Gimbal: Option 1: Hall sensor V4.0 with aluminum housing; Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / offline upgrade to SD card
