Controller RadioMaster Boxer ExpressLRS Transparent

Name: Controller RadioMaster Boxer ExpressLRS Transparent
Brand: Baltic Drones
SKU: HP0157.0055-M2-LBT
Price: 211.21 EUR
Availability: InStock

Controller RadioMaster Boxer ExpressLRS Transparent

Brand: RadioMaster

€211,21

~~€197,19~~ €211,21

--7% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

Boxer ExpressLRS Transparent (LBT)

Features:
- Including special transparent radio with white Gimbal LED kit and RadioMaster neck strap
- Available with embedded ExpressLRS RF modules
- Contains powerful STM32F407VGT6 with 1 MB Flash and 192 KB RAM
- Pre-installed EdgeTX firmware
- Internal ELRS module with a refresh rate of 1000 Hz
- Support fast charging QC3.0 2.0A MAX
- New low profile SE latch switch and SF momentary switch
- Large battery compartment - Space for 2S 6200mAh battery, battery life up to 20 hours (batteries not included)
- Standard full size V4.0 Hall effect gimbals, expandable to AG01 CNC Hall effect
- Standard compartment for JR module
- Built-in indoor module cooling fan (ELRS version)
- RadioMaster standardized button layout
- Versatile 6-way switch to access flight mode
- Adjustable and removable T-shaped antenna
- Redesigned SD card slot with SD card inserted
- External module power slots in the battery cover

Notes: ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100 mw output power)

Subject: Radio BOXER
Dimensions: 235 x 178 x 77 mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
Internal RF: ELRS 2.4 GHz
Supported protocols: Depends on the module
Transmit power: ExpressLRS: Max 20dBm (EU LBT)
Cooling fan: Built-in
Voltage range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / ELRS (RF Module)
Channels: Maximum 16 channels (depends on the receiver)
Battery: 7.4V 2-cell lithium polymer / two 3.7V 18650 lithium-ion cells (batteries not included)
Display: 128*64 Monochrome LCD display
Gimbal: High precision 4.0 Hall gimbals as standard (AG01 optional)
External module: compatible with JR / FrSKY / Crossfire
Upgrade method: USB / SD card and EdgeTX Companion PC software
BONUS: White Gimbal LED kit included for optional installation.
BONUS: RadioMaster neck strap

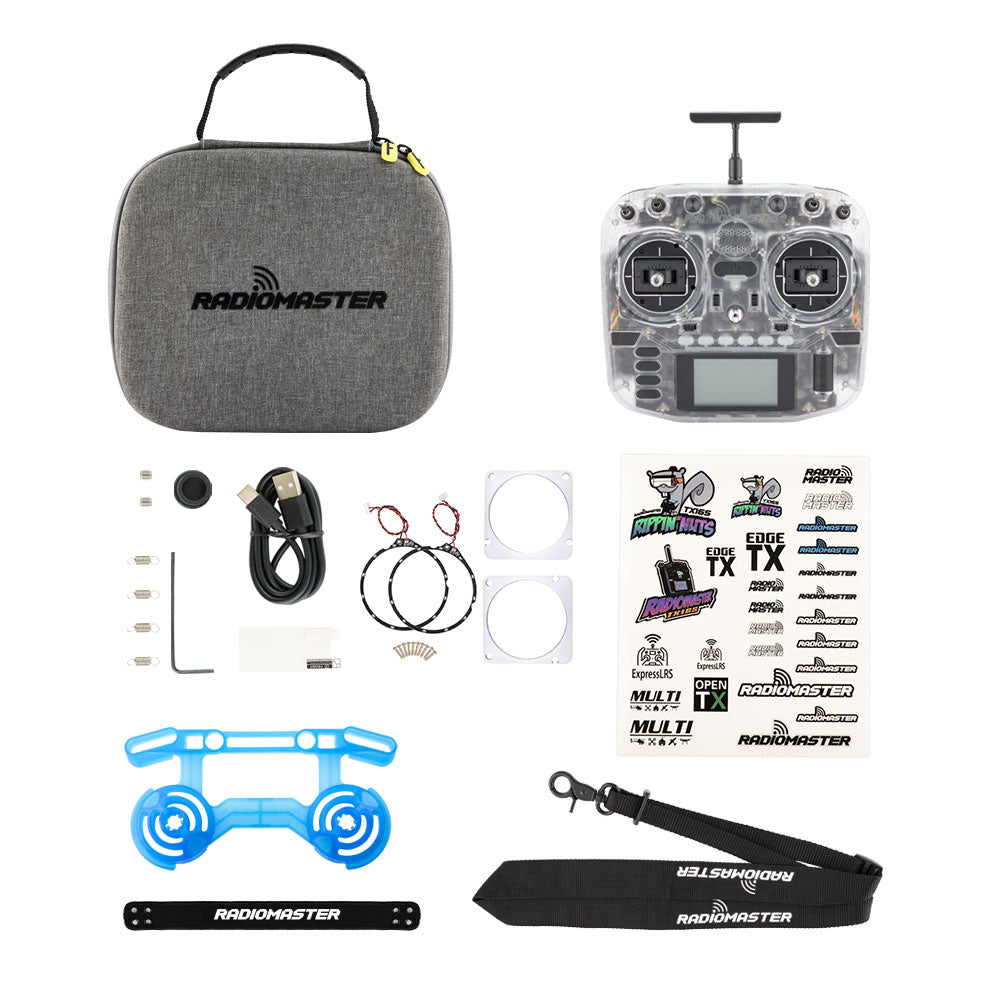

Package
1 * Radio BOXER
1 * Signature Carry Case
1 * T antenna
1 * USB-C cable
1 * Gimbal Protector
1 * 1.5mm Allen Wrench
2 * M4 * 4 screws
4 * Low tension springs
1 * Stickers
1 * Manual
1 * White Gimbal LED kit (ready to install)
1 * 18650 battery compartment (batteries not included)
1 * RadioMaster Neck Strap
