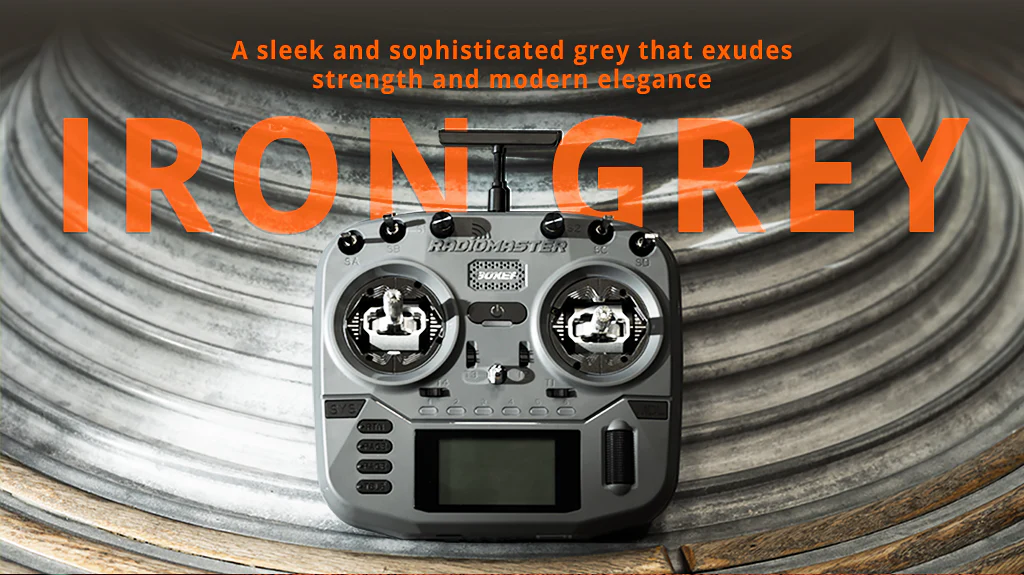

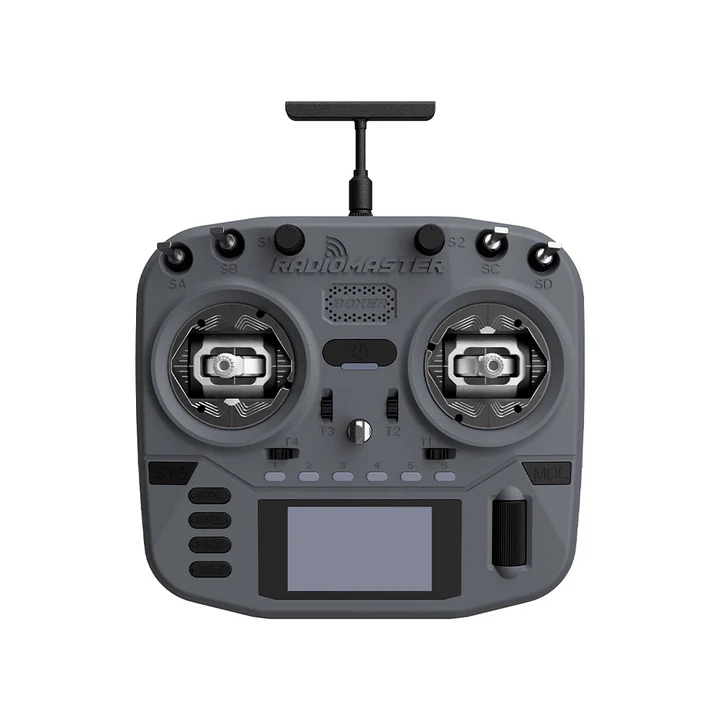

Controller RadioMaster Boxer CRUSH ExpressLRS Grey
Features:
- Optional colors: Iron Grey, Frost White, Mint Mist, Hot Pink, Cherry Red, Iceberg Blue, Lemon Twist Yellow
- Gimbal control: CNC aluminum AG01 Hall-effect gimbal control
- Built-in ExpressLRS Backpack: Available
- Processor: STM32F407VGT6 with 1MB Flash and 192KB RAM
- Firmware: Pre-installed EdgeTX
- Internal ExpressLRS module: Capable of 1000 Hz refresh rate
- RF ExpressLRS Output: Adjustable
- QC3.0 fast charging support: Maximum 2.0A
- Compact design: Excellent ergonomics
- New low-profile SE and SF switches: Momentary SF switch
- Oversized battery space: Space for 2S 6200mAh battery, battery life up to 20 hours (batteries not included)
- Standard JR module space
- Built-in internal fan for module cooling
- Standardized RadioMaster button layout
- Universal 6-position switch: For access to flight modes
- Adjustable and removable T-shaped antenna
- The first industrial woven handle: For better portability
- Replaceable ergonomic handles
- Redesigned SD card slot: New and improved pre-loaded 512mb SD card included
- Power slots for external module in battery cover
- RadioMaster carrying case and gimbal protector: Includes in the package to protect the radio while traveling
Specifications:
- Item: Boxer Crush Radio
- Color: Iron Grey, Frost White, Mint Mist, Hot Pink, Cherry Red, Iceberg Blue, Lemon Twist Yellow
- Size: 23517877mm
- Weight: 617.1g
- Frequency: 2.400GHz-2.480GHz
- Internal RF: ExpressLRS 2.4GHz
- Supported protocols: Module dependent
- Fan: Built-in
- Voltage range: 6.6-8.4V DC
- Radio firmware: EdgeTX (transmitter) / ExpressLRS (RF module)
- Channels: Maximum 16 channels (depends on the receiver)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 monochrome LCD display
- Gimbal: AG01 CNC Hall gimbal control
- External module: JR / FrSKY / Crossfire compatible
- Update method: USB / SD card and EdgeTX Companion PC software
The package contains:
- 1 x Boxer Crush Radio
- 1 x Portable Case
- 1 x T antenna
- 1 x USB-C cable
- 1 x Gimbal Protector
- 1 x 1.5mm Allen key
- 2 x M4*4 screws
- 4 x Low tension springs
- 1 x 18650 Battery Holder
- 1 x Stickers
- 1 x Manual
