  • Connector FLYWOO XT30UP-M Black Pigtail 18awg Male (2 pcs)
    1 1

    Code: FW19003780

    Connector FLYWOO XT30UP-M Black Pigtail 18awg Male (2 pcs)

    Connector FLYWOO XT30UP-M Black Pigtail 18awg Male (2 pcs)

    Brand: FLYWOO

    €2,67
    €2,67 €2,67
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

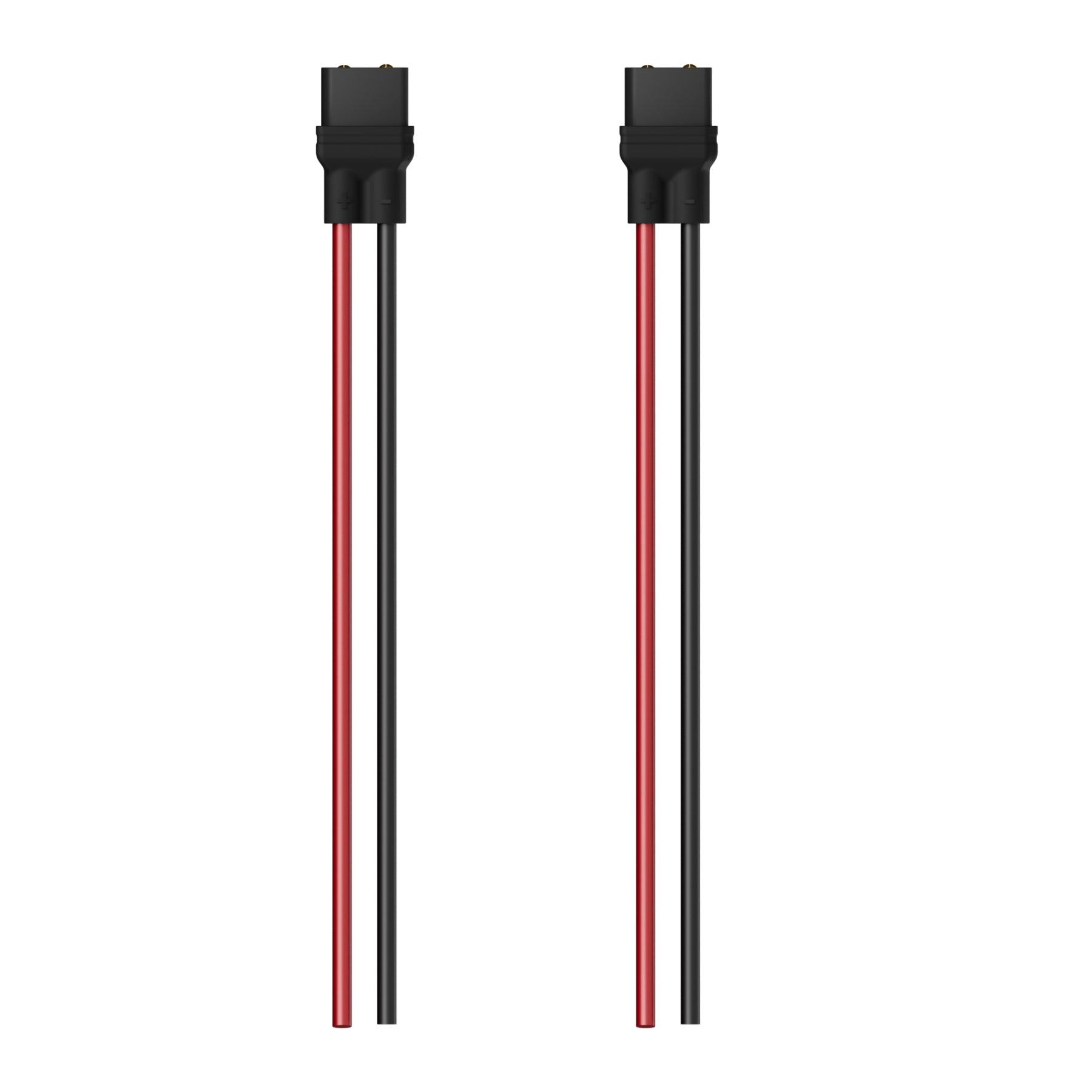

    Connector FLYWOO XT30UP-M Black Pigtail 18AWG (2 pcs)

The FLYWOO XT30UP-M Black Pigtail Connector (Male, 18AWG) is a robust and reliable power solution for powerful RC and FPV rigs. Featuring a reinforced original housing, the Amass XT30 is designed to resist cable breakage and loosening with repeated use. The low contact resistance (0.7 mΩ) and 18AWG wire made of quality silicone allow a current of 15 A continuous and up to 30 A peak with minimal power loss. Non-flammable PA insulation, 500V breakdown strength and durable construction for over 1000 connections make this connector an ideal choice for batteries, ESCs and chargers.

Specifications:

Wire gauge: 18AWG
Rated current: 15 A
Peak current: 30 A
Contact resistance: 0.7 mΩ
Breakdown resistance: 500 V DC
Operating temperature: -20 °C to 120 °C
Inflammability class: UL94-V0
Color: Black
Insulation material: PA (polyamide)
Recommended number of cycles: 1000+

The package contains:

2 × FLYWOO XT30UP-M Black Pigtail Connectors (Male, 18AWG)
