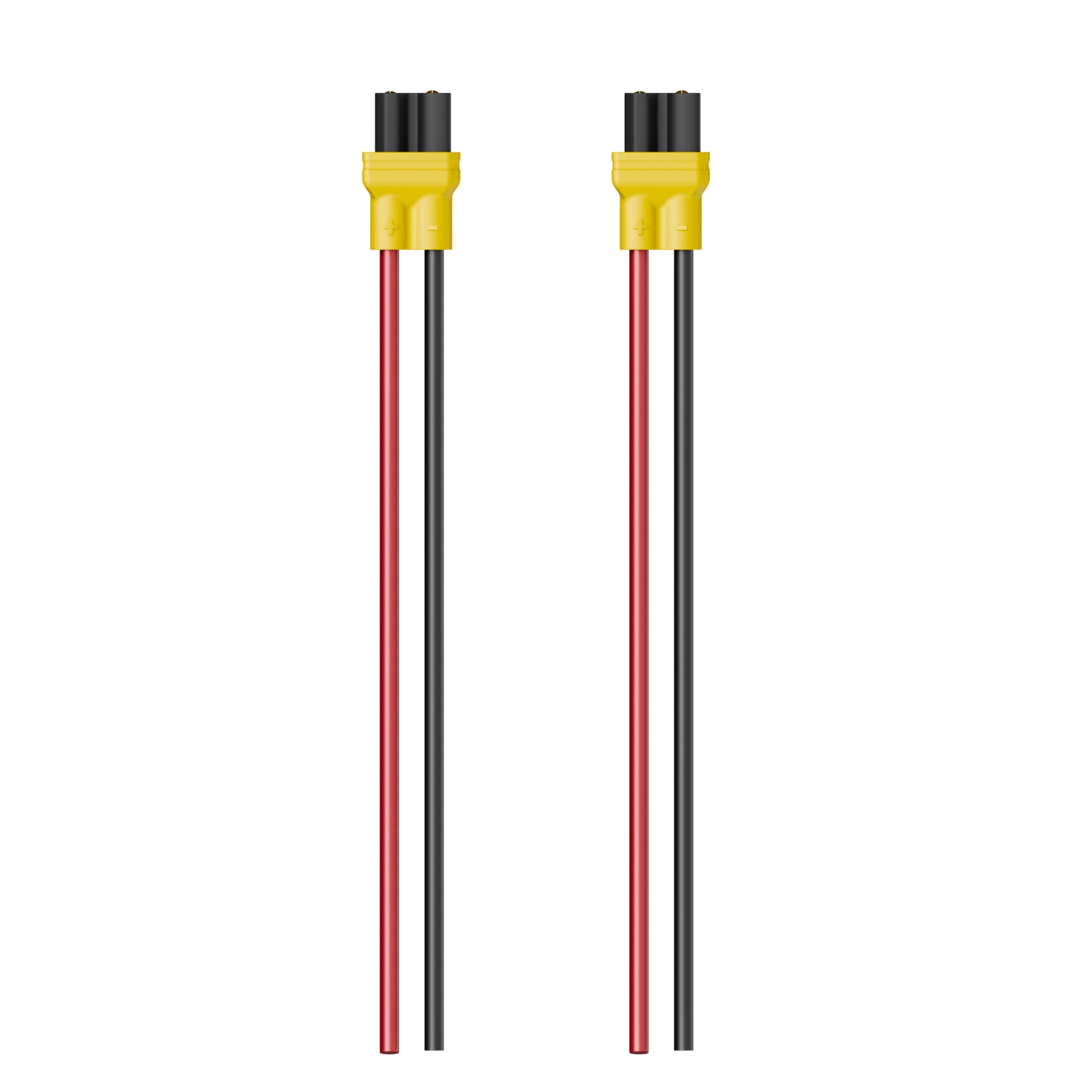

    Connector FLYWOO XT30UP-F Yellow Pigtail 18AWG (2 pcs)

The FLYWOO XT30UP-F Yellow Pigtail Connector is a premium upgrade designed to prevent plugging damage and ensure a reliable connection in demanding RC and FPV applications. The reinforced original Amass XT30 shell provides a strong and secure connection that resists loosening even with repeated use. This model is fitted with high quality 18AWG silicone wire for efficient power transfer, rated at 15A continuous current and up to 30A peak current. With low contact resistance, non-flammable insulation and a lifetime of over 1000 cycles, this connector is an ideal choice for ESCs, batteries and chargers.

Specifications:

Model: A30
Standard current: 15A
Peak discharge current: 30A
Voltage resistance: DC 500V
Contact impedance: 1.6 mΩ
Connector color: Yellow
Contact material: Gold-plated brass
Insulation material: PA66
Operating temperature: -20 °C to 120 °C
Inflammability class: UL94 V0

The package contains:

2 × FLYWOO XT30UP-F pigtail connectors (18AWG)
