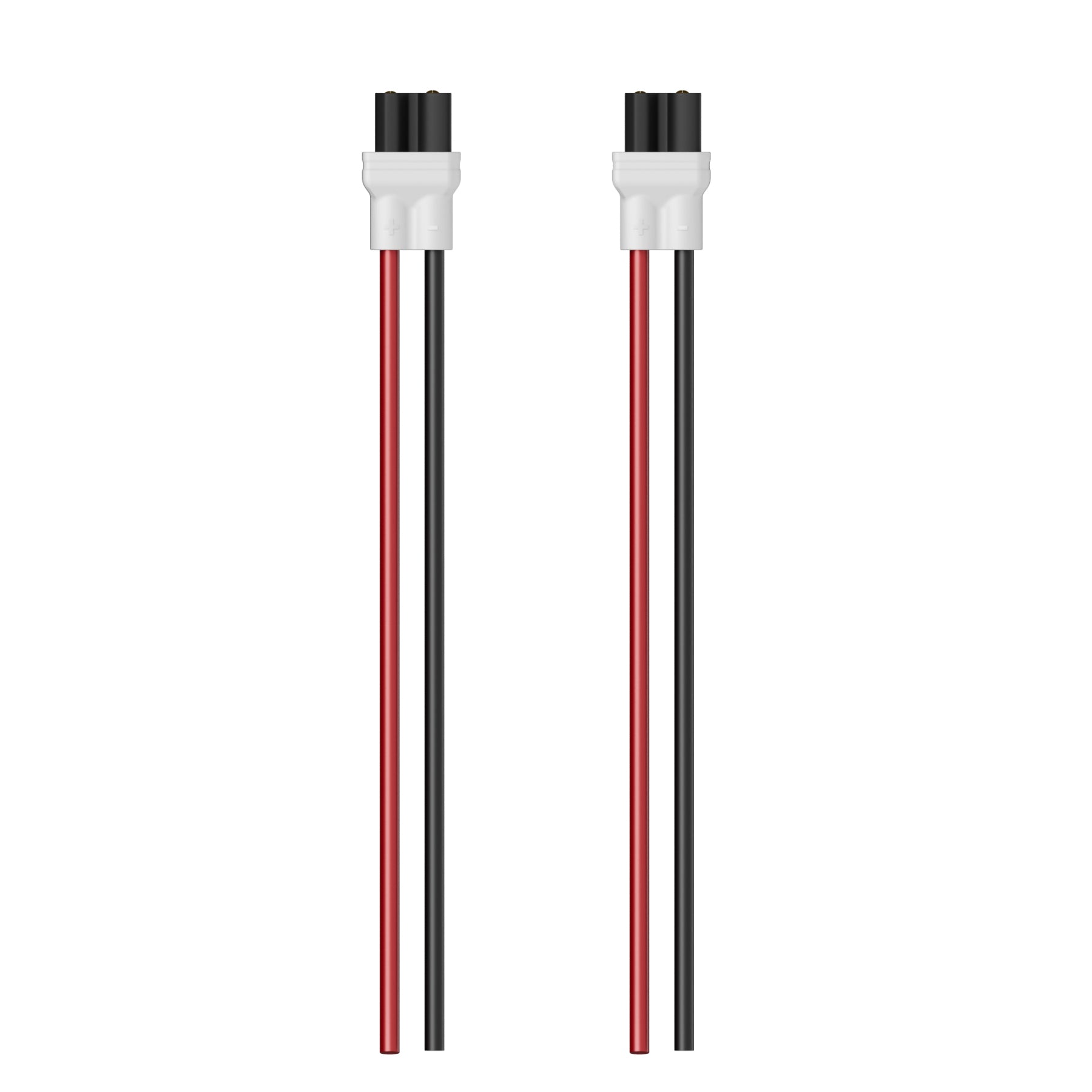

Connector FLYWOO XT30UP-F White Pigtail 18AWG (2 pcs)

The FLYWOO XT30UP-F White Pigtail Connector is a premium upgrade designed to prevent plugging damage and ensure a solid, long-term reliable connection in demanding RC and FPV applications. It is equipped with a reinforced original Amass XT30 shell, which ensures comfortable handling and a solid connection that will not loosen over time. This version features high quality 18AWG silicone wire for efficient power transfer, rated at 15A continuous current and up to 30A peak current. With non-flammable insulation, low contact resistance and a design with a lifespan of over 1000 connections, this connector is ideal for use with ESCs, batteries and charging systems.

Specifications:

Model: A30
Standard current: 15A
Peak discharge current: 30A
Withstand voltage: DC 500V
Contact impedance: 1.6 mΩ
Connector color: White
Contact material: Gold-plated brass
Insulation material: PA66
Operating temperature: -20 °C to 120 °C
Inflammability class: UL94 V0

The package contains:

2 × FLYWOO XT30UP-F pigtail connectors (18AWG)
