Code: SKU:FW19003776

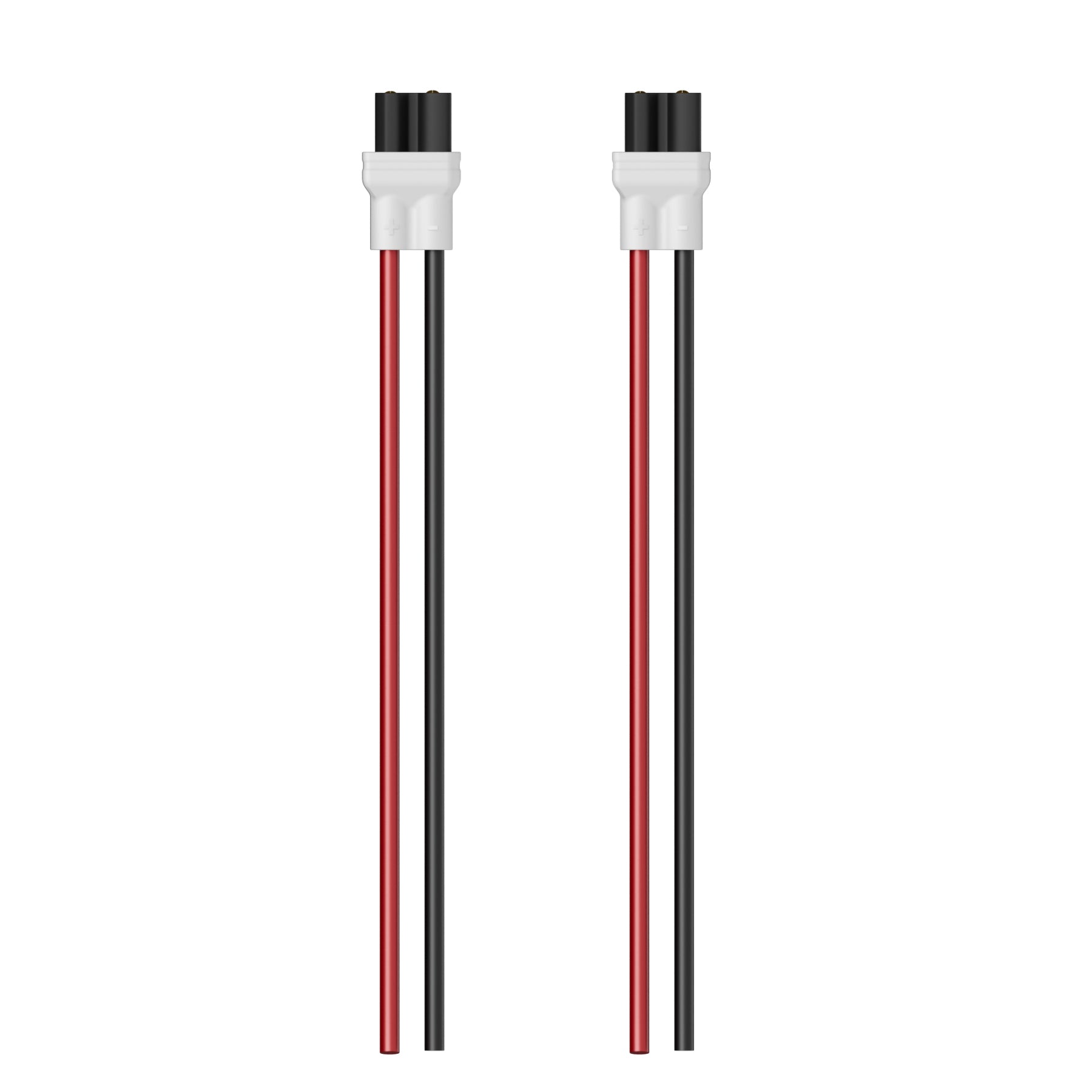

Connector FLYWOO XT30UP-F Red Pigtail 20awg Female(2 pcs)
Connector FLYWOO XT30UP-F Red Pigtail 20awg Female(2 pcs)
Brand: FLYWOO
Regular price
€2,67
Regular price
€2,67
Sale price
€2,67
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Connector FLYWOO XT30UP-F Red Pigtail 20AWG (2 pcs) The FLYWOO XT30UP-F Red Pigtail Connector with 20AWG Silicone Wire is a lightweight and durable solution designed to eliminate common problems such as broken plugs and loose connections in FPV drones and RC models. Thanks to the original Amass XT30 case, it provides safe connection, comfortable handling and smooth movement when connecting and disconnecting. It is rated for 15 A of continuous current and up to 30 A of peak current, ensuring efficient power transfer in compact assemblies. Non-flammable PA insulation and low contact resistance (0.7 mΩ) ensure reliability and safe operation in a wide temperature range. Designed for up to 1000 connections. Specifications: Model: XT30UP-F Wire gauge: 20AWG Rated current: 15 A Peak current: 30 A Contact resistance: 0.7 mΩ Breakdown resistance: 500 V DC Operating temperature: -20 °C to 120 °C Inflammability class: UL94-V0 Color: Red Insulation material: PA (polyamide) Recommended number of cycles: 1000+ The package contains: 2 × FLYWOO XT30UP-F pigtail connectors (20AWG)
