Code: SKU:FW19003768

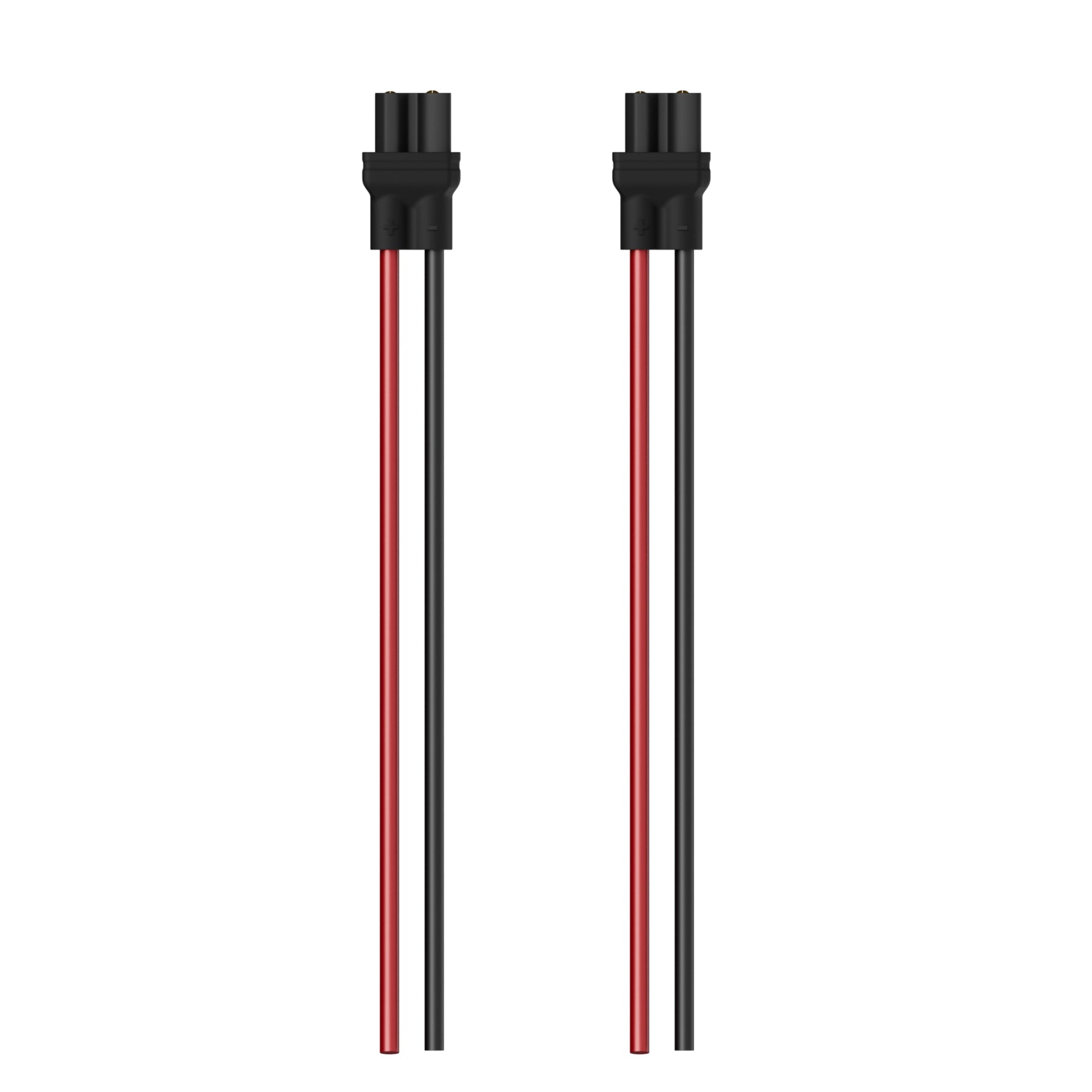

Connector FLYWOO XT30UP-F Black Pigtail 18awg Female (2 pcs)
Connector FLYWOO XT30UP-F Black Pigtail 18awg Female (2 pcs)
Brand: FLYWOO
Regular price
€1,34
Regular price
€1,34
Sale price
€1,34
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Connector FLYWOO XT30UP-F Black Pigtail 18AWG (2 pcs) The FLYWOO XT30UP-F Black Pigtail Connector is a cutting-edge upgrade designed to prevent plugging damage and ensure a solid, long-term reliable connection in demanding RC and FPV applications. It features a reinforced original Amass XT30 shell that provides comfortable handling and a tight connection that won't loosen over time. This version features high quality 18AWG silicone wire for efficient power transfer, rated at 15A continuous and up to 30A peak current. With non-flammable insulation, low contact resistance and a durable construction with a lifetime of over 1000 connections, this connector is ideal for ESCs, batteries and charging systems. Specifications: Model: A30 Standard current: 15A Peak discharge current: 30A Voltage resistance: DC 500V Contact impedance: 1.6 mΩ Connector color: Black Contact material: Gold-plated brass Insulation material: PA66 Operating temperature: -20 °C to 120 °C Inflammability class: UL94 V0 The package contains: 2 × FLYWOO XT30UP-F pigtail connectors (18AWG)
