Code: SKU:6046
Charging board HGLRC Thor 1S V2 6-port
Charging board HGLRC Thor 1S V2 6-port
Brand: HGLRC
Couldn't load pickup availability
- Description
- Related Files
- Discussion
HGLRC Thor 1S V2 6-Port Charging Board
HGLRC Thor 1S V2 is a compact and efficient solution for charging multiple devices at once, which was designed specifically for 1S lithium batteries. This charger offers speed, compatibility and security in one sleek package. It's ideal for pilots who appreciate speed, flexibility and reliable power management in the field and at home.
Features:
- Fast charging ready: Supports PD3.0, QC3.0 and BC1.2 fast charging protocols. Pair it with a 65W high-power adapter for super fast charging.

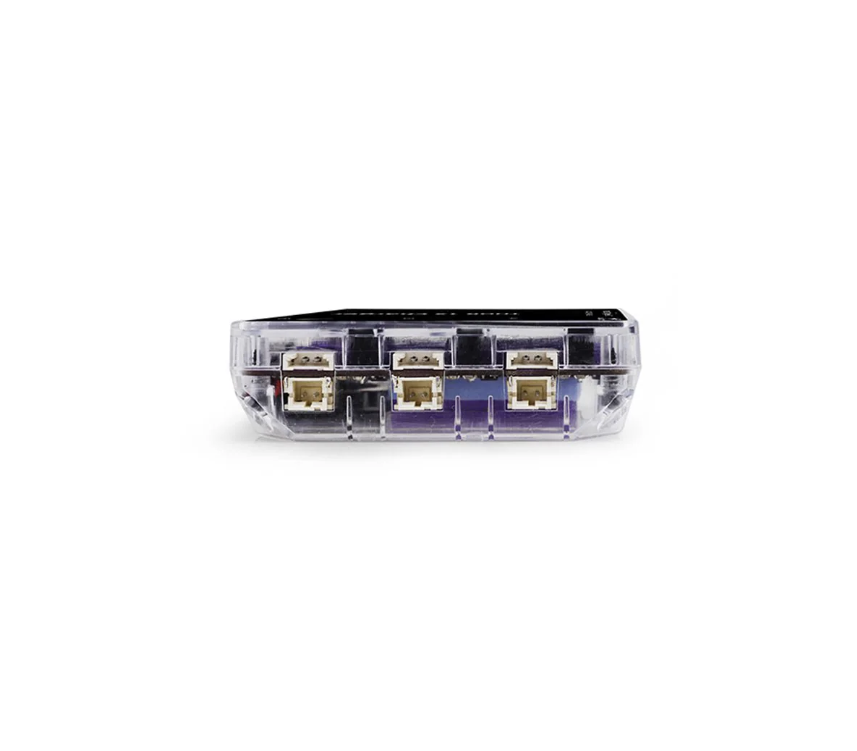

- Universal compatibility: Equipped with PH2.0, MX2.0, A30 and BT2.0 ports - charge different types of batteries without changing boards.
- 6-port simultaneous charging: Efficiently charges up to 6 batteries at once, with a maximum current of 800mA-1A per port.
- Support dual voltage: Easily switch between 4.2V (standard Li-ion/LiPo) and 4.35V (LiHV) charging modes with a physical switch.
- Active cooling: Integrated heatsink and cooling fan ensure stable operation during long charging cycles.
Specifications:
Input interface: Type C
Input voltage: PD3.0 Type C 12 V
Input power: Max. 65W
Battery type: LiPo/LiHv
Maximum single channel charging current: (800mA-1A)
Charging interface supported: PH2.0 & MX2.0 & A30 & BT2.0
Charging cut-off voltage: 4.20V (±0.5V) low voltage lithium-ion battery and 4.35V (±0.5V) high-voltage lithium-ion battery

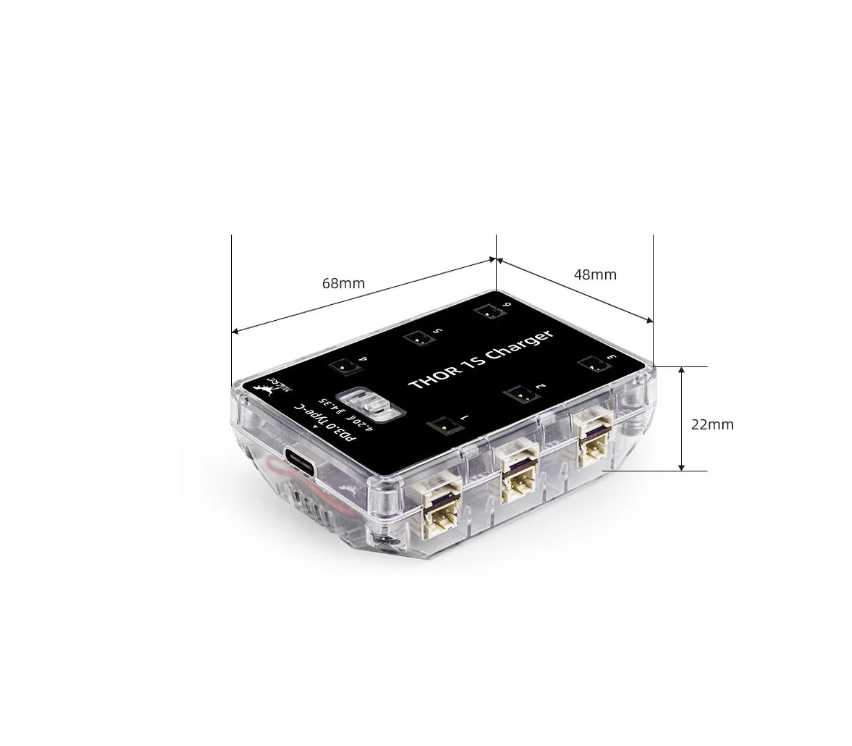

Dimensions (L*W*H): 68mm x 48mm x 22mm

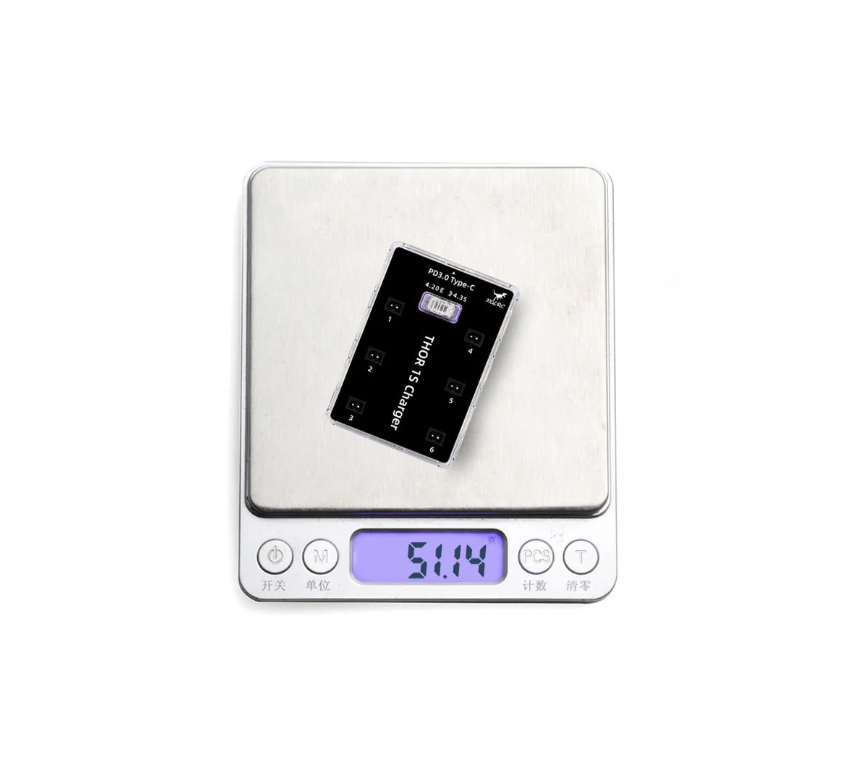

Weight: 51.14g
The package contains:
1x lithium charger Thor 1S Charger V2
