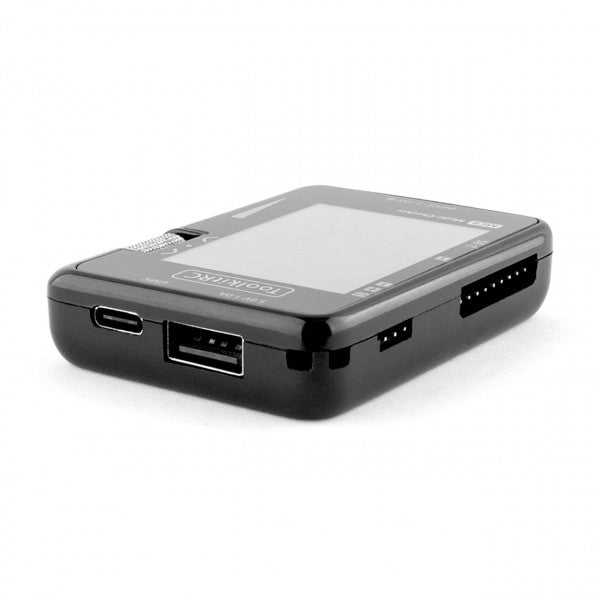

ToolkitRC MC8 Multi-checker

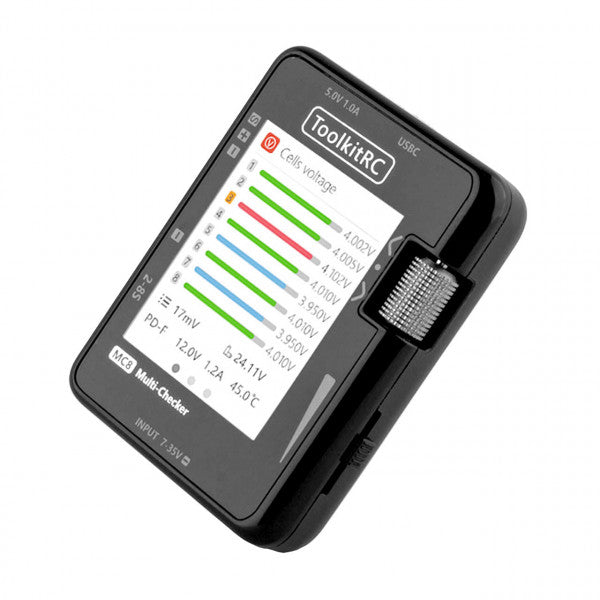

The MC8 is a compact battery multi-controller with a color IPS display and exceptional accuracy down to 5 mV.

Function:

- Measures and balances lithium batteries
- Measurement and output of various signals (PWM, PPM, SBUS)
- Wide input voltage range with DC 7.0-35.0V
- Includes master, balance and signal inputs
- Dual output USB-A, USB-C
- USB-C 20 PD output for fast charging
- Overcharge protection

Specifications

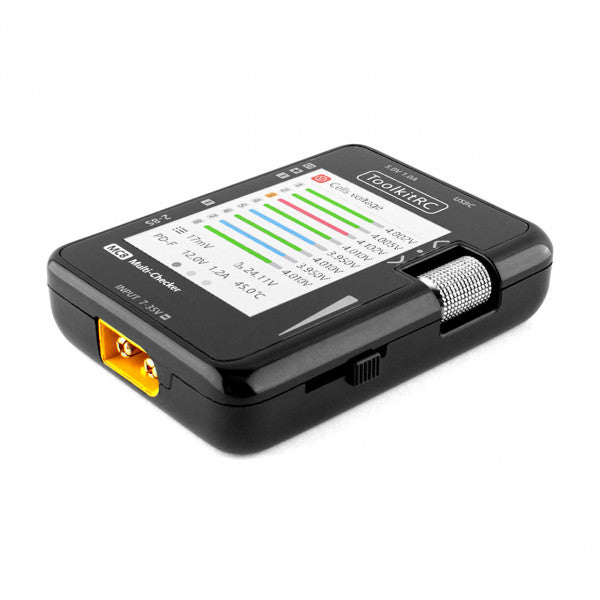

Main port: XT60 7.0V-35.0V
Signal port: <6.0V
Balance port: 0.5V-5.0V Lixx, 2-8S
Balancing current: max. 60mA, 2-8S
Balancer-Accuracy: <0.005V, 4.2V
USB-A output: 5.0V, 1.0A Firmware update
USB-C output: 5.0V-12.0V, max. 20W
USB-C protocol: PD3.0, QC3.0, AFC, SCP, FCP
Display: LCD, IPS 2.0'', 240x240px
Dimensions: 68 x 50 x 15 mm
Weight: 50g

Measurement:
PWM: 500us-2500us, 20-400Hz
PPM: 880us-2200us x8 CH, 20-50Hz
SBUS: 880us-2200us x16 CH, 20-100Hz
Exit:
PWM: 1000us-2000us, 20-1000Hz
PPM: 880us-2200us x8 CH, 50Hz
SBUS: 880us-2200us x16 CH, 74Hz

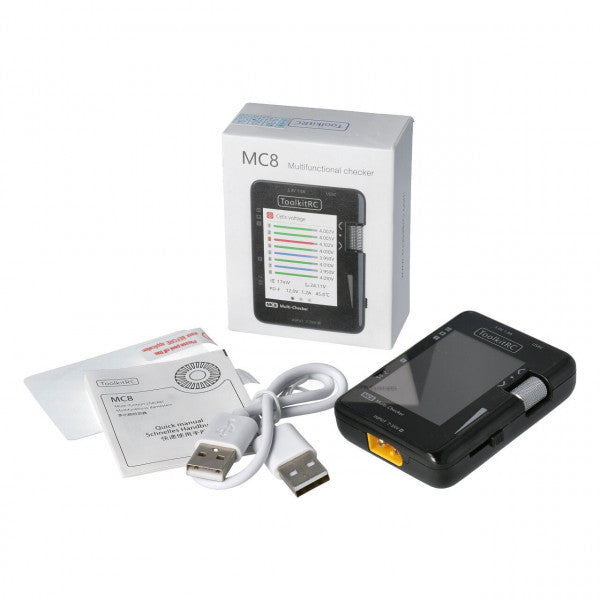

The package includes:
1x MC8 Multichecker
1x USB cable
1x screen protector
1x Manual
