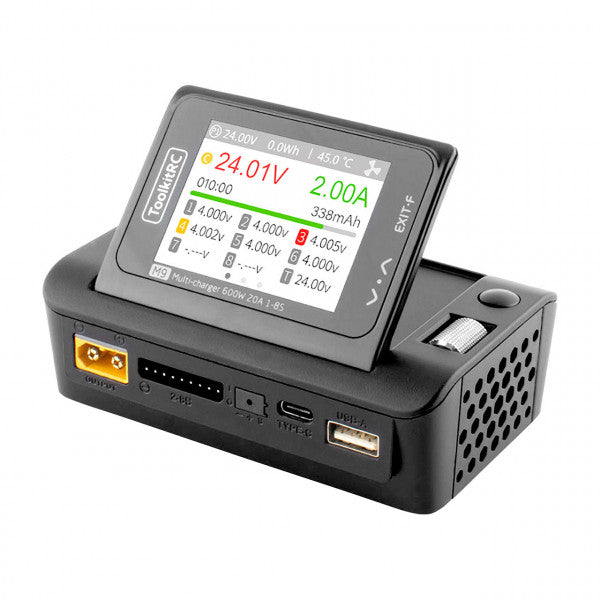

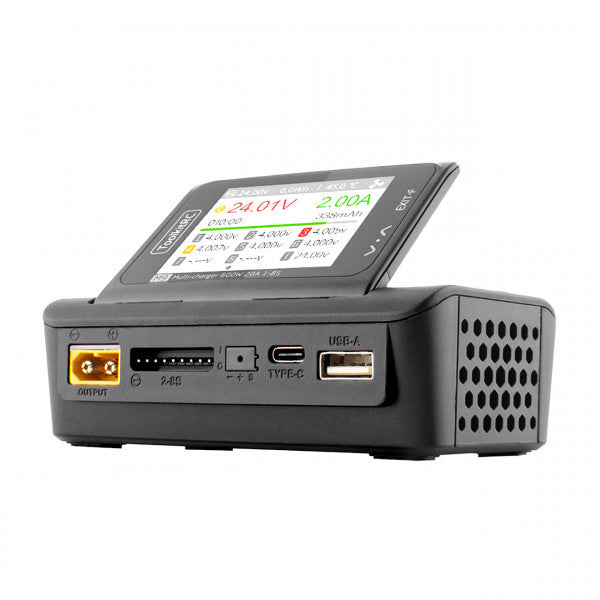

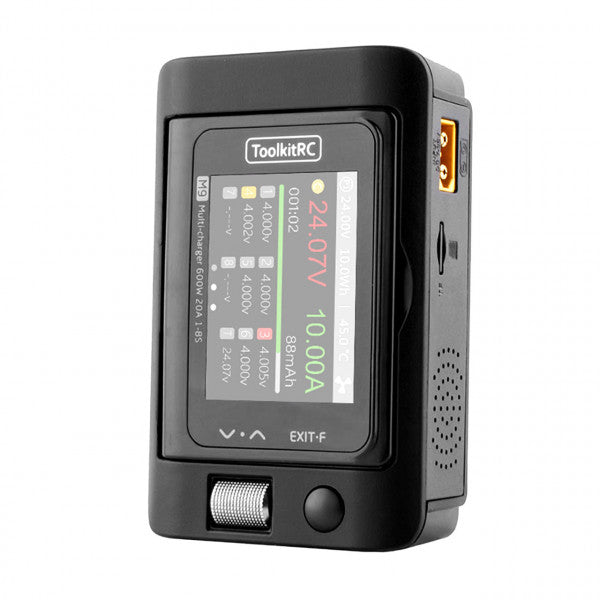

    ToolkitRC M9 multi-function charger

Function:
- 600W DC charging power and maximum charging current 20A
- Compact design - ideal for travel
- High-contrast color LCD display that can be tilted up to 80°
- Serves as a signal source and tester (PWM, PPM, SBUS)

Specifications:

Charge
Input: 7-35V@MAX25A
Battery type: LiPo, LiHV, LiFe, Lion, LTO@1-8S, NiMh @1-20S, Pb @1-10S
Balance: 1000mA @ 4.2V
Accuracy: <0.005V
Power: 0.1-20A@600W
Discharge power:
0.1-20A@600W Rec/Ext Mode
0.1-3A@20W Internal mode
USB: A+C 5-20V@65W PD QC PPS AFC SCP
Voltage: 1.0V-5.0V @1-6S
Internal resistance: 0.1mΩ-99Ω @1-8S

Measures
PWM: 880us-2200us@20-400Hz
PPM: 880us-2200us*8 CH@20-50Hz
SBUS: 880us-2200us*16 CH@20-100Hz

Exit
PWM: 500us-2500us@20-1000hz
PPM: 880us-2200us*8 CH@50Hz
SBUS: 880us-2200us*16 CH@74Hz
Power: 1-20A@1-35V Mode: CC+CV

LCD Display: IPS 2.4 inch: Resolution 320*240
Product size: 108mm * 71mm * 36mm
Weight: 235g
Individual package Size: 135mm * 81mm * 44mm
Weight: 330g

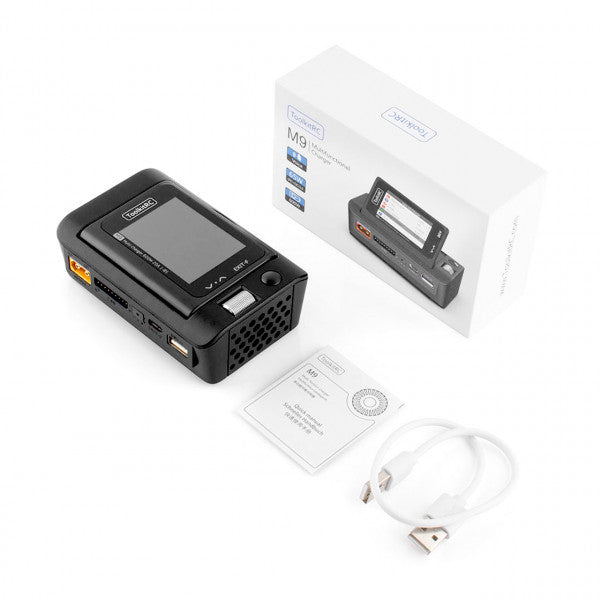

The package includes:
1x M9 charger
1x USB cable
1x Manual
