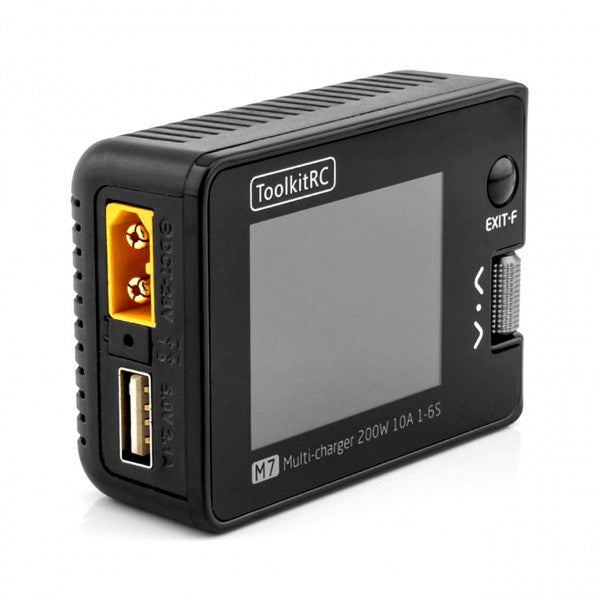

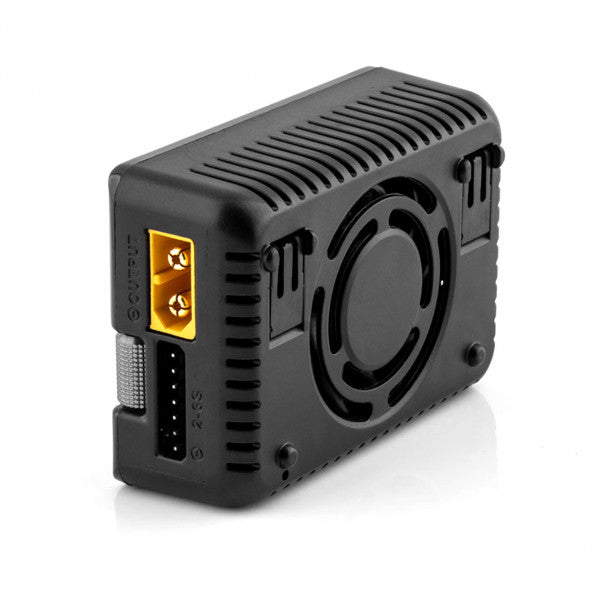

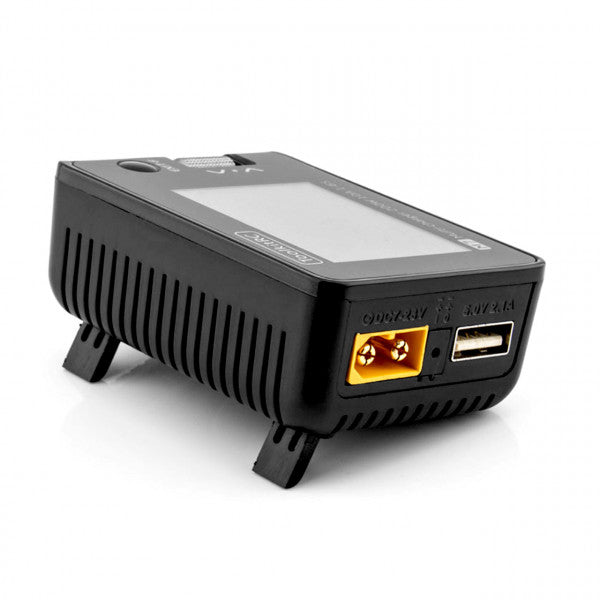

ToolkitRC M7 multifunctional balance charger

M7 is a small and light multifunctional balance charger. It can be used as a signal measuring device or directly as a signal source in terms of PWM, PPM and SBUS signals.

Function:

- Up to 300W charging power and a maximum charging current of 15A
- Max. 300W discharge power
- Charger
- Voltage, resistance, PWM/PPM/SBUS signal meter
- Playback of PWM/PPM/SBUS signals
- Multilingual user interface including voice output
- Option to upgrade via USB
- Various security checks

Specifications:

Input voltage: 7.0-28.0V  @MAX 12A

Charging power: 0.1-15A, 300W
Discharge Power: 0.1-15A, 300W (Recording Mode/External) / 0.1-3A, 15W (Internal Mode)
Charging accuracy: <0.005V
USB A: 5.0V@10W (or upgrade)
Balance current: 800mA, 4.2V
LiPo/LiFe/LiIon/LiHV cells: 1-6S
NiMH cells: 1-16S
Pb battery voltage: 1-10S
Voltage: 1.0V-5.0V, 1-6S

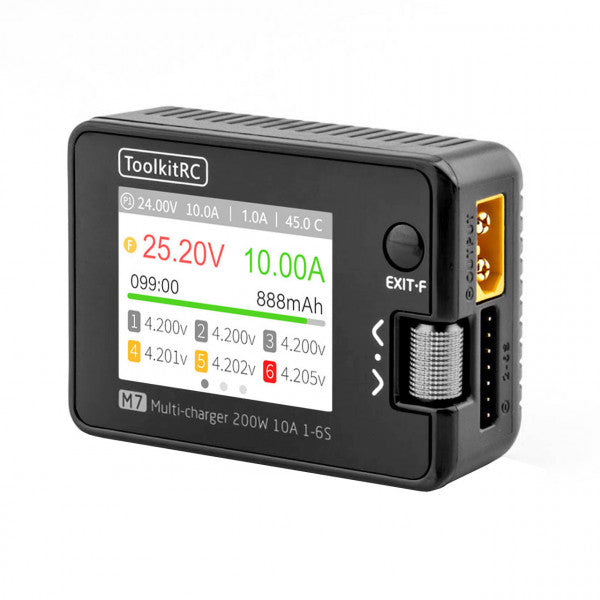

Display: IPS 2.4'' 320x240px LCD
TF card: Support 128MB to 16GB
Dimensions: 112 x 73 x 38 mm
Weight: 245g

Measurement
PWM: 880us-2200us, 20-400Hz
PPM: 880us-2200us x8 CH, 20-50Hz
SBUS: 880us-2200us x16 CH, 20-100Hz

Exit
PWM: 500us-2500us, 20-1000Hz
PPM: 880us-2200us x8 CH, 50Hz
SBUS: 880us-2200us x16 CH, 74hz
Power: 0.5-15A, 1-28V, Mode: CC+CV

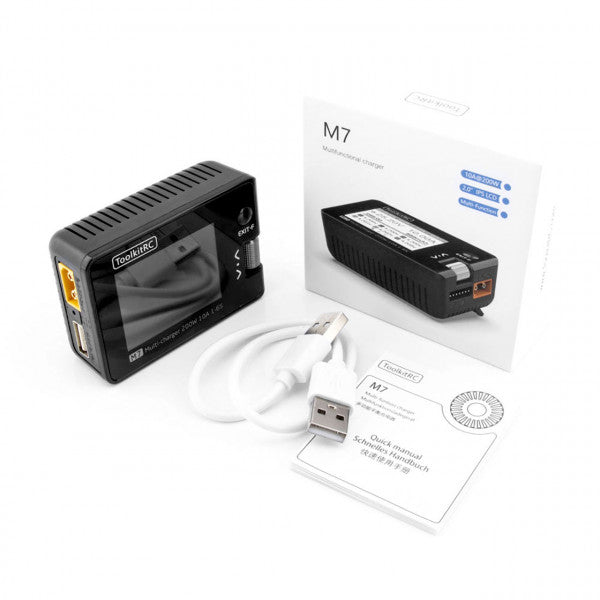

The package includes:
1x M7AC charger
1x USB cable
1x Manual
