Charger ToolkitRC M6DAC 2х350W (700W) 15A 1-6S AC/DC

Name: Charger ToolkitRC M6DAC 2х350W (700W) 15A 1-6S AC/DC
Brand: Baltic Drones
SKU: TK11500-EU
Price: 173.02 EUR
Availability: OutOfStock

Charger ToolkitRC M6DAC 2х350W (700W) 15A 1-6S AC/DC

Brand: ToolkitRC

€173,02

~~€173,02~~ €173,02

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

Charger ToolkitRC M6DAC 2x350W (700W) 15A 1-6S AC/DC

The M6DAC is a dual-channel charger with discharge, cycle charge and setup functions.

Specifications:

Input Voltage: DC 7.0-28.0V @MAX 30A / AC 100-240V @MAX 2.5A
LiPo/LiFe/LiIon/LiHV cells: 1-6S
NiMH/NiCd cells: 1-16S
Pb: 1-10S
Balance current: 1000mA @2-6S
Balance accuracy: <0.005V
Charger power: 0.1-15A @350W *2 (asynchronous mode) / 0.1-25A @700W (synchronous mode)
Discharge power: 200W @MAX 10A (recycling mode) / 15W@3A (normal mode)
USBC Power: MAX 65W 3.25A @ 20.0V or improved
USBC protocol: PD, QC, AFC, FCP, SCP, PE, SFCP, VOC
Battery voltage: 1.0V-5.0V@1-6S
Internal resistance: 1-100mR@1-6S
LCD: IPS 3.5 inch LCD 480*320 pixels
Product size: 127*106*57mm
Product weight: 520g
Package size: 158*134*63 mm
Package weight: 700g

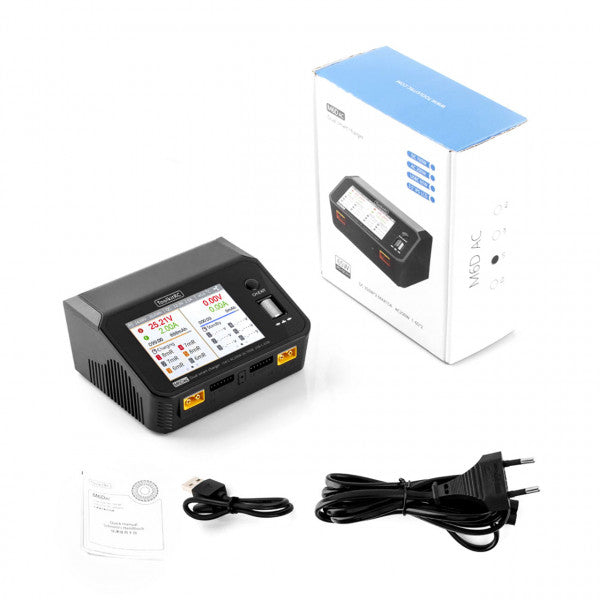

The package includes:
1x M6DAC charger
1x power cord
1x USB to USB-C cable
1x screen protector
1x Manual
