Code: SKU:TK10800
Charger ToolkitRC M6D 500W 15A 1-6S DC
Charger ToolkitRC M6D 500W 15A 1-6S DC
Brand: ToolkitRC
Couldn't load pickup availability
- Description
- Related Files
- Discussion

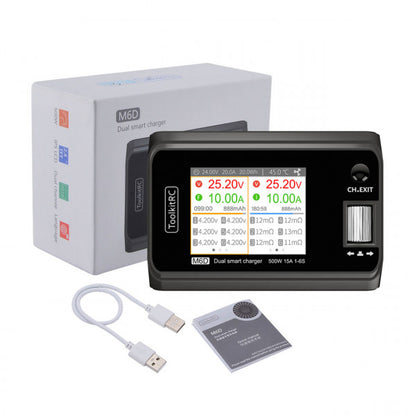

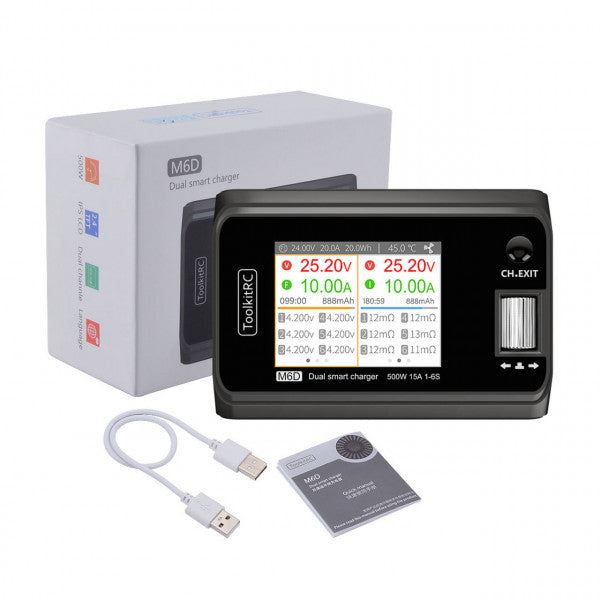

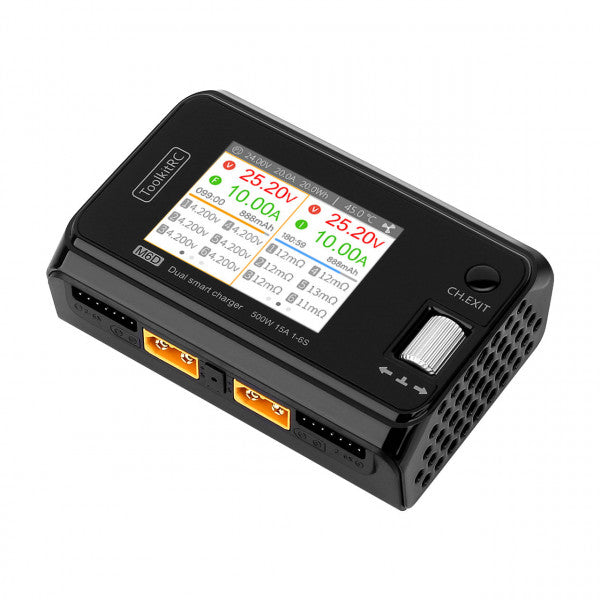

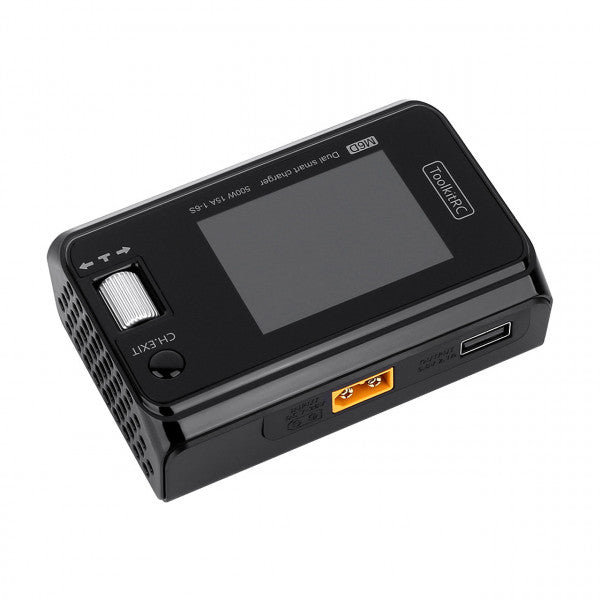

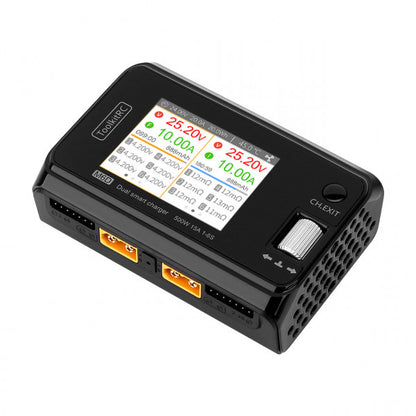

ToolkitRC M6D 500W 15A 1-6S DC Charger
Features:
- Up to 500W charging power and a maximum charging current of 25A
- Max. 250W discharge power
- Including DC input (7-28V)
- Simple operation with a rotary wheel and one button
- Multilingual user interface including voice output
- USB upgradeable
- Various security measures
Specifications:
Input: 7-28V@MAX30A
Battery type: LiPo LiHV LiFe Lion@1-6S NiMh @1-16S Pb @1-10S
Pack. current: 800mA @2-6S
Accuracy: <0.005V
Charging power: 0.1-15A@250W *2 (Asynchronous mode) 0.1-25A@500W (Synchronous mode)
Discharge power: 0.1-15A@250W*2 Recycle mode 0.1-3A@12W*2 Normal mode
USB: 2.1A @ 5V USB3.0
Battery voltage: 1.0V-5.0V @1-6S
Battery internal resistance: 1-100mR @1-6S
LCD display: IPS 2.4 inches, resolution 320*240
Dimensions: 98mm*68mm*35mm
Weight: 220g
Package details: 108.5mm*80.5mm*46m
Package weight: 300g
LCD: IPS 2.4 inch LCD, 320*240 pixels
