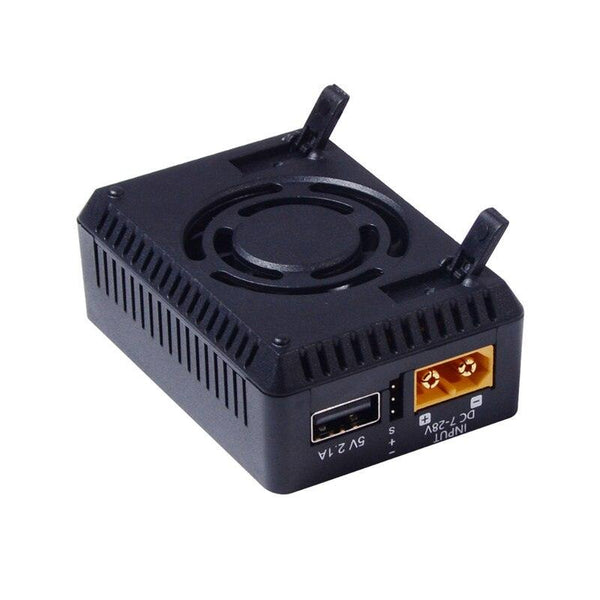

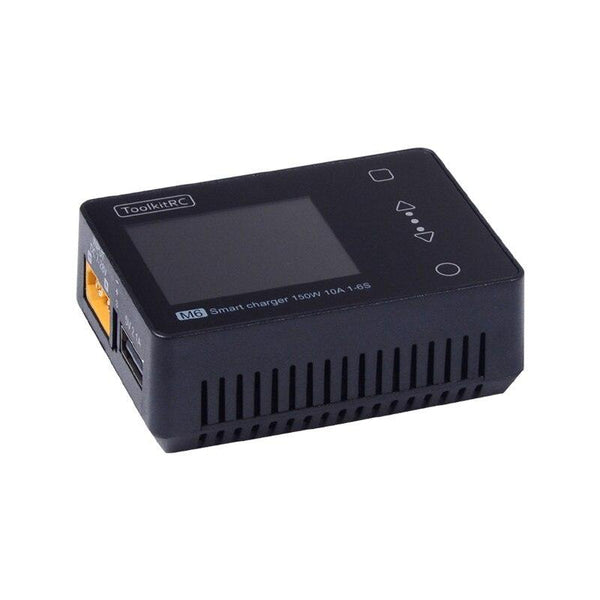

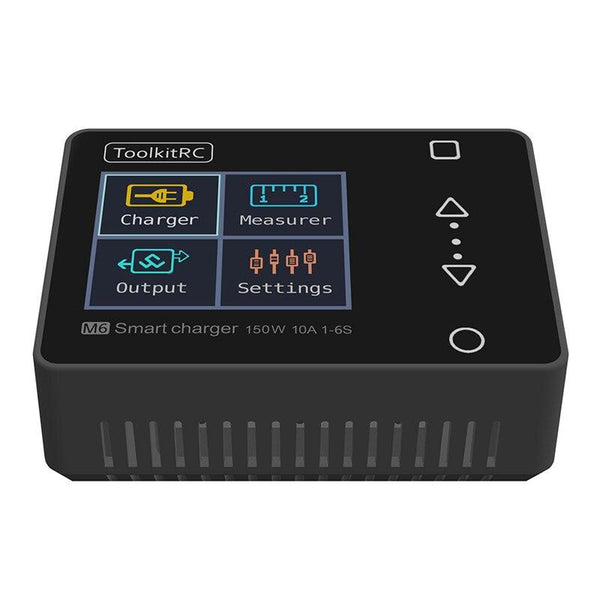

    ToolKitRC M6 V2 Black

M6 charger with LCD display can charge, discharge and support Lipo, LiHV, LiFe, Lion 1-6S, NiMh 1-16s and Pb 1-10S battery. It can also measure battery voltage and battery internal resistance.

Specifications

Charger
Input Voltage: 7.0-28.0V @MAX 12A
Battery Type: Lipo LiHV LiFe @1-6S / NiMh @1-16S / Pb @1-10S
Balance current: 400mA @2-6S
Charger power: 150W @MAX 10A
Discharge Power: 150W @MAX 10A Recycle Mode / 8W@2A Normal Mode
USB: 2.1A @ 5.0V or Upgrade
Dimensions: 70*50*26 mm
Weight: 80g
Black color
LCD: TFT 1.8 inch LCD 160*128 pixels

Meter
PWM: 880-2200us @ 20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
Internal resistance: 10-100mR @1-6S

Exit
PWM: 500-2500us @ 20-1000Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Power supply: 1.0-28.0V @1.0-10A mode: CC+CV
Overcurrent limit time: 50 ms

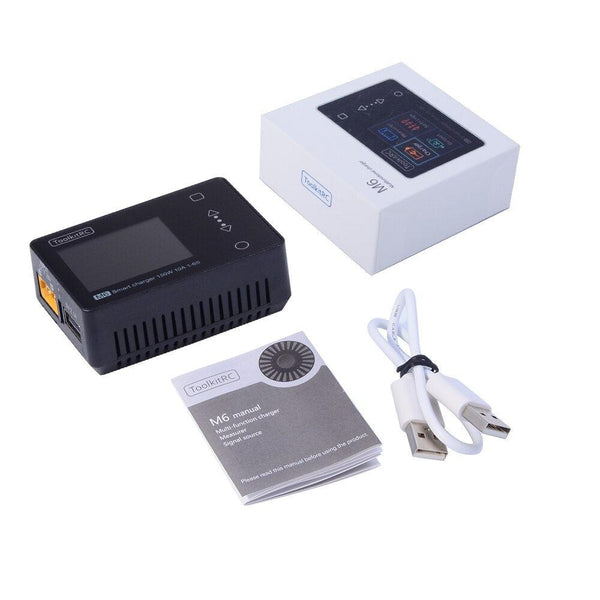

Packaging included:
1X ToolkitRC M6 Charger (Black)
