Code: SKU:SK-100196-01
Charger SkyRC D200neo AC 2*100W DC 2*400W
Charger SkyRC D200neo AC 2*100W DC 2*400W
Brand: SkyRC
Regular price
€112,50
Regular price
€112,50
Sale price
€112,50
Unit price
/
per
In stock
Limited stock available. Order soon!
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
SkyRC D200neo Charger is a high-performance charging system designed for RC enthusiasts, featuring advanced technology and a dual-port system for efficient charging. Below is a detailed overview of its specifications and features:
Key Features:
-
Processor:
- Powered by an ARM Cortex-M4 microprocessor that includes a built-in DSP instruction for enhanced processing.
- The floating-point unit (FPU) speeds up operations with floating-point numbers.
-
Proprietary HyperBoost technology:
- 200 MHz ARM microprocessor improves ADC resolution to 16 bits using oversampling technology.
- An efficient PID mechanism finely tunes the current to increase response speed and accuracy.
-
Dual input modes:
- AC mode: Up to 200W charging power per port.
- DC mode: Up to 800W charging power per port.
-
Current charging:
- Charge two battery packs independently at the same time, with power intelligently distributed.
-
Parallel charging:
- Fast charging current up to 35A, allowing fast charging while users are engaged in other activities.
-
Intelligent power distribution:
- Dynamically adjusts the power distribution between the two ports, which ensures efficient use of the total power.
Specifications:
- Case material: Plastic

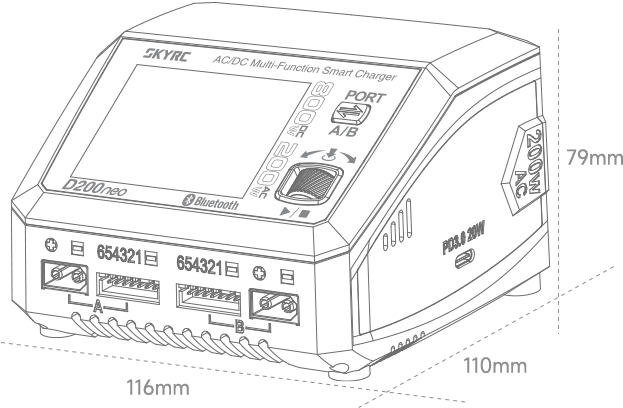

- Dimensions: 116mm x 110mm x 79mm
- Weight: 602g
Display:
- Type: TN display
- Size: 2.8 inches
- Active area: 43.20 mm x 57.60 mm
- Resolution: 240 x 320 pixels
- Primary color: 262K colors
Power Specifications:
- DC input voltage: 10-30V
- AC input voltage: 100-240V
- Charging power:
- AC: 100W max per port (200W total)
- DC: 400W max per port (800W total)
Discharge power:
- Main port: 10W
- Balance port: max 37W
- External discharge: max 350W
USB-C Power Delivery:
- QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A (18W)
- PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A (20W)
Supported battery types:
- LiPo/LiHV/LiFe/LiIon: 1-6 cells
- NiMH/NiCd: 4-15 cells
- Lead accumulators (Pb): 3S/6S/12S
Charging and discharging specifications:
-
Charging current:
- 0.1 - 20.0A for all types
- Parallel: 20.0 - 35.0A
-
Discharge current:
- 0.1 - 2.0A for all types
- External discharge: 0.1 - 40.0A
-
Balance current:
- max 1.5A for LiPo/LiFe/LiIon/LiHV
Operating modes:
- LiPo/LiFe/LiIon/LiHV: Balancing, Charging, Discharging, Storage, Parallel
- NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
- Pb: Normal, AGM charge, Cold charge, Discharge
